A/T - U660E Solenoid Identification

TRANSMISSION & CLUTCH
TC005-06

Title:
U660E TRANSMISSION SOLENOID
IDENTIFICATION

Models:
'07 ES 350

August 8, 2006

Introduction

This service bulletin provides information on the proper identification of the 7 solenoids used in the U660E transmission.

Applicable Vehicles

^ 2007 model year ES 350 vehicles.

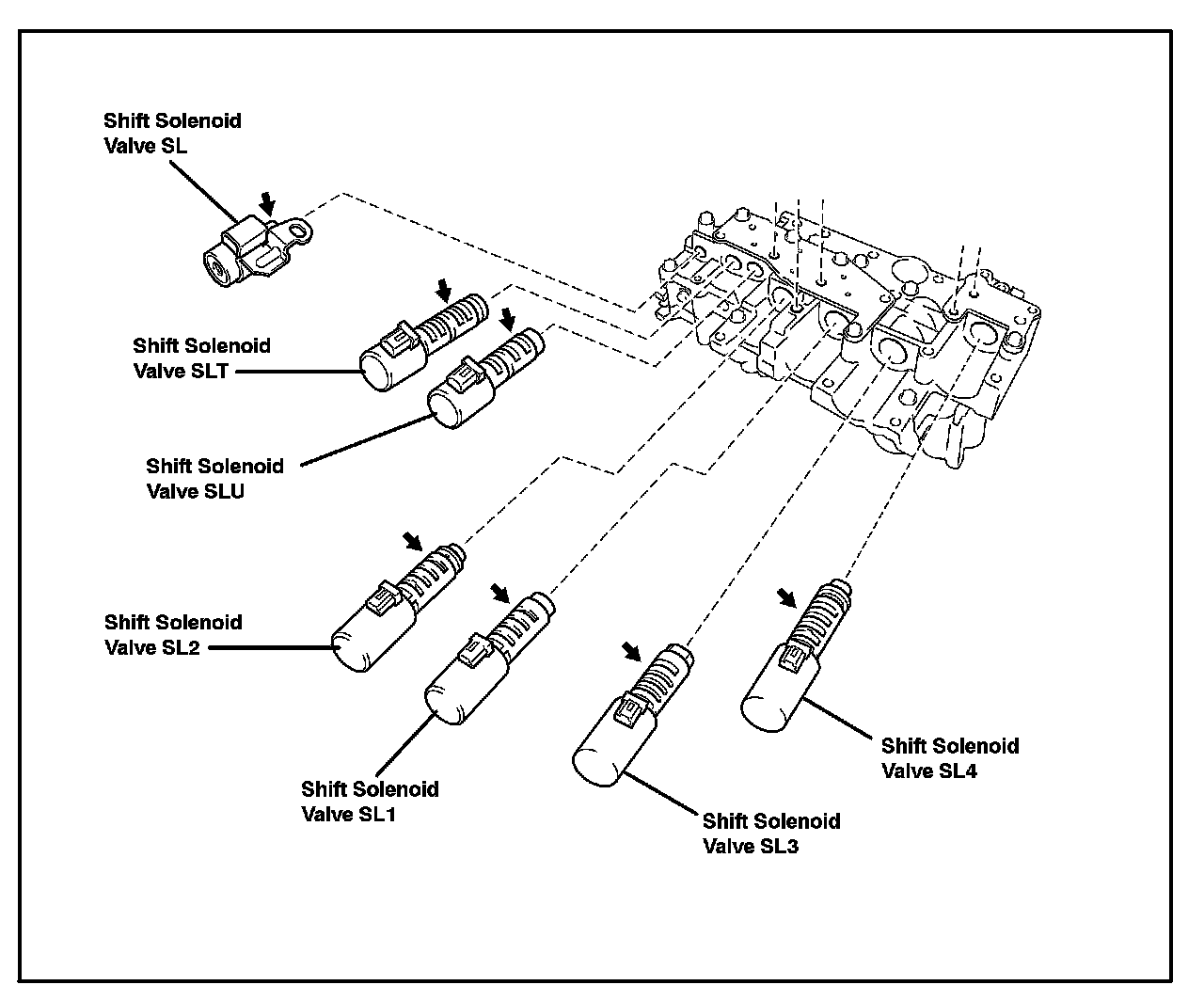

Transmission Solenoid Identification

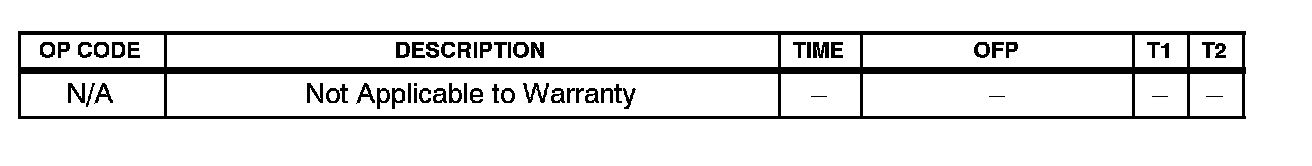

Warranty Information

Parts Information

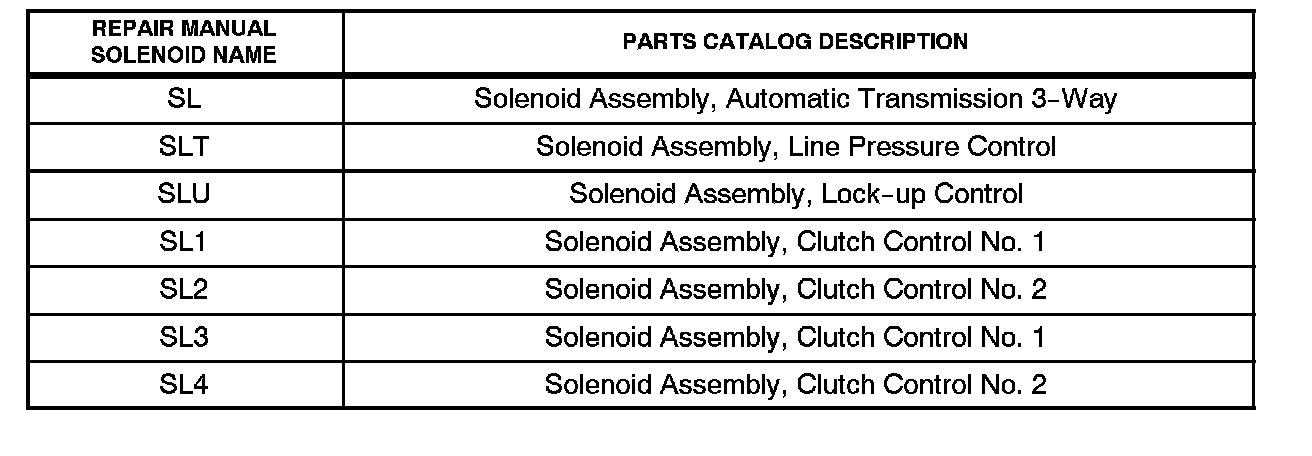

Provided is a chart listing the Repair Manual name of each solenoid used in the U660E transmission as well as the part name description provided in the electronic parts catalog.
