Ignition Coil: Service and Repair
REMOVAL1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE COOL AIR INTAKE DUCT SEAL
3. REMOVE ENGINE ROOM SIDE COVER LH
4. REMOVE ENGINE ROOM SIDE COVER RH
5. REMOVE FRONT SUSPENSION UPPER CENTER BRACE
6. REMOVE V-BANK COVER SUB-ASSEMBLY
7. DRAIN ENGINE COOLANT
8. REMOVE AIR CLEANER CAP SUB-ASSEMBLY
9. REMOVE INTAKE AIR SURGE TANK ASSEMBLY
10. REMOVE NO. 1 SURGE TANK STAY

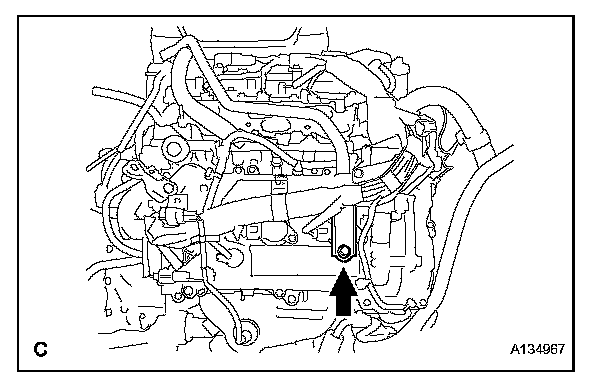

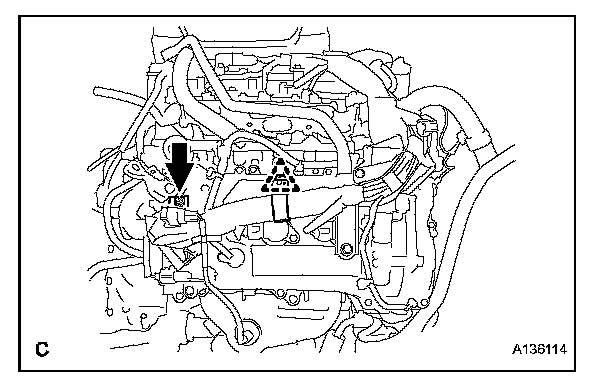

a. Remove the bolt and disconnect the harness clamp.
b. Remove the bolt and No. 1 surge tank stay.
11. REMOVE IGNITION COIL ASSEMBLY

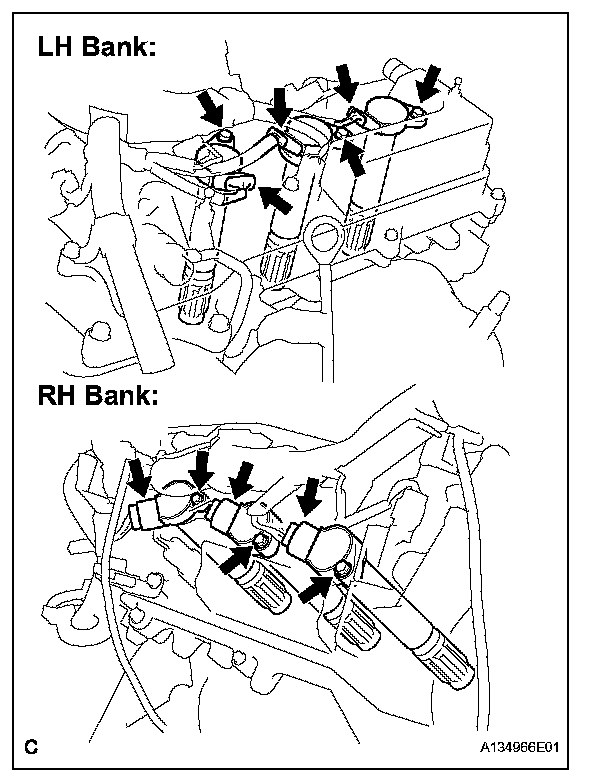

a. Disconnect the 6 ignition coil connectors.
b. Remove the 6 bolts and 6 ignition coils.
INSTALLATION
1. INSTALL IGNITION COIL ASSEMBLY
a. Install the 6 ignition coils with the 6 bolts.
Torque: 10 N.m (102 kgf.cm, 7 ft.lbf)
b. Connect the 6 ignition coil connectors.
2. INSTALL NO. 1 SURGE TANK STAY

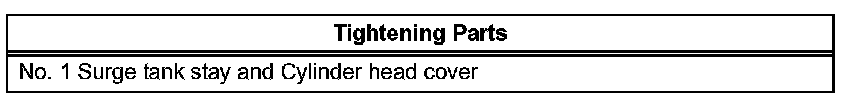

NOTE: DO NOT apply oil to the bolt listed:

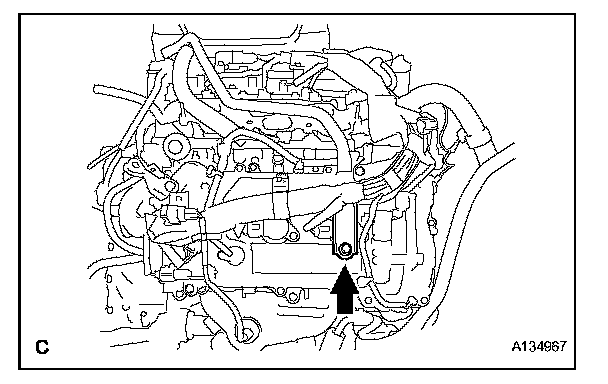

a. Install the No. 1 surge tank stay with the bolt.
Torque: 21 N.m (214 kgf.cm, 15 ft.lbf)

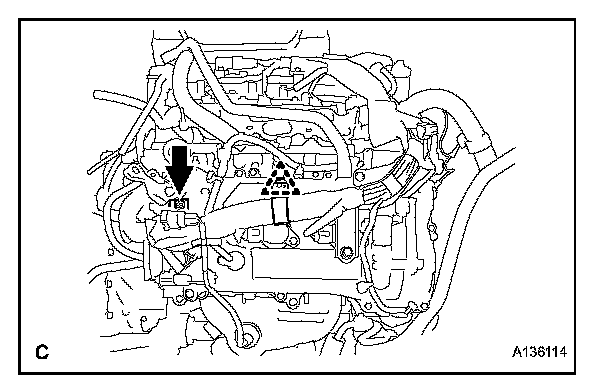

b. Install the bolt and clamp.
Torque: 10 N.m (102 kgf.cm, 7 ft.lbf)
3. INSTALL INTAKE AIR SURGE TANK ASSEMBLY
4. INSTALL AIR CLEANER CAP SUB-ASSEMBLY
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. ADD ENGINE COOLANT
7. CHECK FOR ENGINE COOLANT LEAKS
8. INSTALL FRONT SUSPENSION UPPER CENTER BRACE
9. INSTALL V-BANK COVER SUB-ASSEMBLY
10. INSTALL ENGINE ROOM SIDE COVER LH
11. INSTALL ENGINE ROOM SIDE COVER RH
12. INSTALL COOL AIR INTAKE DUCT SEAL
13. PERFORM INITIALIZATION
a. Perform initialization procedure.
NOTE: Some vehicle systems require initialization after reconnecting the cable to the negative battery terminal.
