Air Fuel Ratio Sensor

INSPECTION

1. INSPECT AIR FUEL RATIO SENSOR

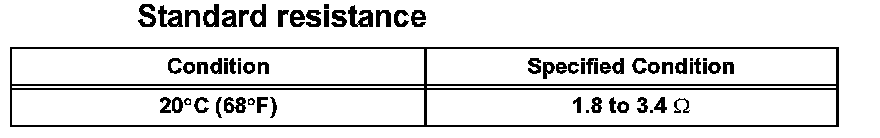

a. Measure the resistance between terminals 1 (HT) and 2 (+B).

If the result is not as specified, replace the sensor.
