Oxygen Sensor Relay: Testing and Inspection

INSPECTION

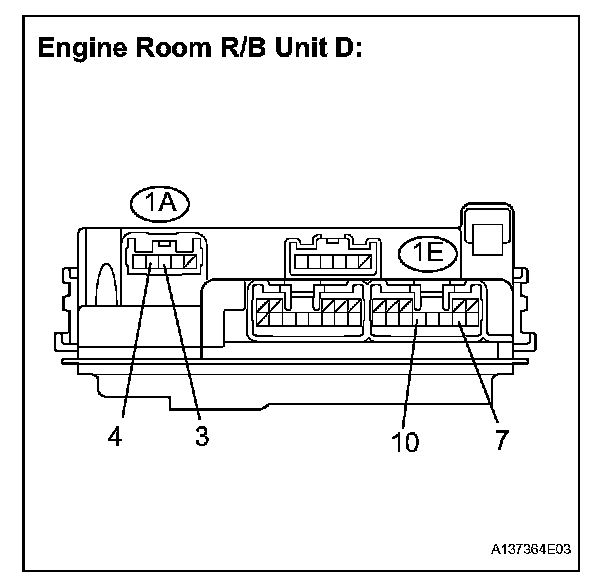

1. INSPECT AIR FUEL RATIO SENSOR RELAY

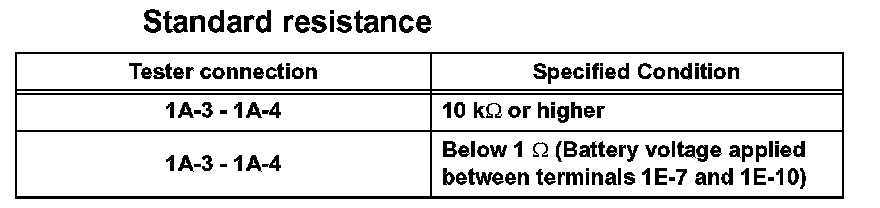

a. Using an ohmmeter, measure the resistance according to the value(s) in the table.
