Circuit Opening Relay

INSPECTION

1. INSPECT CIRCUIT OPENING RELAY

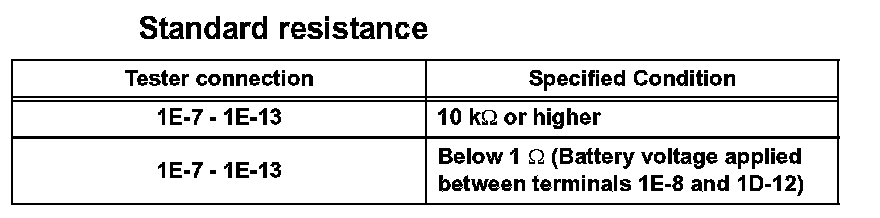

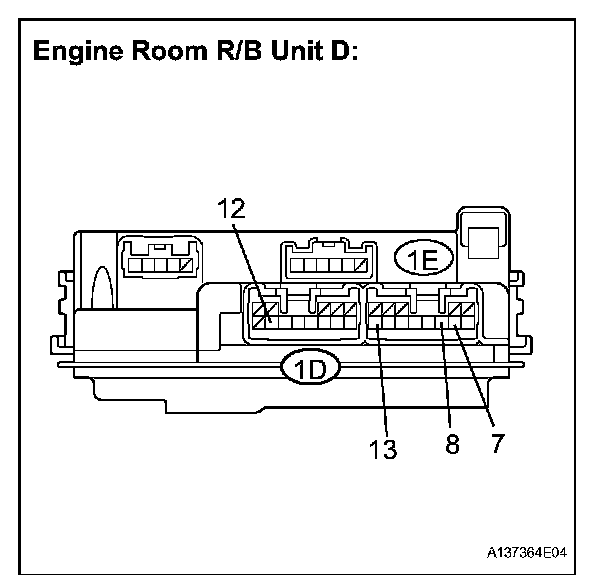

a. Using an ohmmeter, measure the resistance according to the value(s) in the table.
