Tire Pressure Warning Reset Switch Circuit
Tire Pressure Warning Reset Switch CircuitDESCRIPTION
Receiving a signal from the tire pressure warning reset switch, the tire pressure warning ECU and receiver indicates the initialization of the tire pressure warning system.

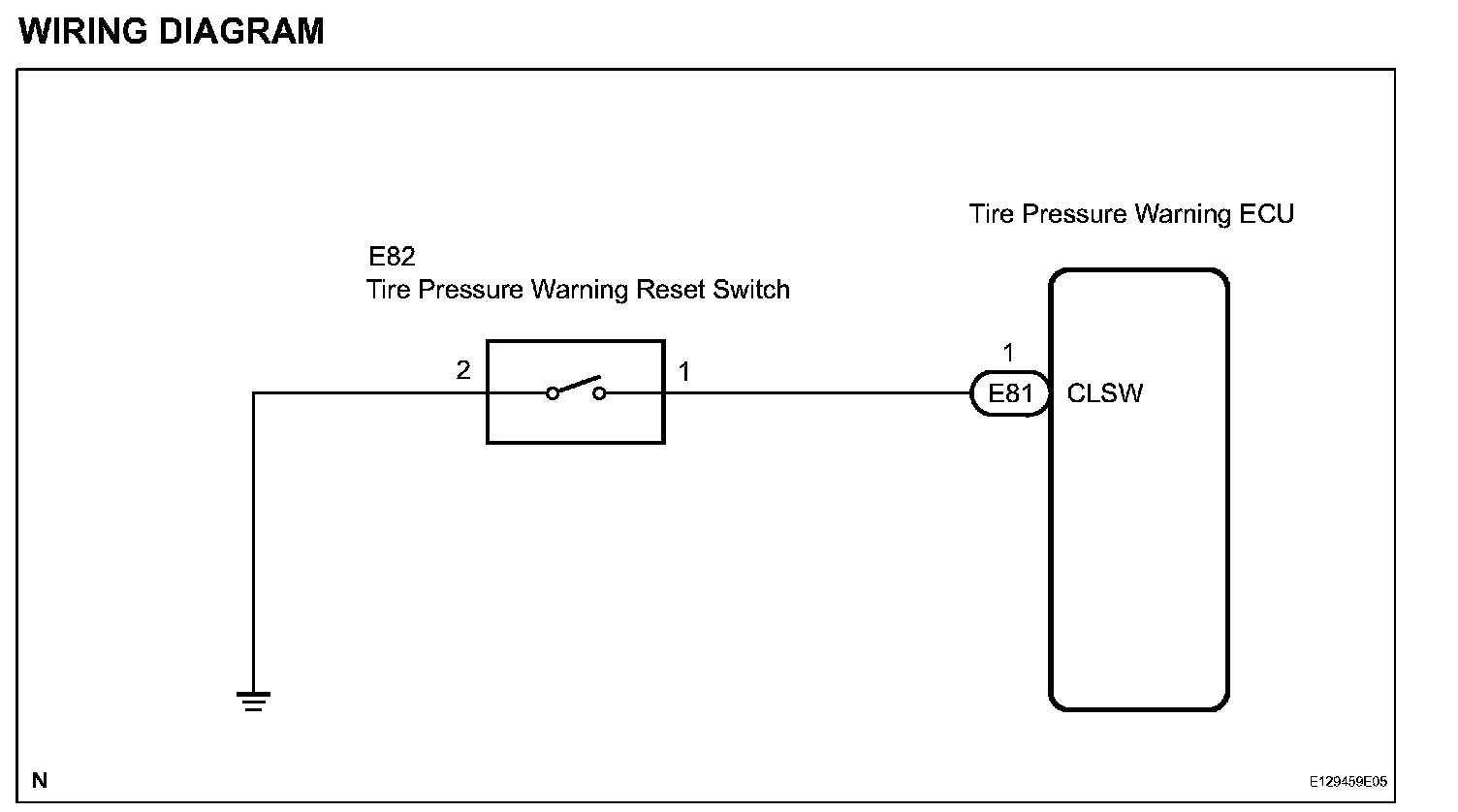

WIRING DIAGRAM:
INSPECTION PROCEDURE
NOTICE:
^ When replacing the tire pressure warning ECU, read the IDs stored in the old ECU using the intelligent tester and write them down before removal.
^ It is necessary to perform initialization after registration of the transmitter IDs into the tire pressure warning ECU after the ECU and/or valve and transmitter has been replaced.

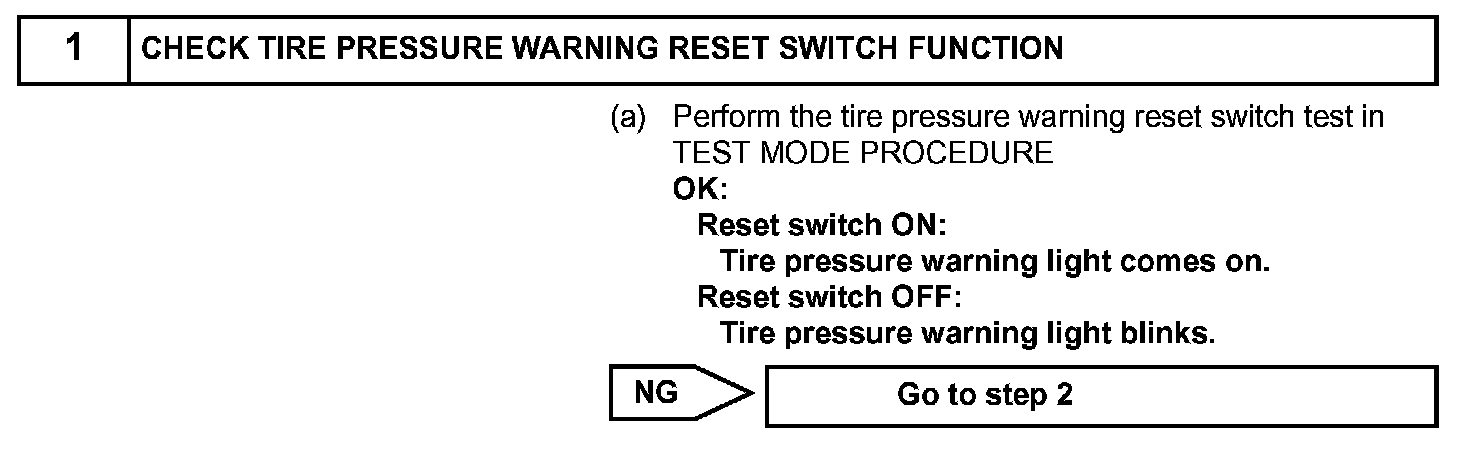

Step 1 (Part 1):

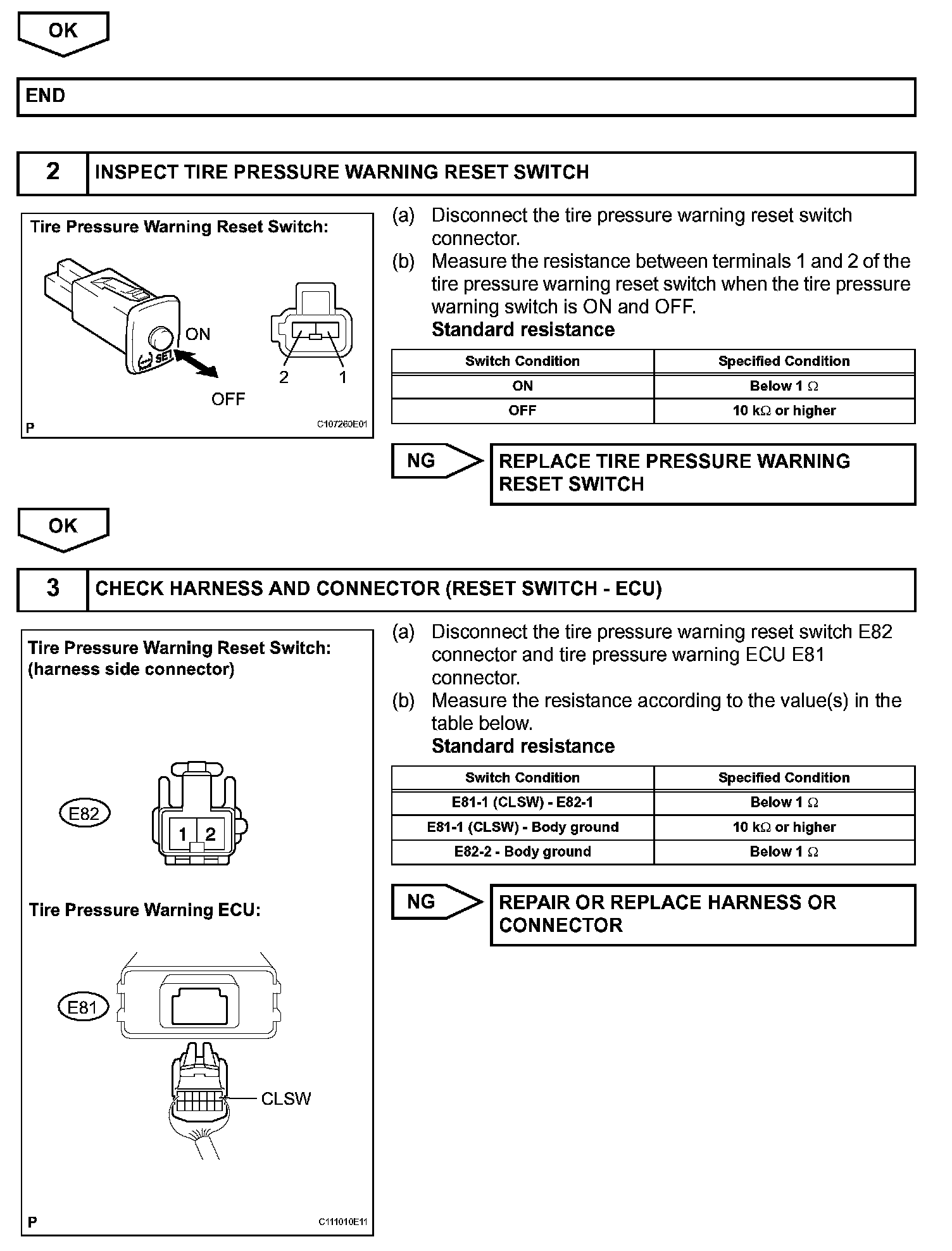

Step 1 (Part 2), Step 2-3 (Part 1):

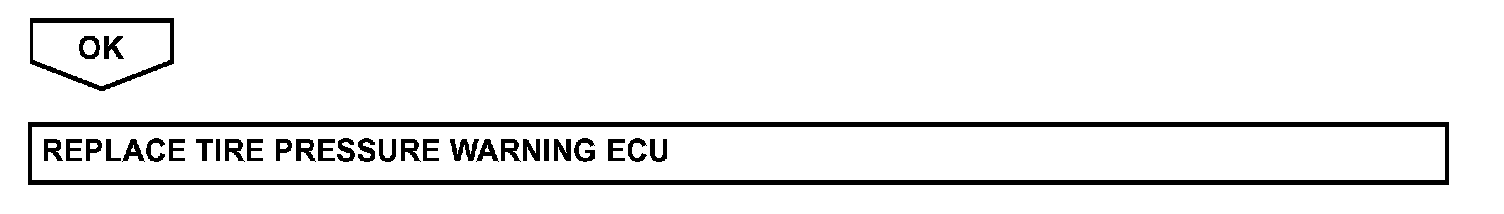

Step 3 (Part 2):
