Component Tests and General Diagnostics

INSPECTION
1. INSPECT TIRE
(a) Check the tires for wear and proper inflation pressure.

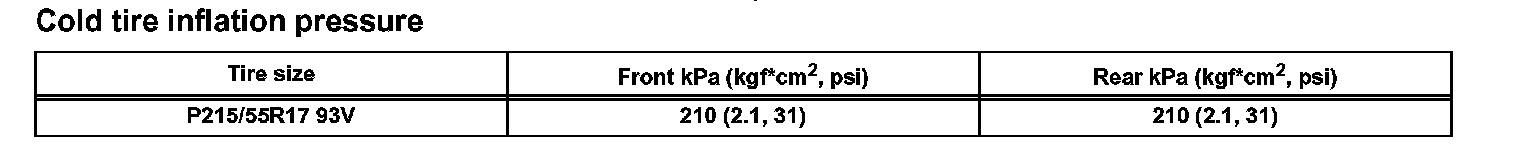

Cold tire inflation pressure:

When driving under the above vehicle conditions at sustained high speeds above 160 km/h (100 mph), in countries where such speeds are permitted by law, inflate the front and rear tires to 240 kPa (2.4 kgf*cm2, 35 psi) provided that it does not exceed the maximum cold tire inflation pressure molded on the tire sidewall.

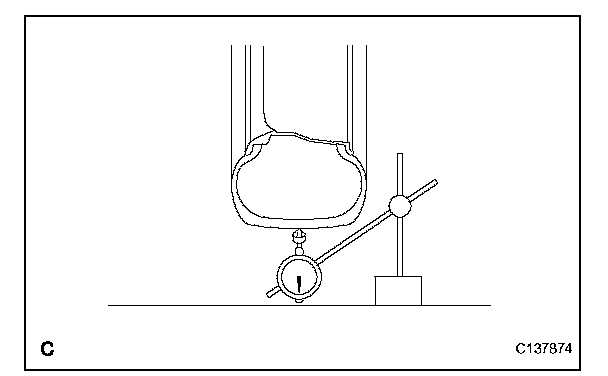

(b) Using a dial indicator, check the runout of the tires.
Tire runout: 1.4 mm (0.055 in.) or less





2. ROTATE TIRES

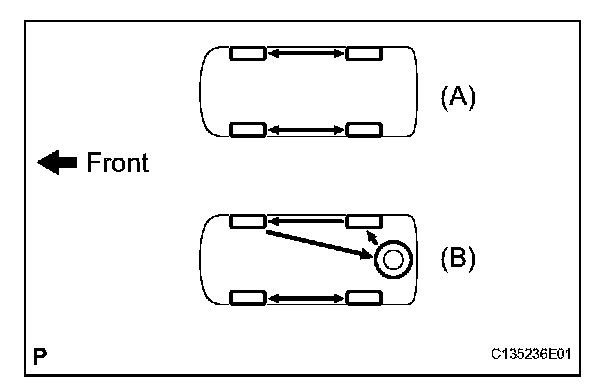

(a) Rotate the tires as shown in illustration (A). If the vehicle is equipped with a grand spare tire, rotate the tires as shown in illustration (B).





3. INSPECT WHEEL BALANCE

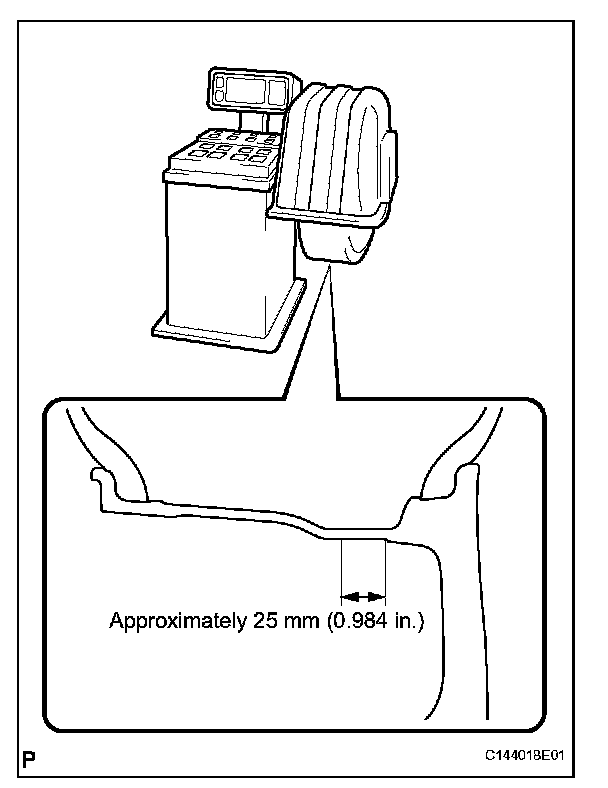

(a) Check and adjust the off-the-car balance.
Imbalance after adjustment: 8.0 g (0.018 lb.) or less.

NOTICE:
^ Remove dirt, oil, and water from the surface where the balance weight is to be adhered with a cleaning detergent.
^ Do not touch the sticking surface of the tape.
^ Adhere the sticking type balance weight to the flat position shown in the illustration.
^ Push the balance weight securely with a finger to adhere it to the indicated position.
^ Do not reuse balance weights.
^ Use the LEXUS genuine adhesive type balance weights.

HINT:
^ The inner side balance weight should be installed by clipping it to the rim.
^ If necessary, check and adjust the on-the-car balance.

4. INSPECT FRONT AXLE HUB BEARING LOOSENESS
5. INSPECT REAR AXLE HUB BEARING LOOSENESS
6. INSPECT FRONT AXLE HUB RUNOUT
7. INSPECT REAR AXLE HUB RUNOUT
