Turn Signal Flasher: Testing and Inspection

ON-VEHICLE INSPECTION

1. INSPECT TURN SIGNAL FLASHER ASSEMBLY

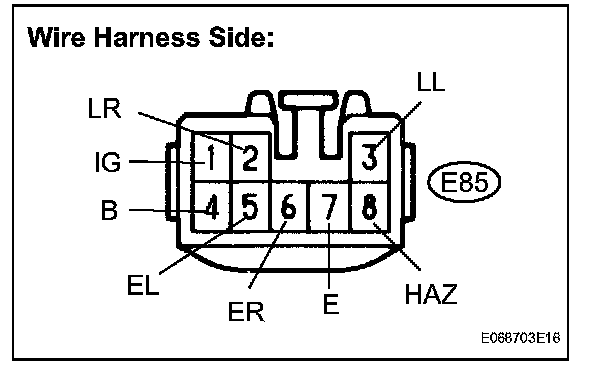

a. Disconnect the E85 turn signal flasher assembly connector.

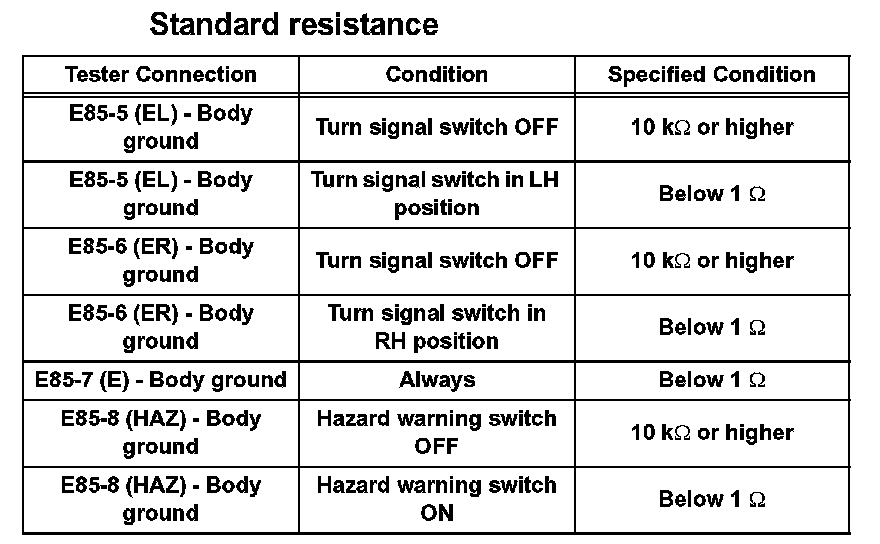

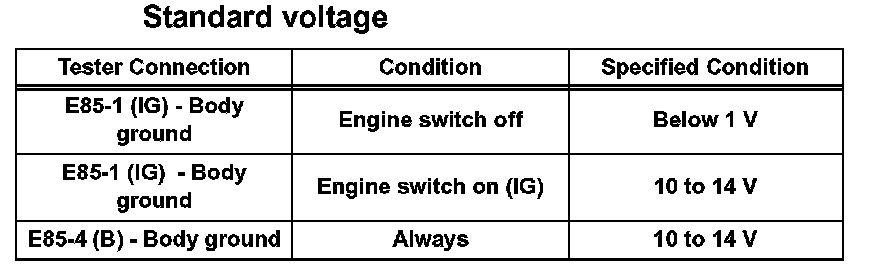

b. Measure the voltage and resistance according the value(s) in the table.

If the result is not as specified, there is a malfunction on the wire harness side.

c. Reconnect the turn signal flasher assembly connector.

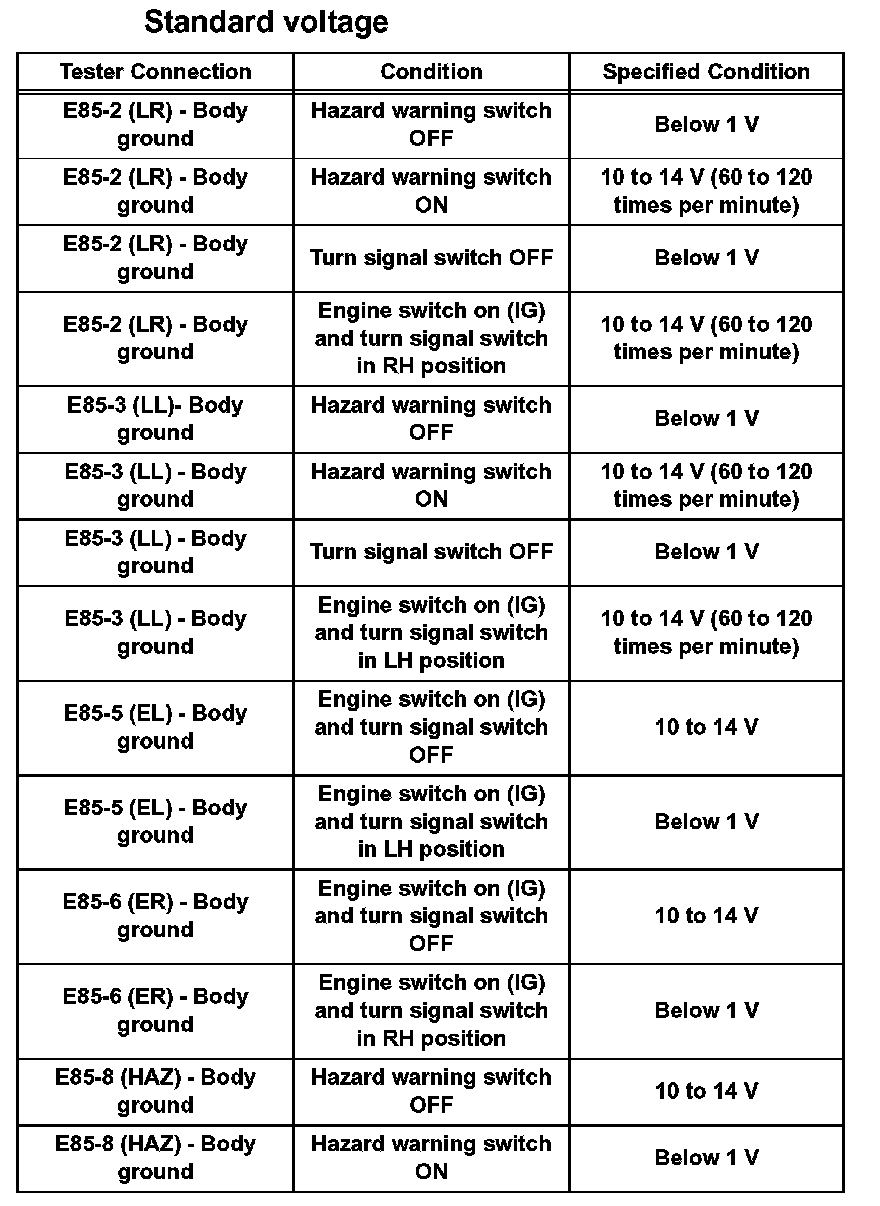

d. Measure the voltage according to the valve(s) in the table.

If the result is not as specified, replace the turn signal flasher assembly.
