Turn Signal Flasher: Service and Repair

Turn Signal Flasher Assembly:

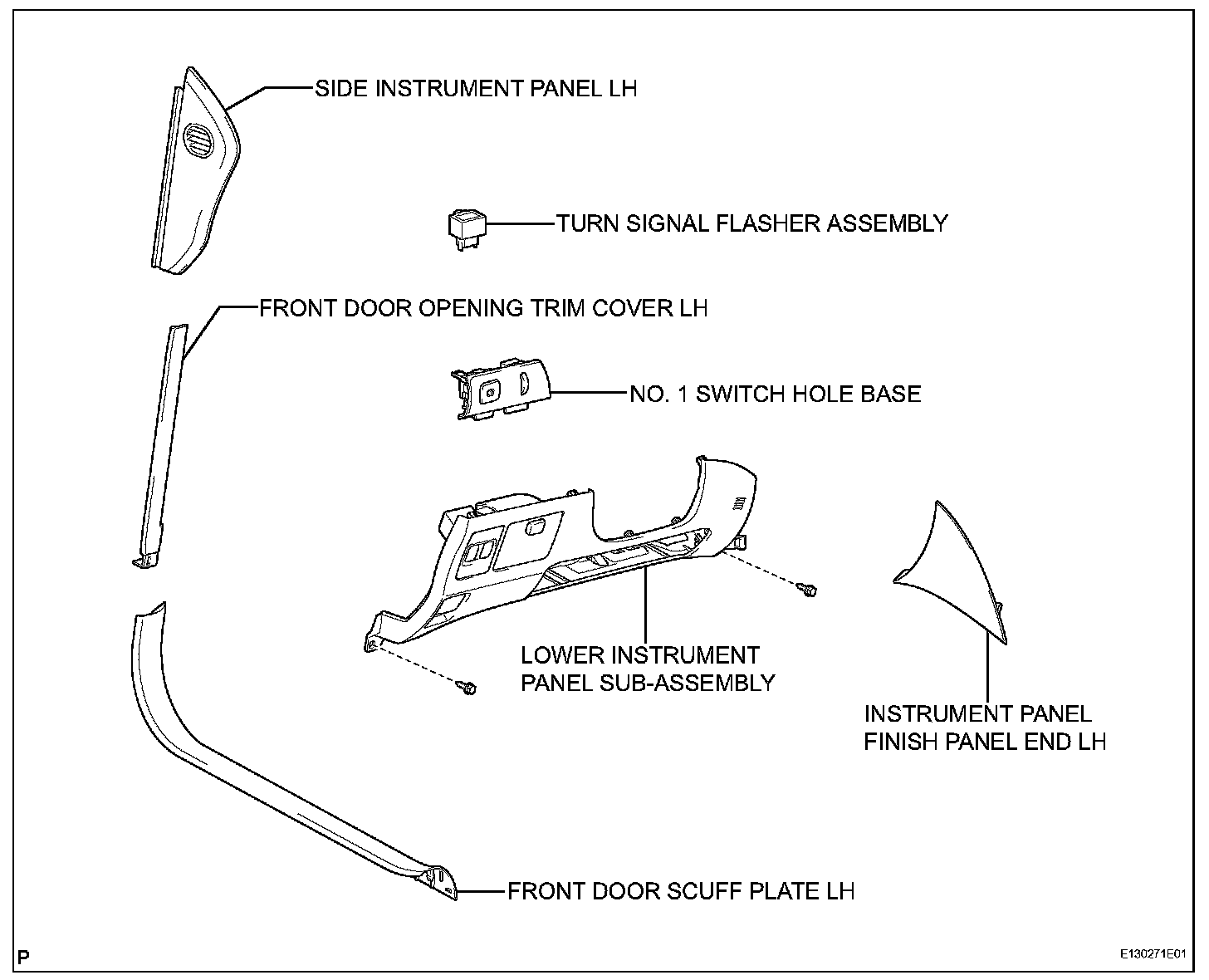

TURN SIGNAL FLASHER ASSEMBLY

REMOVAL

1. REMOVE FRONT DOOR SCUFF PLATE LH
2. REMOVE FRONT DOOR OPENING TRIM COVER LH
3. REMOVE SIDE INSTRUMENT PANEL LH
4. REMOVE INSTRUMENT PANEL FINISH PANEL END LH
5. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY
6. REMOVE NO. 1 SWITCH HOLE BASE

7. REMOVE TURN SIGNAL FLASHER ASSEMBLY




a. Disconnect the connector.

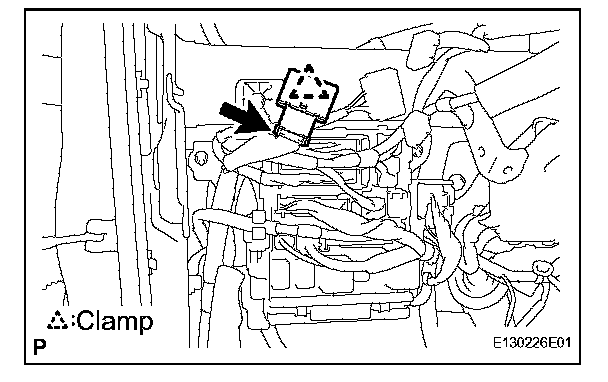

b. Remove the clamp and the turn signal flasher assembly.

INSTALLATION

1. INSTALL TURN SIGNAL FLASHER ASSEMBLY

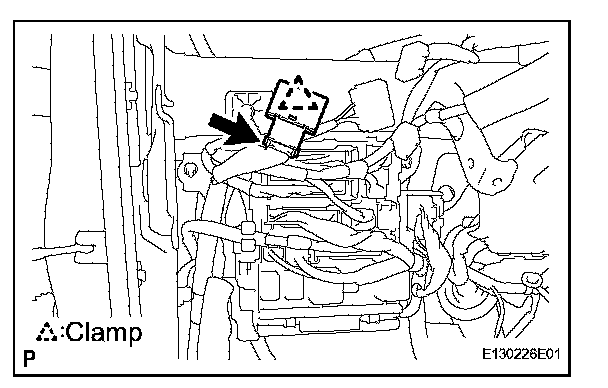

a. Install the clamp and the turn signal flasher assembly.
b. Connect the connector.

2. INSTALL NO. 1 SWITCH HOLE BASE
3. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY
4. INSTALL INSTRUMENT PANEL FINISH PANEL END LH
5. INSTALL SIDE INSTRUMENT PANEL LH
6. INSTALL FRONT DOOR OPENING TRIM COVER LH
7. INSTALL FRONT DOOR SCUFF PLATE LH
