Trunk Lamp: Testing and Inspection

INSPECTION

1. INSPECT NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

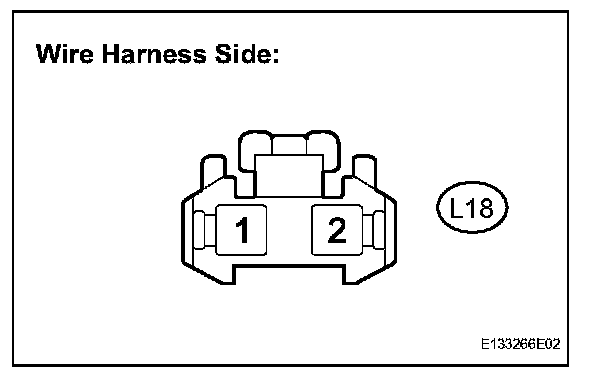

a. Disconnect the L18 No. 1 luggage compartment light assembly connector.

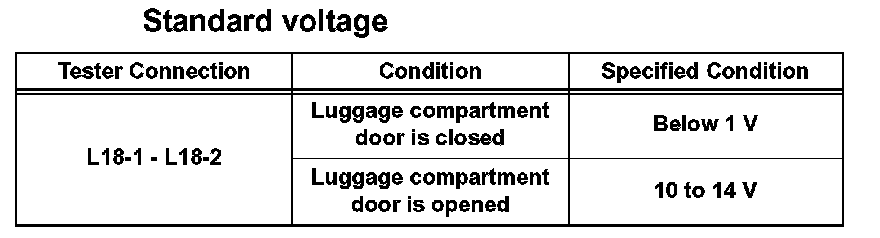

b. Measure the voltage according to the value(s) in the table.

If the result is not specified, there is a malfunction on the wire harness side.

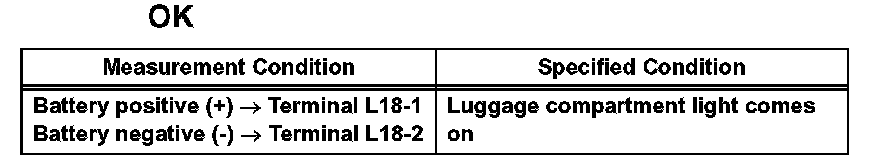

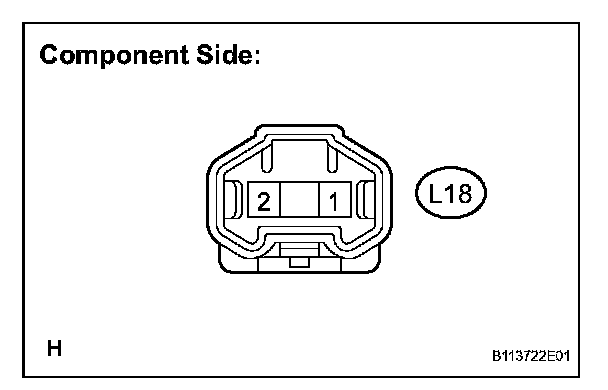

c. Apply battery voltage to the No. 1 luggage compartment light assembly connector.




d. Check that the No. 1 luggage compartment light comes on.

If the result is not as specified, replace the bulb or No. 1 luggage compartment light assembly.
