Trunk Lamp: Service and Repair

Luggage Compartment Room Light:

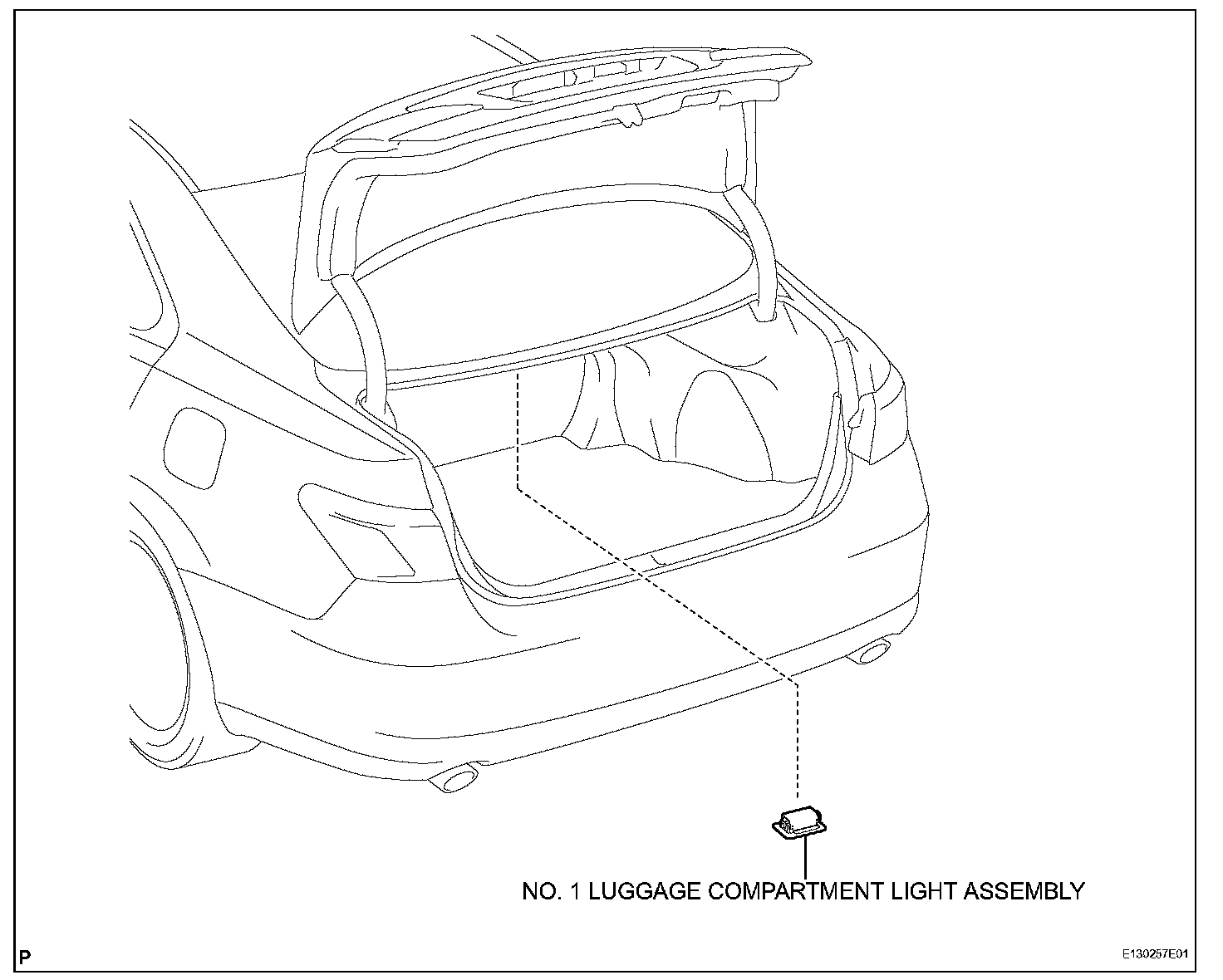

LUGGAGE COMPARTMENT ROOM LIGHT

REMOVAL

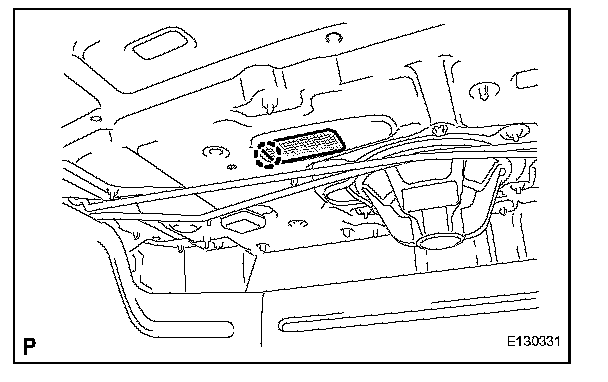

1. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY




a. Disengage the claw and disconnect the No. 1 luggage compartment light assembly.
b. Disconnect the connector and remove the No. 1 luggage compartment light assembly.

INSTALLATION

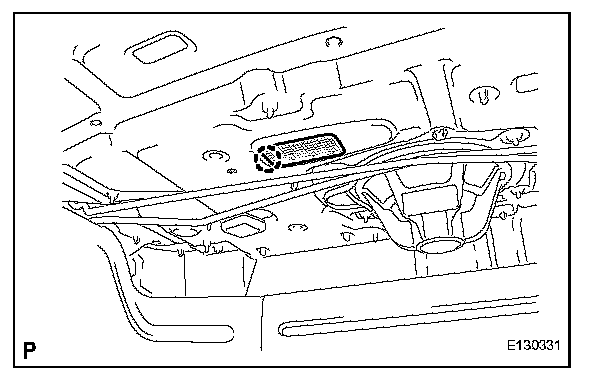

1. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY




a. Connect the connector.
b. Engage the claw and install the No. 1 luggage compartment light assembly.
