Parking Brake Switch Circuit

Parking Brake Switch Circuit

DESCRIPTION

The main body ECU receives a parking brake switch signal to control the daytime running light system.

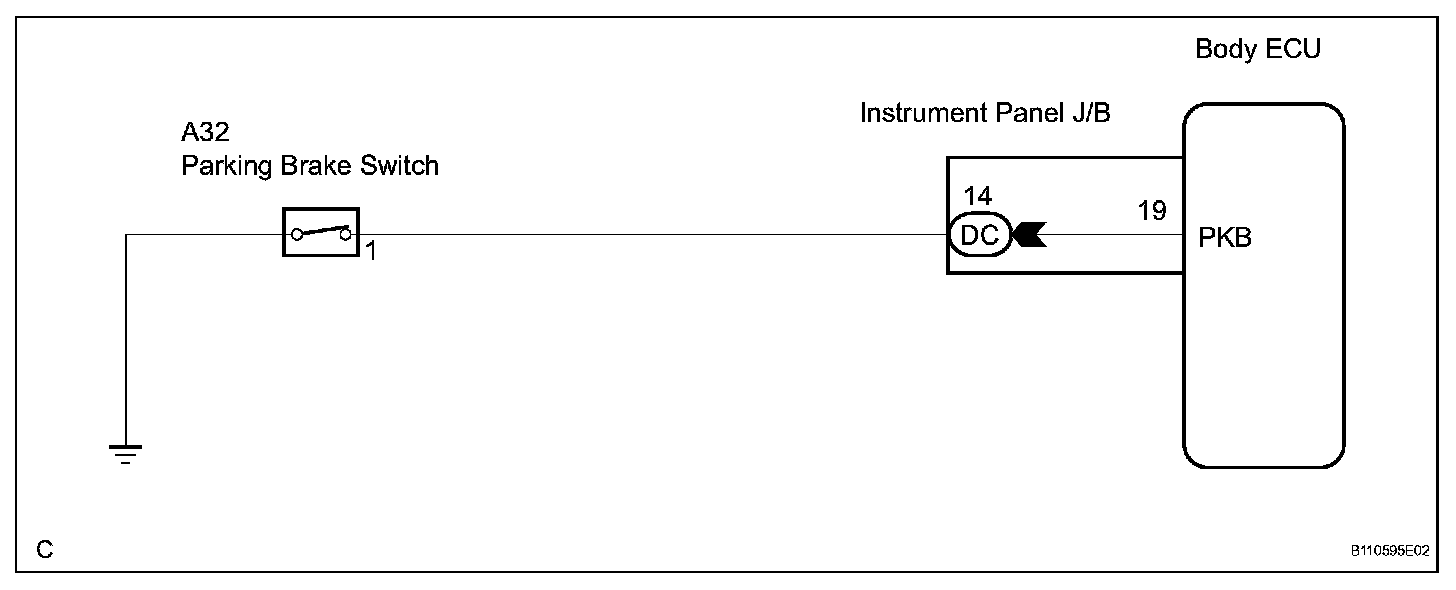

Wiring Diagram:

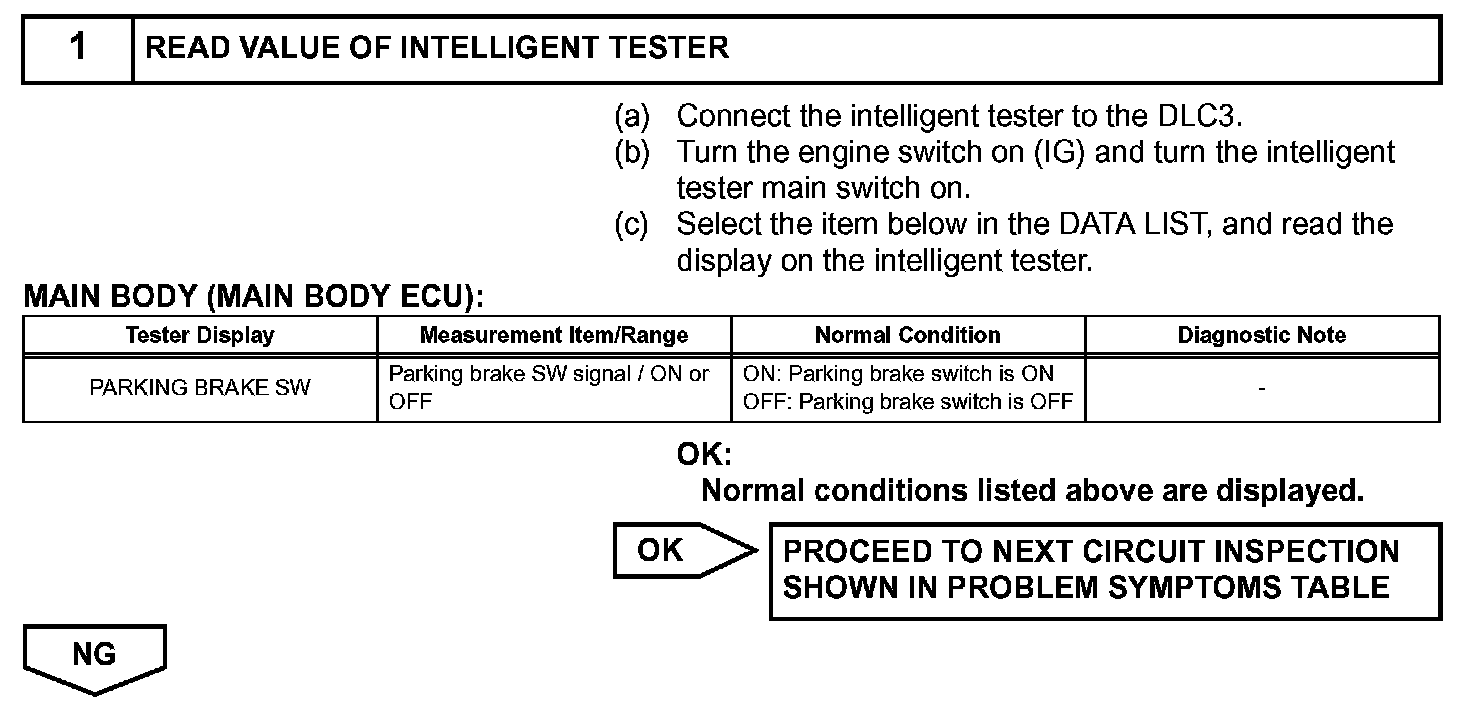

Step 1:




Step 2-3:

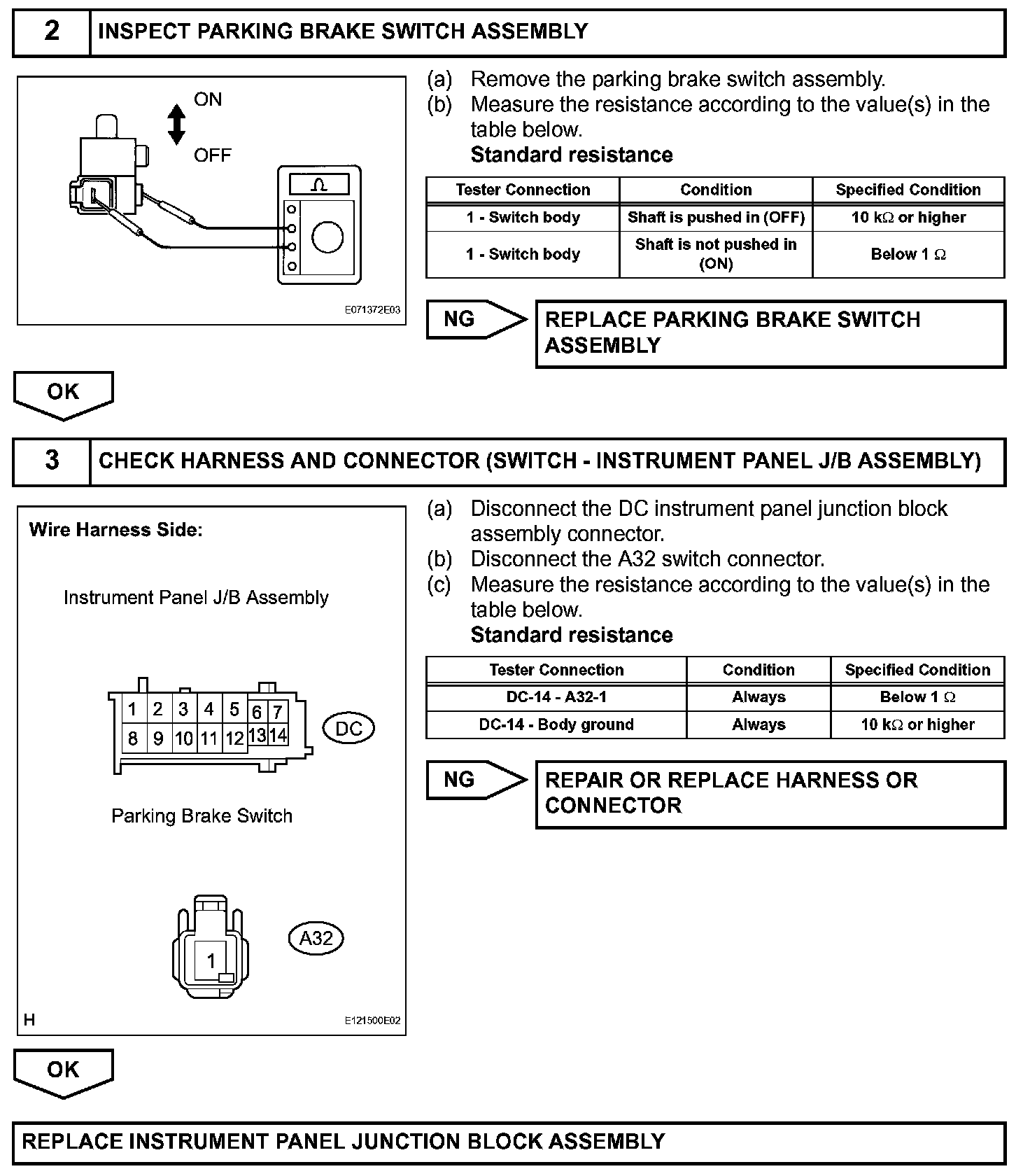

INSPECTION PROCEDURE
