Removal and Replacement

Rear Combination Light Assembly:

REAR COMBINATION LIGHT ASSEMBLY

REMOVAL

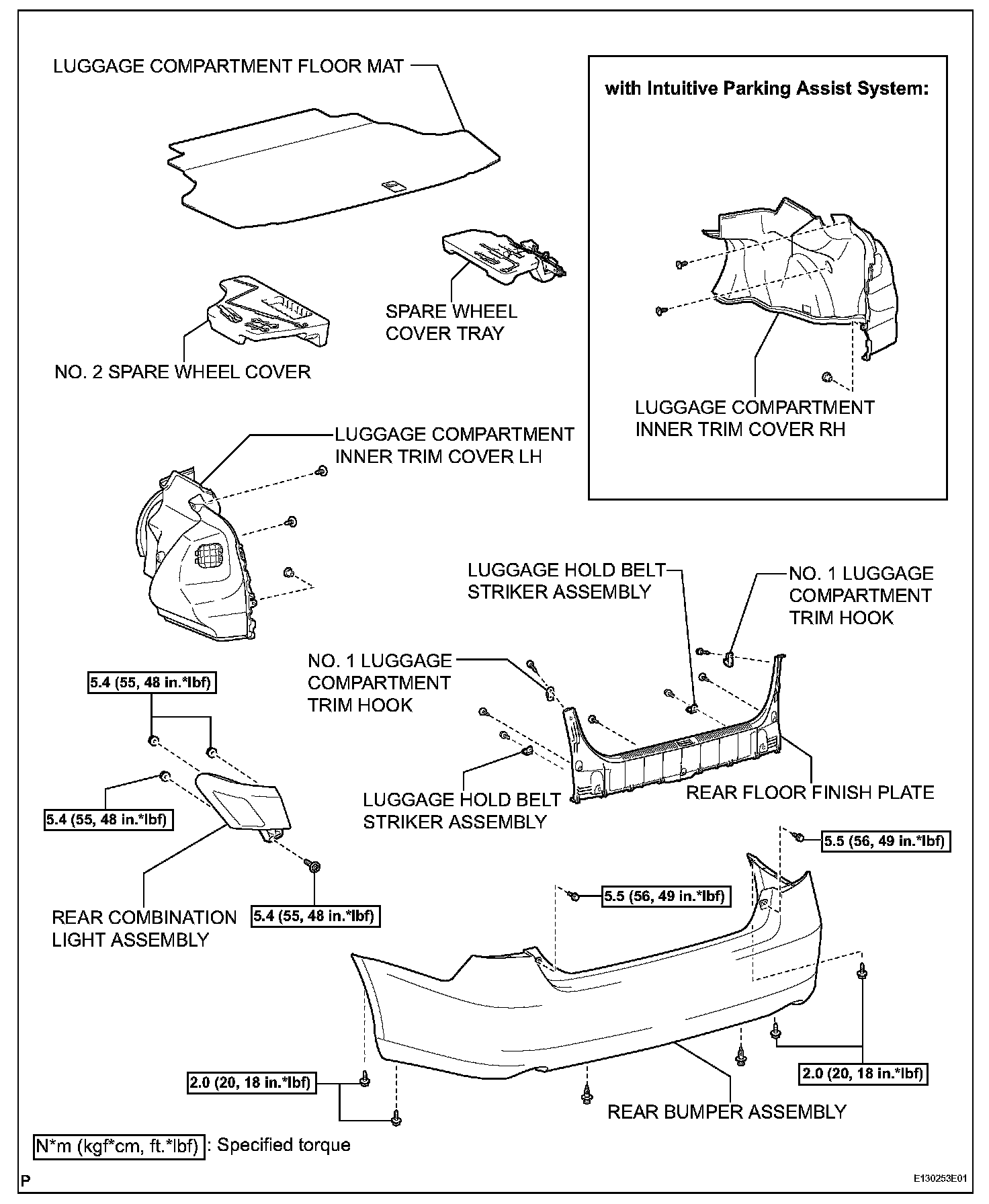

1. REMOVE LUGGAGE COMPARTMENT FLOOR MAT
2. REMOVE NO. 2 SPARE WHEEL COVER
3. REMOVE SPARE WHEEL COVER TRAY
4. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY
5. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
6. REMOVE REAR FLOOR FINISH PLATE
7. REMOVE LUGGAGE COMPARTMENT INNER TRIM COVER LH
8. REMOVE REAR BUMPER ASSEMBLY (w/o Intuitive Parking Assist System)
9. REMOVE LUGGAGE COMPARTMENT INNER TRIM COVER RH (w/ Intuitive Parking Assist System)
10. REMOVE REAR BUMPER ASSEMBLY (w/ Intuitive Parking Assist System)

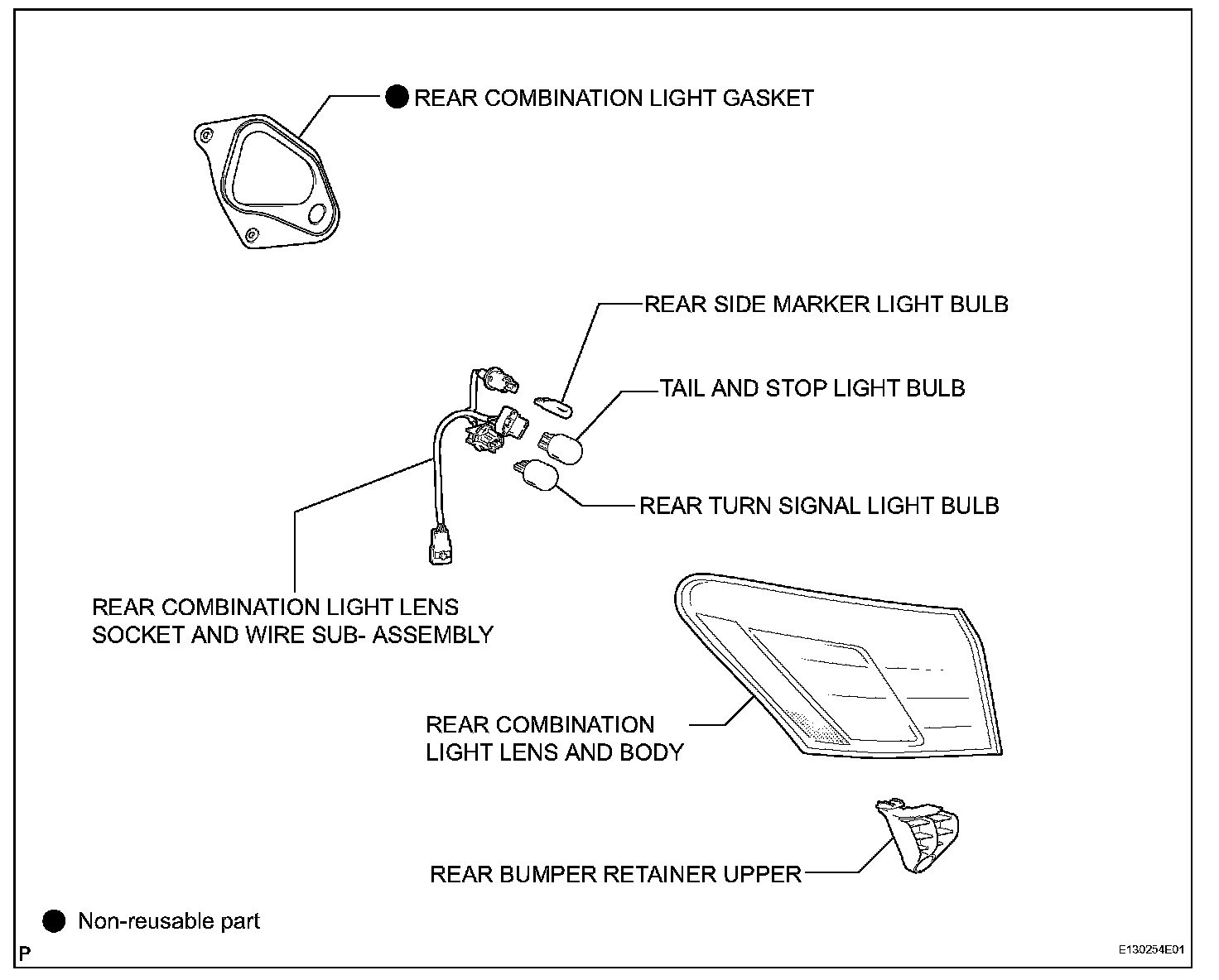

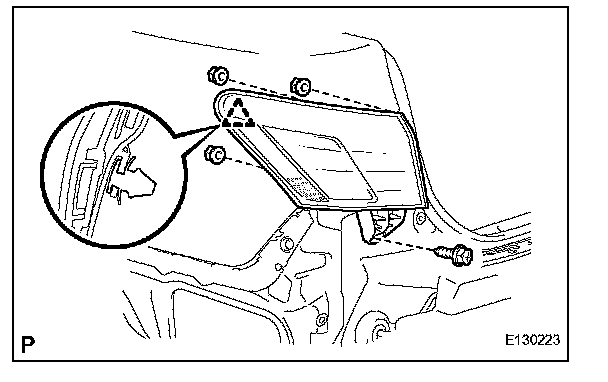

11. REMOVE REAR COMBINATION LIGHT ASSEMBLY

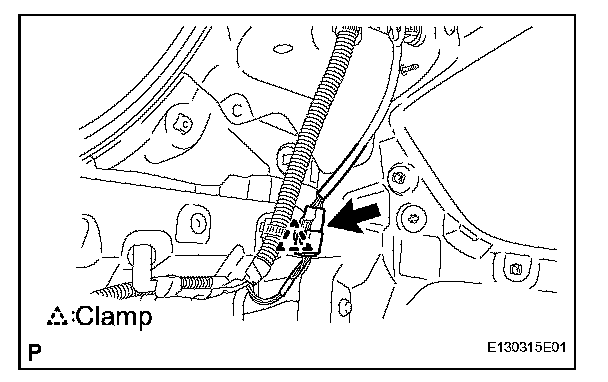

a. Disconnect the connector and clamp.

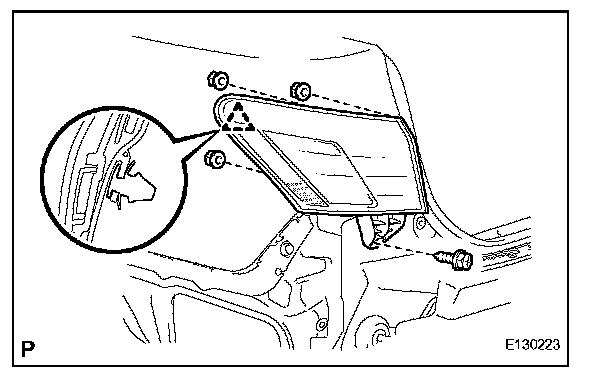

b. Remove the screw and 3 nuts.
c. Disengage the clip and remove the rear combination light assembly.

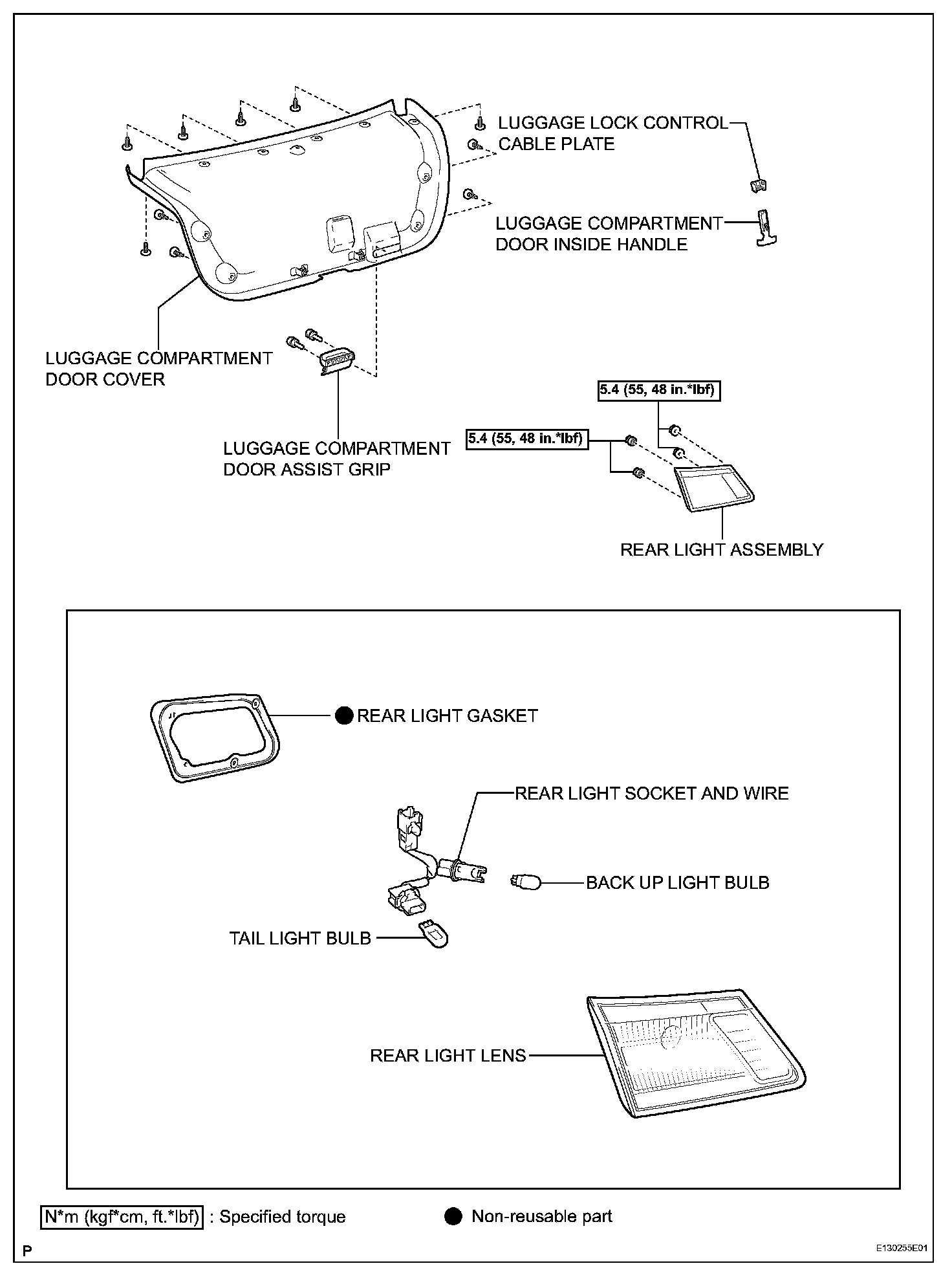

12. REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP
13. REMOVE LUGGAGE LOCK CONTROL CABLE PLATE
14. REMOVE LUGGAGE COMPARTMENT DOOR INSIDE HANDLE
15. REMOVE LUGGAGE COMPARTMENT DOOR COVER

16. REMOVE REAR LIGHT ASSEMBLY

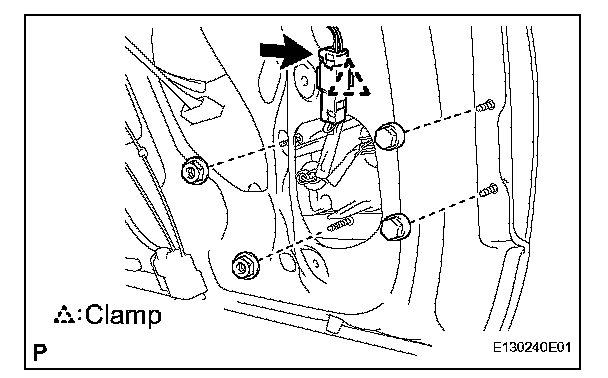

a. Disconnect the connector and clamp.
b. Remove the 4 nuts and remove the rear light assembly.

INSTALLATION

1. INSTALL REAR COMBINATION LIGHT ASSEMBLY

a. Engage the clip and install the rear combination light assembly with the screw and 3 nuts.

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

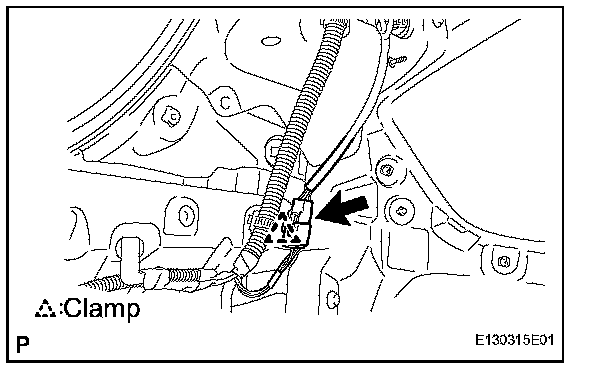

b. Connect the connector and clamp.

2. INSTALL REAR BUMPER ASSEMBLY (w/o Intuitive Parking Assist System)
3. INSTALL REAR BUMPER ASSEMBLY (w/ Intuitive Parking Assist System)
4. INSTALL LUGGAGE COMPARTMENT INNER TRIM COVER RH (w/ Intuitive Parking Assist System)
5. INSTALL LUGGAGE COMPARTMENT INNER TRIM COVER LH
6. INSTALL REAR FLOOR FINISH PLATE
7. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
8. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY
9. INSTALL SPARE WHEEL COVER TRAY 10. INSTALL NO. 2 SPARE WHEEL COVER
11. INSTALL LUGGAGE COMPARTMENT FLOOR MAT

12. INSTALL REAR LIGHT ASSEMBLY

a. Install the rear light assembly with the 4 nuts.

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

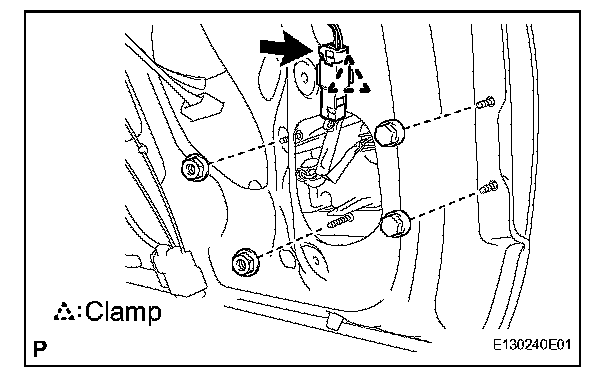

b. Connect the connector and clamp.

13. INSTALL LUGGAGE COMPARTMENT DOOR COVER
14. INSTALL LUGGAGE COMPARTMENT DOOR INSIDE HANDLE
15. INSTALL LUGGAGE LOCK CONTROL CABLE PLATE
16. INSTALL LUGGAGE COMPARTMENT DOOR ASSIST GRIP
