Tail Lamp Relay: Testing and Inspection

ON-VEHICLE INSPECTION

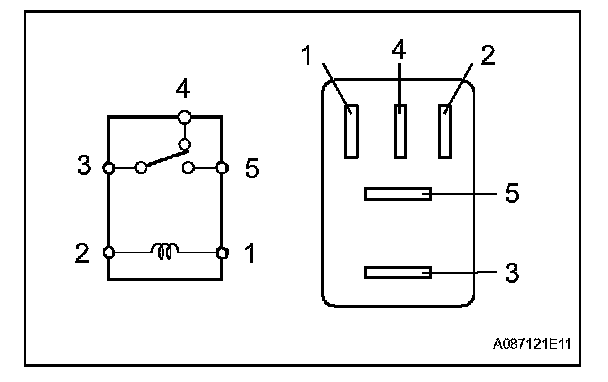

1. INSPECT TAILLIGHT RELAY




a. Remove the taillight relay from the instrument panel J/B assembly.




b. Measure the resistance according to the value(s) in the table.

If the result is not as specified, replace the taillight relay.
