High Pitched Horn

High Pitched Horn:

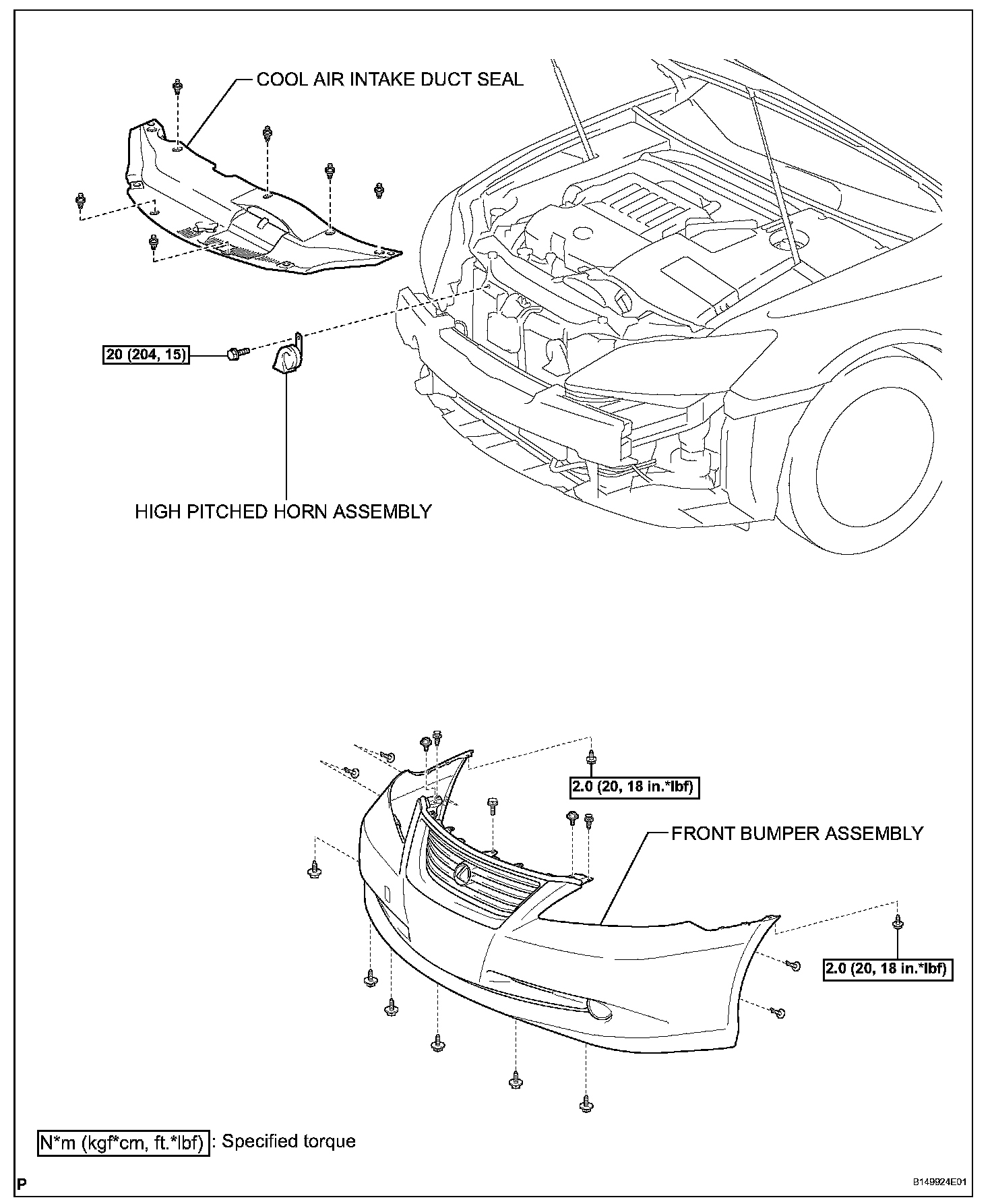

HIGH PITCHED HORN

REMOVAL

1. REMOVE COOL AIR INTAKE DUCT SEAL
2. REMOVE FRONT BUMPER ASSEMBLY

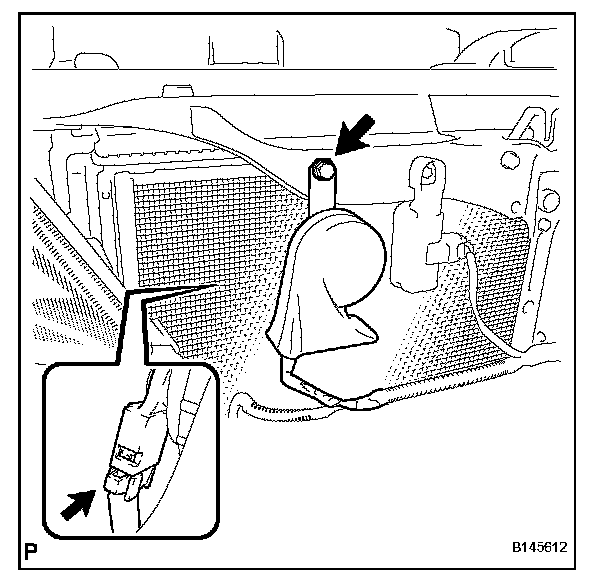

3. REMOVE HIGH PITCHED HORN ASSEMBLY




a. Disconnect the connector.
b. Remove the bolt and the high pitched horn assembly.

INSTALLATION

1. INSTALL HIGH PITCHED HORN ASSEMBLY




a. Install the high pitched horn assembly with the bolt.

Torque: 20 N.m (204 kgf.cm, 15 ft.lbf)

b. Connect the connector.

2. INSTALL FRONT BUMPER ASSEMBLY
3. INSTALL COOL AIR INTAKE DUCT SEAL
4. VEHICLE PREPARATION FOR FOG LIGHT AIM ADJUSTMENT
5. PREPARATION FOR FOG LIGHT AIMING
6. FOG LIGHT AIMING INSPECTION
7. FOG LIGHT AIMING ADJUSTMENT
