Removal and Replacement

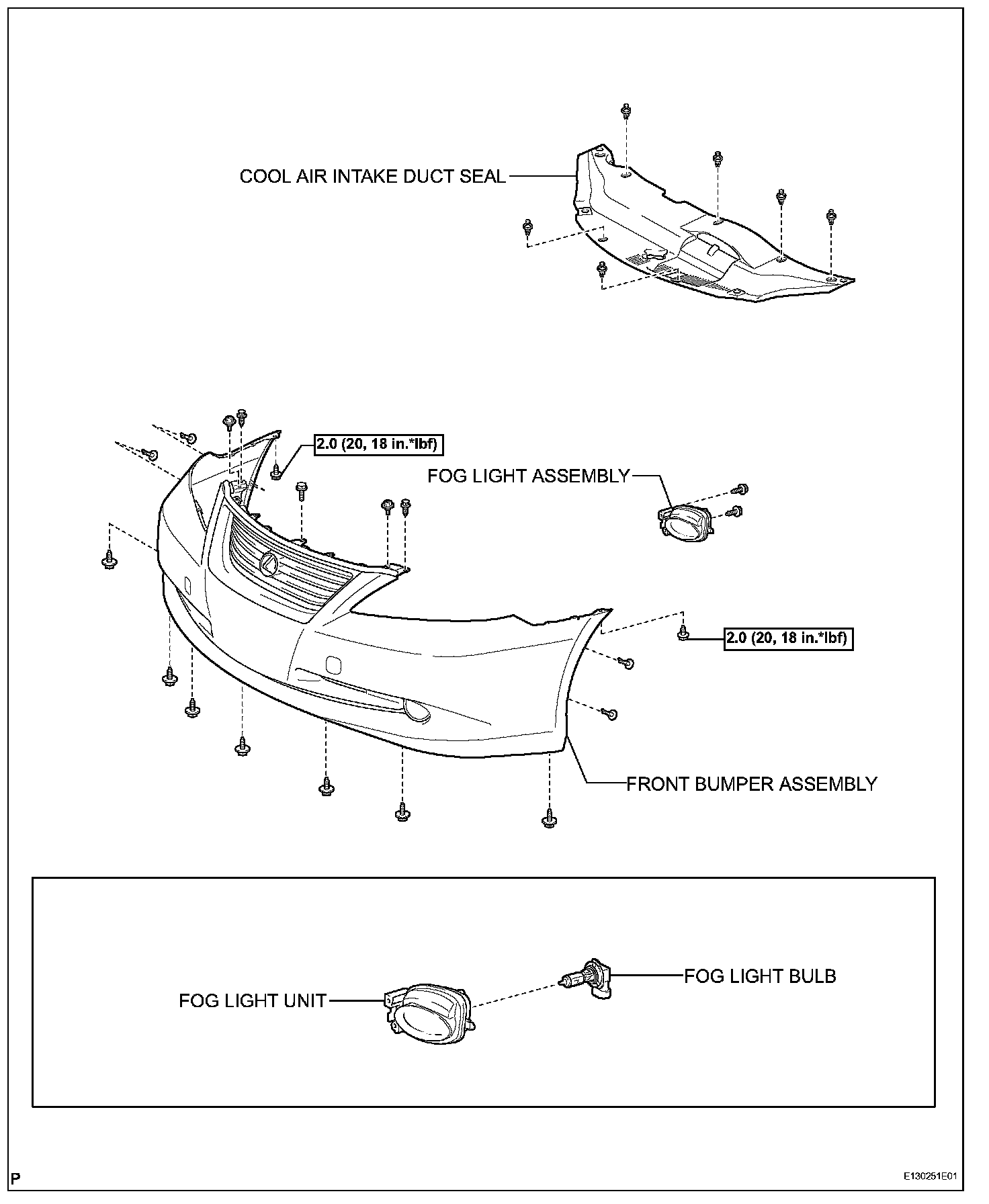

Fog Light Assembly:

FOG LIGHT ASSEMBLY

REMOVAL

1. REMOVE COOL AIR INTAKE DUCT SEAL
2. REMOVE FRONT BUMPER ASSEMBLY

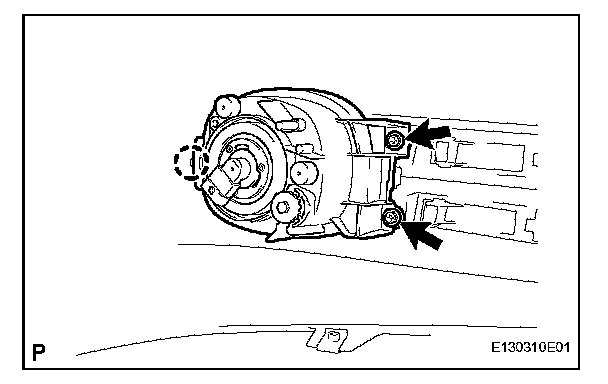

3. REMOVE FOG LIGHT ASSEMBLY




a. Remove the 2 screws.
b. Disengage the claw and remove the fog light assembly.

INSTALLATION

1. INSTALL FOG LIGHT ASSEMBLY




a. Engage the claw.
b. Install the fog light assembly with the 2 screws.

2. INSTALL FRONT BUMPER ASSEMBLY
3. INSTALL COOL AIR INTAKE DUCT SEAL
4. VEHICLE PREPARATION FOR FOG LIGHT AIM ADJUSTMENT
5. PREPARATION FOR FOG LIGHT AIMING
6. FOG LIGHT AIMING INSPECTION
7. FOG LIGHT AIMING ADJUSTMENT
