Footwell Light

INSPECTION

1. INSPECT FOOTWELL LIGHT

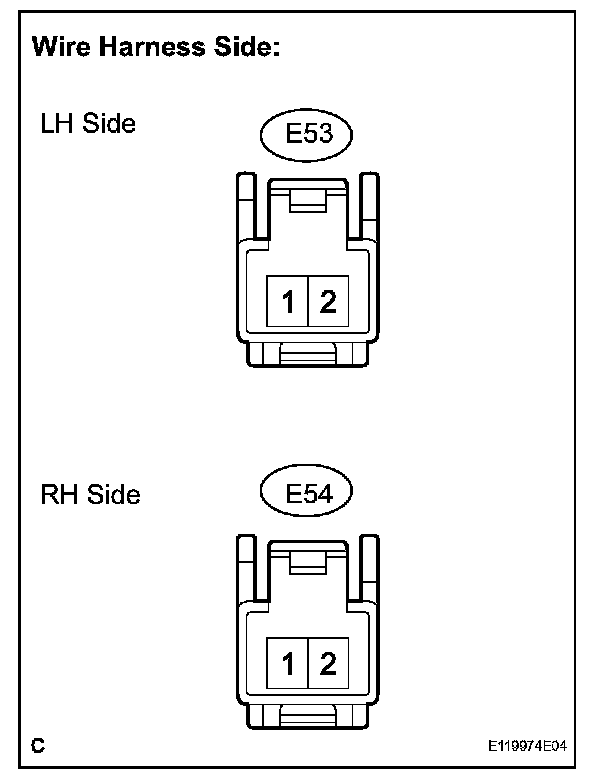

a. Disconnect the E53 or E54 footwell light connector.

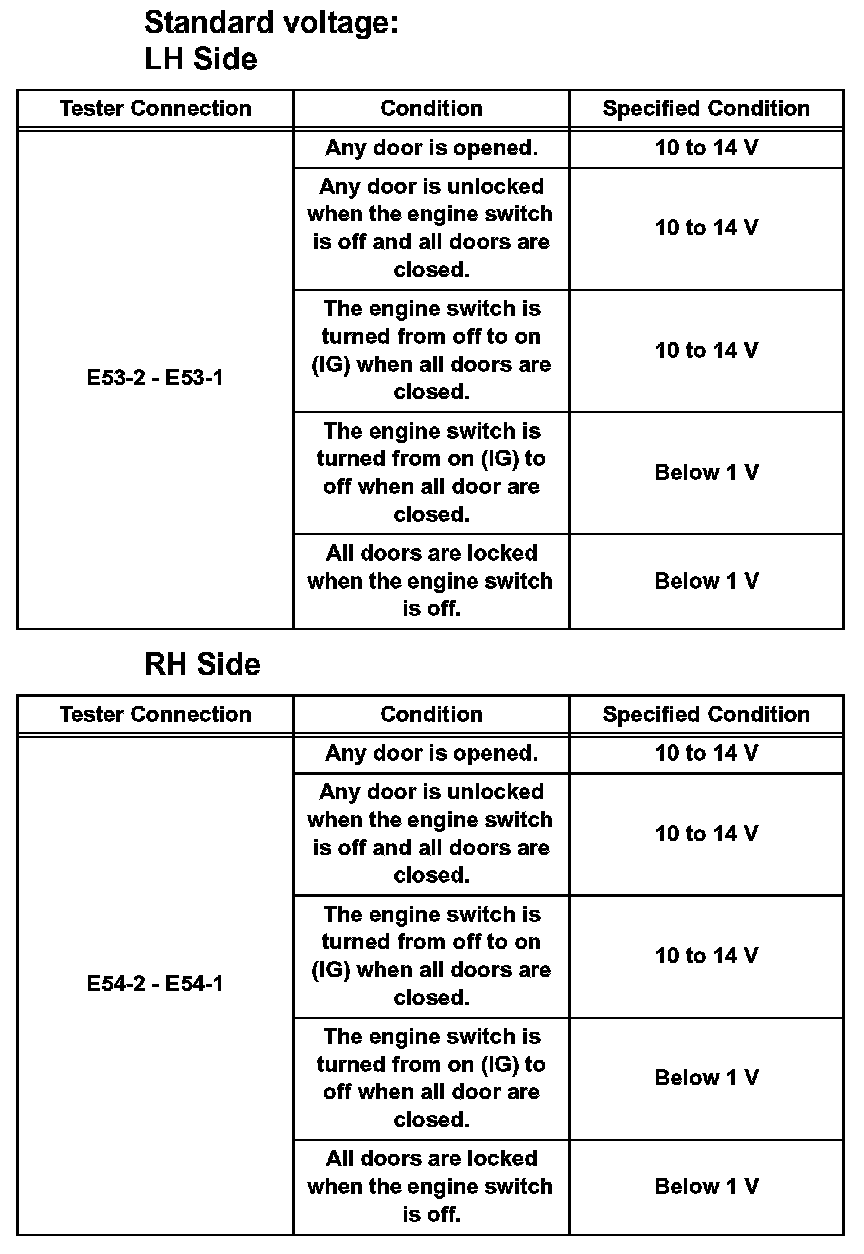

b. Measure the voltage according to the value(s) in the tables.

If the result is not as specified, there is a malfunction on the wire harness side.

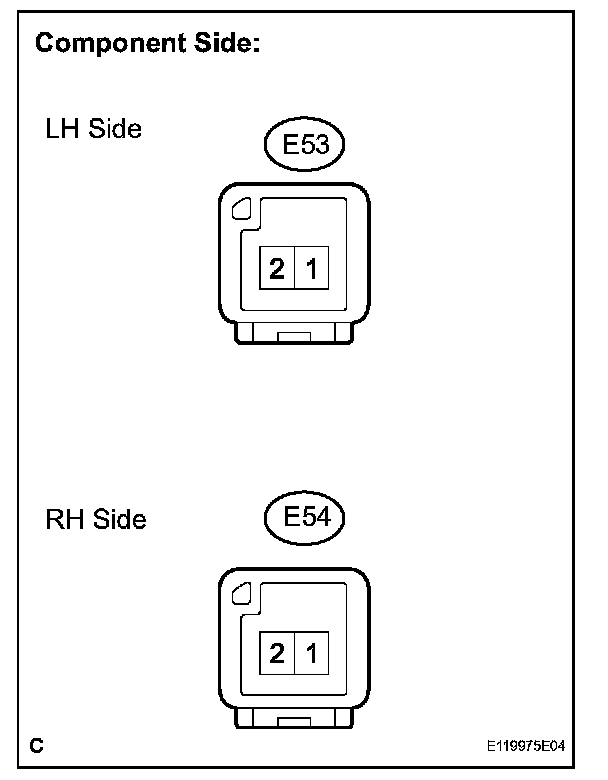

c. Apply battery voltage to the footwell light connector.

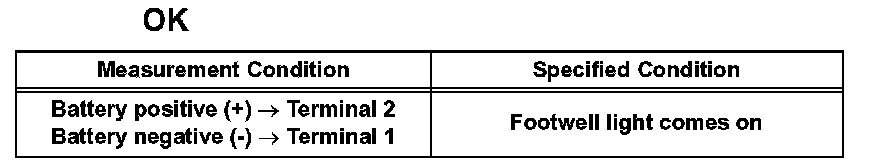

d. Check that the footwell light comes on.

If the result is not as specified, replace the footwell light assembly.
