Entire Combination Meter Does Not Operate

Entire Combination Meter does not Operate

DESCRIPTION

This circuit is the power source circuit for the meter. This circuit provides two types of power sources; one is a constant power source mainly used as a backup power source, and the other is a power source mainly used for signal transmission. The constant power source is mainly used as a backup power source of the meter CPU, however, it is also used for communication. If a voltage of 12 V is not applied to terminal IG+ when the engine switch is on (IG), the indicator will not operate.

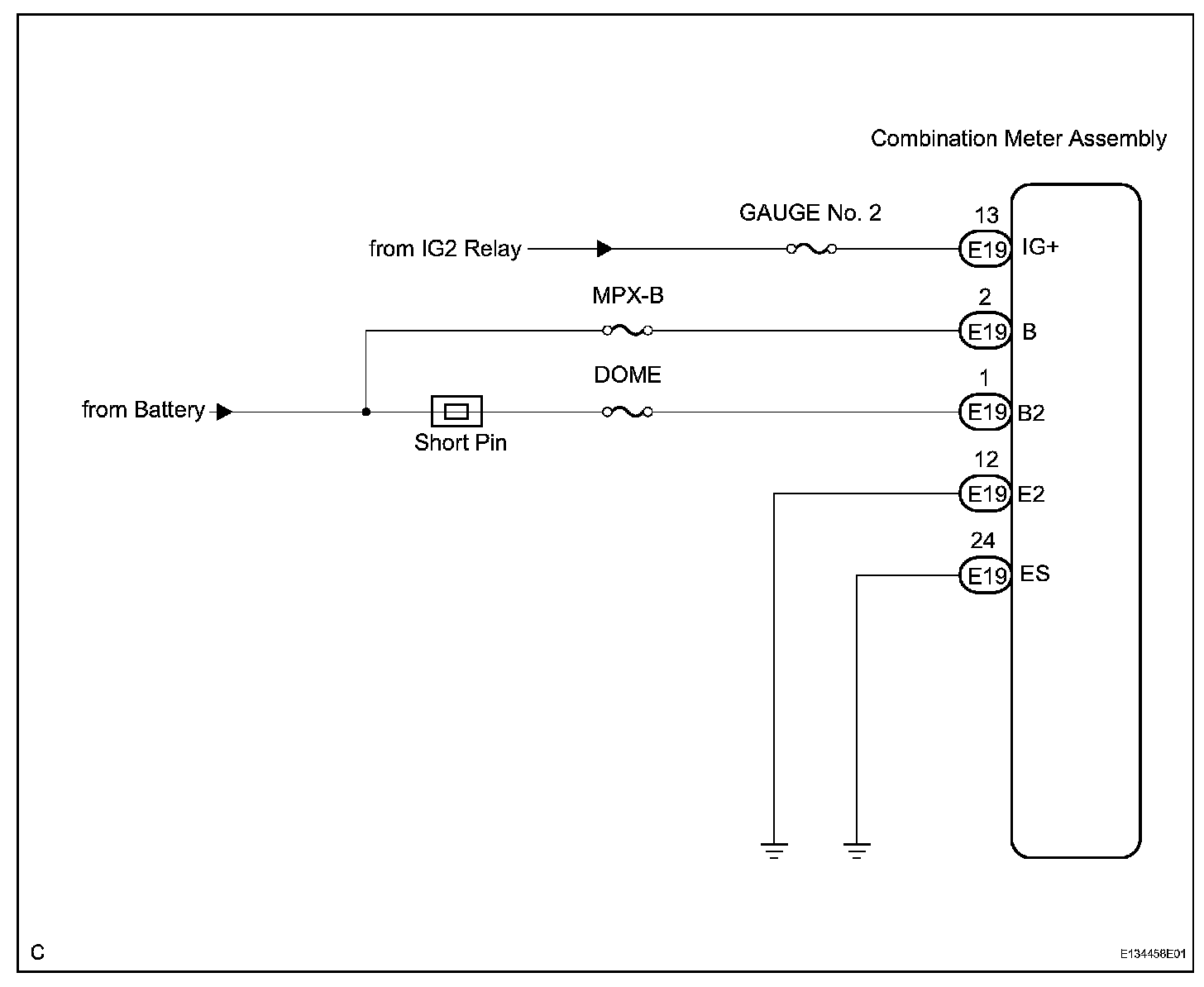

Wiring Diagram:

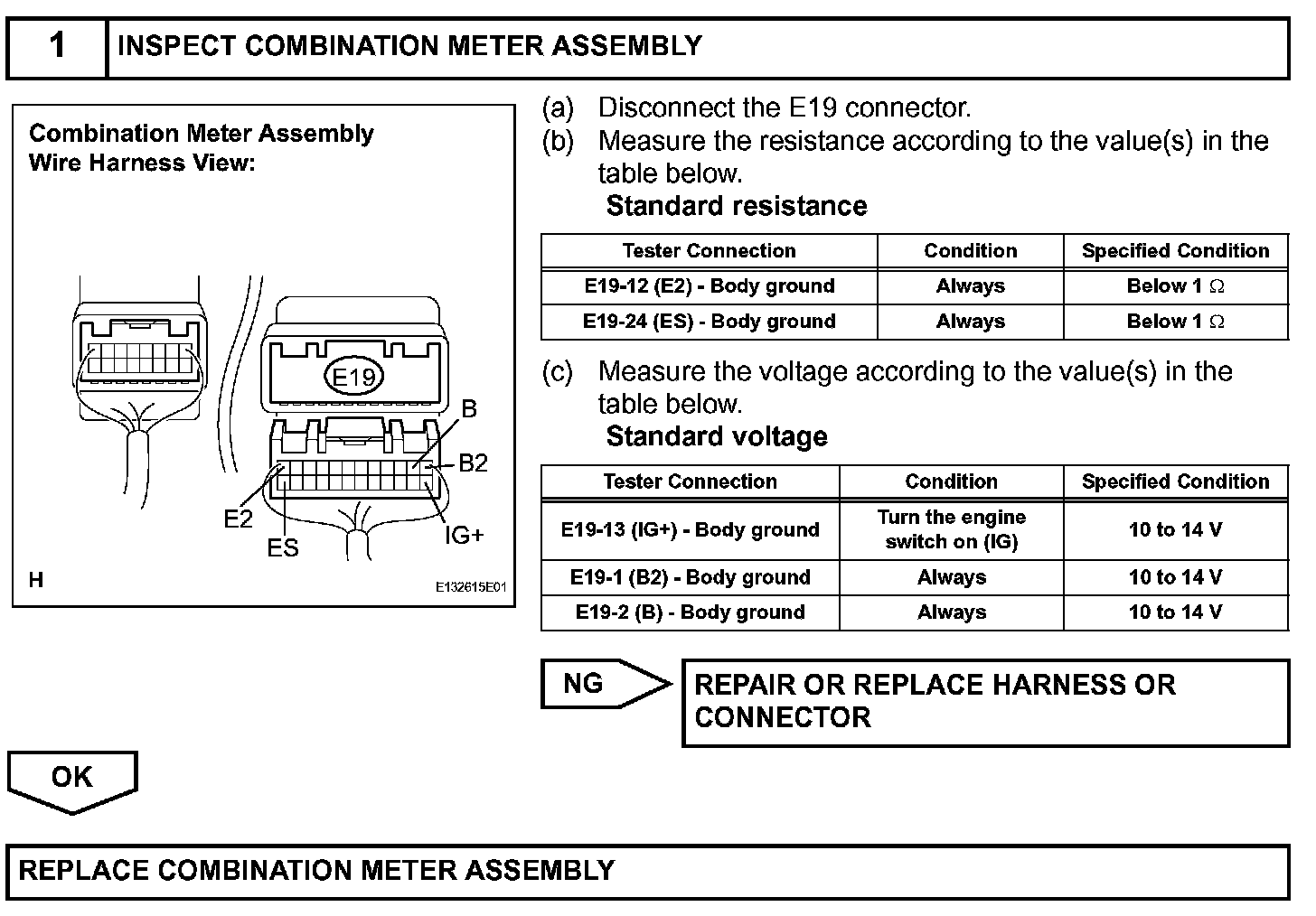

Step 1:

INSPECTION PROCEDURE
