Heater Control Panel Power Source Circuit
Heater Control Panel Power Source CircuitDESCRIPTION
Battery voltage is supplied to the A/C control assembly through the A/C fuse and A/C No. 2 fuse.

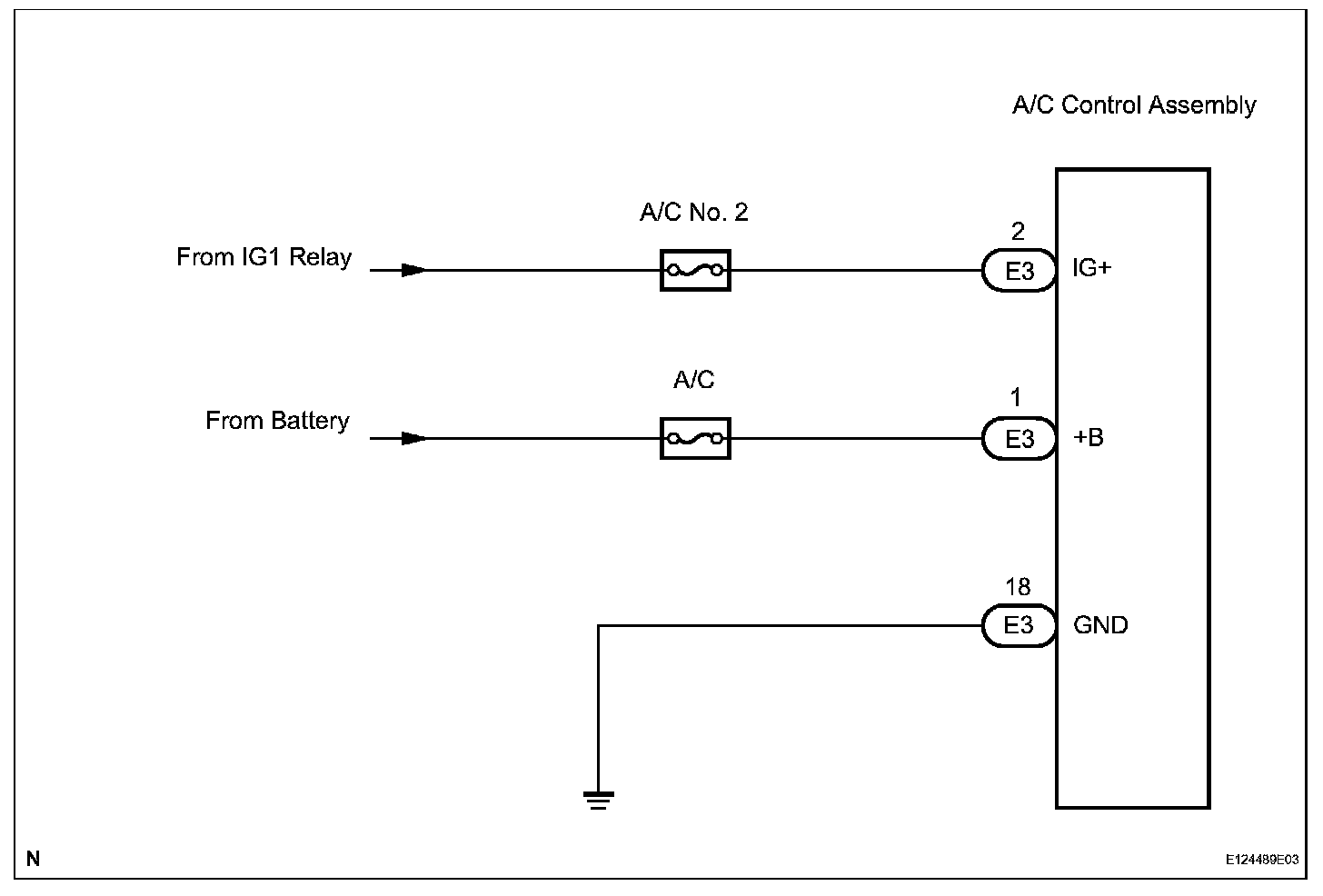

Wiring Diagram:
Step 1-2:

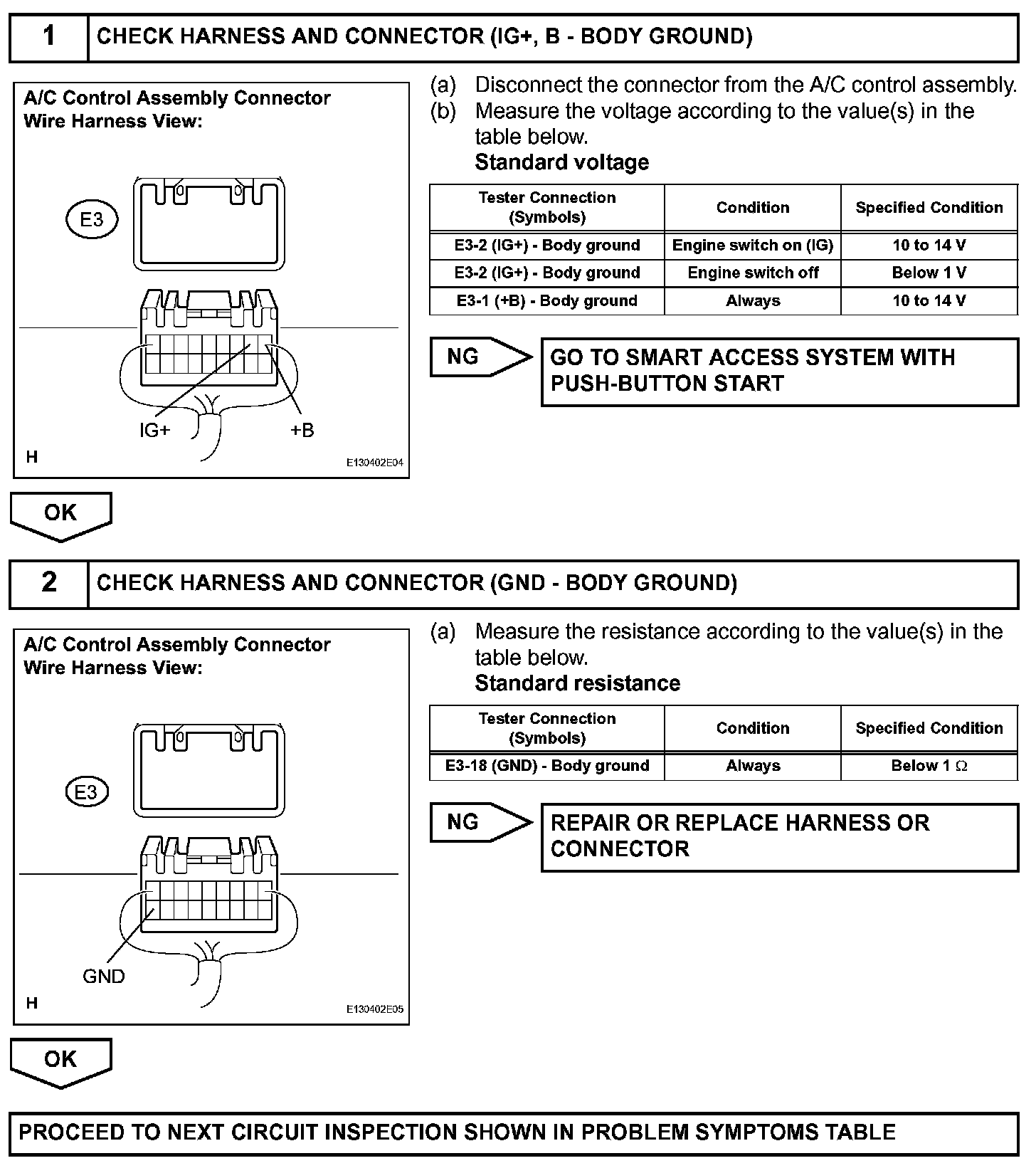

INSPECTION PROCEDURE
DESCRIPTION
Battery voltage is supplied to the A/C control assembly through the A/C fuse and A/C No. 2 fuse.
INSPECTION PROCEDURE
