Air Conditioning Compressor Magnetic Clutch Circuit

Air Conditioning Compressor Magnetic Clutch Circuit

DESCRIPTION

When the A/C amplifier is turned on, a magnetic clutch ON signal is sent from the MGC terminal of the A/ C amplifier. Then, the MGC relay turns on to operate the magnetic clutch.

Wiring Diagram:

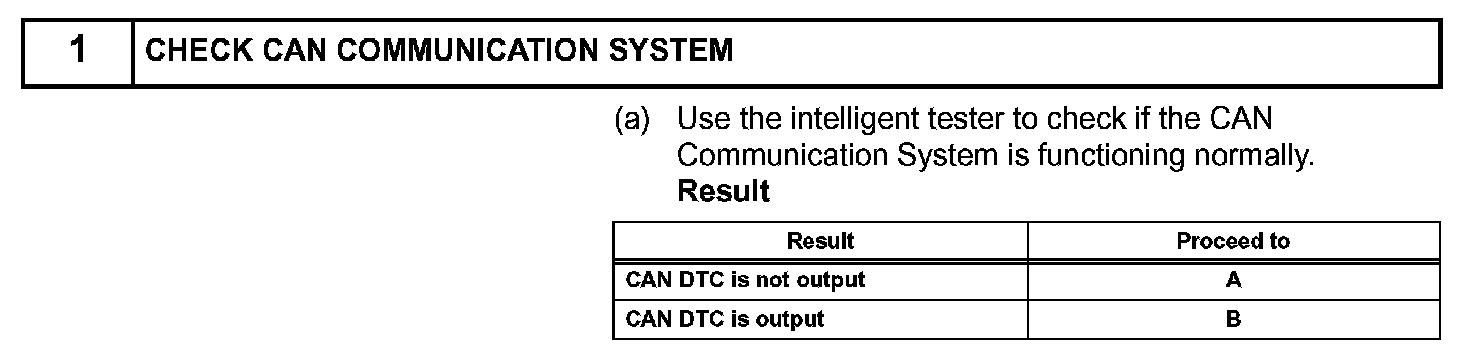

Step 1:

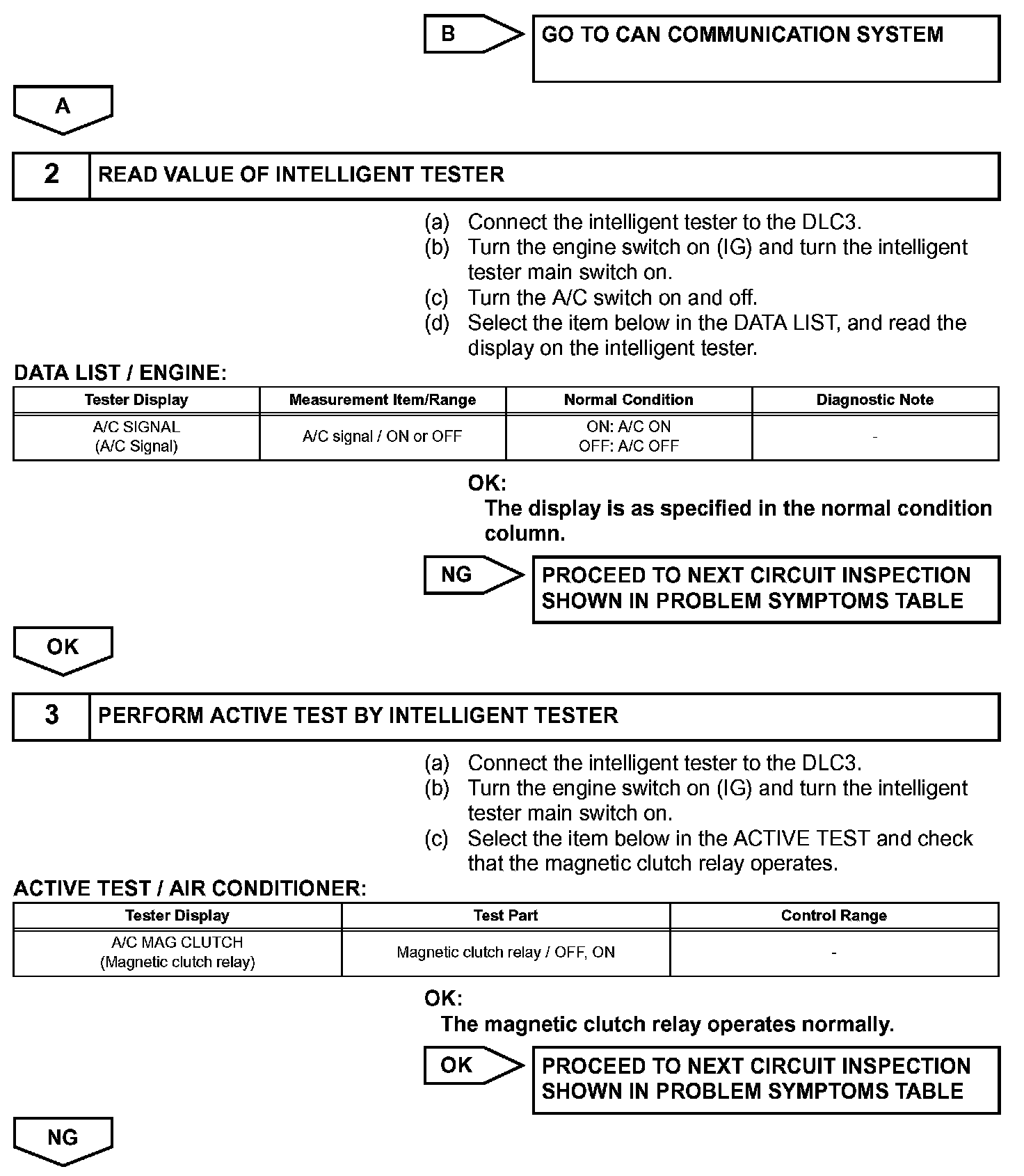

Step 1 (Continued)-3:

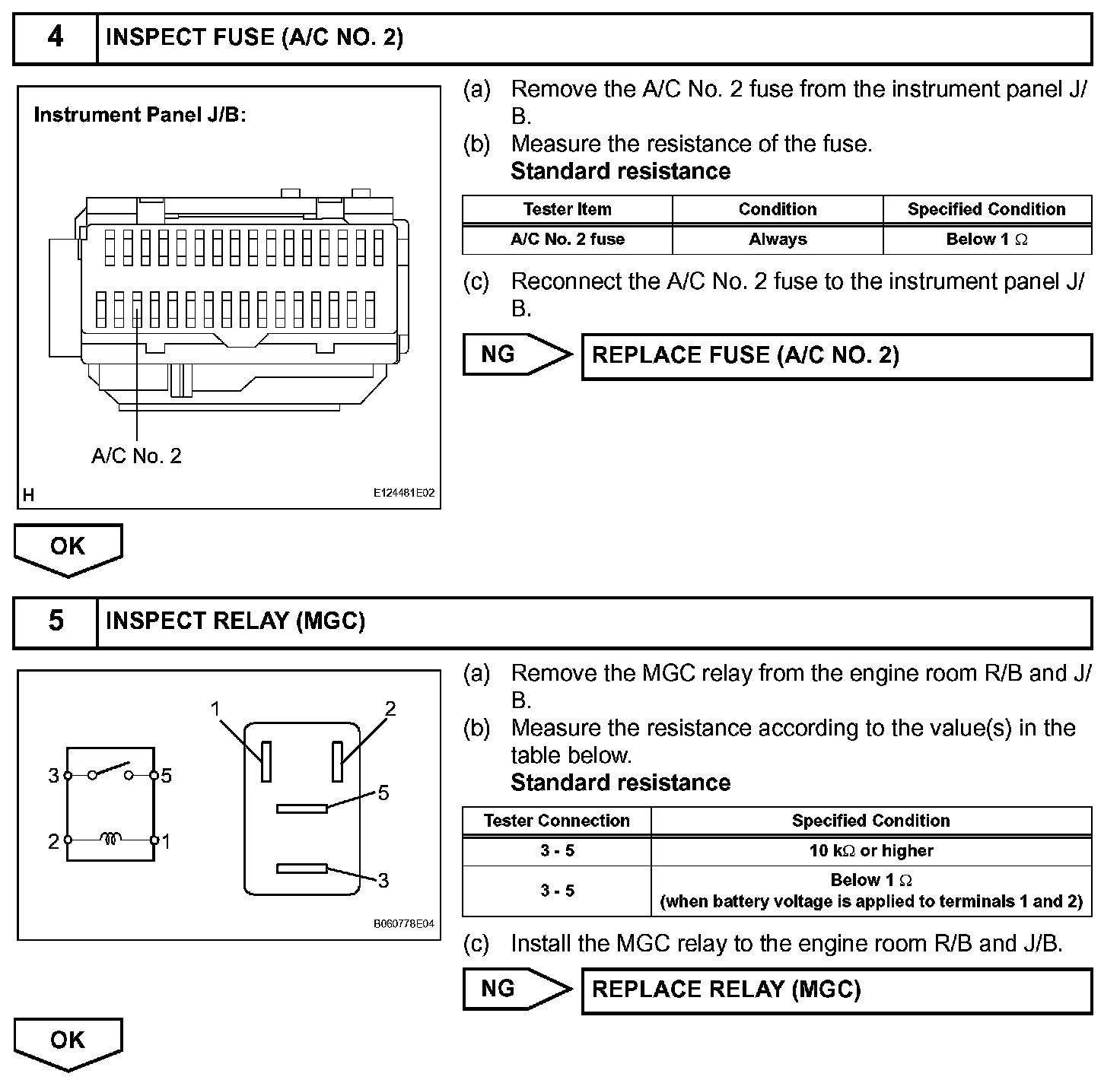

Step 4-5:

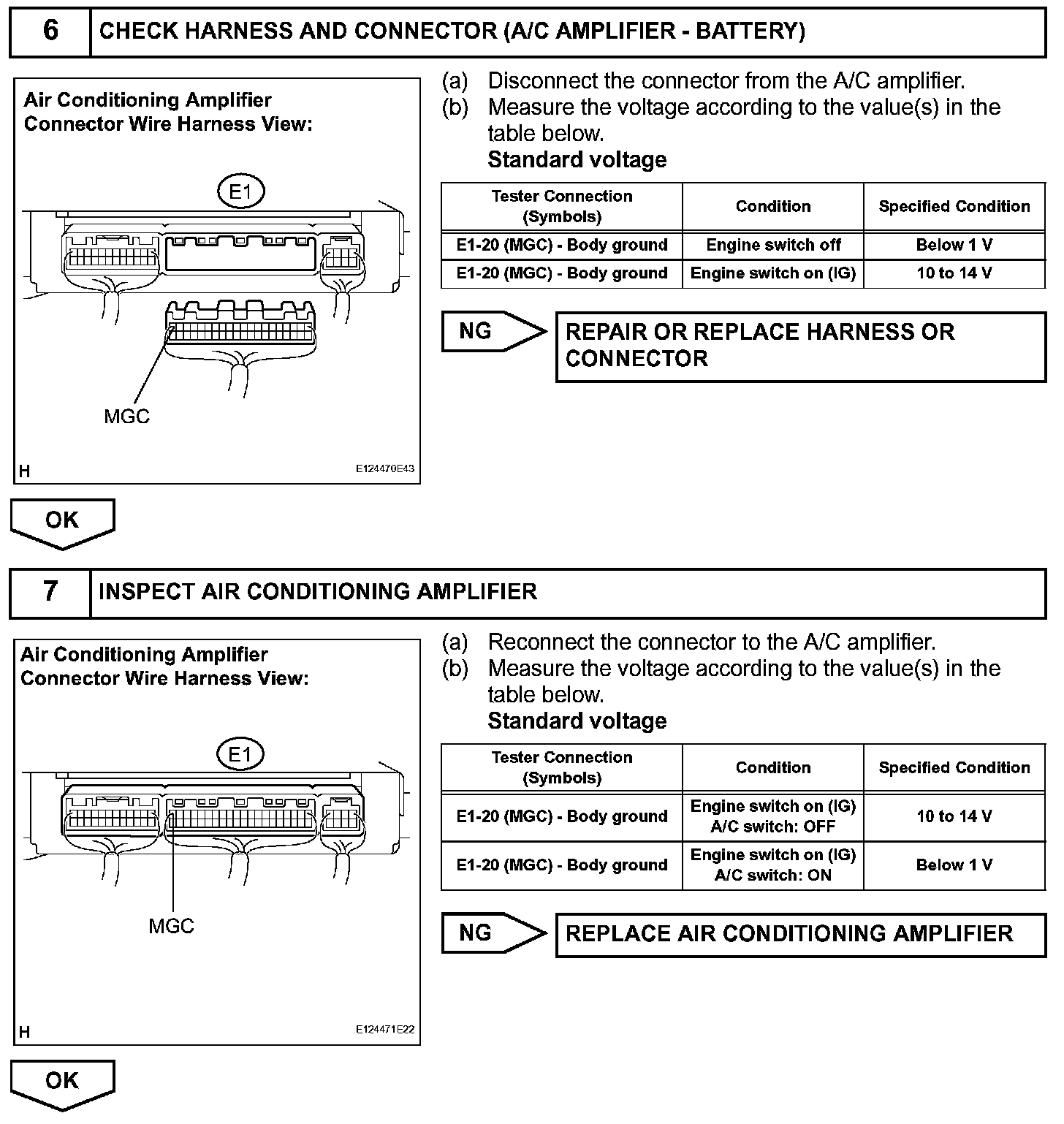

Step 6-7:

Step 8-9:

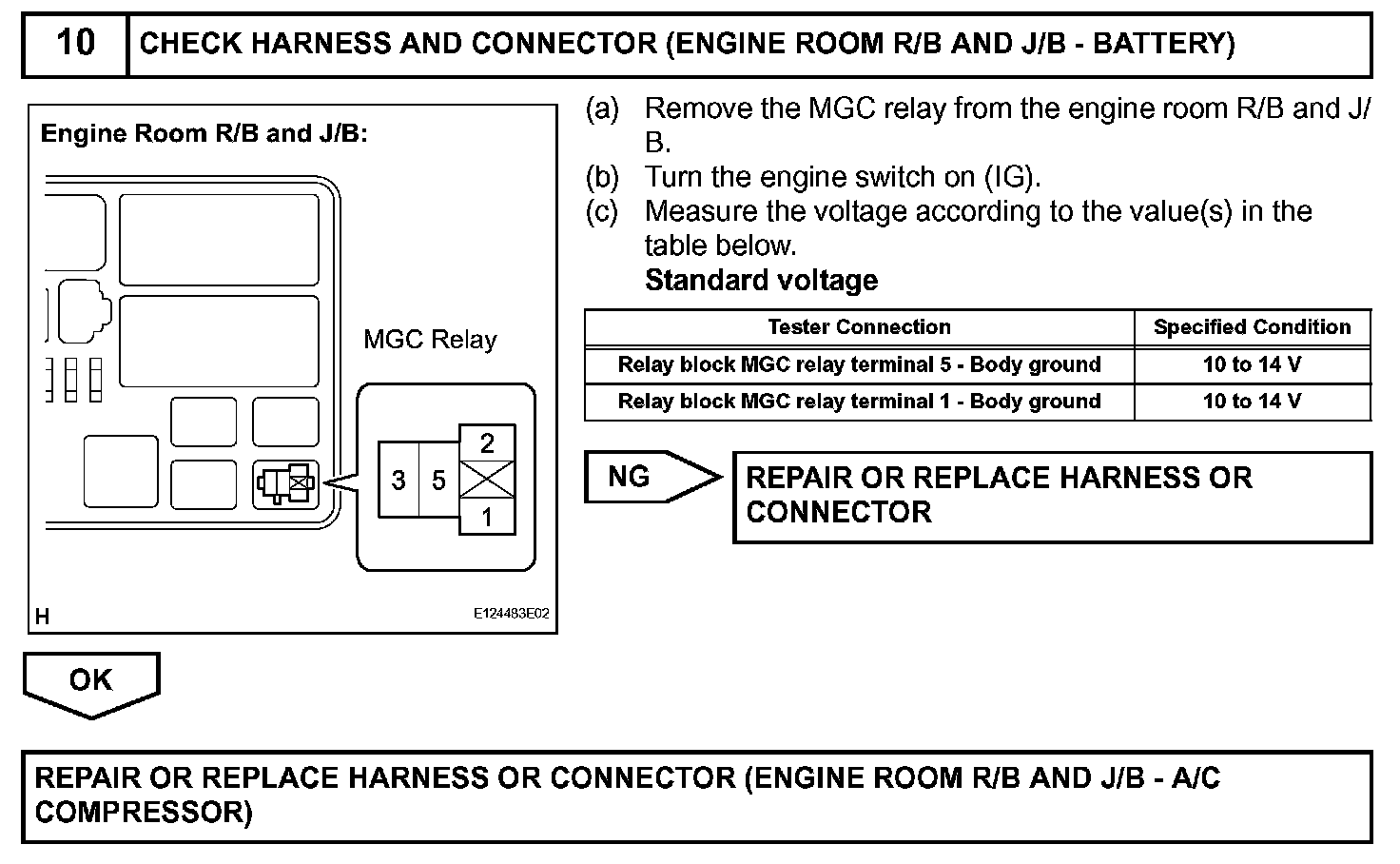

Step 10:

INSPECTION PROCEDURE
