A/C - Voice Command Controls Are Inoperative
ELECTRICALEL008-06
Title:
VOICE COMMANDS FOR CLIMATE
CONTROL ARE INOPERATIVE
Models:
'07 ES 350
July 25, 2006
Introduction
On 2007 model year ES 350 vehicles equipped with the Lexus Navigation System, some customers may experience a condition where the climate control voice recognition commands are inoperative. An updated multi-display has been developed to resolve this condition.
Applicable Vehicles
^ 2007 model year ES 350 vehicles equipped with the Lexus Navigation System produced BEFORE the Production Change Effective VIN shown below.
Production Change Information
Parts Information
Warranty Information
Applicable Warranty*:
This repair is covered under the Lexus Comprehensive Warranty. This warranty is in effect for 48 months or 50,000 miles, whichever occurs first, from the vehicle's in-service date.
* Warranty application is limited to correction of a problem based upon a customer's specific complaint.

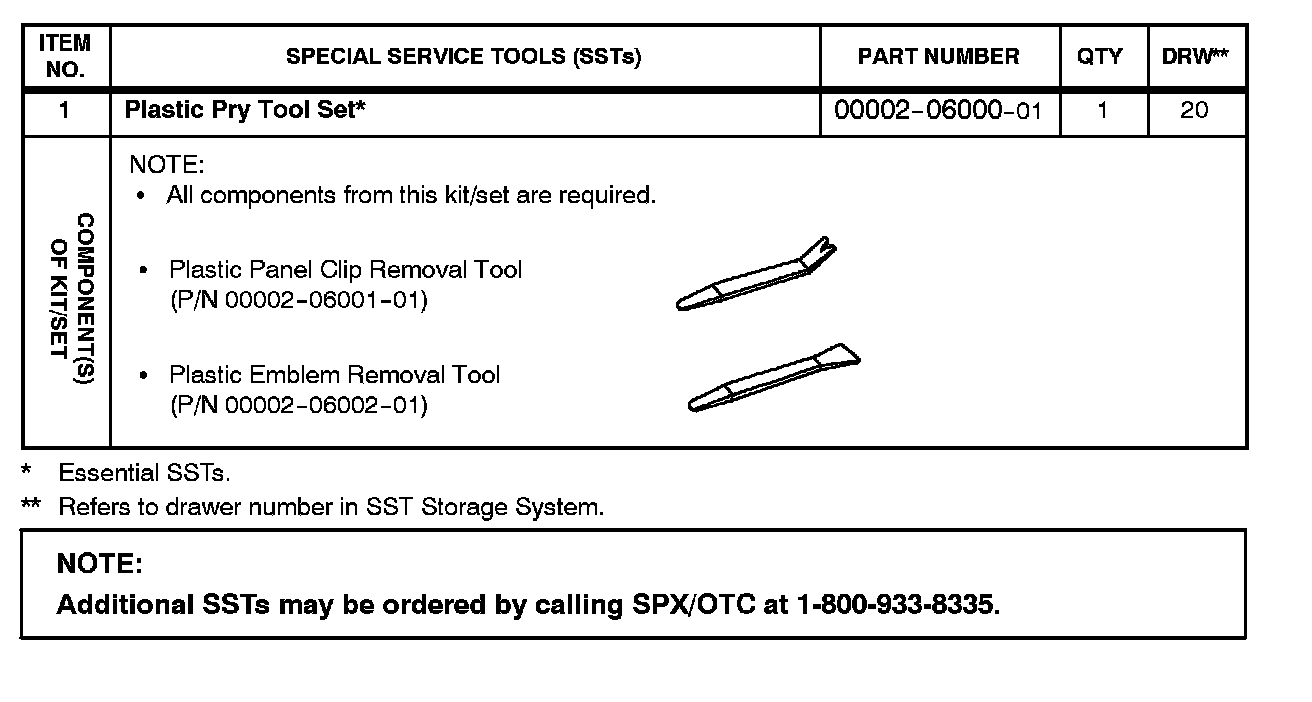

Required SSTs
Repair Procedure
1. Order a replacement multi-display through the Fujitsu-Ten exchange program.
NOTE:
Refer to the Lexus Customer Services Web site on Dealer Daily for ordering information for the exchange program.
2. Replace the multi-display.
Refer to the Technical Information System (TIS), 2007 model year ES 350 Repair Manual: Navigation: Multi-display: Removal Installation.
3. Start the engine and wait 10 seconds.
4. Turn the ignition OFF and wait 1 minute.
5. Start the engine again.
6. Confirm the climate control voice commands are functional.
