Overhaul

DISASSEMBLY

1. REMOVE HEATER CONTROL ORNAMENT LH




a. Remove the 5 screws and heater control ornament LH.

2. REMOVE HEATER CONTROL ORNAMENT RH




a. Remove the 5 screws and heater control ornament RH.

3. REMOVE HEATER CONTROL HOUSING SUB-ASSEMBLY




a. Remove the 4 screws and disengage the 4 claws. Remove the heater control housing sub-assembly.

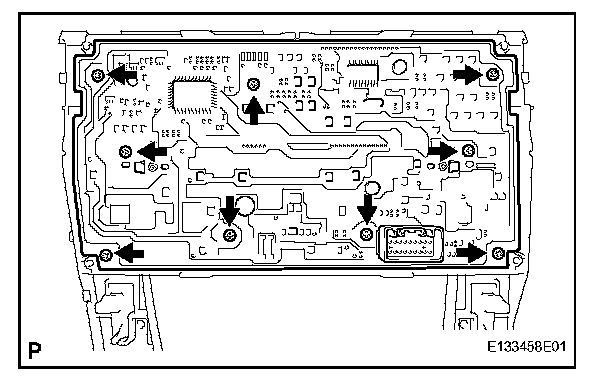

4. REMOVE CENTER CLUSTER MODULE CONTROL ASSEMBLY

NOTE: When disassembling the center cluster module control assembly, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.




a. Remove the 9 screws and center cluster module control assembly.

NOTE: Do not drop the switches or buttons.

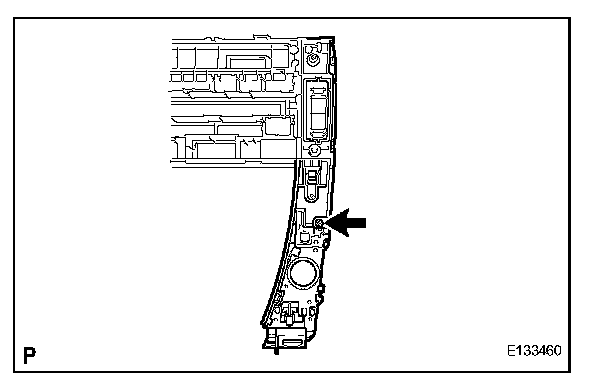

5. REMOVE AIR CONDITIONING PANEL SUB-ASSEMBLY LH




a. Remove the screw and air conditioning panel sub-assembly LH.

6. REMOVE AIR CONDITIONING PANEL SUB-ASSEMBLY RH




a. Remove the screw and air conditioning panel sub-assembly RH.

REASSEMBLY

1. INSTALL CENTER CLUSTER MODULE CONTROL ASSEMBLY

NOTE: When reassembling the center cluster module control assembly, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.




a. Install the center cluster module control assembly with the 5 screws.

2. INSTALL AIR CONDITIONING PANEL SUB-ASSEMBLY RH




a. Install the air conditioning panel sub-assembly RH with the 3 screws.

3. INSTALL AIR CONDITIONING PANEL SUB-ASSEMBLY LH




a. Install the air conditioning panel sub-assembly LH with the 3 screws.

4. INSTALL HEATER CONTROL HOUSING SUB-ASSEMBLY




a. Engage the 4 claws and install the heater control housing sub-assembly with the 4 screws.

5. INSTALL HEATER CONTROL ORNAMENT LH




a. Install the heater control ornament LH with the 5 screws.

6. INSTALL HEATER CONTROL ORNAMENT RH




a. Install the heater control ornament RH with the 5 screws.
