ECU Power Source Circuit

ECU Power Source Circuit

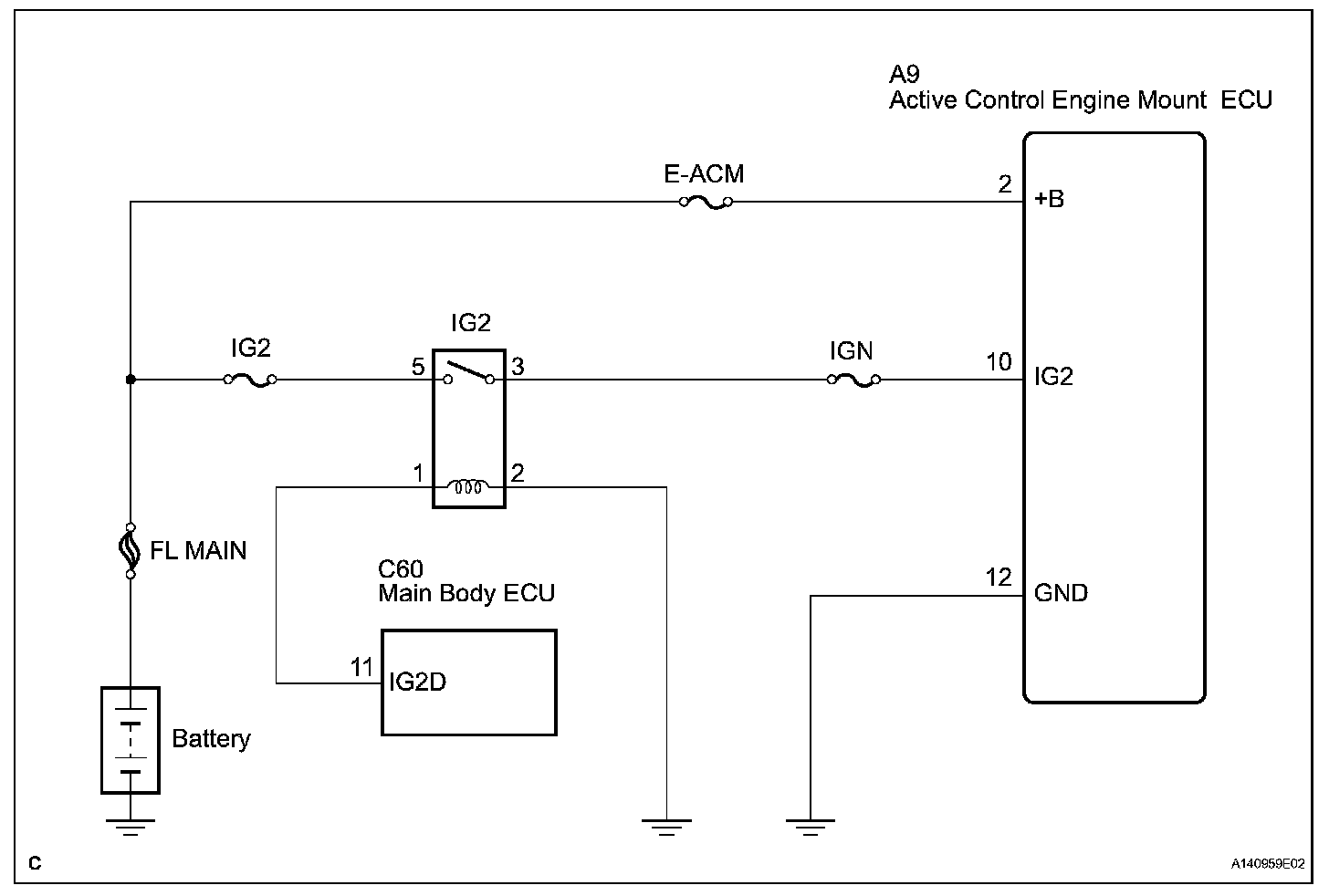

Wiring Diagram:





INSPECTION PROCEDURE

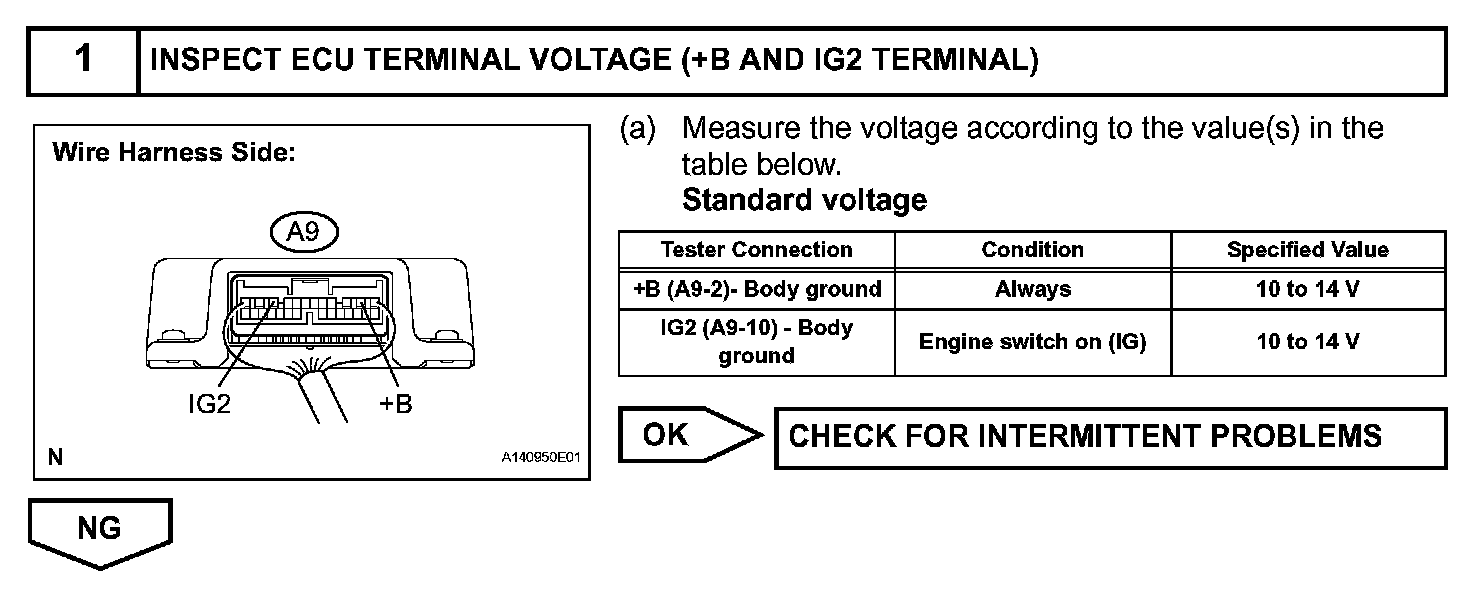

Step 1:

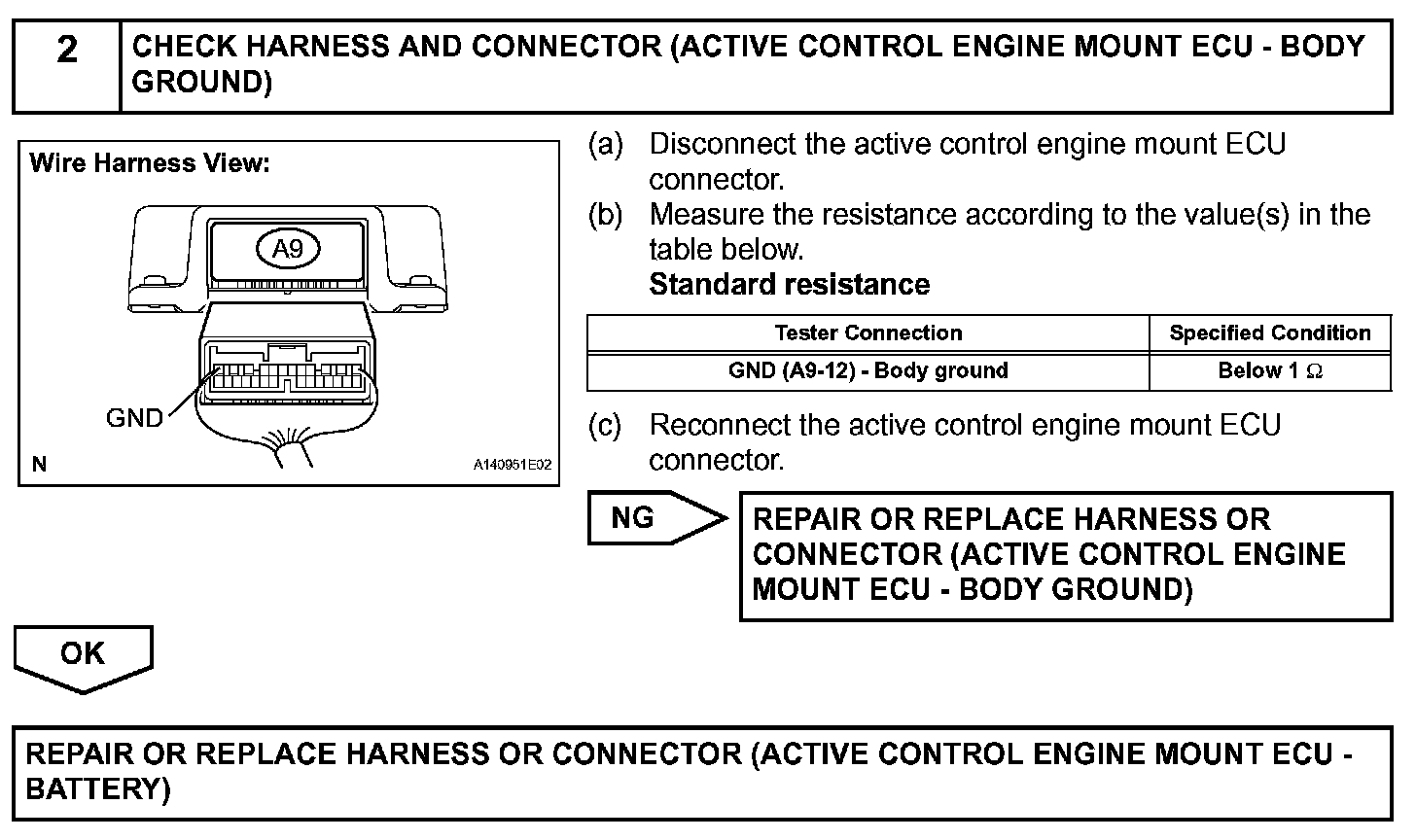

Step 2:
