On-Vehicle Inspection

ON-VEHICLE INSPECTION

1. INSPECT ACTIVE ENGINE MOUNTING




a. Inspect the active engine mounting.

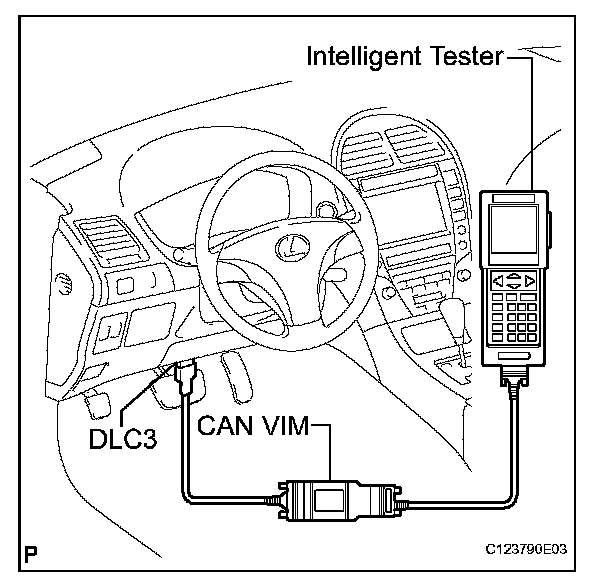

1. Connect the intelligent tester to DLC3.
2. Start the engine and turn the intelligent tester on.

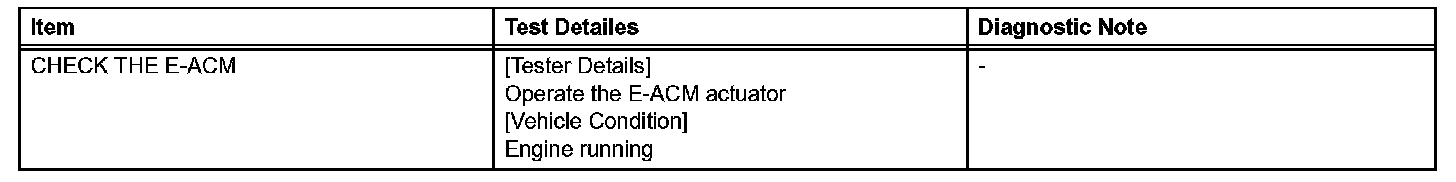

3. Enter the following menus: DIAGNOSIS / OBD/ MOBD / E-ACM / ACTIVE TEST.
4. Check if the active mount control operates.

Standard: The active mount control operates normally.
