Cruise Main Indicator Light Circuit

Cruise Main Indicator Light Circuit

DESCRIPTION

- The ECM detects a cruise control switch signal and sends it to the combination meter through the CAN communication system. Then the CRUISE main indicator light comes on.
- The CRUISE main indicator light circuit uses CAN communication. If there is a malfunction in this circuit, check for DTCs in the CAN communication system before troubleshooting this circuit.

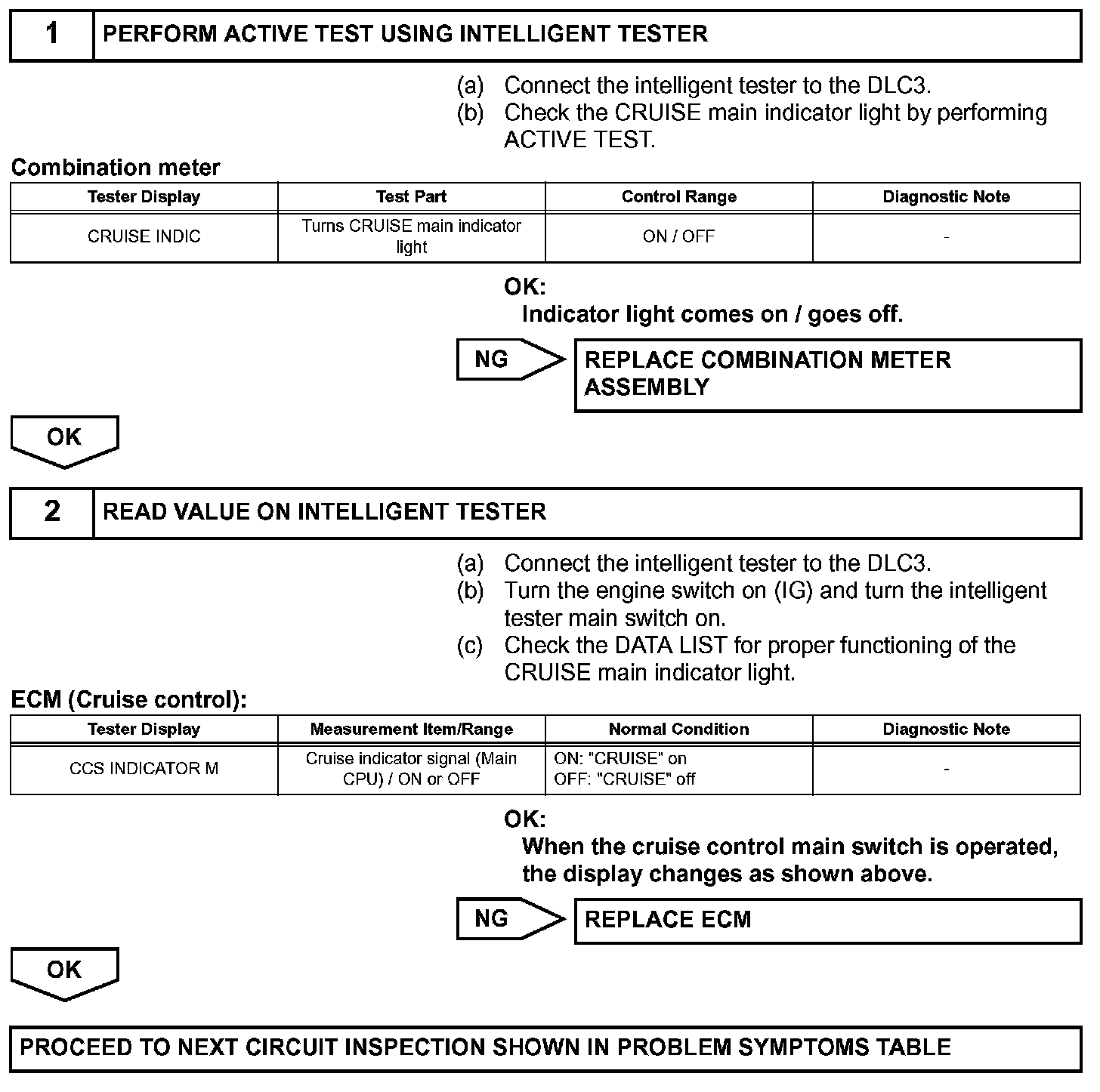

Step 1-2:

INSPECTION PROCEDURE
