Rear

REAR BRAKE FLEXIBLE HOSE

COMPONENTS:

REMOVAL
1. REMOVE REAR WHEEL
2. DRAIN BRAKE FLUID

3. REMOVE REAR BRAKE FLEXIBLE HOSE

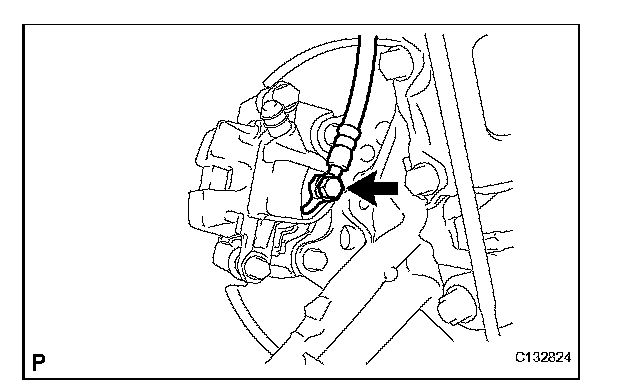

(a) Remove the union bolt and separate the rear brake flexible hose.
(b) Remove the gasket from the rear brake flexible hose.

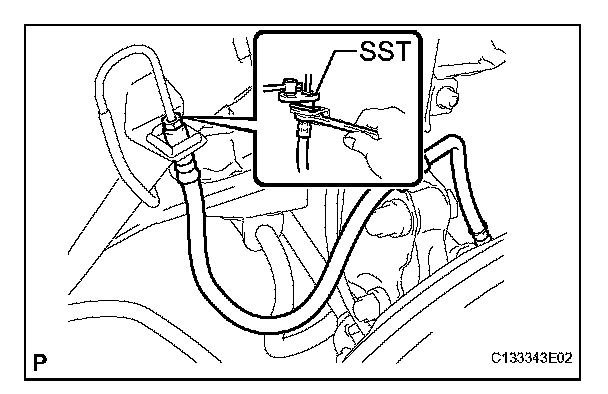

(d) Using SST, remove the brake line while holding the rear brake flexible hose with a wrench.
SST 09023-00101

NOTICE:
^ Do not bend or damage the brake line.
^ Do not allow any foreign matter such as dirt and dust to enter the brake tube from the connecting points.

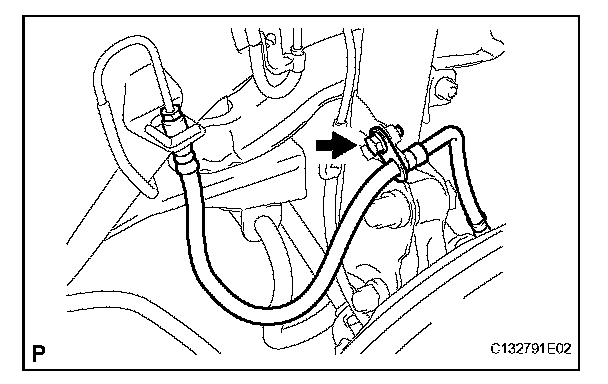

(e) Remove the clip.

INSTALLATION
1. INSTALL REAR BRAKE FLEXIBLE HOSE
(a) Install a new gasket.

(b) Connect the rear brake flexible hose with the union bolt.
Torque: 33 N*m (337 kgf*cm, 24 ft.*lbf)
(c) Install the rear brake flexible hose with a new clip.

NOTICE:
^ When installing the rear brake flexible hose, face the identification mark toward the exterior of the vehicle and minimize twisting of the hose.
^ Install the clip as far as it will go.

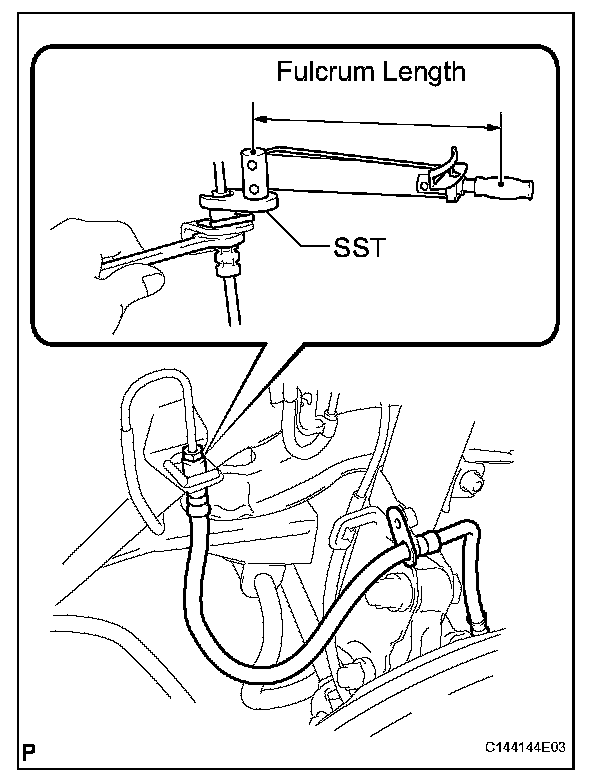

(d) Using SST, connect the brake line to the rear brake flexible hose while holding the flexible hose with a wrench.
SST 09023-00101
Torque:
Without SST 15 N*m (155 kgf*cm, 11 ft.*lbf)
With SST 14 N*m (143 kgf*cm, 10 ft.*lbf)

NOTICE:
^ Do not bend or damage the brake tube.
^ Do not allow any foreign matter such as dirt and dust to enter the brake tube from the connecting points.
^ Use a torque wrench with a fulcrum length of 250 mm (9.84 in.).
^ This torque value is effective when SST is parallel to a torque wrench.

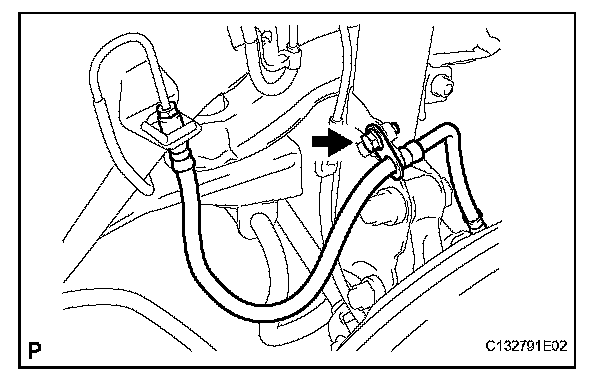

(e) Install the rear flexible hose to the shock absorber with the bolt.
Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

2. FILL RESERVOIR WITH BRAKE FLUID
3. BLEED BRAKE LINE
4. BLEED BRAKE ACTUATOR ASSEMBLY
5. INSPECT BRAKE FLUID LEVEL IN RESERVOIR
6. CHECK FOR BRAKE FLUID LEAKS
7. INSTALL REAR WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
