FRONT BRAKE FLEXIBLE HOSECOMPONENTS:
REMOVAL
1. REMOVE FRONT WHEEL
2. DRAIN BRAKE FLUID
3. REMOVE FRONT BRAKE FLEXIBLE HOSE

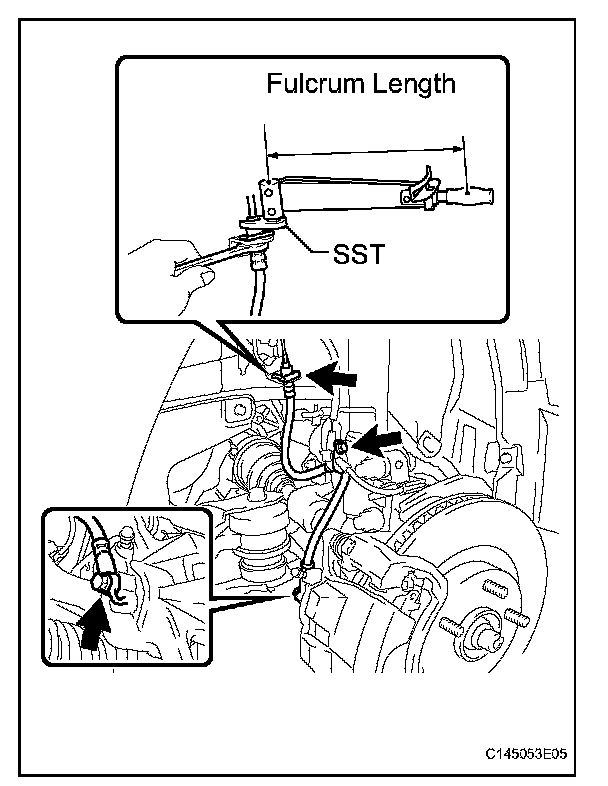

(a) Using SST, disconnect the brake line while holding the front brake flexible hose with a wrench.
SST 09023-00101
NOTICE:
^ Do not bend or damage the brake line.
^ Do not allow any foreign matter such as dirt and dust to enter the brake line from the connecting points.
(b) Remove the clip.
(c) Remove the bolt, and separate the front brake flexible hose and the speed sensor from the shock absorber.
(d) Remove the union bolt and the front brake flexible hose from the front disc brake cylinder assembly.
(e) Remove the gasket from the front brake flexible hose.
INSTALLATION
1. INSTALL FRONT BRAKE FLEXIBLE HOSE
(a) Connect the front brake flexible hose with the union bolt and a new gasket.
Torque: 29 N*m (300 kgf*cm, 21 ft.*lbf)
(b) Connect the front brake flexible hose and the speed sensor to the shock absorber with the bolt.
Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)
NOTICE: When installing the front brake flexible hose and the speed sensor, the bracket must face toward the exterior of the vehicle.
(c) Install the front brake flexible hose with a new clip.
NOTICE:
^ When installing the front brake flexible hose, face the identification mark toward the exterior of the vehicle and minimize twisting of the hose.
^ Install the clip as far as it will go.
(d) Using SST, connect the brake line to the front brake flexible hose while holding the front brake flexible hose with a wrench.
SST 09023-00101
Torque:
Without SST 15 N*m (155 kgf*cm, 11 ft.*lbf)
With SST 14 N*m (143 kgf*cm, 10 ft.*lbf)
NOTICE:
^ Do not bend or damage the brake line.
^ Do not allow any foreign matter such as dirt and dust to enter the brake line from the connecting points.
^ Use a torque wrench with a fulcrum length of 250 mm (9.84 in.).
^ This torque value is effective when SST is parallel to a torque wrench.
2. FILL RESERVOIR WITH BRAKE FLUID
3. BLEED BRAKE LINE
4. BLEED BRAKE ACTUATOR ASSEMBLY
5. INSPECT BRAKE FLUID LEVEL IN RESERVOIR
6. CHECK FOR BRAKE FLUID LEAKS
7. INSTALL FRONT WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
