Without Scan Tool

DTC CLEAR (SST CHECK WIRE)

Clear the DTC

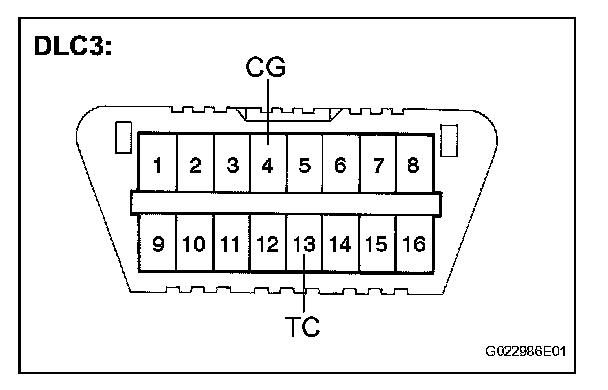

1. Using SST, connect terminals TC and CG of the DLC3.

SST 09843-18040

2. Turn the engine switch on (IG).

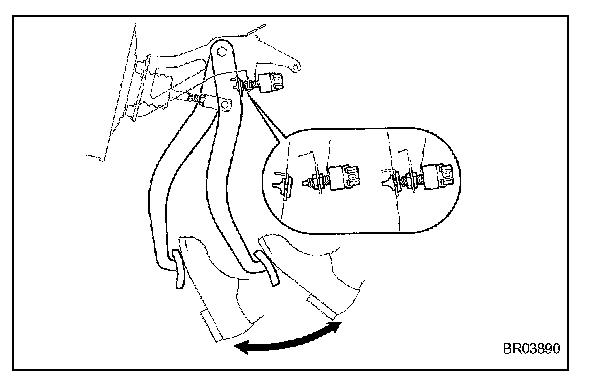

3. Clear the DTCs stored in the ECU by depressing the brake pedal 8 times or more within 5 seconds.
4. Check that the multi information display indicates the normal system code.
5. Remove the SST from the terminals of the DLC3.

HINT: Clearing the DTCs cannot be performed by disconnecting the battery terminal or the ECU-IG NO. 2 fuse.

END OF DTC CLEAR

a. Turn the engine switch on (IG).
b. Check that the ABS warning light goes off within approximately 3 seconds.
