Climate Control Seat System Does Not Operate
Climate Control Seat System Does Not OperateDESCRIPTION
The A/C amplifier assembly receives seat position signals when the engine switch is on (IG), and then transmits airflow amount signals to each seat climate blower.

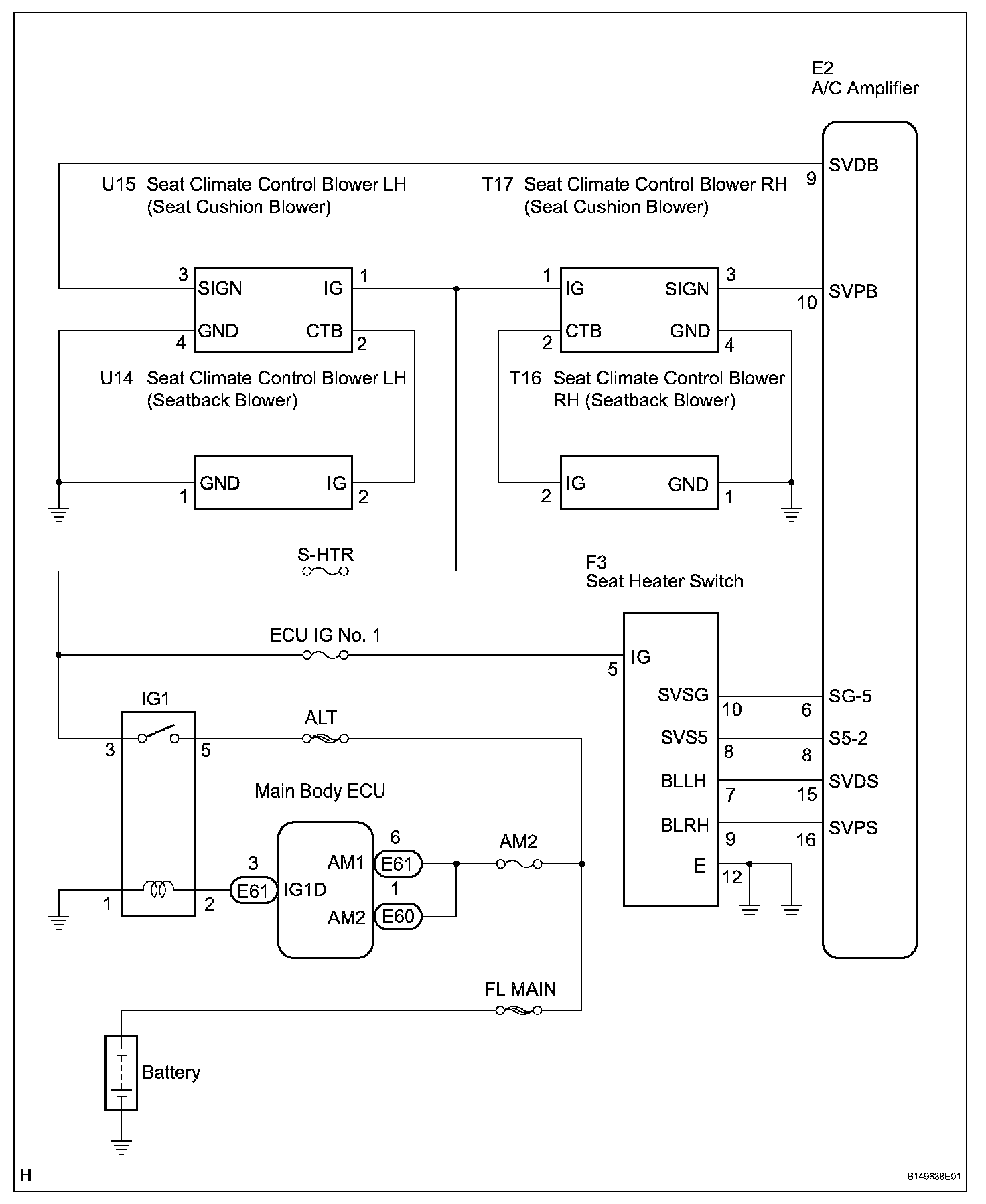

WIRING DIAGRAM
Wiring Diagram:
INSPECTION PROCEDURE

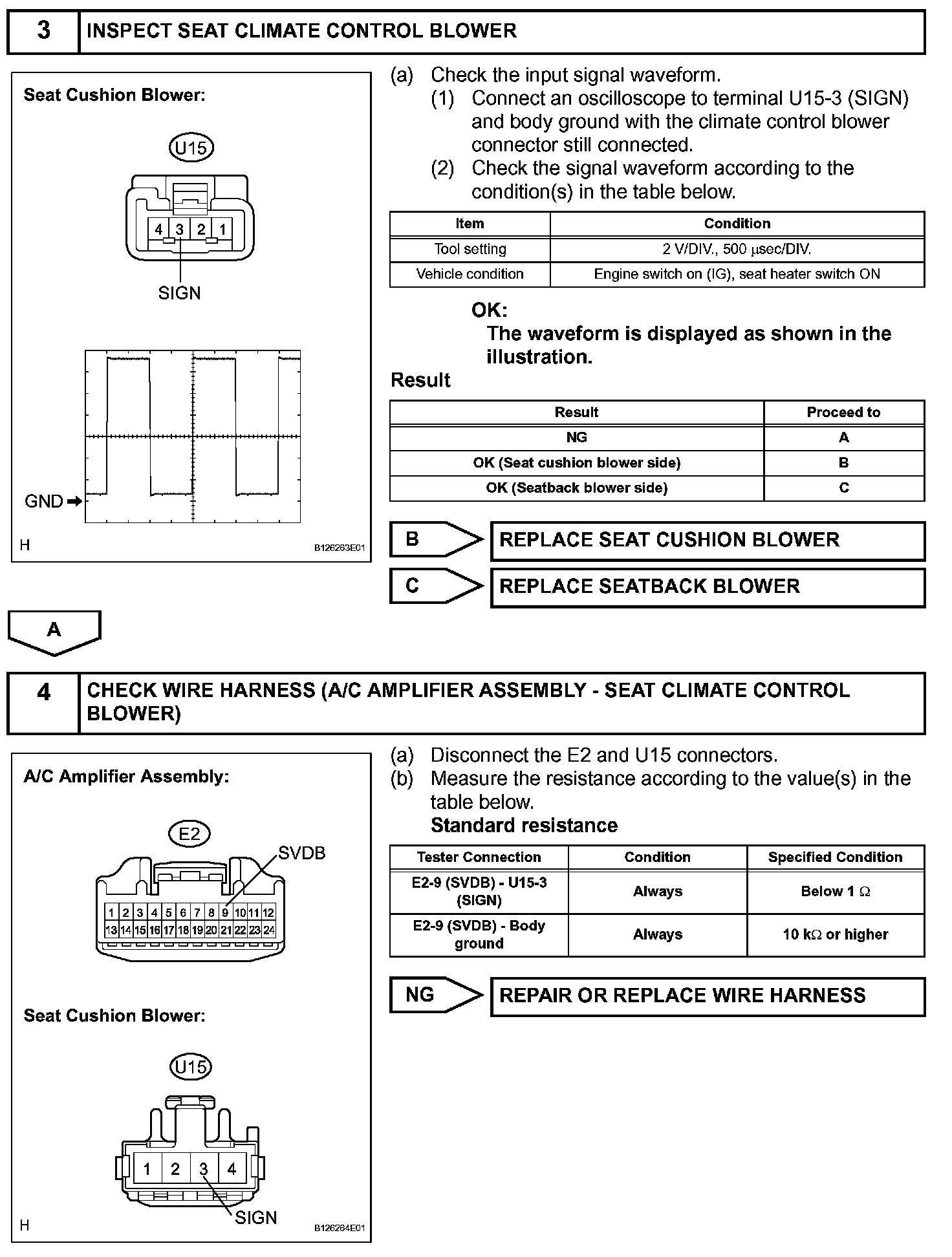

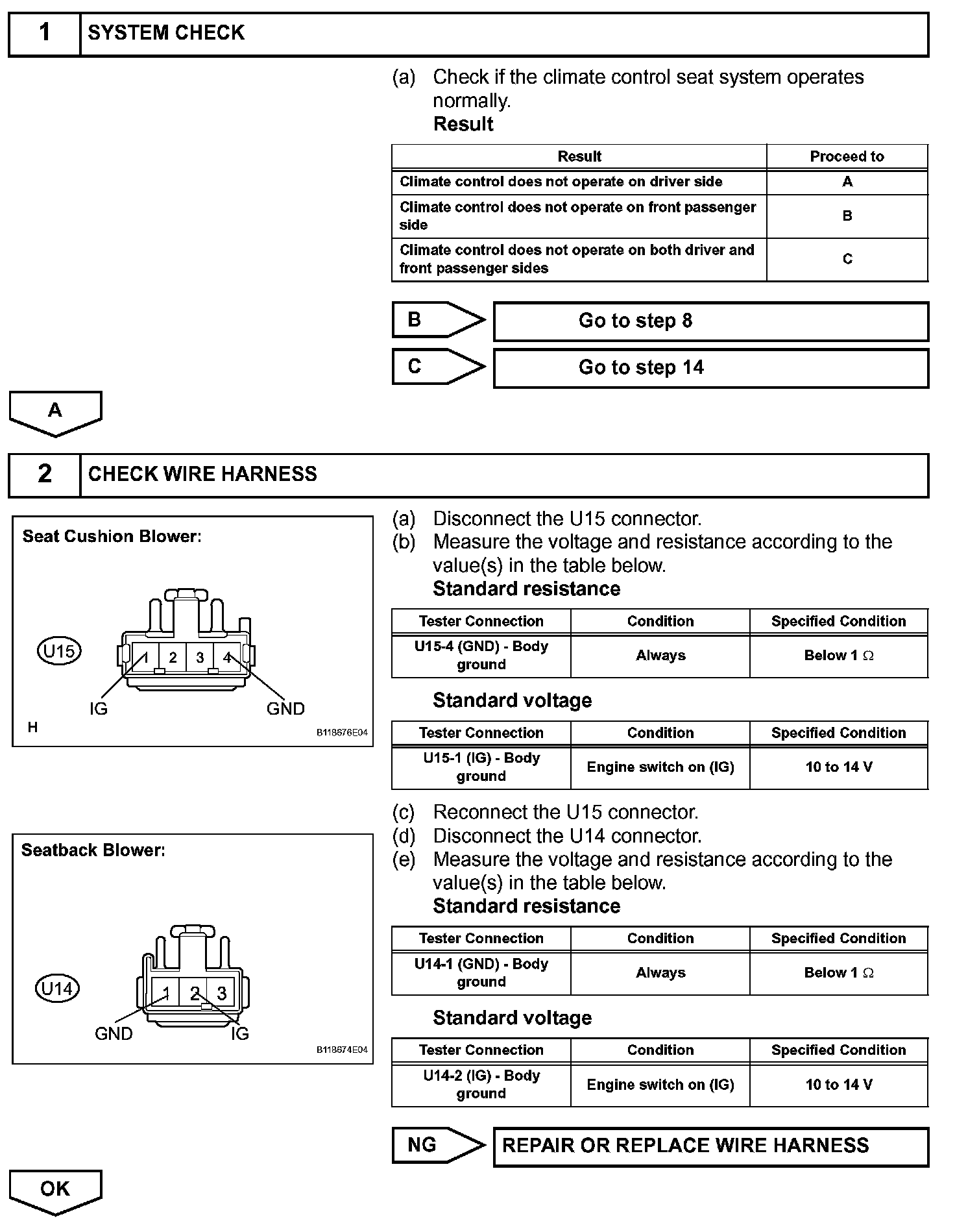

Step 1 - 2:
Step 3 - 4:

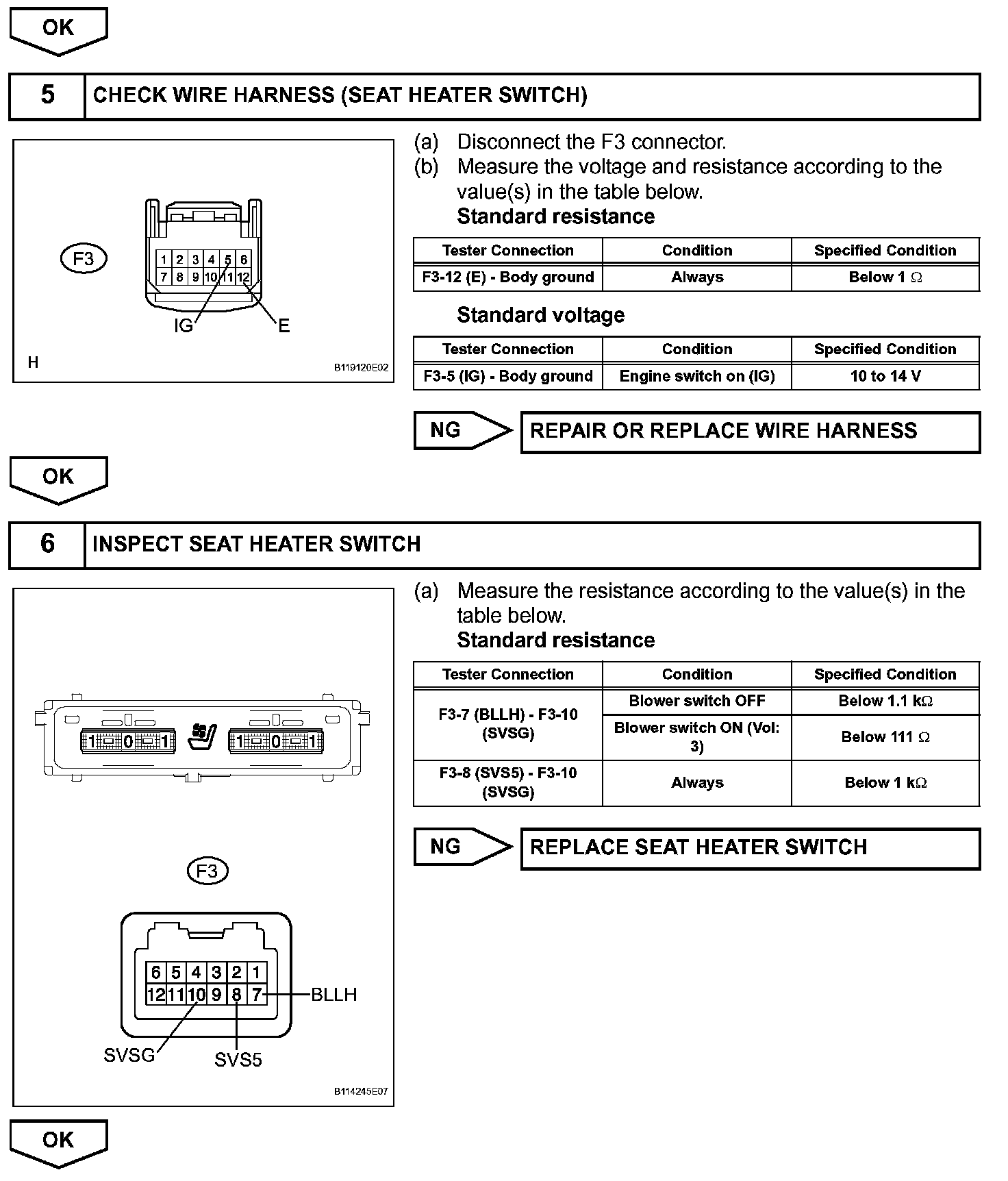

Step 4(Continued) - 6:

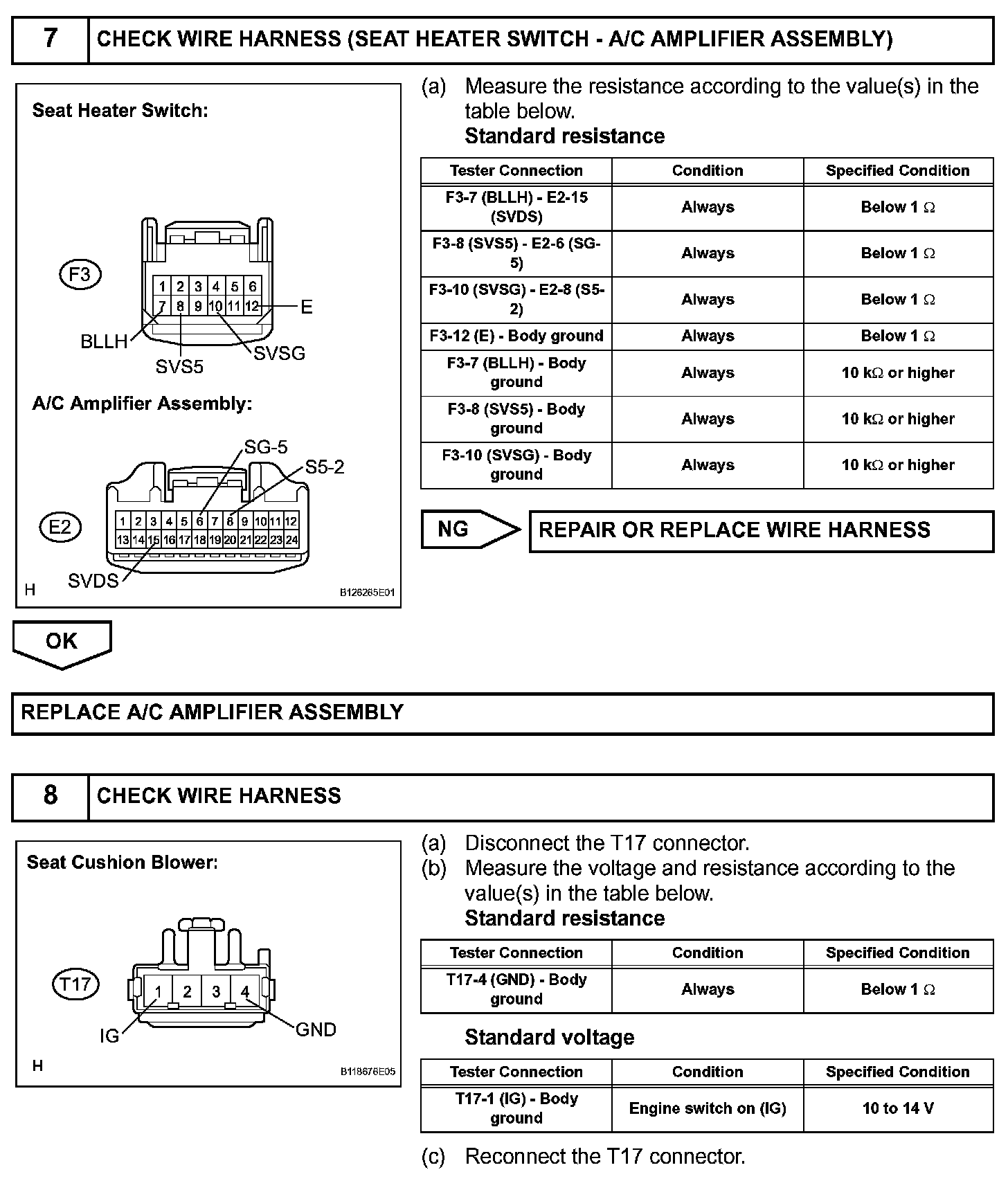

Step 7 - 8:

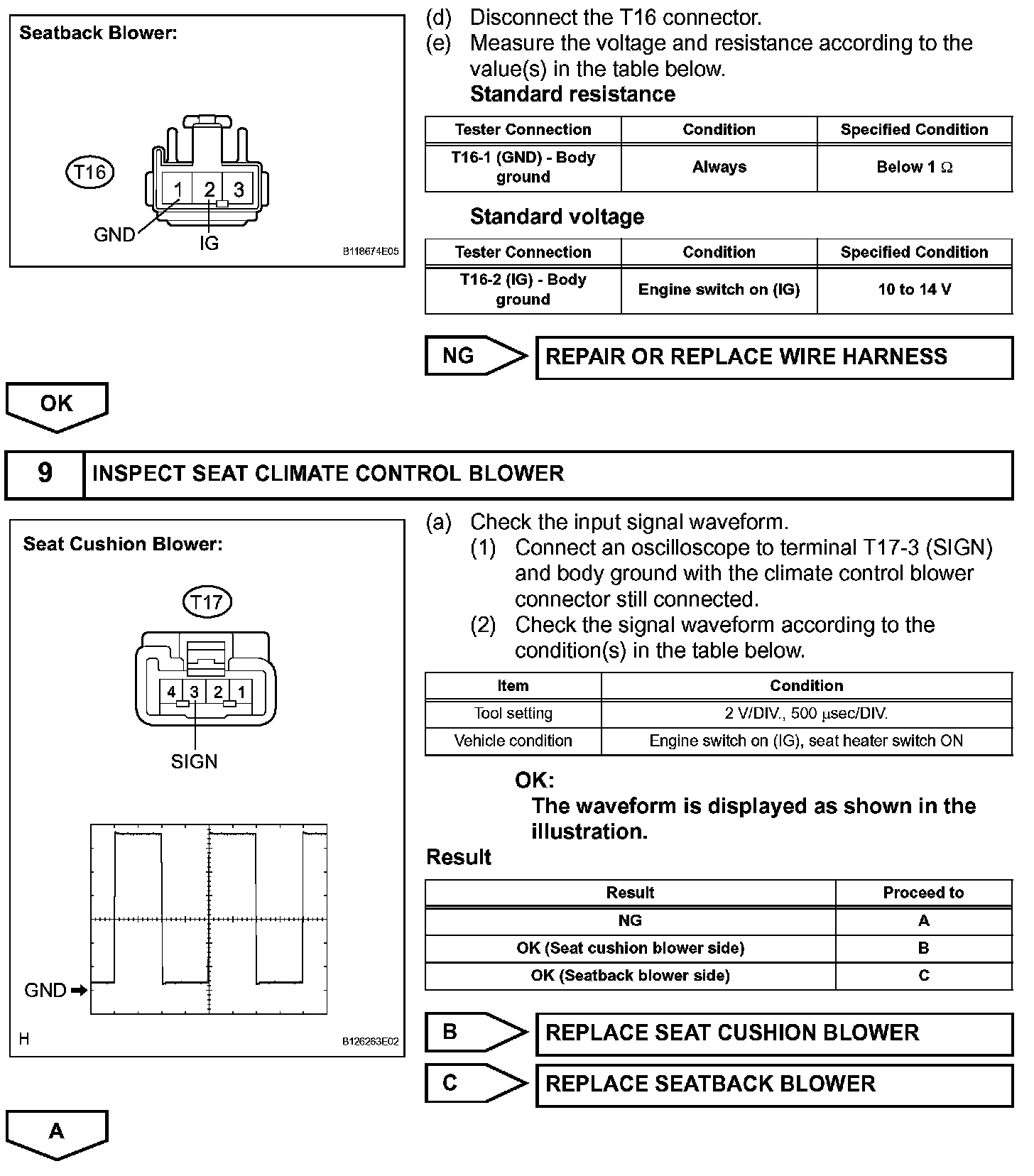

Step 8(Continued) - 9:

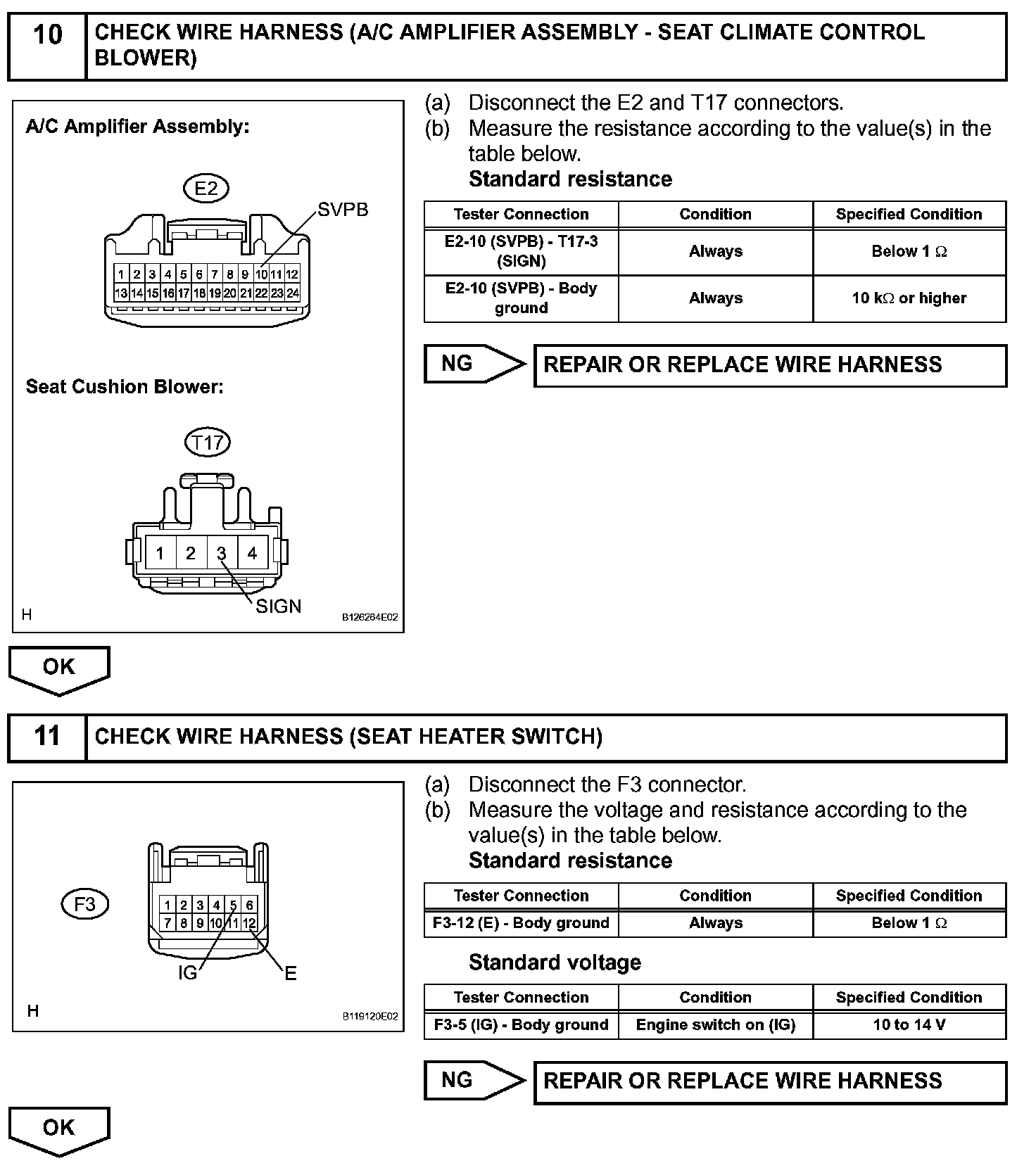

Step 10 - 11:

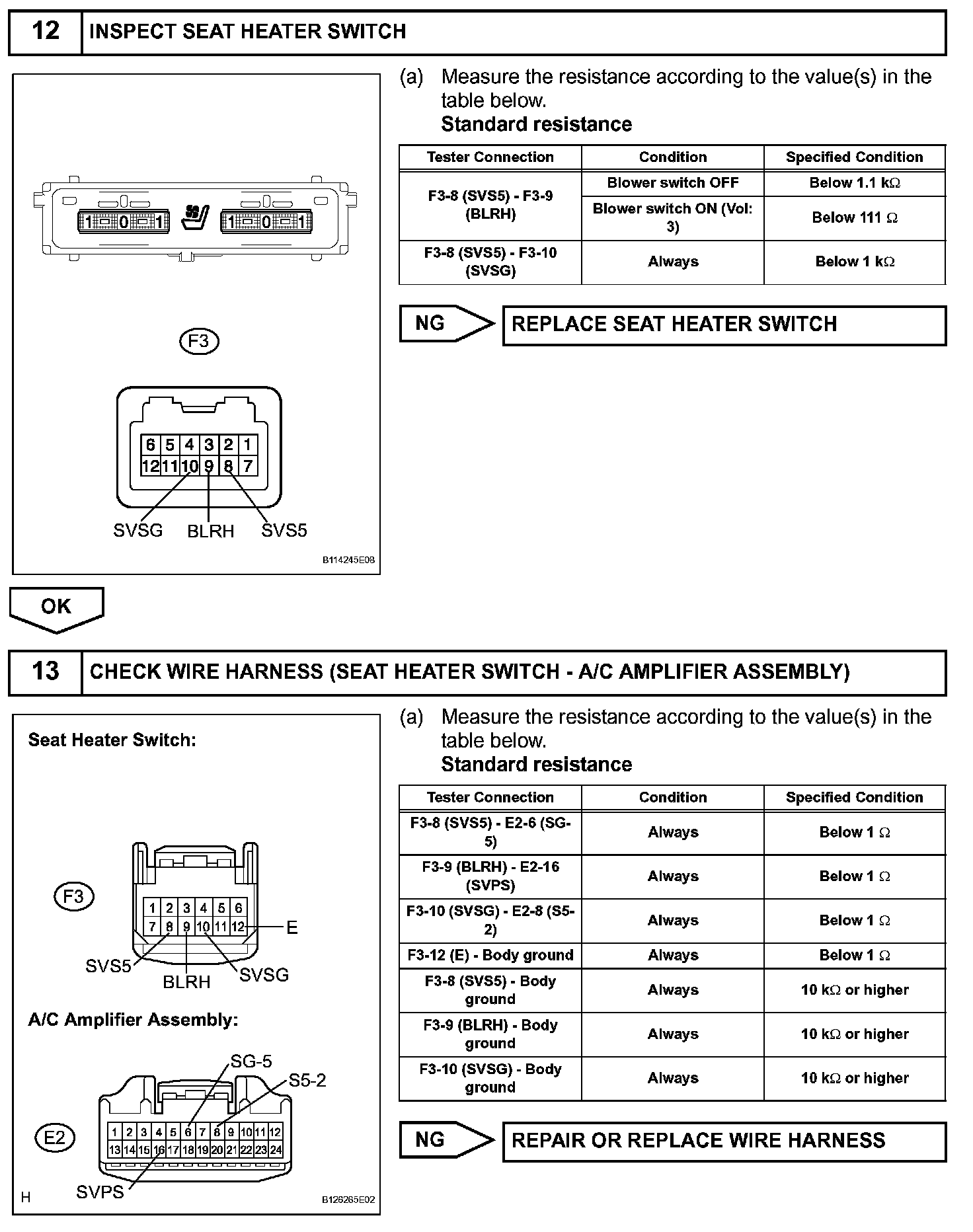

Step 12 - 13:

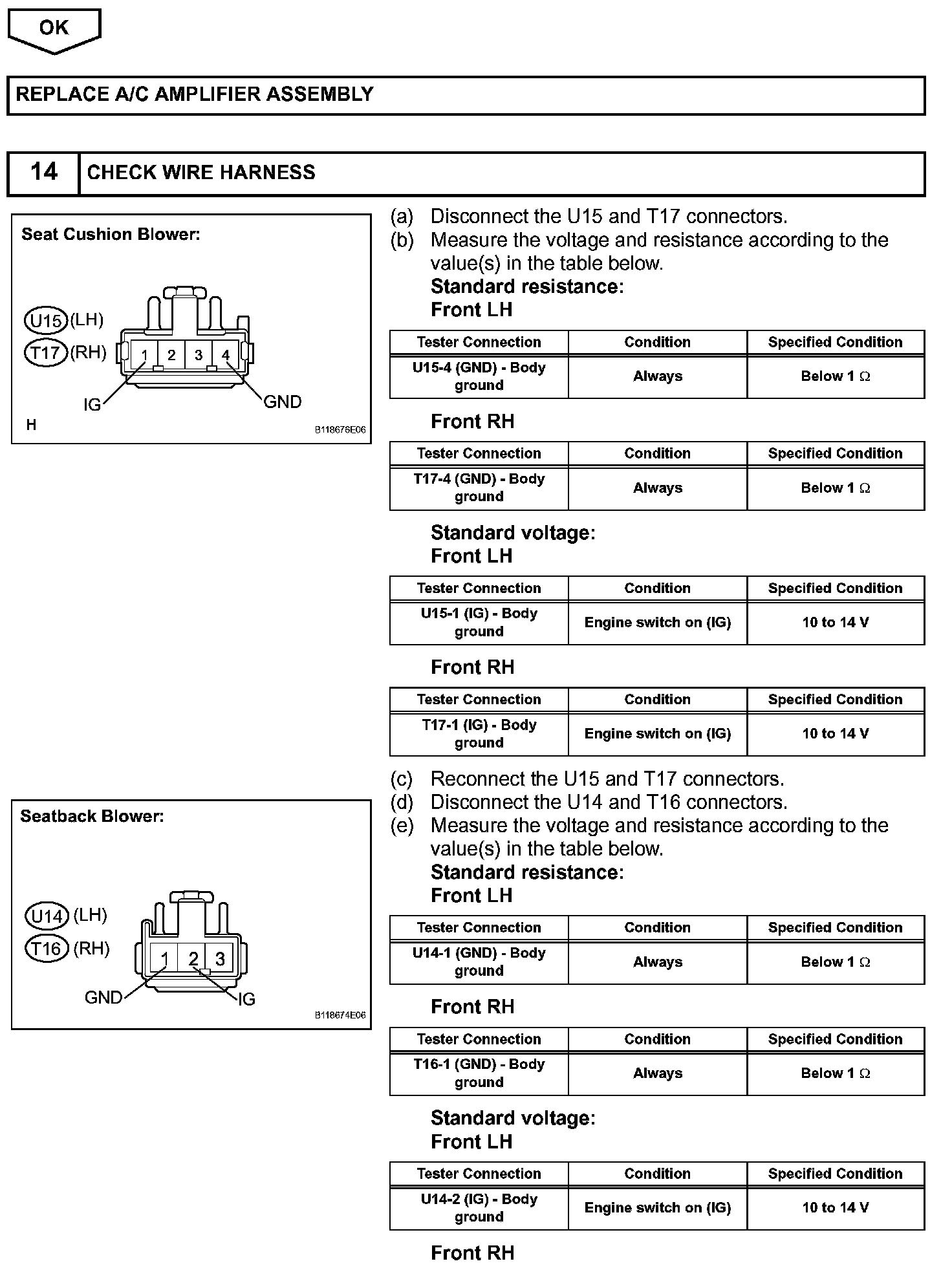

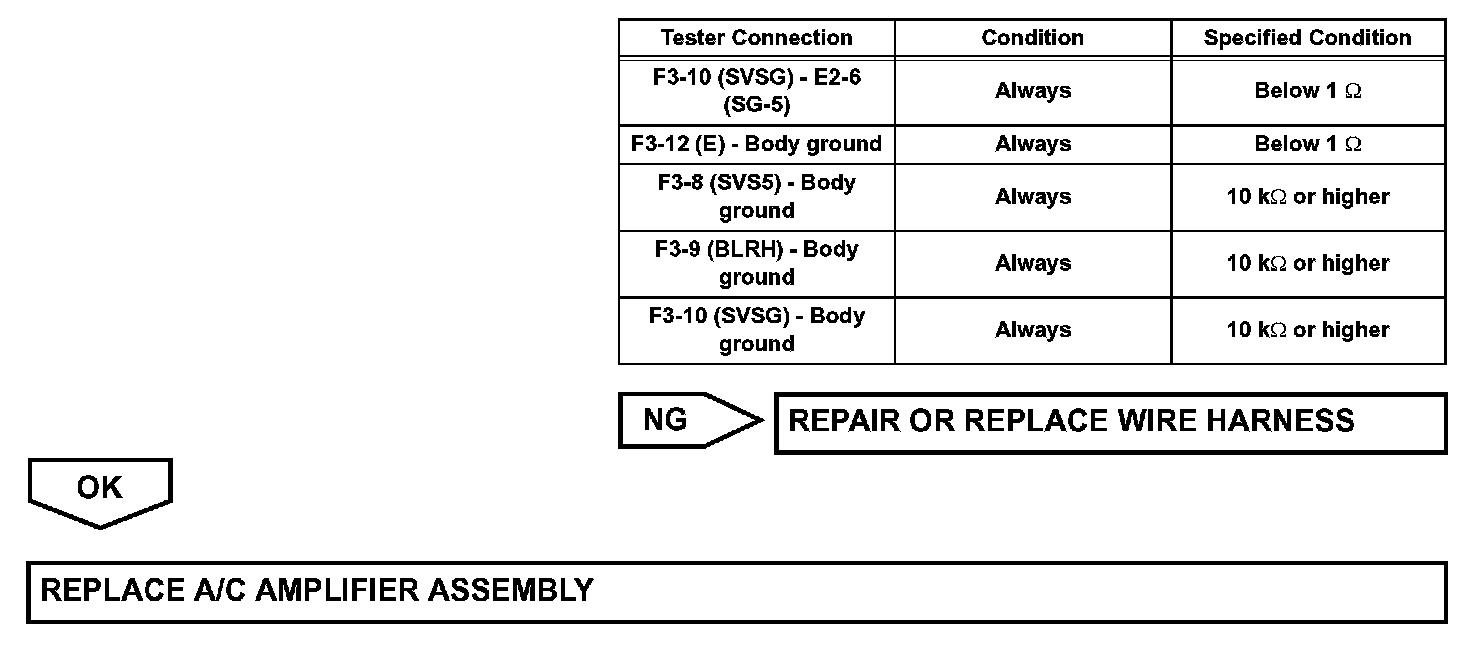

Step 13(Continued) - 14:

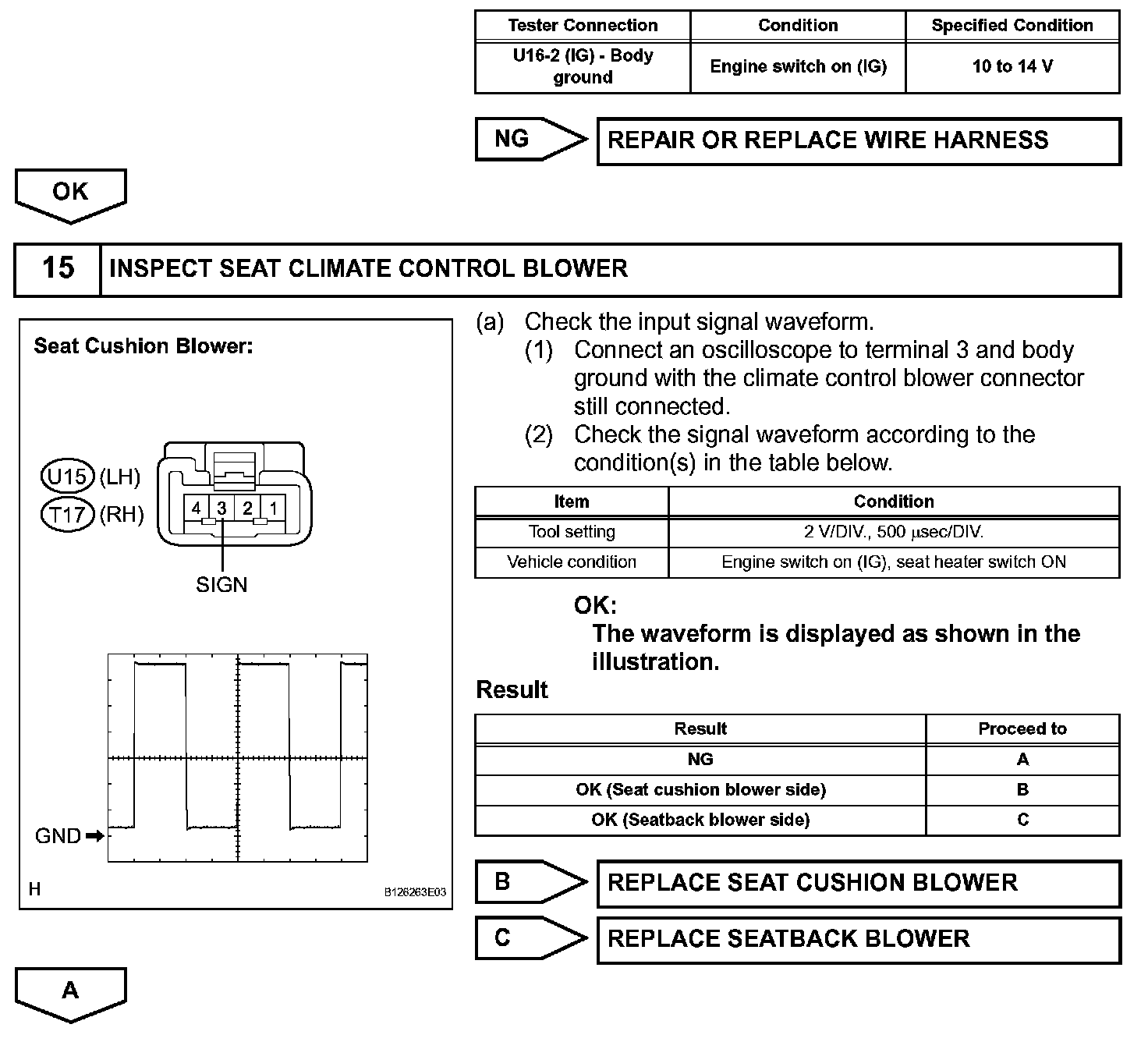

Step 14(Continued) - 15:
Step 16 - 17:

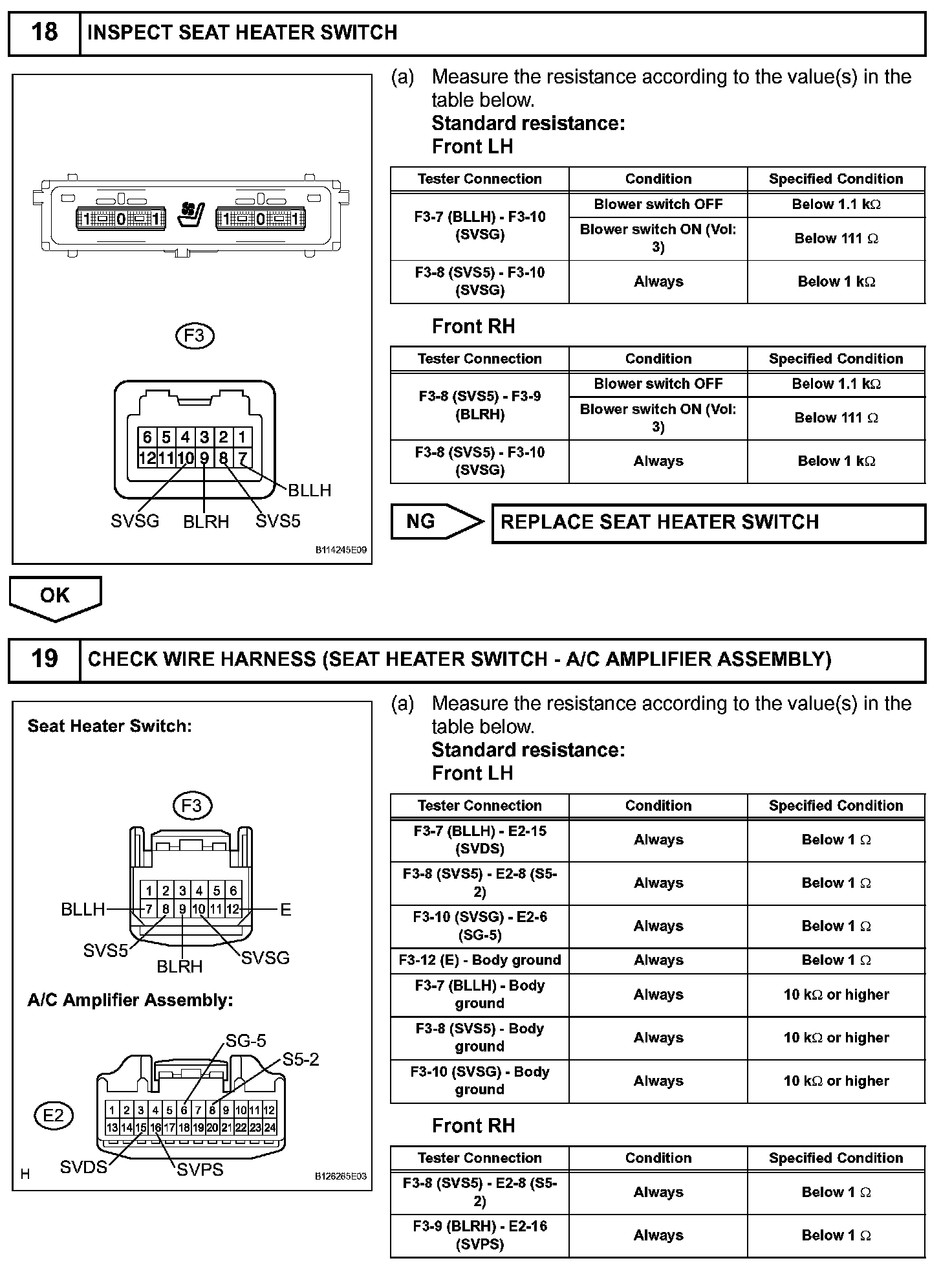

Step 18 - 19:
Step 19(Continued):
