Lumbar Support Adjuster Assembly

LUMBAR SUPPORT ADJUSTER ASSEMBLY

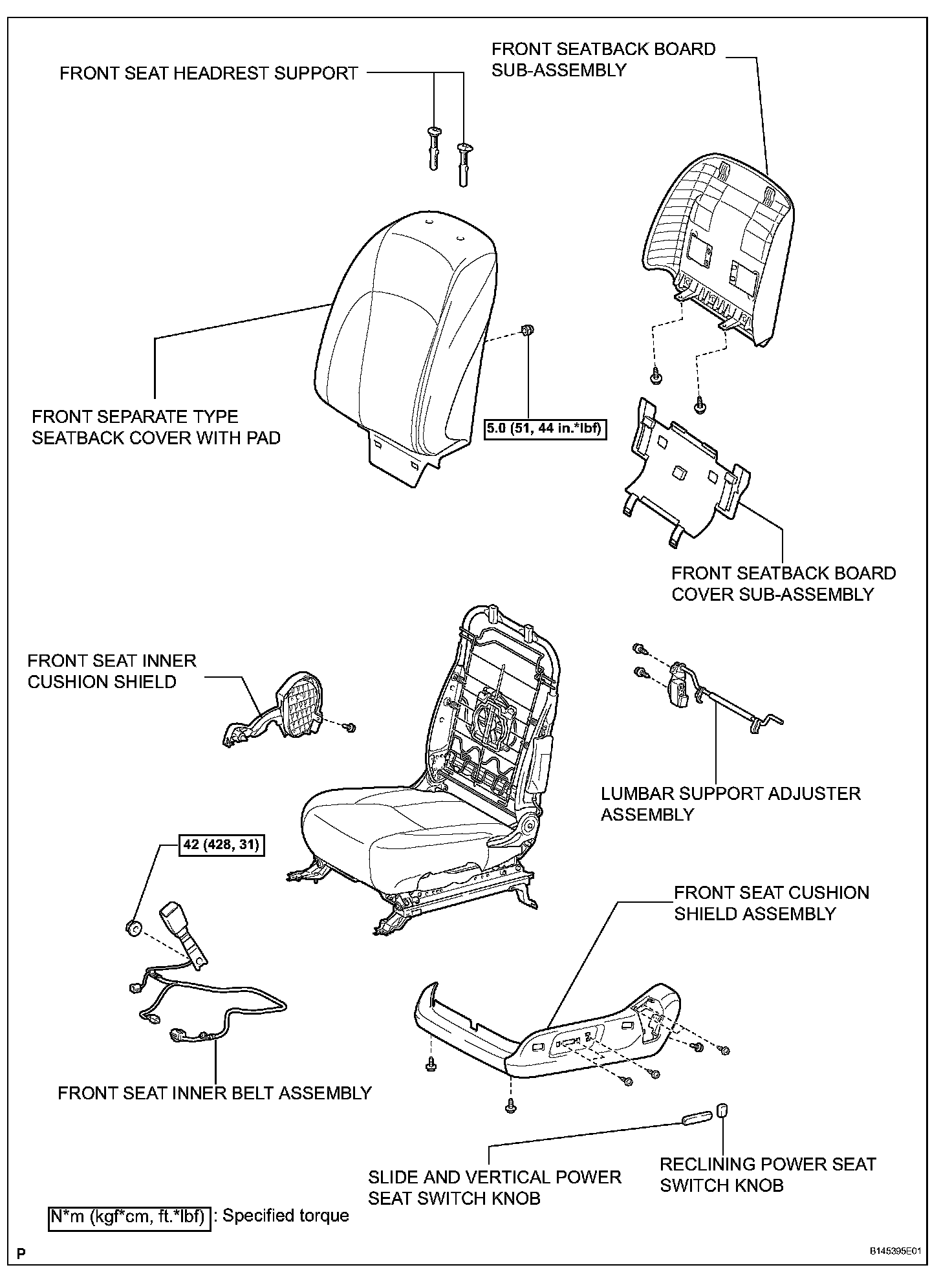

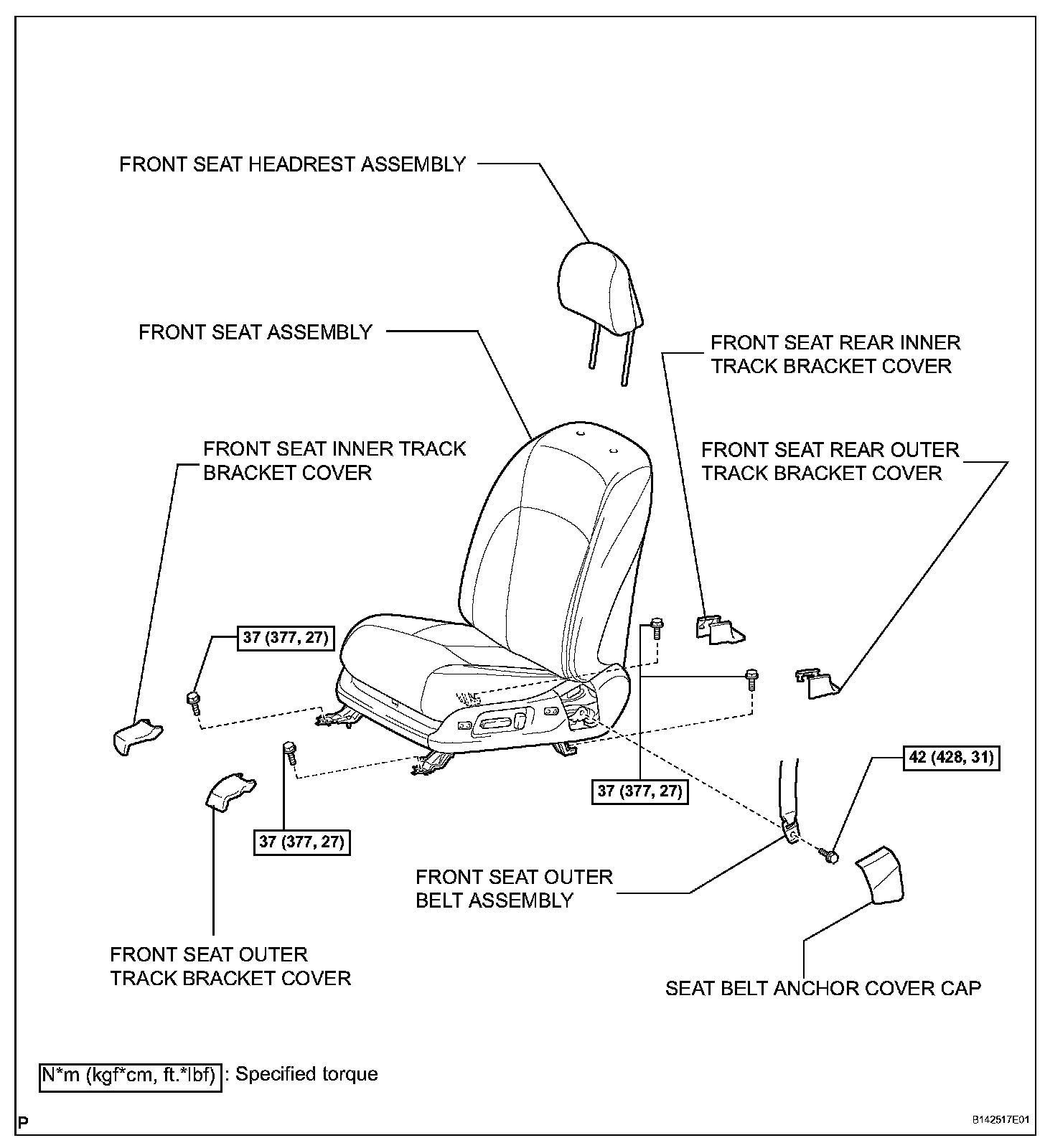

Lumbar Support Adjuster Assembly:

REMOVAL

1. REMOVE SEAT BELT ANCHOR COVER CAP
2. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY
3. REMOVE FRONT SEAT HEADREST ASSEMBLY
4. REMOVE FRONT SEAT OUTER TRACK BRACKET COVER
5. REMOVE FRONT SEAT INNER TRACK BRACKET COVER
6. REMOVE FRONT SEAT REAR OUTER TRACK BRACKET COVER
7. REMOVE FRONT SEAT REAR INNER TRACK BRACKET COVER
8. REMOVE FRONT SEAT ASSEMBLY
9. REMOVE FRONT SEAT INNER BELT ASSEMBLY
10. REMOVE RECLINING POWER SEAT SWITCH KNOB
11. REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB
12. REMOVE FRONT SEAT CUSHION SHIELD ASSEMBLY
13. REMOVE FRONT SEAT INNER CUSHION SHIELD
14. REMOVE FRONT SEATBACK BOARD SUB-ASSEMBLY
15. REMOVE FRONT SEATBACK BOARD COVER SUB-ASSEMBLY
16. REMOVE FRONT SEAT HEADREST SUPPORT
17. REMOVE FRONT SEAT HEADREST SUPPORT
18. REMOVE FRONT SEPARATE TYPE SEATBACK COVER WITH PAD

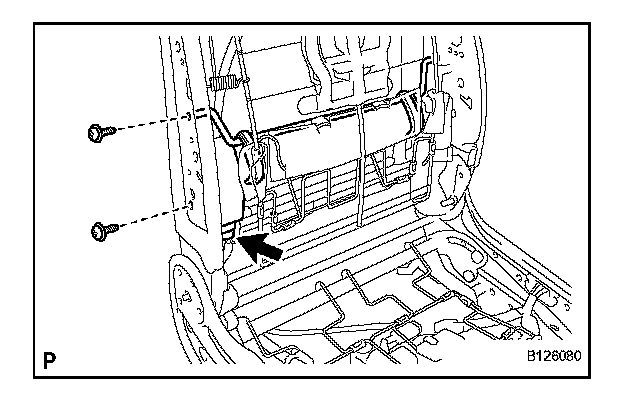

19. REMOVE LUMBAR SUPPORT ADJUSTER ASSEMBLY

a. Disconnect the connector.
b. Remove the 2 screws and lumbar support adjuster assembly.

INSTALLATION

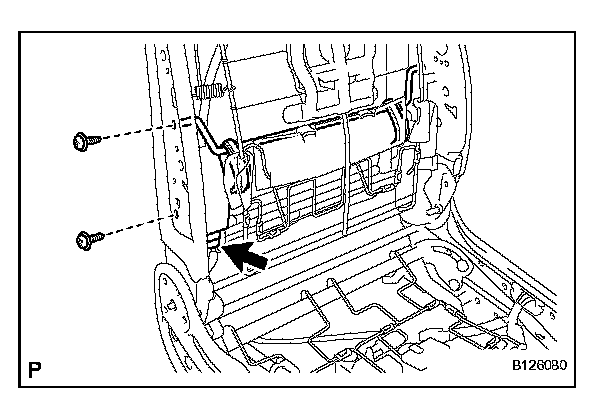

1. INSTALL LUMBAR SUPPORT ADJUSTER ASSEMBLY

a. Install the lumbar support adjuster assembly with the 2 screws.
b. Connect the connector.

2. INSTALL FRONT SEPARATE TYPE SEATBACK COVER WITH PAD
3. INSTALL FRONT SEAT HEADREST SUPPORT
4. INSTALL FRONT SEAT HEADREST SUPPORT
5. INSTALL FRONT SEATBACK BOARD COVER SUB-ASSEMBLY
6. INSTALL FRONT SEATBACK BOARD SUB-ASSEMBLY
7. INSTALL FRONT SEAT INNER CUSHION SHIELD
8. INSTALL FRONT SEAT CUSHION SHIELD ASSEMBLY
9. INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB
10. INSTALL RECLINING POWER SEAT SWITCH KNOB
11. INSTALL FRONT SEAT INNER BELT ASSEMBLY
12. INSTALL FRONT SEAT ASSEMBLY
13. INSTALL FRONT SEAT REAR OUTER TRACK BRACKET COVER
14. INSTALL FRONT SEAT REAR INNER TRACK BRACKET COVER
15. INSTALL FRONT SEAT OUTER TRACK BRACKET COVER
16. INSTALL FRONT SEAT INNER TRACK BRACKET COVER
17. INSTALL FRONT SEAT HEADREST ASSEMBLY
18. CONNECT FRONT SEAT OUTER BELT ASSEMBLY
19. INSTALL SEAT BELT ANCHOR COVER CAP
20. PERFORM INITIALIZATION

NOTICE: Some systems need initialization after reconnecting the negative battery cable.

21. INSPECT FRONT SEAT ASSEMBLY
22. INSPECT SRS WARNING LIGHT
Check the SRS warning light.
