REMOVAL

1. REMOVE SEAT BELT ANCHOR COVER CAP
2. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY
3. REMOVE FRONT SEAT HEADREST ASSEMBLY
4. REMOVE FRONT SEAT OUTER TRACK BRACKET COVER
a. Move the front seat assembly to the rearmost position by operating the slide and vertical power seat switch knob.

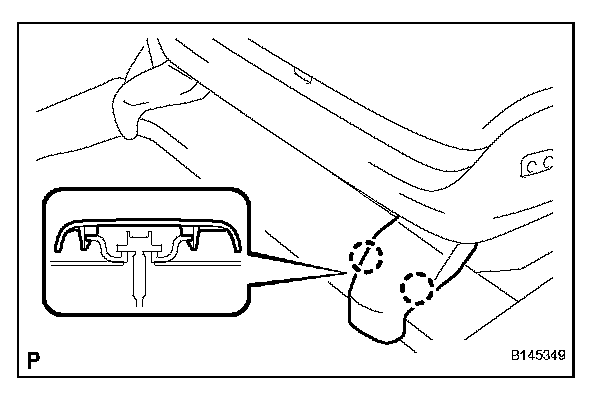

b. Using a screwdriver, disengage the 2 claws and remove the front seat outer track bracket cover.

HINT: Tape the screwdriver tip before use.

5. REMOVE FRONT SEAT INNER TRACK BRACKET COVER

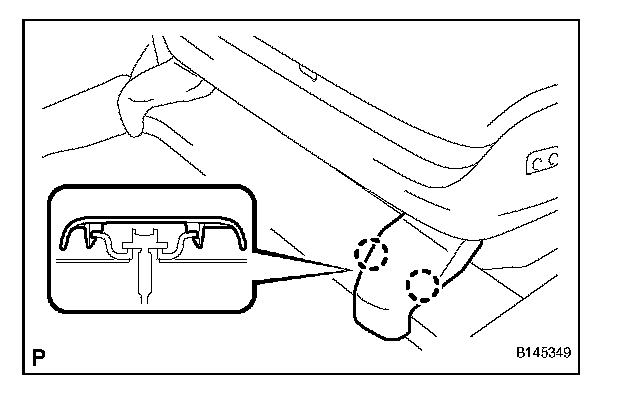

a. Using a screwdriver, disengage the 2 claws and remove the front seat inner track bracket cover.

HINT: Tape the screwdriver tip before use.

6. REMOVE FRONT SEAT REAR OUTER TRACK BRACKET COVER
a. Move the front seat assembly fully forward by operating the slide and vertical power seat switch knob.

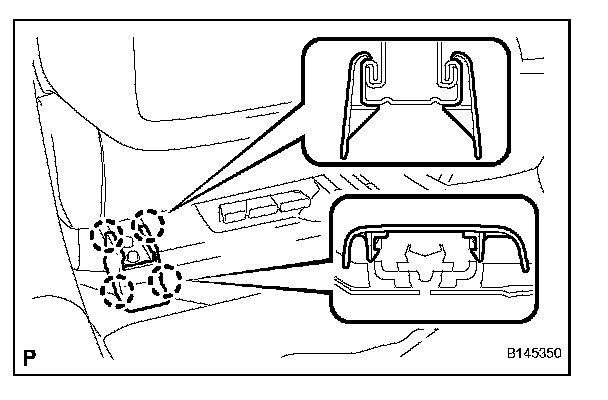

b. Using a screwdriver, disengage the 4 claws and remove the front seat rear outer track bracket cover.

HINT: Tape the screwdriver tip before use.

7. REMOVE FRONT SEAT REAR INNER TRACK BRACKET COVER

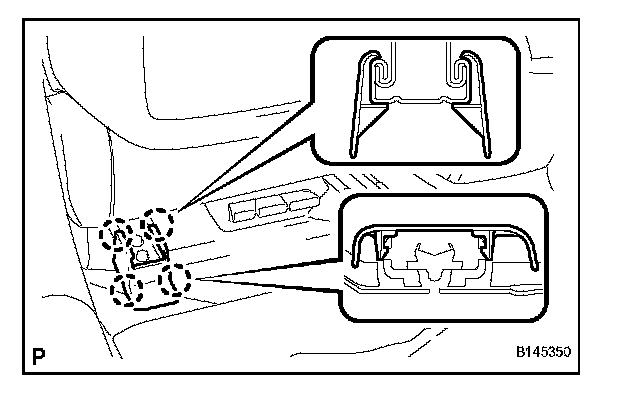

a. Using a screwdriver, disengage the 4 claws and remove the front seat rear inner track bracket cover.

HINT: Tape the screwdriver tip before use.

8. REMOVE FRONT SEAT ASSEMBLY
a. Operate the power seat switch knob and move the seat to its rearmost position.

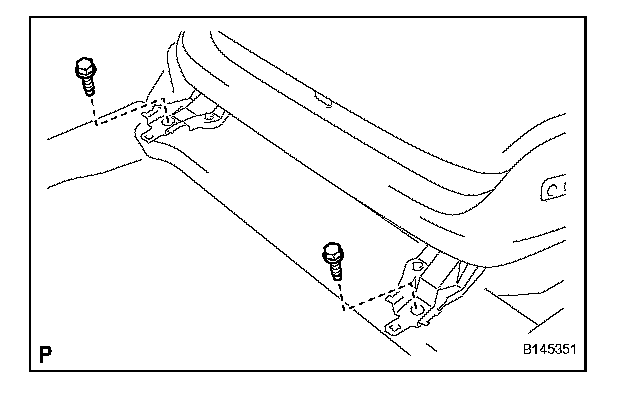

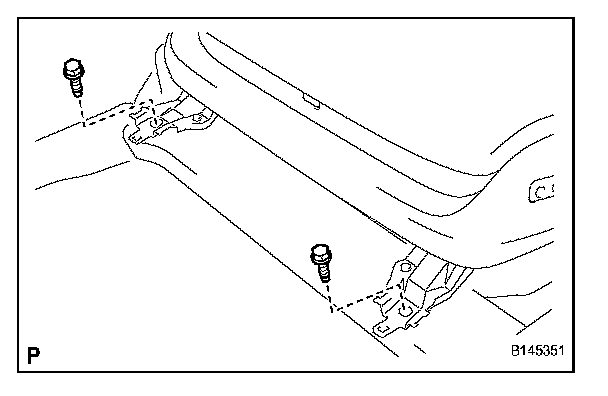

b. Remove the 2 bolts on the front seat track bracket.
c. Operate the power seat switch knob and move the seat to the position farthest forward.

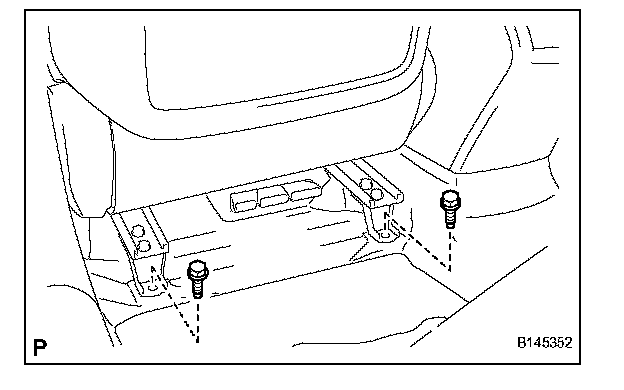

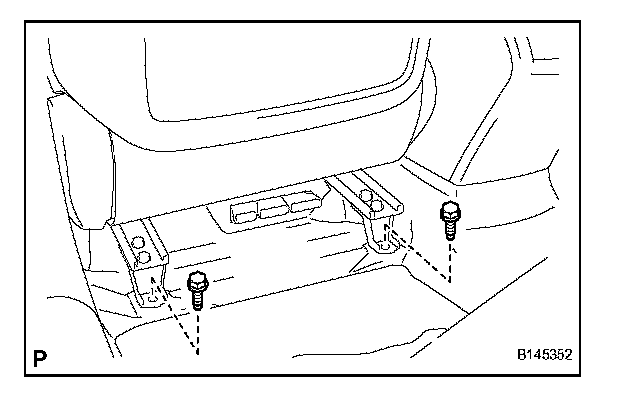

d. Remove the 2 bolts on the rear seat track bracket.
e. Disconnect the negative (-) battery terminal.

CAUTION: Wait at least 90 seconds after disconnecting the negative (-) battery terminal to prevent the airbag and seat belt pretensioner from deploying.

f. Disconnect the connectors under the seat. Then remove the front seat assembly.

INSTALLATION

1. INSTALL FRONT SEAT ASSEMBLY
a. Place the seat in the cabin.
b. Connect the connectors under the seat.
c. Connect the negative (-) battery terminal.
d. Move the front seat assembly fully forward by operating the slide and vertical power seat switch knob.

NOTICE: Check that the seat is locked.





e. Temporarily install the front side of the front seat assembly with the 2 bolts.
f. Move the front seat assembly fully forward by operating the slide and vertical power seat switch knob.

NOTICE: Check that the seat is locked.





g. Temporarily install the rear side of the front seat assembly with the 2 bolts.
h. Move the front seat assembly to the rearmost position by operating the slide and vertical power seat switch knob.

NOTICE: Check that the seat is locked.

i. Fully tighten the 2 bolts on the front side of the front seat assembly in the order of the inner side bolt and then the outer side bolt.

Torque: 37 N.m (377 kgf.cm, 27 ft.lbf)

j. Move the front seat assembly fully forward by operating the slide and vertical power seat switch knob.

NOTICE: Check that the seat is locked.

k. Fully tighten the 2 bolts on the rear side of the front seat assembly in the order of the inner side bolt and then the outer side bolt.

Torque: 37 N.m (377 kgf.cm, 27 ft.lbf)

2. INSTALL FRONT SEAT REAR OUTER TRACK BRACKET COVER





a. Engage the 4 claws and install the front seat rear outer track cover.

3. INSTALL FRONT SEAT REAR INNER TRACK BRACKET COVER
a. Engage the 4 claws and install the inner seat track bracket cover.

4. INSTALL FRONT SEAT OUTER TRACK BRACKET COVER
a. Move the front seat assembly to the rearmost position by operating the slide and vertical power seat switch knob.





b. Engage the 2 claws and install the front seat outer track bracket cover.

5. INSTALL FRONT SEAT INNER TRACK BRACKET COVER
a. Engage the 2 claws and install the front seat inner track bracket cover.

6. INSTALL FRONT SEAT HEADREST ASSEMBLY
7. CONNECT FRONT SEAT OUTER BELT ASSEMBLY
8. INSTALL SEAT BELT ANCHOR COVER CAP
9. PERFORM INITIALIZATION

NOTICE: Some systems need initialization after reconnecting the negative battery cable.

10. INSPECT FRONT SEAT ASSEMBLY
a. Check the power seat operation.
b. Check the seat heater operation (with seat heater system).
1. Turn the engine switch on (IG).
2. Turn the seat heater switch ON.
3. Wait 5 minutes or more and confirm that the seat surface becomes warm.

11. INSPECT SRS WARNING LIGHT
