FRONT SEATBACK HEATER

Front Seatback Heater:

Front Seatback Heater:

REMOVAL

1. REMOVE SEAT BELT ANCHOR COVER CAP
2. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY
3. REMOVE FRONT SEAT HEADREST ASSEMBLY
4. REMOVE FRONT SEAT OUTER TRACK BRACKET COVER
5. REMOVE FRONT SEAT INNER TRACK BRACKET COVER
6. REMOVE FRONT SEAT REAR OUTER TRACK BRACKET COVER
7. REMOVE FRONT SEAT REAR INNER TRACK BRACKET COVER
8. REMOVE FRONT SEAT ASSEMBLY
9. REMOVE FRONT SEAT INNER BELT ASSEMBLY
10. REMOVE RECLINING POWER SEAT SWITCH KNOB
11. REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB
12. REMOVE FRONT SEAT CUSHION SHIELD ASSEMBLY
13. REMOVE FRONT SEAT INNER CUSHION SHIELD
14. REMOVE FRONT SEATBACK BOARD SUB-ASSEMBLY
15. REMOVE FRONT SEATBACK BOARD COVER SUB-ASSEMBLY
16. REMOVE FRONT SEAT HEADREST SUPPORT
17. REMOVE FRONT SEAT HEADREST SUPPORT
18. REMOVE FRONT SEPARATE TYPE SEATBACK COVER WITH PAD
19. REMOVE FRONT SEPARATE TYPE SEATBACK COVER
20. REMOVE FRONT SEATBACK HEATER





a. Cut off the tack pins that fasten the seat heater, and then remove the front seatback heater from the front separate type seatback cover.

INSTALLATION

1. INSTALL FRONT SEATBACK HEATER

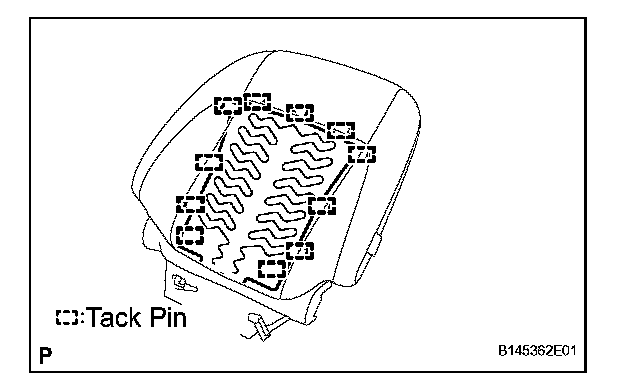

a. Using a tacker, install the front seatback heater to the end of the seat cover with the 11 new tack pins.

2. INSTALL FRONT SEPARATE TYPE SEATBACK COVER
3. INSTALL FRONT SEPARATE TYPE SEATBACK COVER WITH PAD
4. INSTALL FRONT SEAT HEADREST SUPPORT
5. INSTALL FRONT SEAT HEADREST SUPPORT
6. INSTALL FRONT SEATBACK BOARD COVER SUB-ASSEMBLY
7. INSTALL FRONT SEATBACK BOARD SUB-ASSEMBLY
8. INSTALL FRONT SEAT INNER CUSHION SHIELD
9. INSTALL FRONT SEAT CUSHION SHIELD ASSEMBLY
10. INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB
11. INSTALL RECLINING POWER SEAT SWITCH KNOB
12. INSTALL FRONT SEAT INNER BELT ASSEMBLY
13. INSTALL FRONT SEAT ASSEMBLY
14. INSTALL FRONT SEAT REAR OUTER TRACK BRACKET COVER
15. INSTALL FRONT SEAT REAR INNER TRACK BRACKET COVER
16. INSTALL FRONT SEAT OUTER TRACK BRACKET COVER
17. INSTALL FRONT SEAT INNER TRACK BRACKET COVER
18. INSTALL FRONT SEAT HEADREST ASSEMBLY
19. CONNECT FRONT SEAT OUTER BELT ASSEMBLY
20. INSTALL SEAT BELT ANCHOR COVER CAP
21. PERFORM INITIALIZATION

NOTICE: Some systems need initialization after reconnecting the negative battery cable.

22. INSPECT FRONT SEAT ASSEMBLY
23. INSPECT SRS WARNING LIGHT
Check the SRS warning light.
