Sliding Roof Housing (For Standard)

SLIDING ROOF HOUSING (For Standard)

Sliding Roof Housing (for Standard):

REMOVAL

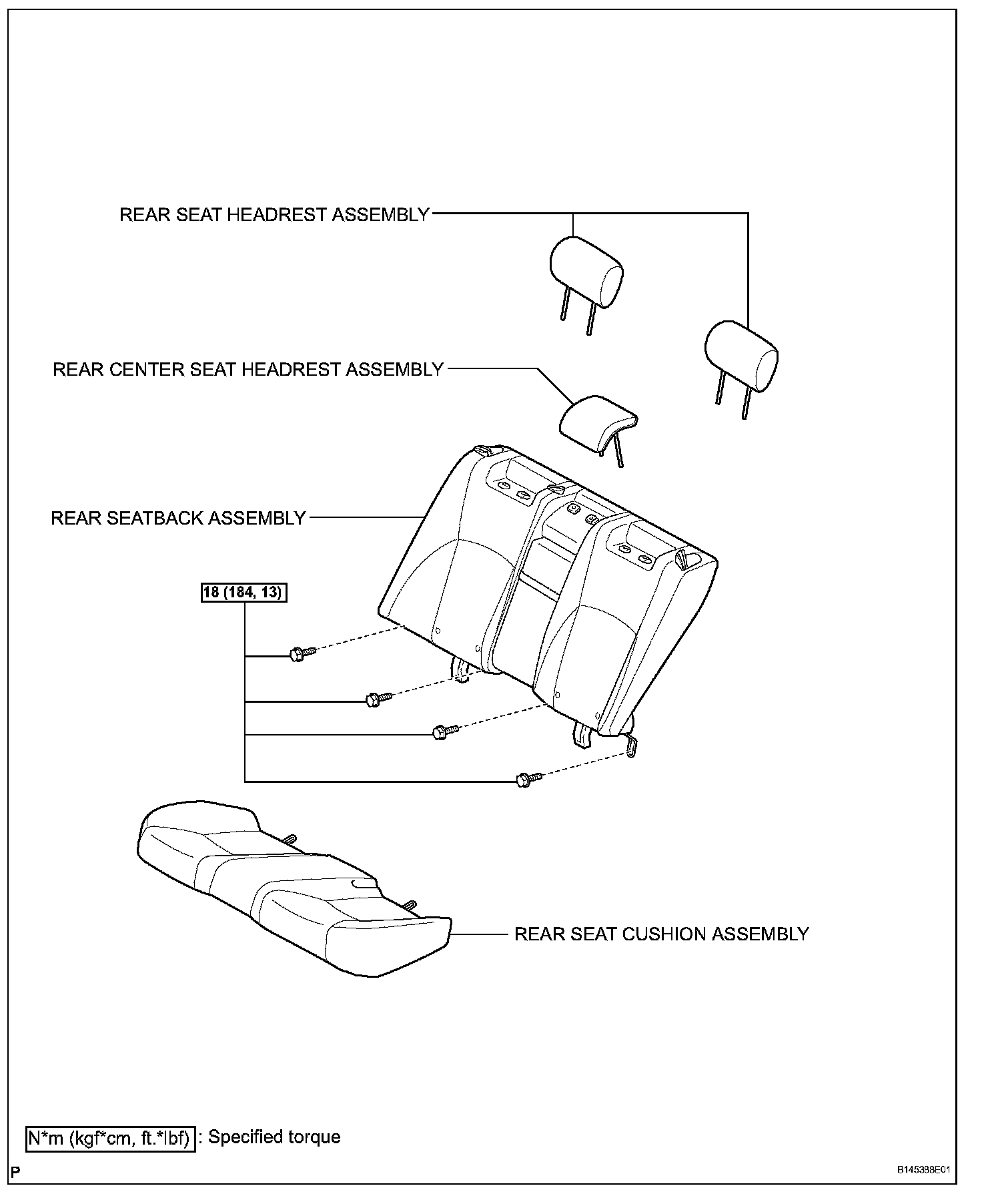

1. REMOVE REAR SEAT CUSHION ASSEMBLY
2. REMOVE REAR SEAT HEADREST ASSEMBLY
3. REMOVE REAR CENTER SEAT HEADREST ASSEMBLY
4. REMOVE REAR SEATBACK ASSEMBLY
5. REMOVE SEAT BELT ANCHOR COVER CAP LH
6. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY LH
7. REMOVE FRONT SEAT HEADREST ASSEMBLY (for Driver Seat)
8. REMOVE FRONT SEAT OUTER TRACK BRACKET COVER LH
9. REMOVE FRONT SEAT INNER TRACK BRACKET COVER LH
10. REMOVE FRONT SEAT REAR OUTER TRACK BRACKET COVER LH
11. REMOVE FRONT SEAT REAR INNER TRACK BRACKET COVER LH
12. REMOVE FRONT SEAT ASSEMBLY LH
13. REMOVE SEAT BELT ANCHOR COVER CAP RH
14. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY RH
15. REMOVE FRONT SEAT HEADREST ASSEMBLY (for Front Passenger Seat)
16. REMOVE FRONT SEAT OUTER TRACK BRACKET COVER RH
17. REMOVE FRONT SEAT INNER TRACK BRACKET COVER RH
18. REMOVE FRONT SEAT REAR OUTER TRACK BRACKET COVER RH
19. REMOVE FRONT SEAT REAR INNER TRACK BRACKET COVER RH
20. REMOVE FRONT SEAT ASSEMBLY RH

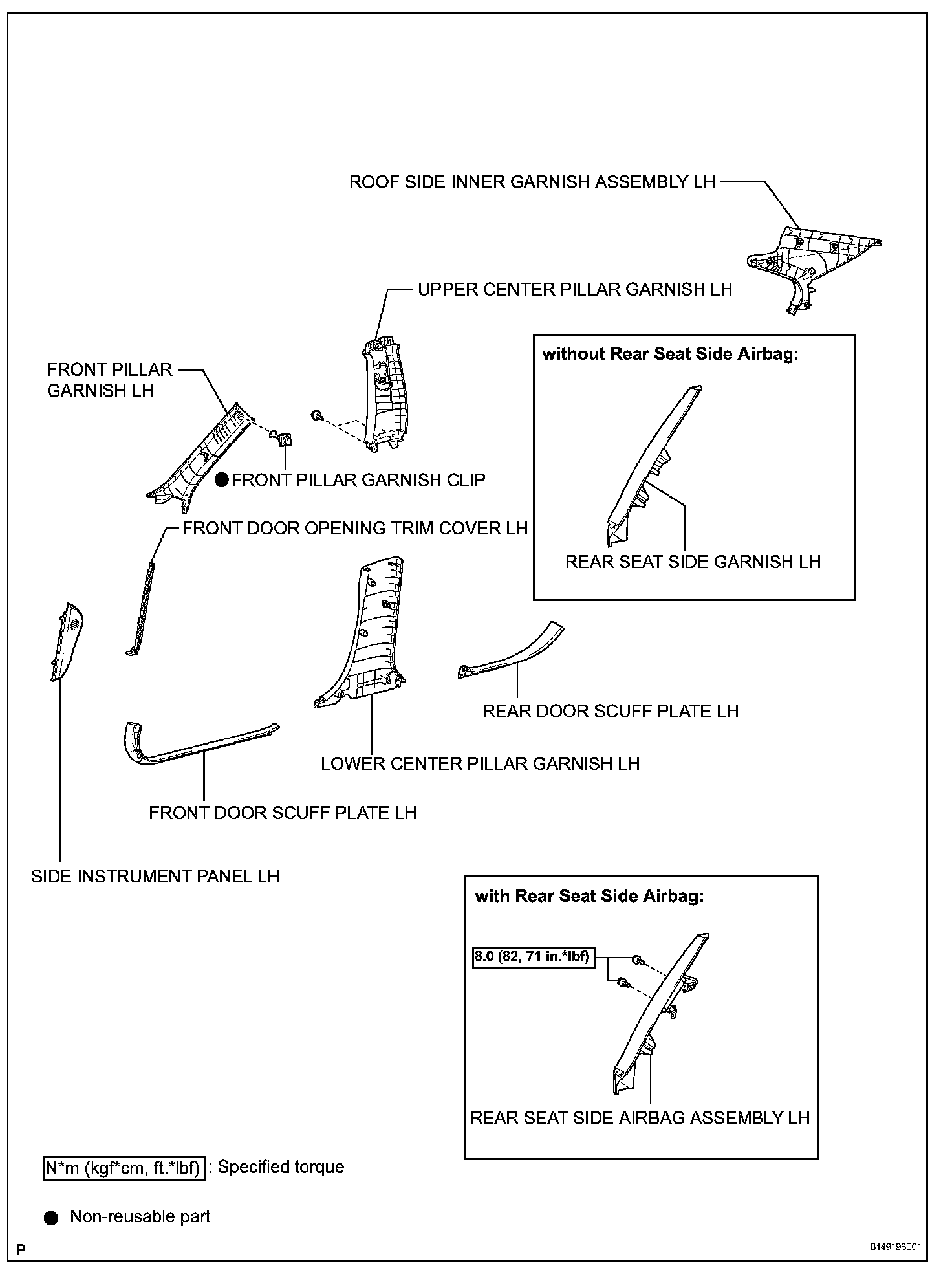

21. REMOVE FRONT DOOR SCUFF PLATE LH
22. REMOVE FRONT DOOR OPENING TRIM COVER LH
23. REMOVE SIDE INSTRUMENT PANEL LH
24. REMOVE FRONT PILLAR GARNISH LH
25. REMOVE REAR DOOR SCUFF PLATE LH
26. REMOVE LOWER CENTER PILLAR GARNISH LH
27. REMOVE UPPER CENTER PILLAR GARNISH LH
28. REMOVE REAR SEAT SIDE GARNISH LH (w/o Rear Seat Side Airbag)
29. REMOVE REAR SEAT SIDE AIRBAG ASSEMBLY LH (w/ Rear Seat Side Airbag)

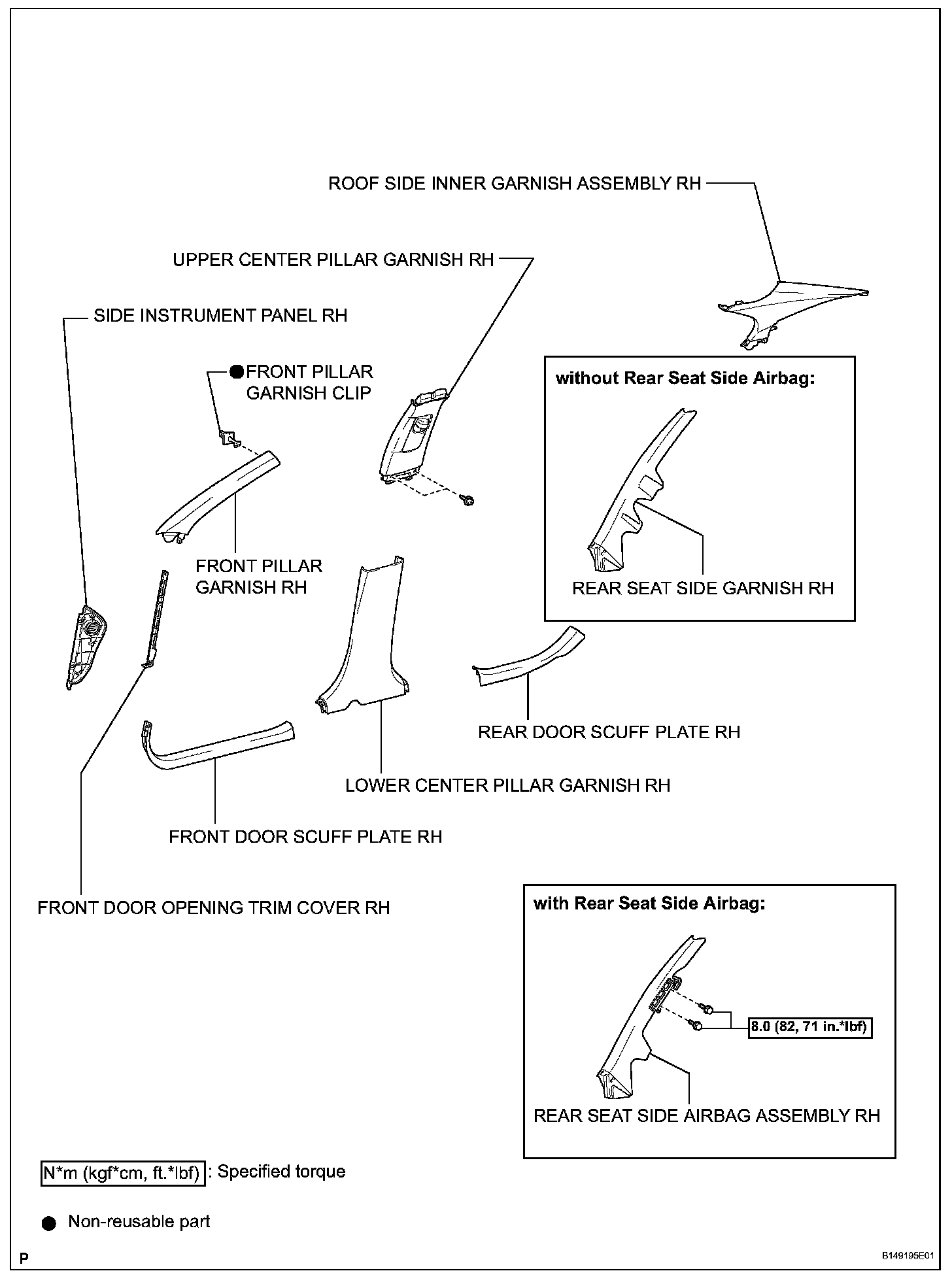

30. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH
31. REMOVE FRONT DOOR SCUFF PLATE RH
32. REMOVE FRONT DOOR OPENING TRIM COVER RH
33. REMOVE SIDE INSTRUMENT PANEL RH
34. REMOVE FRONT PILLAR GARNISH RH
35. REMOVE REAR DOOR SCUFF PLATE RH
36. REMOVE LOWER CENTER PILLAR GARNISH RH
37. REMOVE UPPER CENTER PILLAR GARNISH RH
38. REMOVE REAR SEAT SIDE GARNISH RH (w/o Rear Seat Side Airbag)
39. REMOVE REAR SEAT SIDE AIRBAG ASSEMBLY RH (w/ Rear Seat Side Airbag)
40. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH

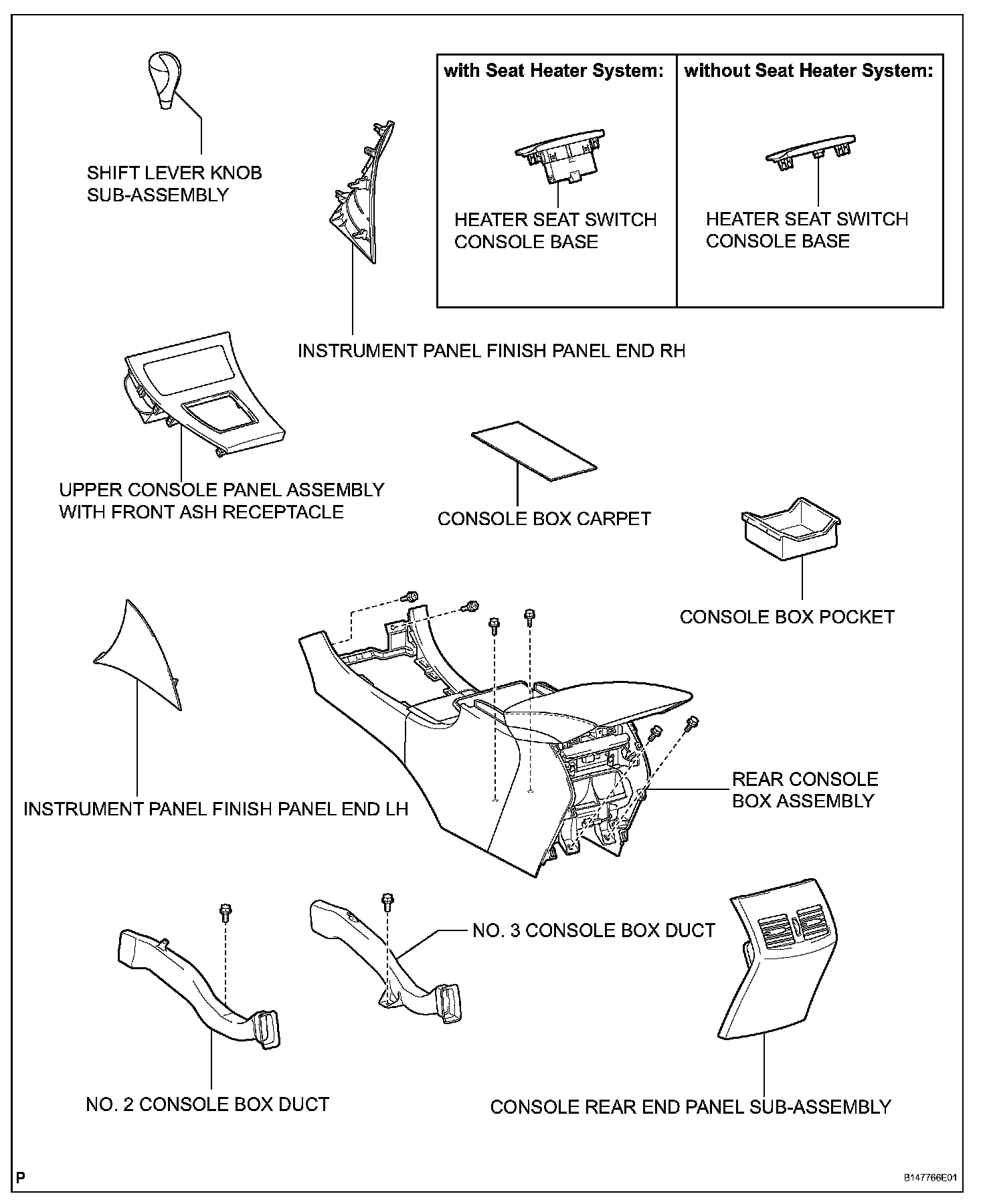

41. REMOVE INSTRUMENT PANEL FINISH PANEL END LH
42. REMOVE INSTRUMENT PANEL FINISH PANEL END RH
43. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
44. REMOVE UPPER CONSOLE PANEL ASSEMBLY WITH FRONT ASH RECEPTACLE
45. REMOVE HEATER SEAT SWITCH CONSOLE BASE (w/o Seat Heater System)
46. REMOVE HEATER SEAT SWITCH CONSOLE BASE (w/ Seat Heater System)
47. REMOVE CONSOLE BOX POCKET
48. REMOVE CONSOLE BOX CARPET
49. REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY
50. REMOVE REAR CONSOLE BOX ASSEMBLY
51. REMOVE NO. 2 CONSOLE BOX DUCT
52. REMOVE NO. 3 CONSOLE BOX DUCT
53. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

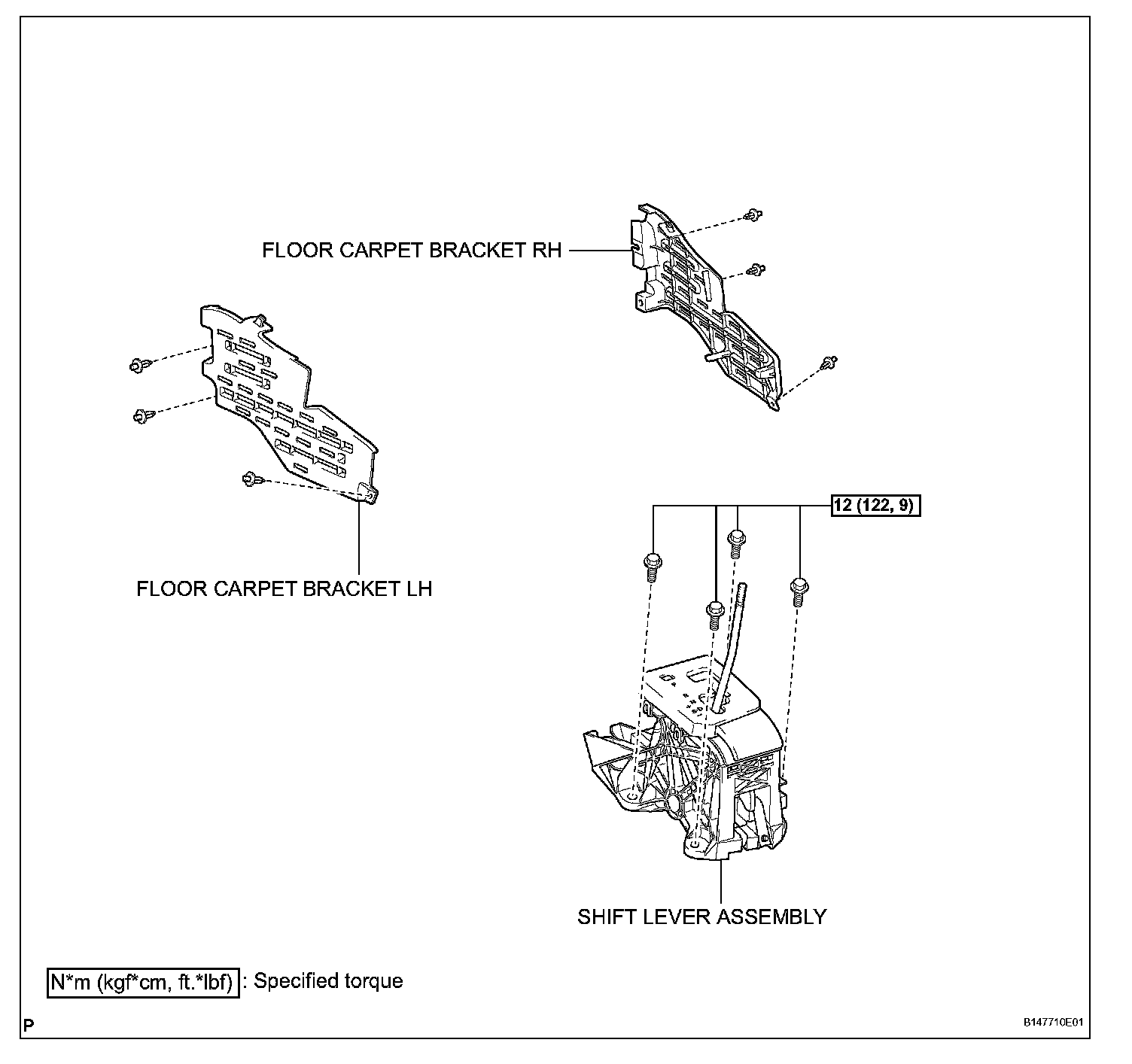

54. REMOVE SHIFT LEVER ASSEMBLY
55. REMOVE FLOOR CARPET BRACKET LH
56. REMOVE FLOOR CARPET BRACKET RH

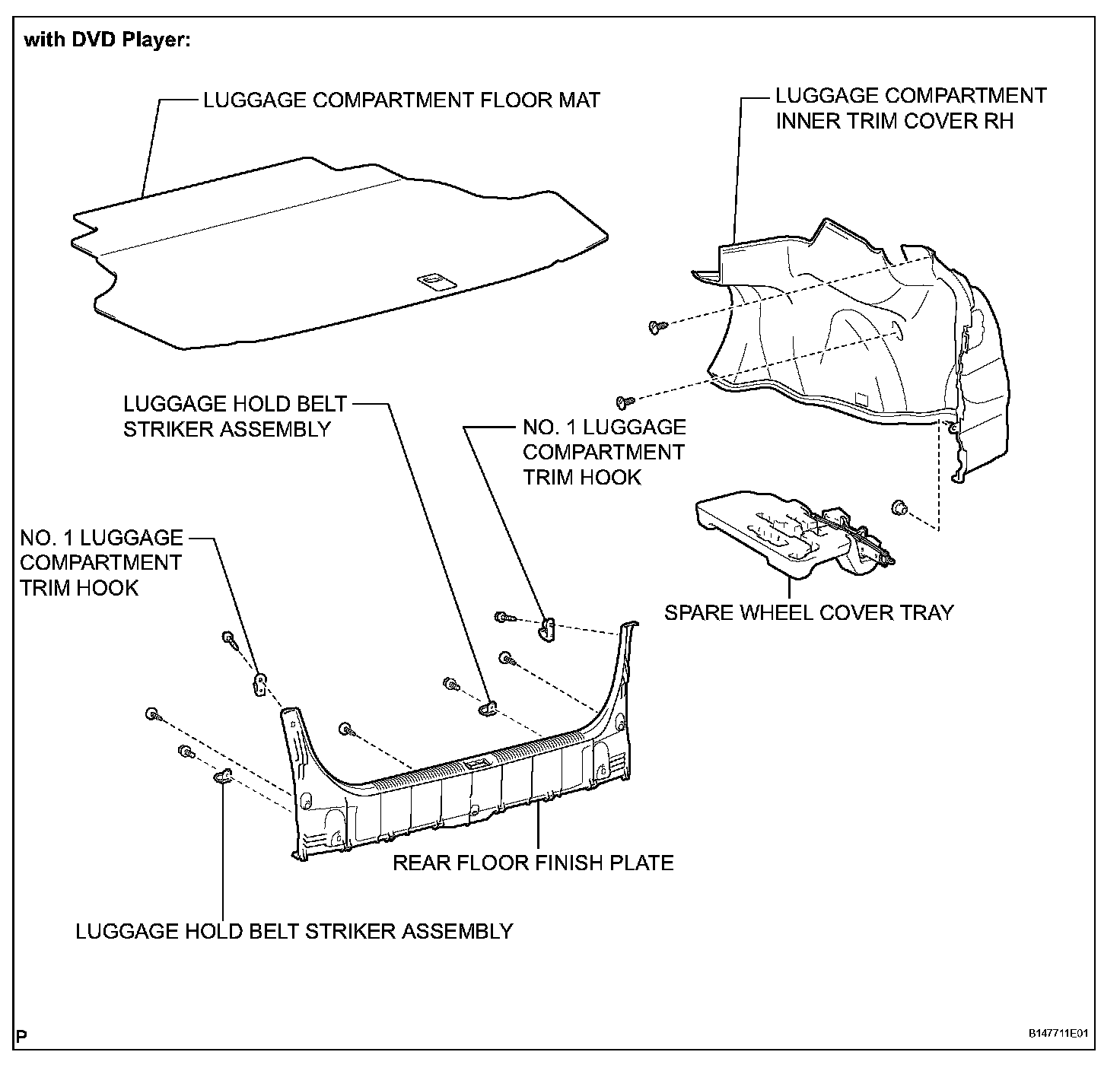

57. REMOVE LUGGAGE COMPARTMENT FLOOR MAT (w/ DVD Player)
58. REMOVE SPARE WHEEL COVER TRAY (w/ DVD Player)
59. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY (w/ DVD Player)
60. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (w/ DVD Player)
61. REMOVE REAR FLOOR FINISH PLATE (w/ DVD Player)
62. REMOVE LUGGAGE COMPARTMENT INNER TRIM COVER RH (w/ DVD Player)
63. DISCONNECT STEREO COMPONENT AMPLIFIER ASSEMBLY CONNECTOR (w/ DVD Player)

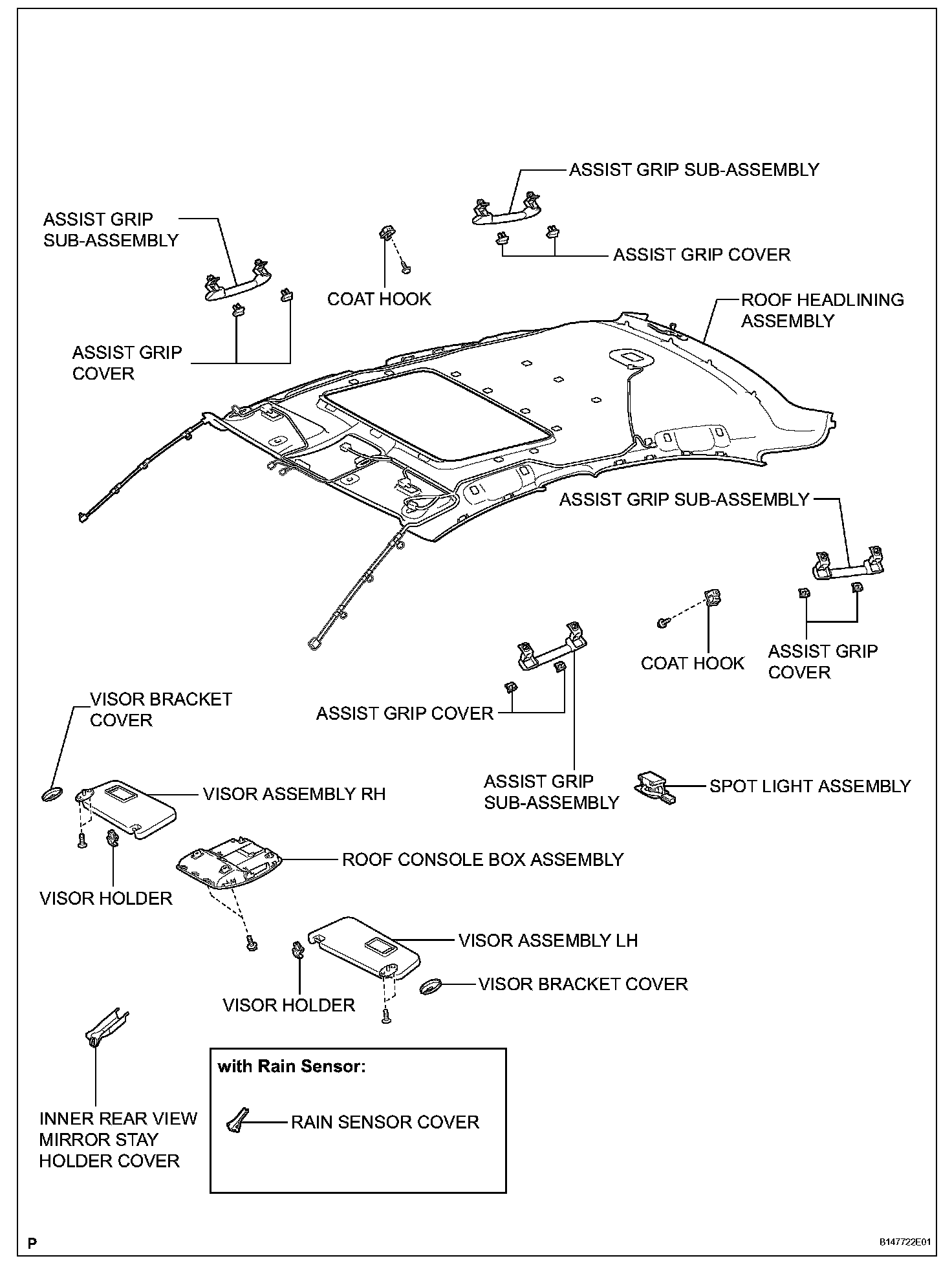

64. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER
65. REMOVE RAIN SENSOR COVER (w/ Rain Sensor)
66. REMOVE ROOF CONSOLE BOX ASSEMBLY
67. REMOVE VISOR BRACKET COVER
68. REMOVE VISOR ASSEMBLY LH
69. REMOVE VISOR ASSEMBLY RH
70. REMOVE VISOR HOLDER
71. REMOVE COAT HOOK
72. REMOVE SPOT LIGHT ASSEMBLY
73. REMOVE ASSIST GRIP SUB-ASSEMBLY
74. REMOVE ROOF HEADLINING ASSEMBLY

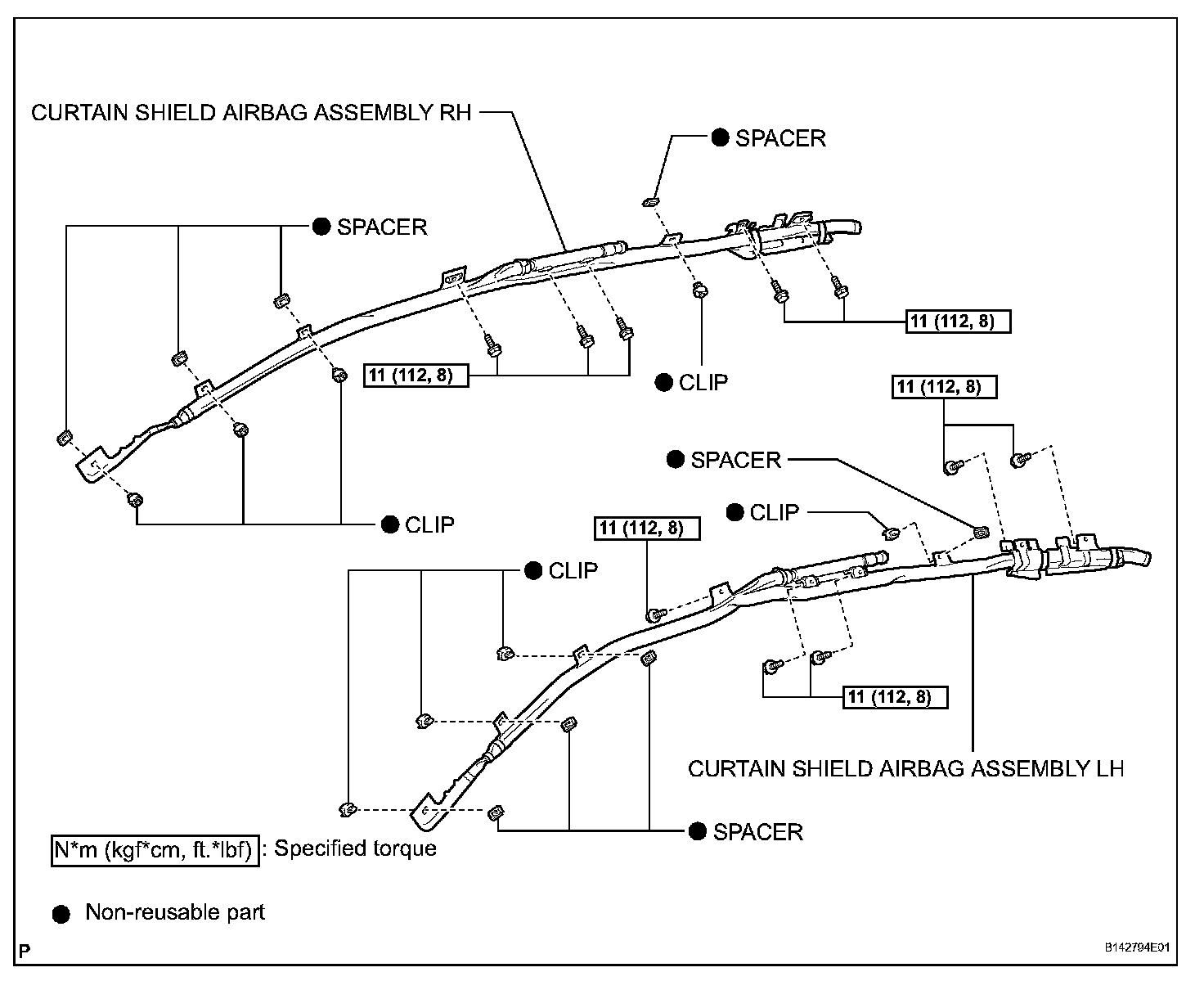

75. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY LH
76. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY RH

HINT: Use the same procedure for the RH side and the LH side.

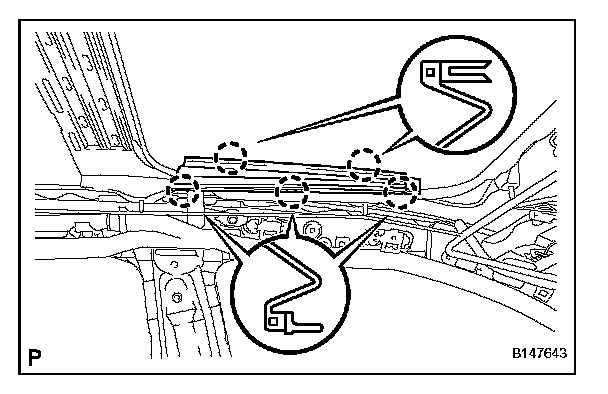

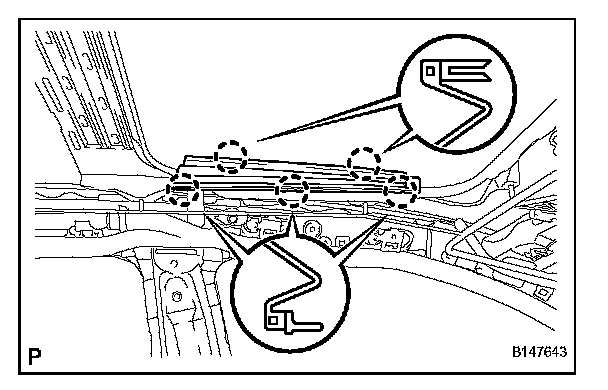

77. REMOVE SLIDING ROOF SIDE GARNISH LH

a. Disengage the 5 claws and remove the sliding roof side garnish LH.

78. REMOVE SLIDING ROOF SIDE GARNISH RH

HINT: Use the same procedure for the RH side and the LH side.

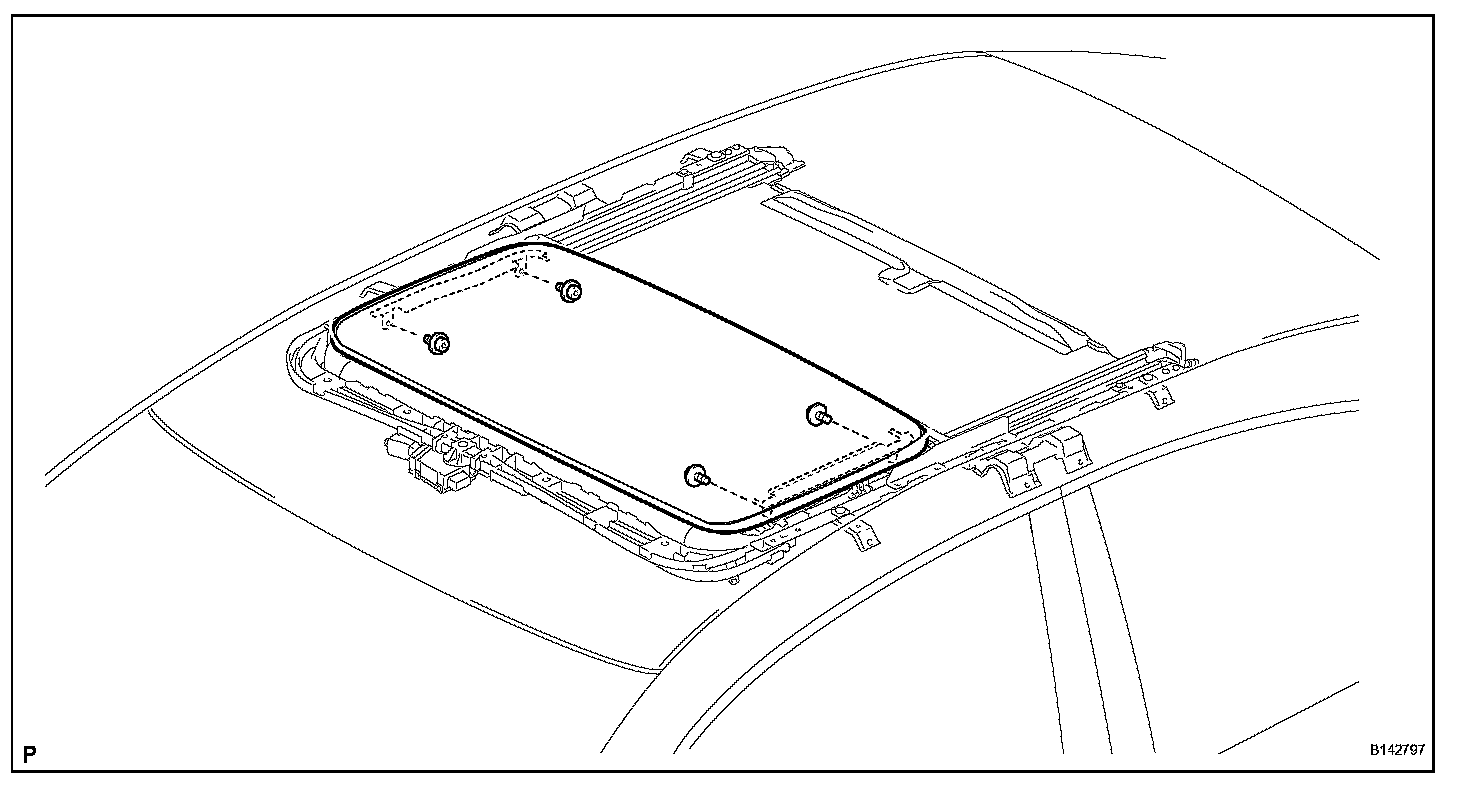

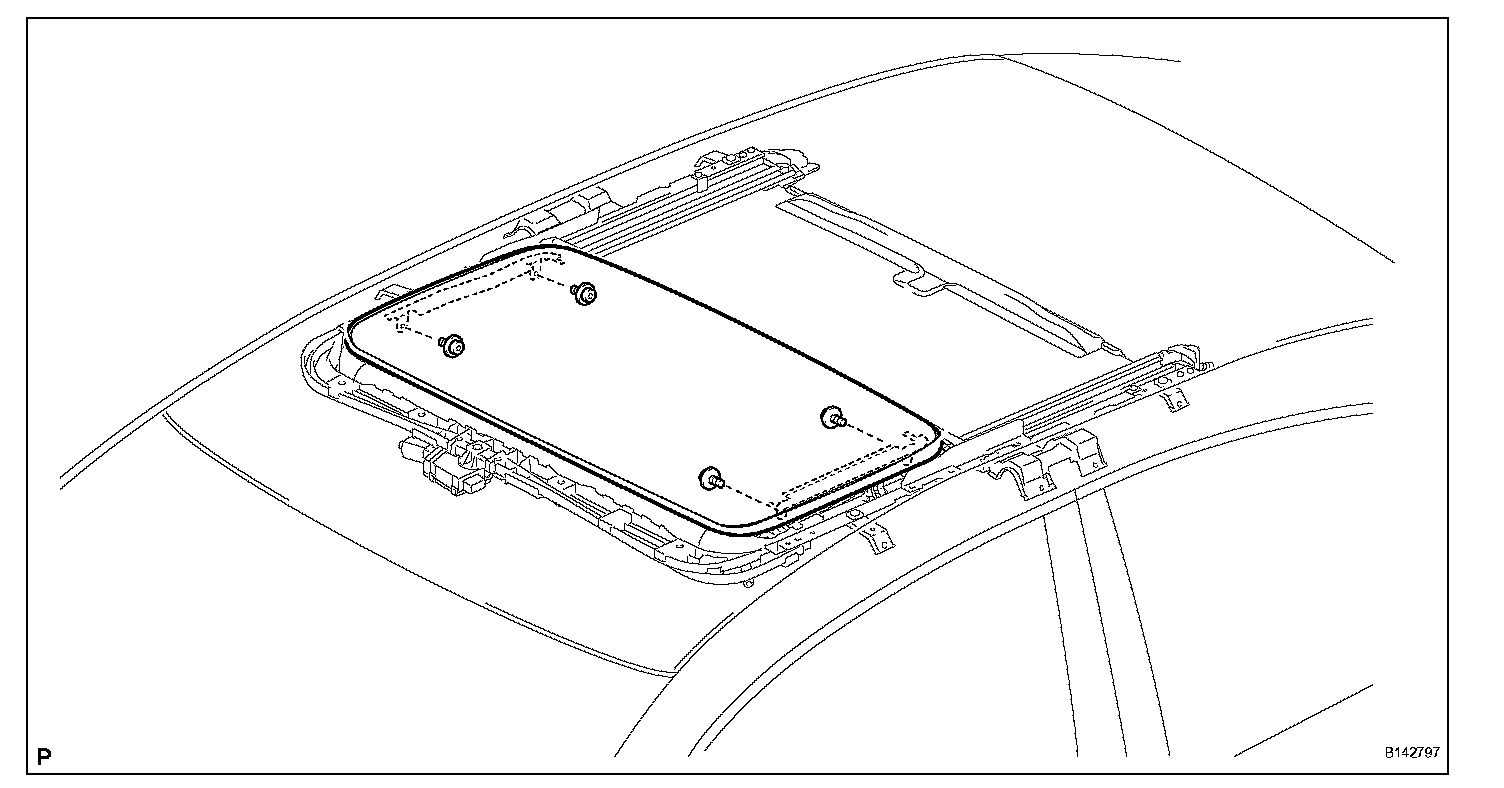

79. REMOVE SLIDING ROOF GLASS SUB-ASSEMBLY
a. Using a T25 "TORX" driver, remove the 4 screws and sliding roof glass sub-assembly.

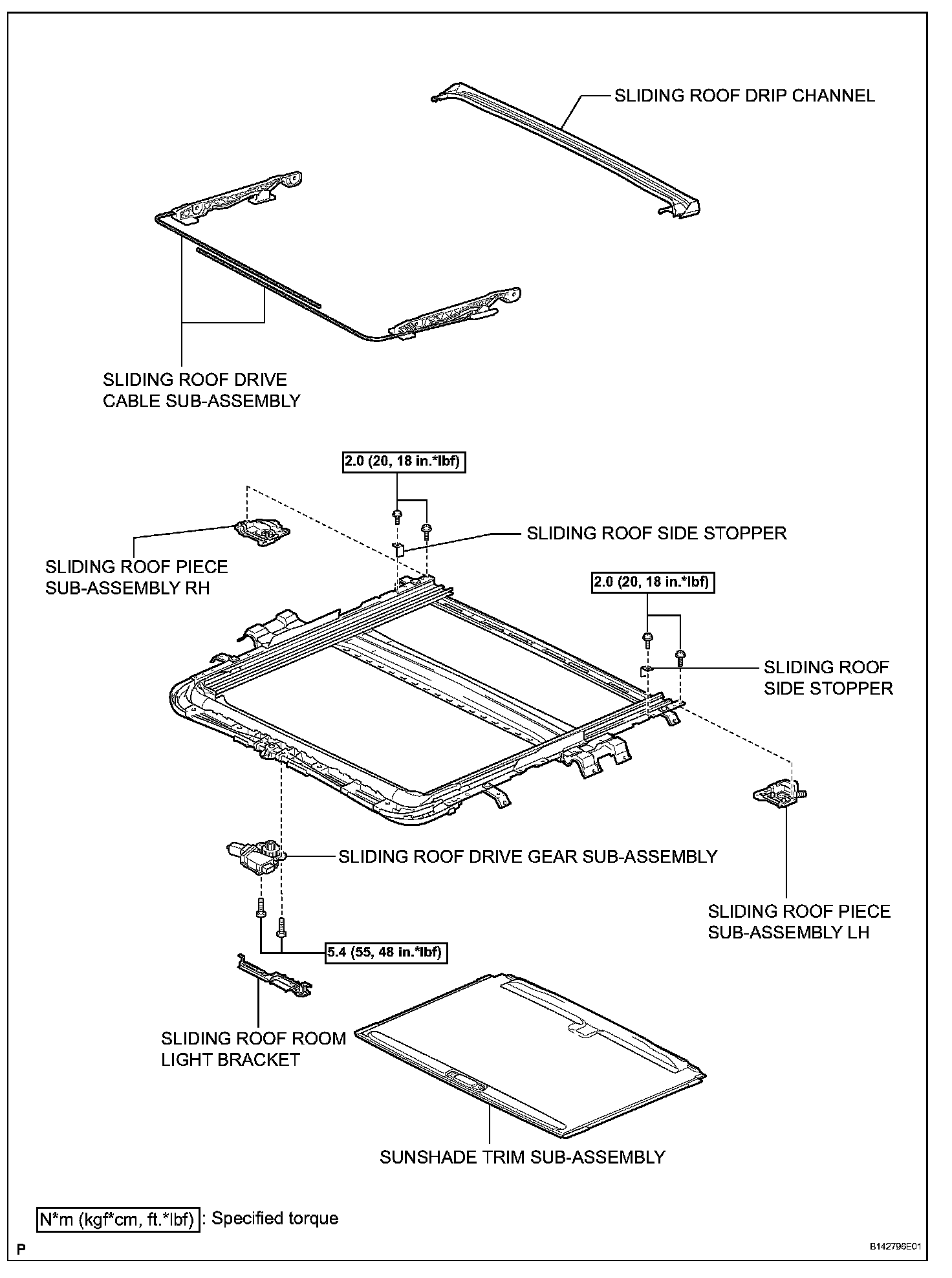

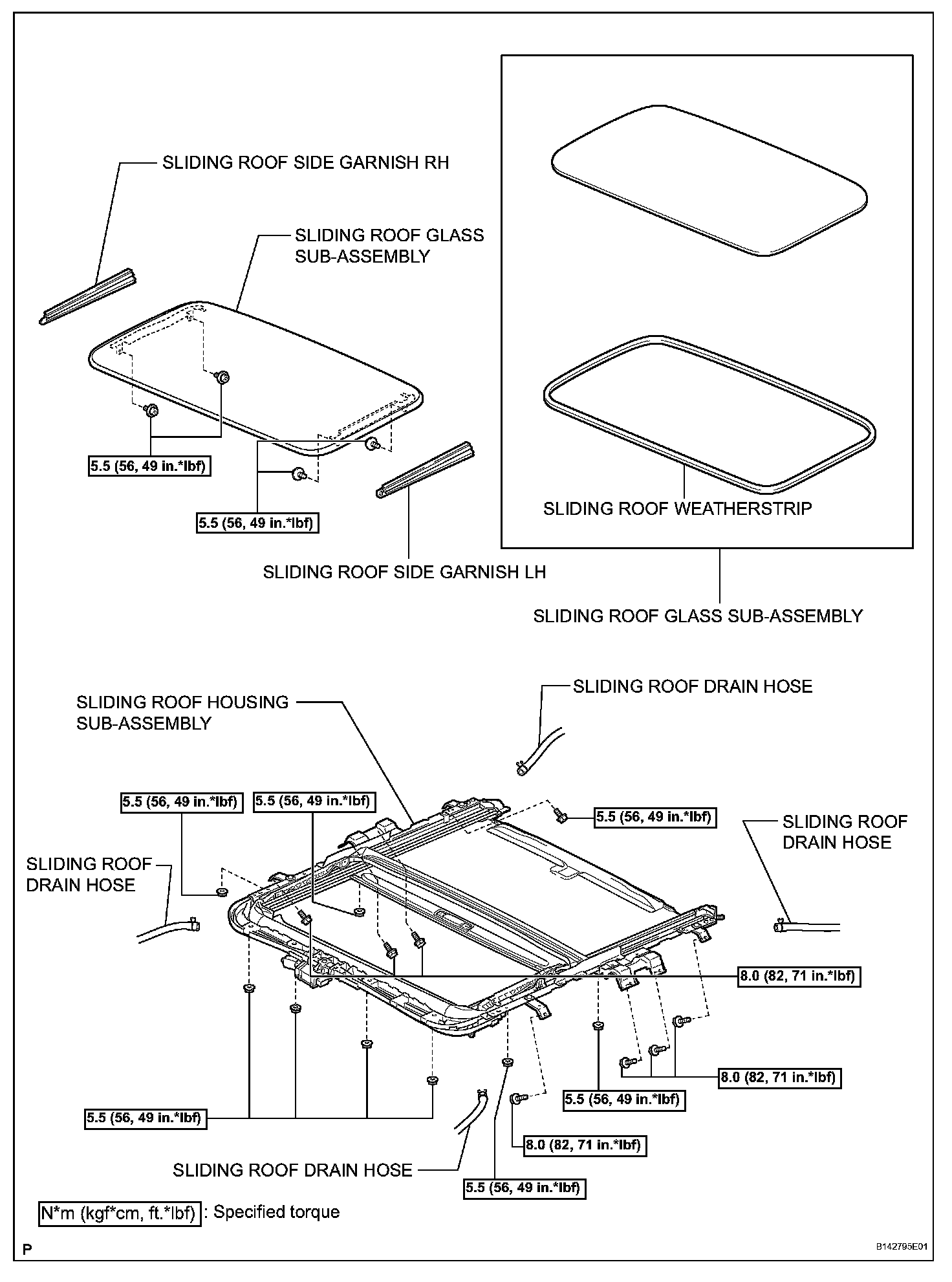

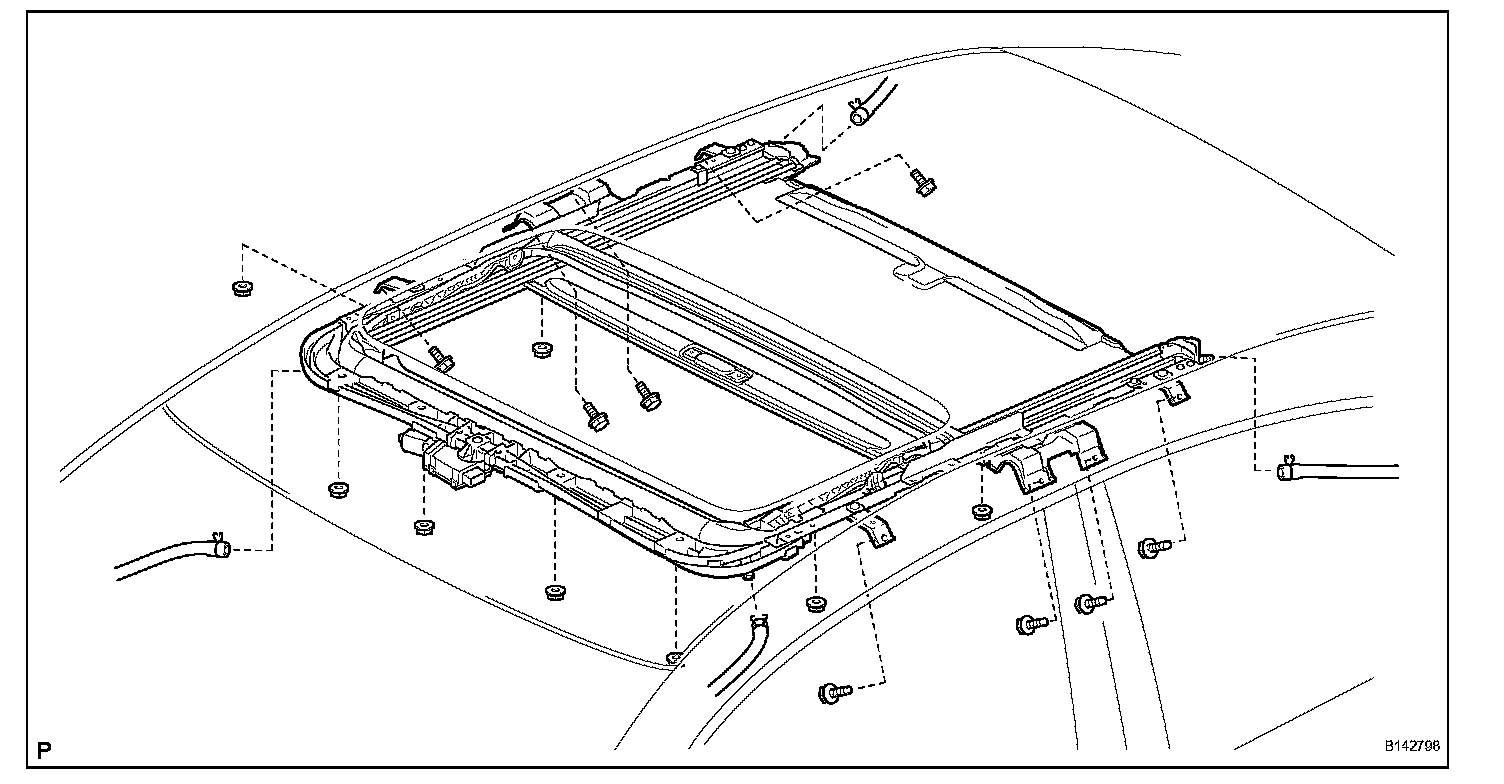

80. REMOVE SLIDING ROOF HOUSING SUB-ASSEMBLY
a. Disconnect the 4 sliding roof drain hoses.
b. Remove the 8 bolts, 8 nuts, and sliding roof housing sub-assembly.

81. REMOVE SLIDING ROOF WEATHERSTRIP
a. Remove the sliding roof weatherstrip from the sliding roof glass sub-assembly.

INSTALLATION

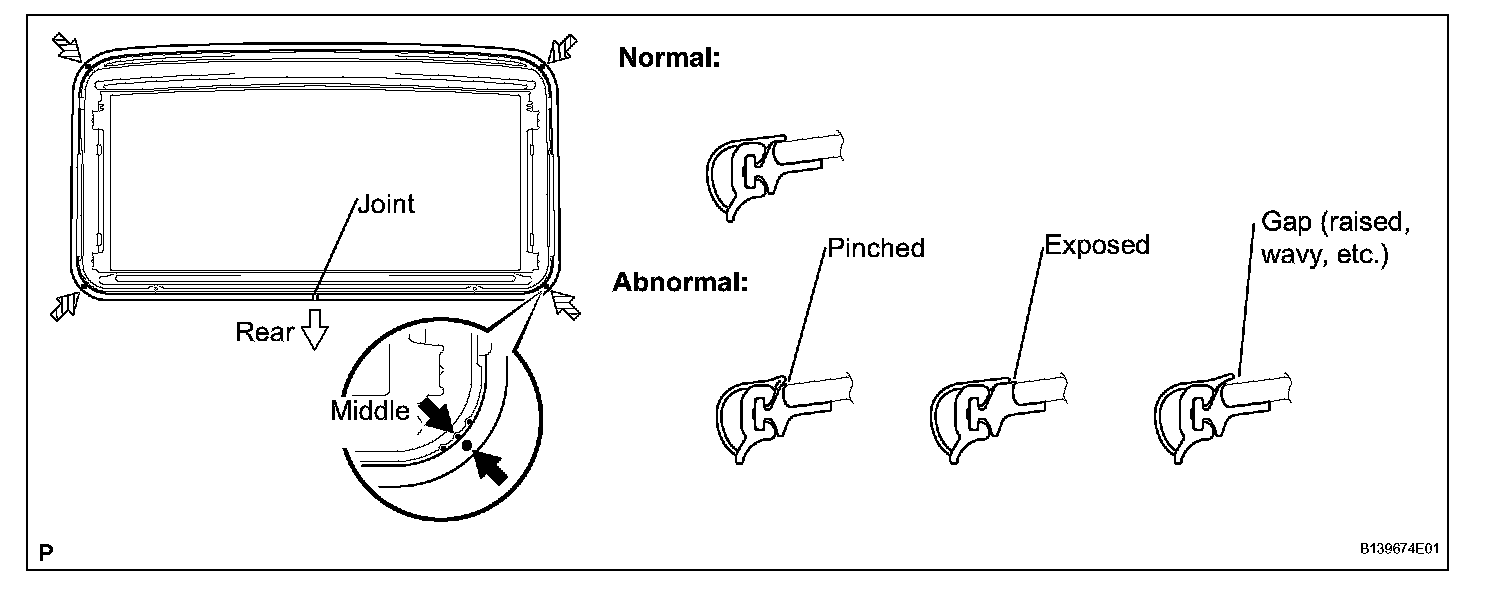

1. INSTALL SLIDING ROOF WEATHERSTRIP
a. Install the sliding roof weatherstrip as follows:
1. Position the joint of the weatherstrip at the rear center.
2. Align the marks on the weatherstrip with the middle marks at the corners of the plastic on the edge of the sliding roof panel and install the weatherstrip. Make sure that the marks on the weatherstrip are positioned within the area indicated by the marks at the corners of the plastic on the edge of the sliding roof panel.
3. Install the lip of the weatherstrip firmly.

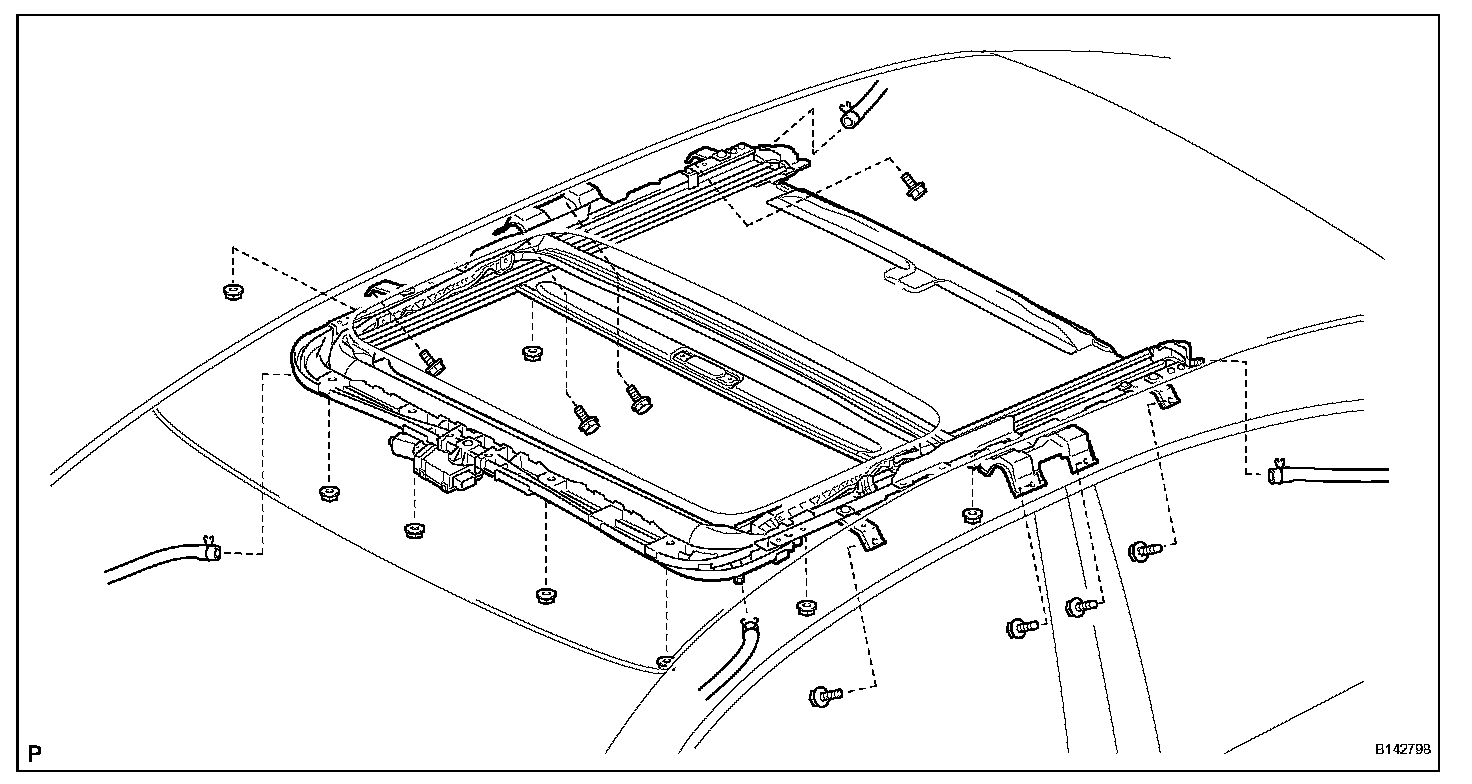

2. INSTALL SLIDING ROOF HOUSING SUB-ASSEMBLY
a. Install the sliding roof housing sub-assembly with the 8 bolts and 8 nuts

Torque: Nut
5.5 N.m (56 kgf.cm, 49 in.lbf)

Bolt
8.0 N.m (82 kgf.cm, 71 in.lbf)

b. Connect the 4 sliding roof drain hoses.

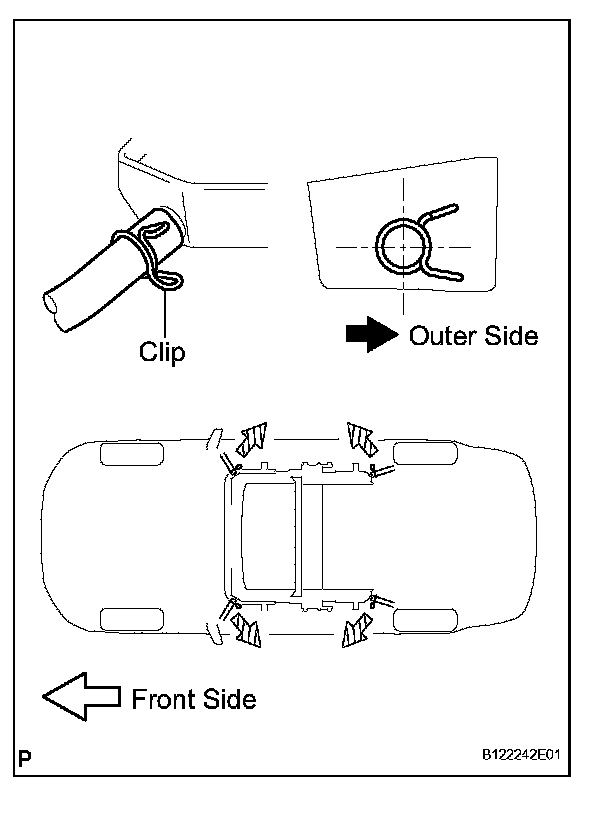

NOTICE: The clip must face toward the outside of the vehicle and also be above the lower surface of the sliding roof housing when installing the drain hoses.

3. INSTALL SLIDING ROOF GLASS SUB-ASSEMBLY
a. Using a T25 "TORX" driver, temporarily install the sliding roof glass sub-assembly with the 4 screws.

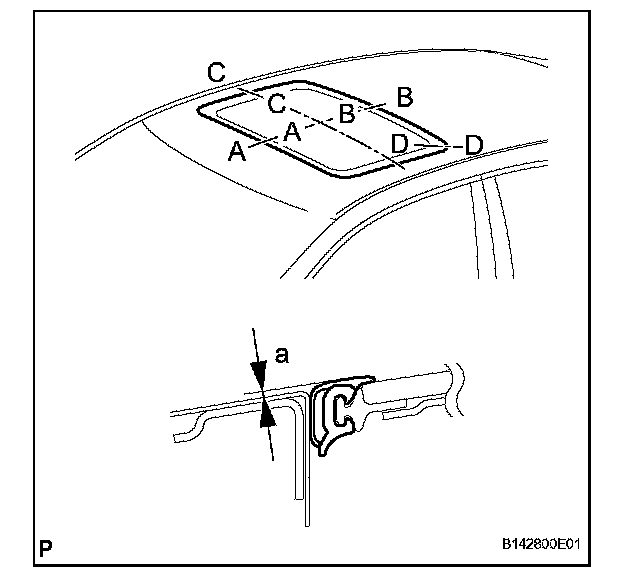

b. Perform a level check.

1. Check the difference in level at "a", between the roof panel and the upper surface of the weatherstrip, when the sliding roof glass is fully closed.

HINT: "+" represents the condition that the glass is above the panel level. "-" represents the condition that the glass is below the panel level.

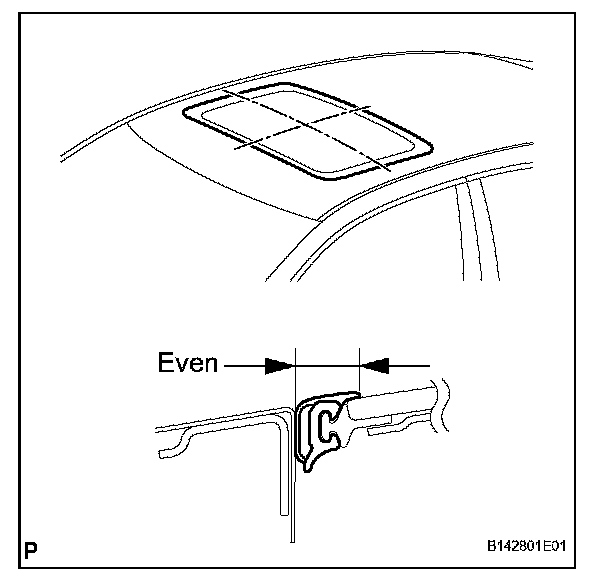

c. Perform a gap check.

1. Check the gap between the roof panel and roof glass.

NOTICE: The gap must be even all around.

d. After adjusting the sliding roof glass, using a T25 "TORX" driver, install the sliding roof glass sub-assembly with the 4 screws.

Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)

4. INSPECT FOR WATER LEAKS
a. After adjusting the sliding roof glass sub-assembly, inspect for water leaks.
b. If there are any leaks, readjust the sliding roof glass sub-assembly.

5. INSTALL SLIDING ROOF SIDE GARNISH LH

a. Engage the 5 claws and install the sliding roof side garnish LH.

6. INSTALL SLIDING ROOF SIDE GARNISH RH

HINT: Use the same procedure for the RH side and the LH side.

7. INSTALL CURTAIN SHIELD AIRBAG ASSEMBLY LH
8. INSTALL CURTAIN SHIELD AIRBAG ASSEMBLY RH

HINT: Use the same procedure for the RH side and the LH side.

9. INSTALL ROOF HEADLINING ASSEMBLY
10. INSTALL ASSIST GRIP SUB-ASSEMBLY
11. INSTALL SPOT LIGHT ASSEMBLY
12. INSTALL COAT HOOK
13. INSTALL VISOR HOLDER
14. INSTALL VISOR ASSEMBLY LH
15. INSTALL VISOR ASSEMBLY RH
16. INSTALL VISOR BRACKET COVER
17. INSTALL ROOF CONSOLE BOX ASSEMBLY
18. INSTALL RAIN SENSOR COVER (w/ Rain Sensor)
19. INSTALL INNER REAR VIEW MIRROR STAY HOLDER COVER
20. CONNECT STEREO COMPONENT AMPLIFIER ASSEMBLY CONNECTOR (w/ DVD Player)
21. INSTALL LUGGAGE COMPARTMENT INNER TRIM COVER RH (w/ DVD Player)
22. INSTALL REAR FLOOR FINISH PLATE (w/ DVD Player)
23. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (w/ DVD Player)
24. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY (w/ DVD Player)
25. INSTALL SPARE WHEEL COVER TRAY
26. INSTALL LUGGAGE COMPARTMENT FLOOR MAT
27. INSTALL FLOOR CARPET BRACKET LH
28. INSTALL FLOOR CARPET BRACKET RH
29. INSTALL SHIFT LEVER ASSEMBLY
30. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
31. INSTALL NO. 2 CONSOLE BOX DUCT
32. INSTALL NO. 3 CONSOLE BOX DUCT
33. INSTALL REAR CONSOLE BOX ASSEMBLY
34. INSTALL CONSOLE REAR END PANEL SUB-ASSEMBLY
35. INSTALL CONSOLE BOX CARPET
36. INSTALL CONSOLE BOX POCKET
37. INSTALL HEATER SEAT SWITCH CONSOLE BASE (w/o Seat Heater System)
38. INSTALL HEATER SEAT SWITCH CONSOLE BASE (w/ Seat Heater System)
39. INSTALL UPPER CONSOLE PANEL ASSEMBLY WITH FRONT ASH RECEPTACLE
40. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
41. INSTALL INSTRUMENT PANEL FINISH PANEL END LH
42. INSTALL INSTRUMENT PANEL FINISH PANEL END RH
43. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY LH
44. INSTALL REAR SEAT SIDE GARNISH LH (w/o Rear Seat Side Airbag)
45. INSTALL REAR SEAT SIDE AIRBAG ASSEMBLY LH (w/ Rear Seat Side Airbag)
46. INSTALL UPPER CENTER PILLAR GARNISH LH
47. INSTALL LOWER CENTER PILLAR GARNISH LH
48. INSTALL REAR DOOR SCUFF PLATE LH
49. INSTALL FRONT PILLAR GARNISH LH
50. INSTALL SIDE INSTRUMENT PANEL LH
51. INSTALL FRONT DOOR OPENING TRIM COVER LH
52. INSTALL FRONT DOOR SCUFF PLATE LH
53. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY RH
54. INSTALL REAR SEAT SIDE GARNISH RH (w/o Rear Seat Side Airbag)
55. INSTALL REAR SEAT SIDE AIRBAG ASSEMBLY RH (w/ Rear Seat Side Airbag)
56. INSTALL UPPER CENTER PILLAR GARNISH RH
57. INSTALL LOWER CENTER PILLAR GARNISH RH
58. INSTALL REAR DOOR SCUFF PLATE RH
59. INSTALL FRONT PILLAR GARNISH RH
60. INSTALL SIDE INSTRUMENT PANEL RH
61. INSTALL FRONT DOOR OPENING TRIM COVER RH
62. INSTALL FRONT DOOR SCUFF PLATE RH

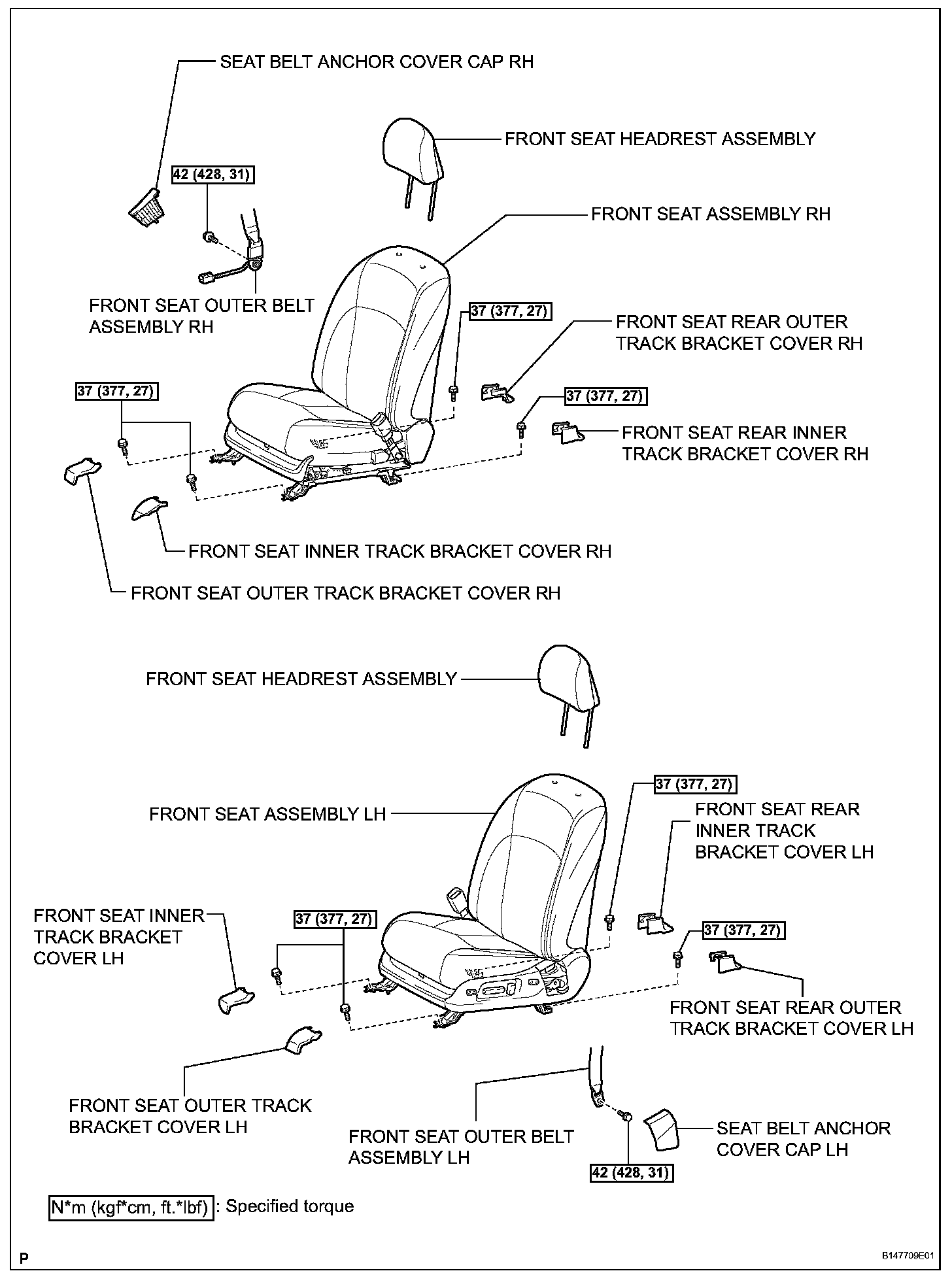

63. INSTALL FRONT SEAT ASSEMBLY LH
64. INSTALL FRONT SEAT REAR OUTER TRACK BRACKET COVER LH
65. INSTALL FRONT SEAT REAR INNER TRACK BRACKET COVER LH
66. INSTALL FRONT SEAT OUTER TRACK BRACKET COVER LH
67. INSTALL FRONT SEAT INNER TRACK BRACKET COVER LH
68. CONNECT FRONT SEAT OUTER BELT ASSEMBLY LH
69. INSTALL SEAT BELT ANCHOR COVER CAP LH
70. INSTALL FRONT SEAT HEADREST ASSEMBLY
71. INSTALL FRONT SEAT ASSEMBLY RH
72. INSTALL FRONT SEAT REAR OUTER TRACK BRACKET COVER RH
73. INSTALL FRONT SEAT REAR INNER TRACK BRACKET COVER RH
74. INSTALL FRONT SEAT OUTER TRACK BRACKET COVER RH
75. INSTALL FRONT SEAT INNER TRACK BRACKET COVER RH
76. CONNECT FRONT SEAT OUTER BELT ASSEMBLY RH
77. INSTALL SEAT BELT ANCHOR COVER CAP RH
78. INSTALL FRONT SEAT HEADREST ASSEMBLY
79. INSTALL REAR SEATBACK ASSEMBLY
80. INSTALL REAR CENTER SEAT HEADREST ASSEMBLY
81. INSTALL REAR SEAT HEADREST ASSEMBLY
82. INSTALL REAR SEAT CUSHION ASSEMBLY
83. PERFORM INITIALIZATION

NOTICE: Some systems need initialization after reconnecting the cable to the negative battery terminal.

84. RESET SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY
85. INSPECT SLIDING ROOF SYSTEM
86. INSPECT SHIFT LEVER POSITION
87. ADJUST SHIFT LEVER POSITION
88. INSPECT FRONT SEAT ASSEMBLY
89. INSPECT SRS WARNING LIGHT
