DISASSEMBLY
1. REMOVE NO. 3 SUNSHADE TRIM SUB-ASSEMBLY

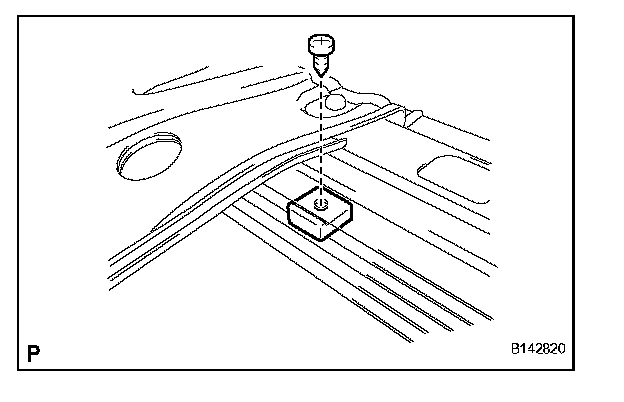

a. Remove the screw and rear sliding roof sunshade stopper LH.
HINT: Use the same procedure for the RH side and the LH side.
b. Remove the screw and front sliding roof sunshade stopper LH.
HINT:
- Use the same procedures for the other 2 stoppers.
- Use the same procedure for the RH side and the LH side.

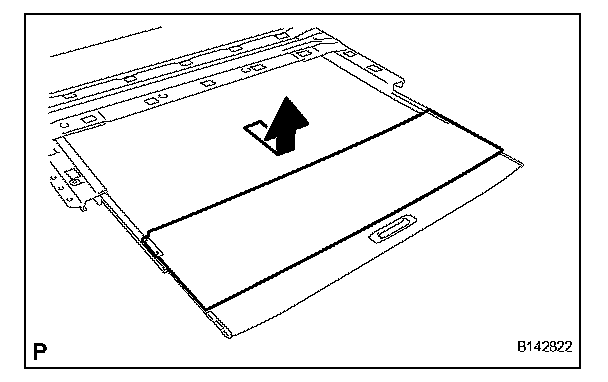

c. Slide and remove the No. 3 sunshade trim sub-assembly.
2. REMOVE NO. 4 SUNSHADE TRIM SUB-ASSEMBLY

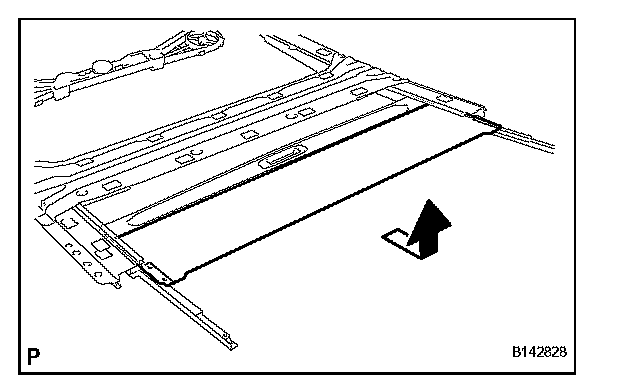

a. Slide and remove the No. 4 sunshade trim sub-assembly.
3. REMOVE NO. 2 SUNSHADE TRIM SUB-ASSEMBLY

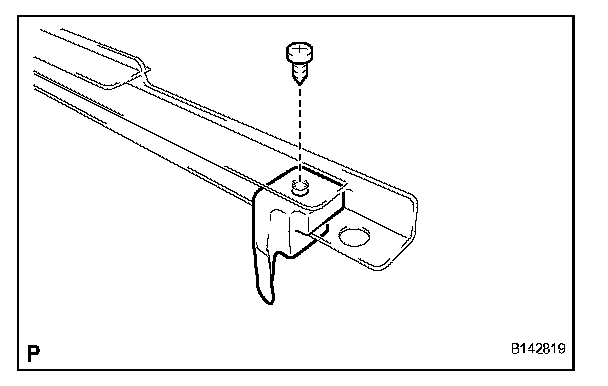

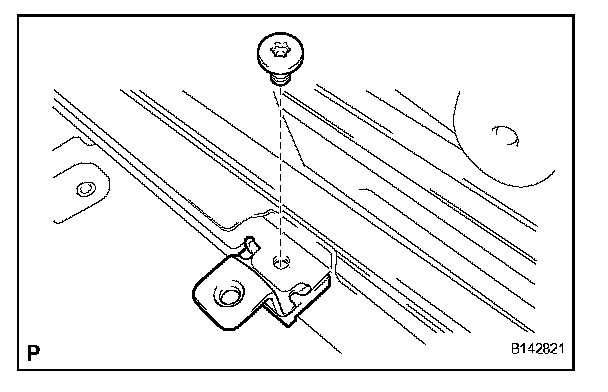

a. Using a T25 "TORX" driver, remove the screw and sliding roof plate LH.
HINT: Use the same procedure for the RH side and the LH side.

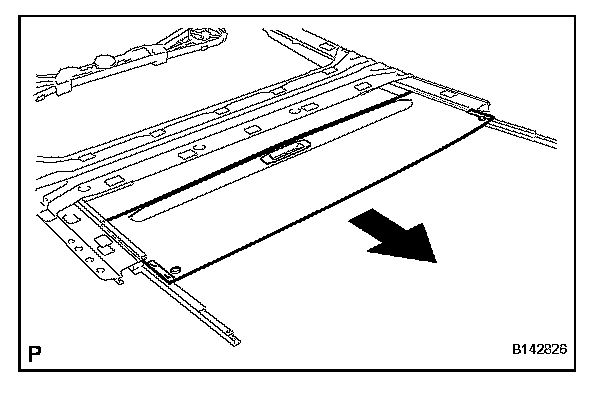

b. Slide and remove the No. 2 sunshade trim sub-assembly.
4. REMOVE NO. 1 SUNSHADE TRIM SUB-ASSEMBLY

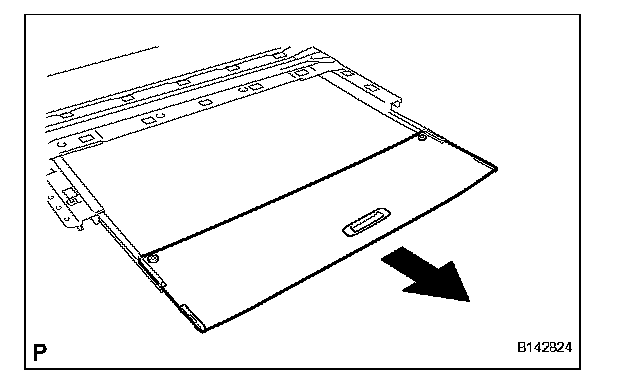

a. Slide and remove the No. 1 sunshade trim sub-assembly.
5. REMOVE NO. 3 SLIDING ROOF GLASS SUB-ASSEMBLY

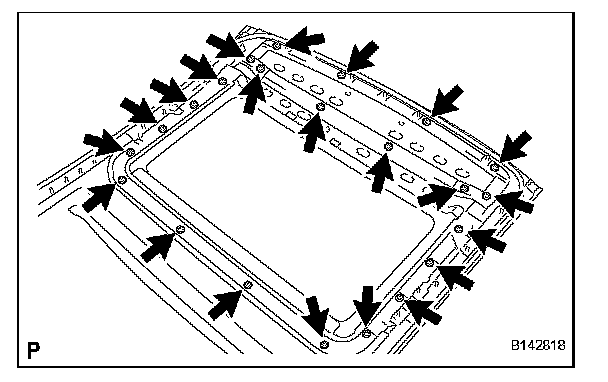

a. Remove the 22 nuts and No. 3 sliding roof glass sub-assembly.
REASSEMBLY
1. INSTALL NO. 3 SLIDING ROOF GLASS SUB-ASSEMBLY

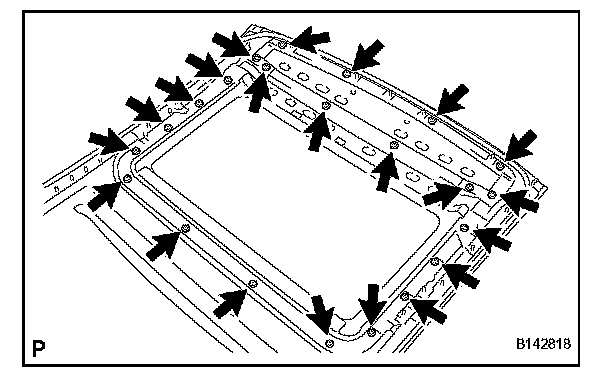

a. Install the No. 3 sliding roof glass sub-assembly with the 22 nuts.
Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
2. INSTALL NO. 1 SUNSHADE TRIM SUB-ASSEMBLY

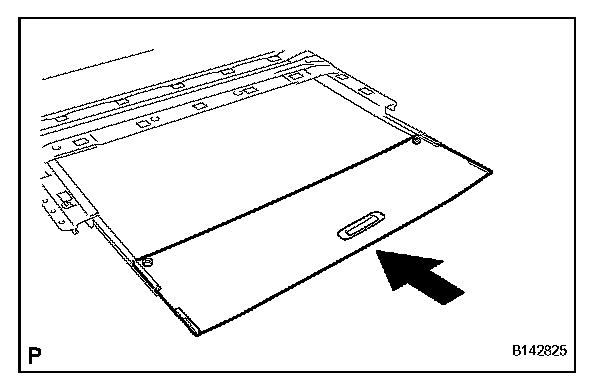

a. Slide and install the No. 1 sunshade trim sub-assembly.
3. INSTALL NO. 2 SUNSHADE TRIM SUB-ASSEMBLY

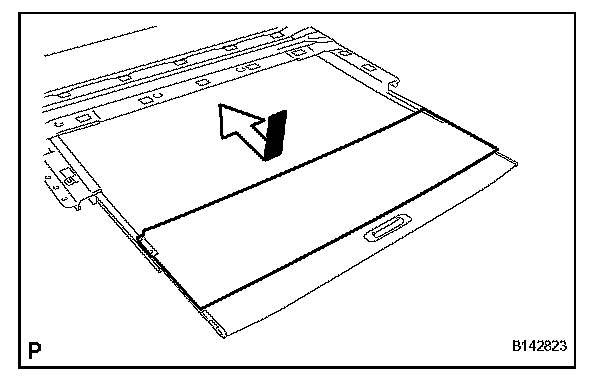

a. Slide and install the No. 2 sunshade trim sub-assembly.

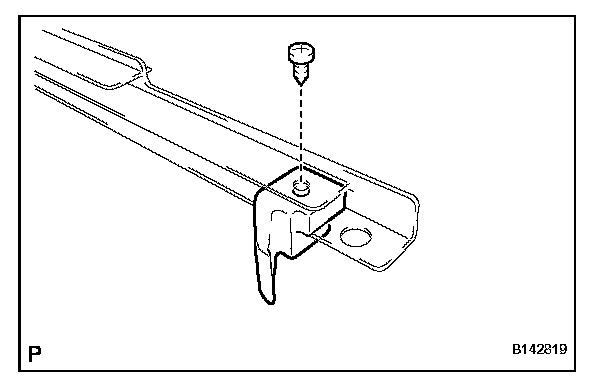

b. Using a T25 "TORX" driver, install the sliding roof plate LH with the screw.
Torque: 4.0 N.m (41 kgf.cm, 35 in.lbf)
HINT: Use the same procedure for the RH side and the LH side.
4. INSTALL NO. 4 SUNSHADE TRIM SUB-ASSEMBLY

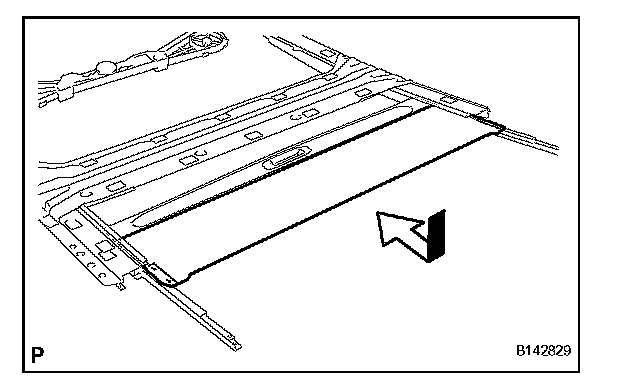

a. Slide and install the No. 4 sunshade trim sub-assembly.
5. INSTALL NO. 3 SUNSHADE TRIM SUB-ASSEMBLY

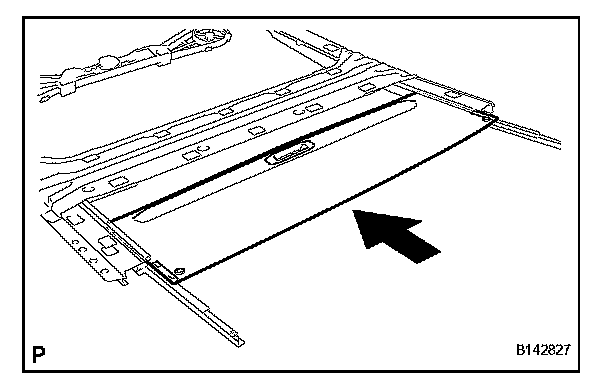

a. Slide and install the No. 3 sunshade trim sub-assembly.
b. Install the front sliding roof sunshade stopper LH with the screw.
Torque: 4.0 N.m (41 kgf.cm, 35 in.lbf)
HINT:
- Use the same procedure for the other 2 stoppers.
- Use the same procedure for the RH side and the LH side.
c. Install the rear sliding roof sunshade stopper LH with the screw.
Torque: 4.0 N.m (41 kgf.cm, 35 in.lbf)
HINT: Use the same procedure for the RH side and the LH side.
