Power Source Circuit

Power Source Circuit

DESCRIPTION

The certification ECU provides power for the door control receiver operation.

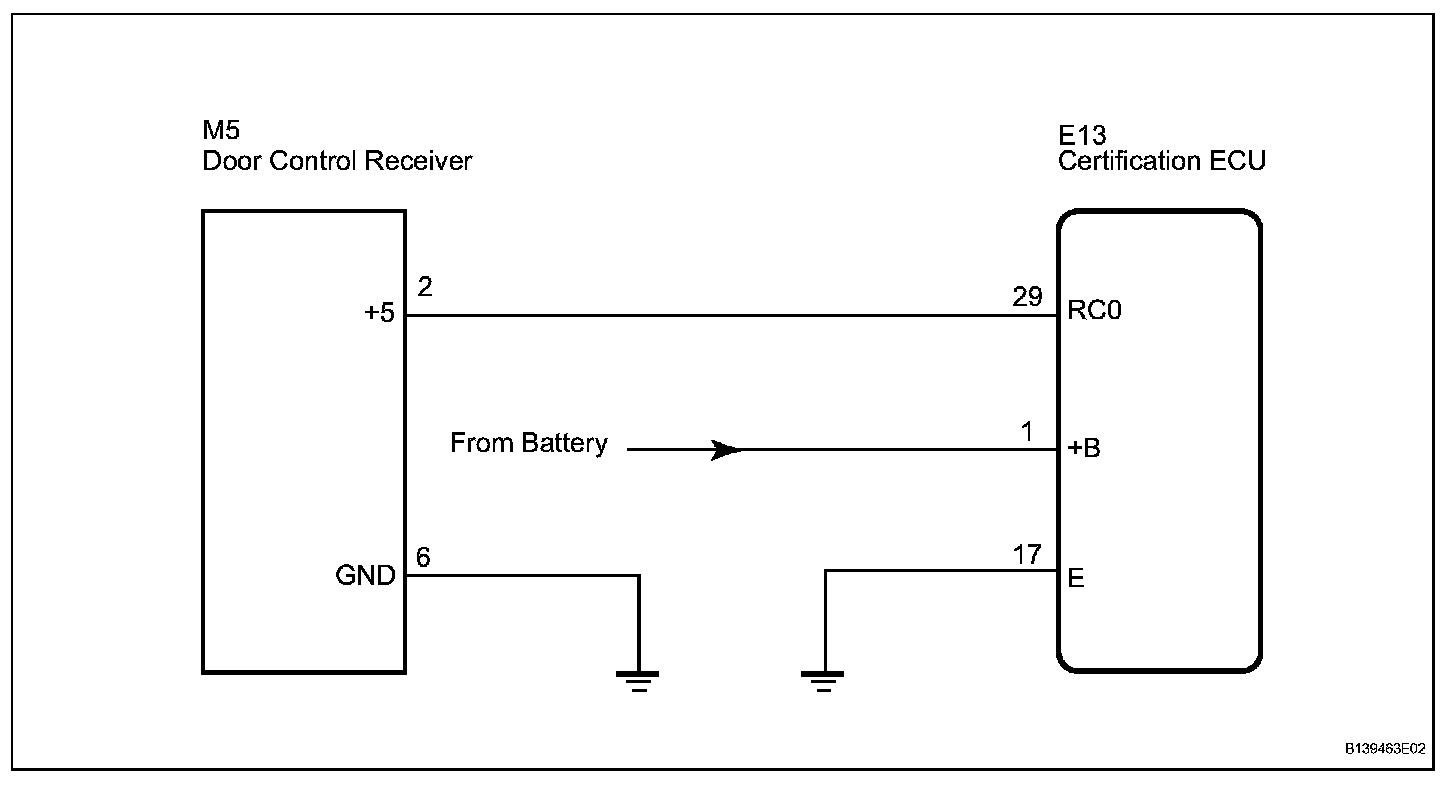

Wiring Diagram:

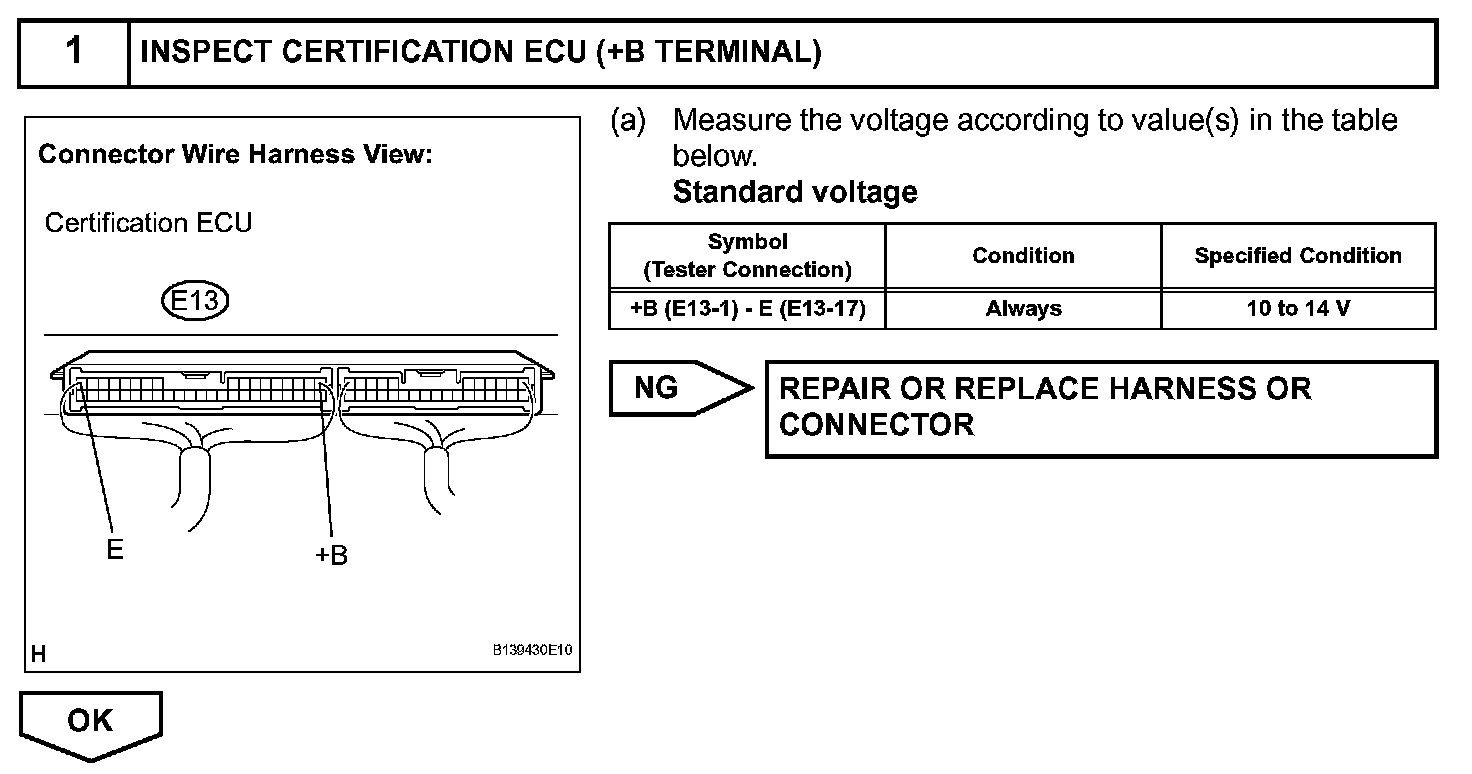

Step 1:

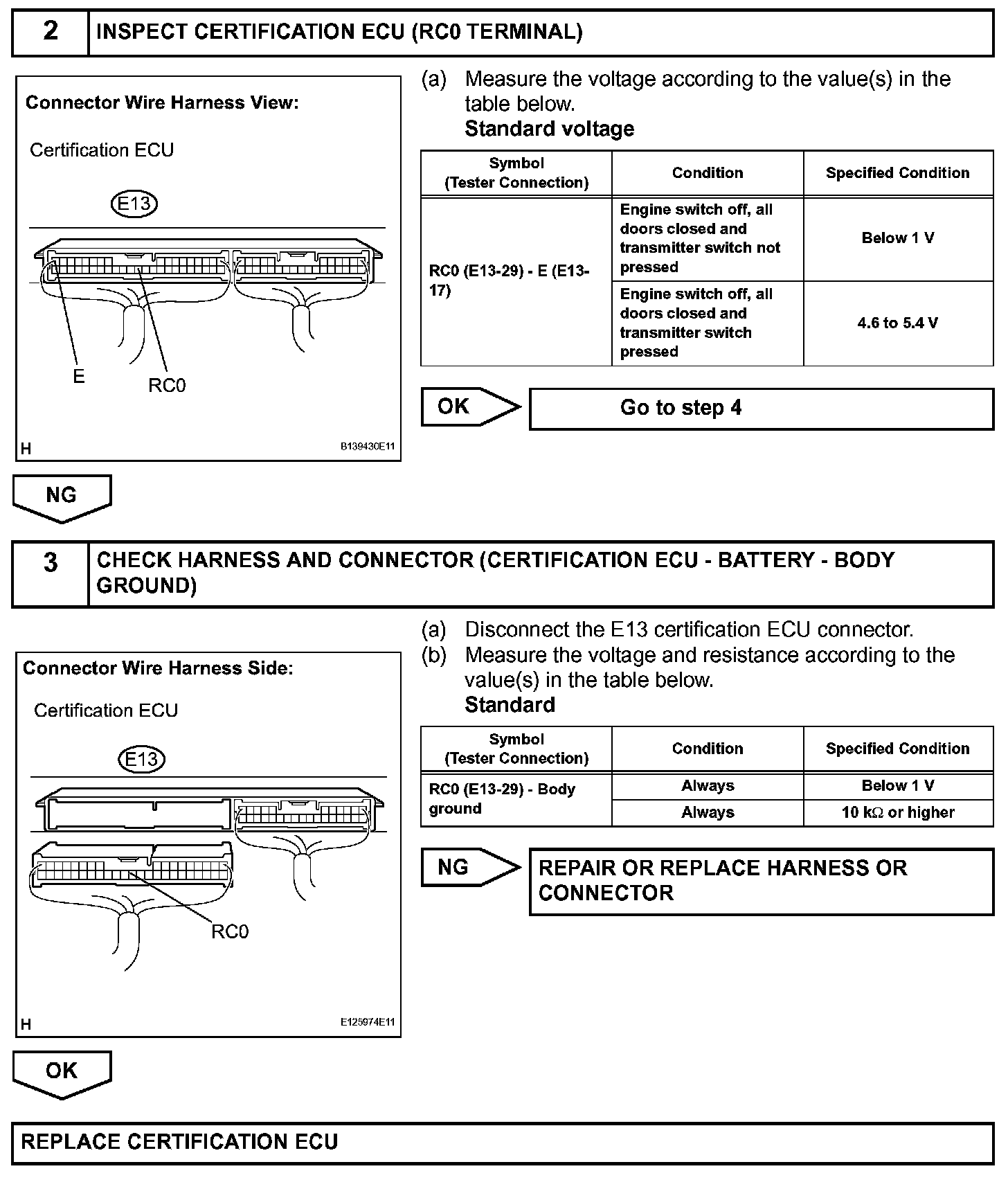

Step 2-3:

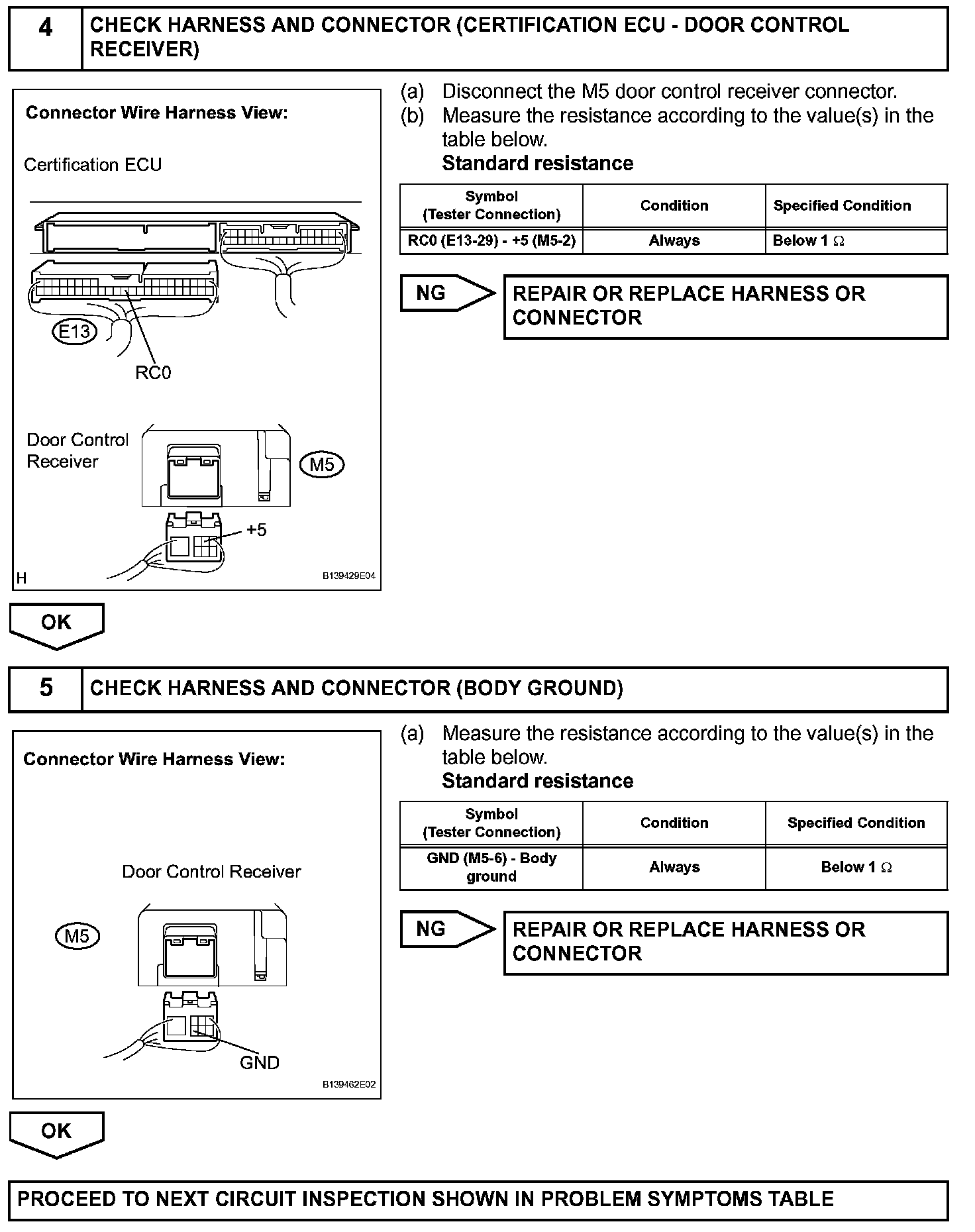

Step 4-5:




INSPECTION PROCEDURE
