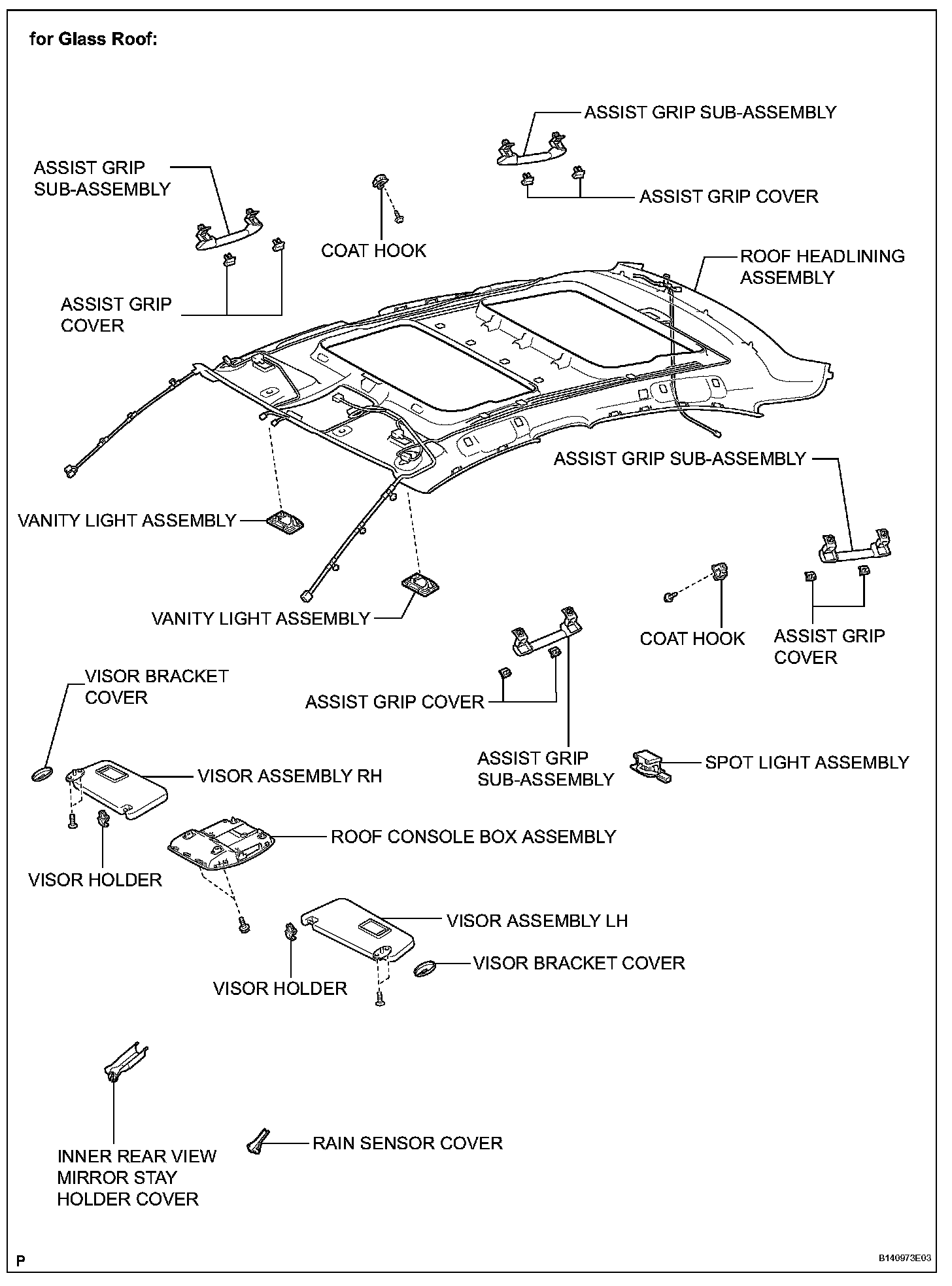

ROOF HEADLININGRoof Headlining:
Roof Headlining:
Roof Headlining:
Roof Headlining:
Roof Headlining:
Roof Headlining:
Roof Headlining:
Roof Headlining:
Roof Headlining:
Roof Headlining:
Roof Headlining:
Roof Headlining:
Roof Headlining:
INSTALLATION

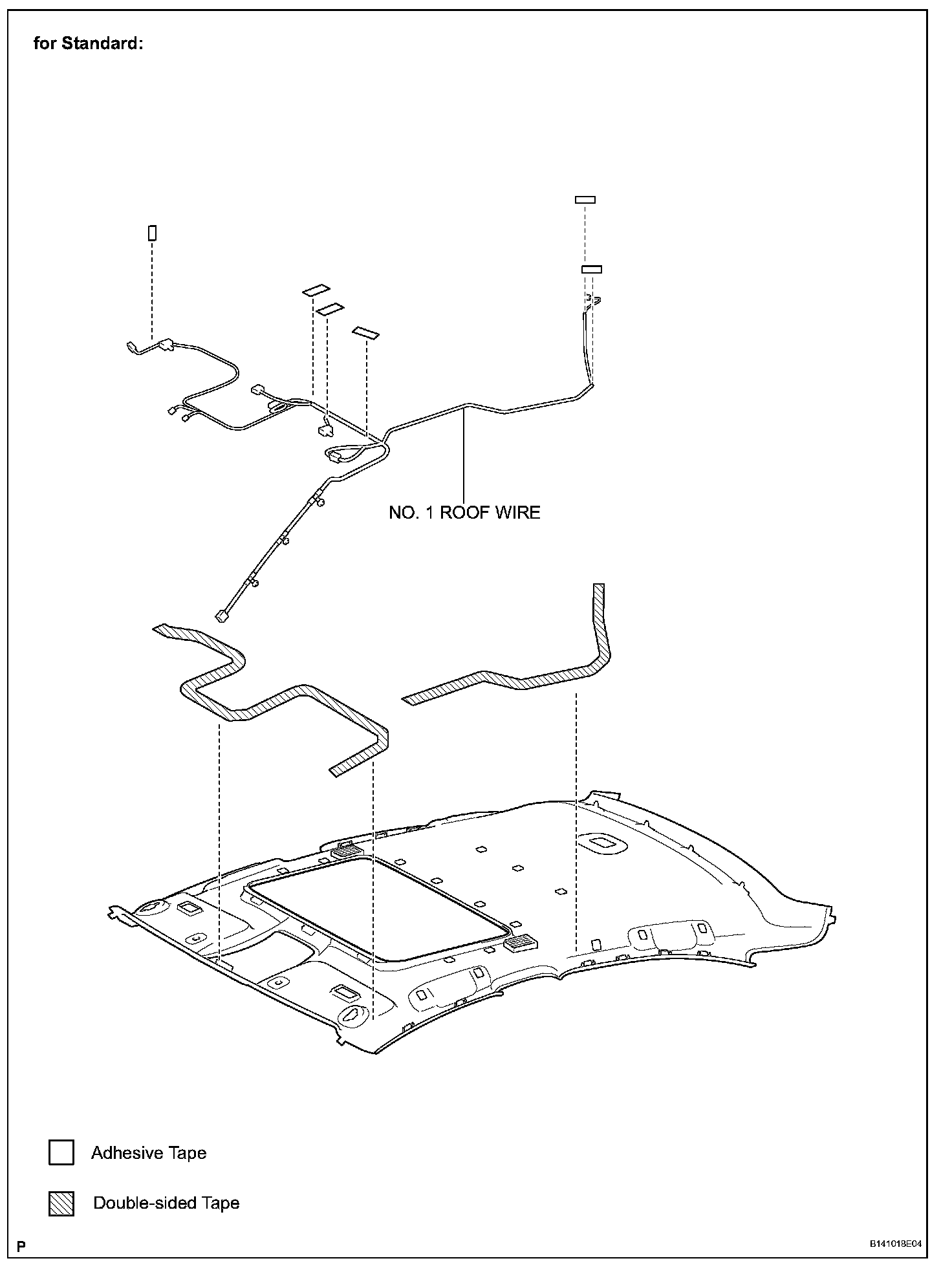

1. INSTALL NO. 1 ROOF WIRE (for Standard)

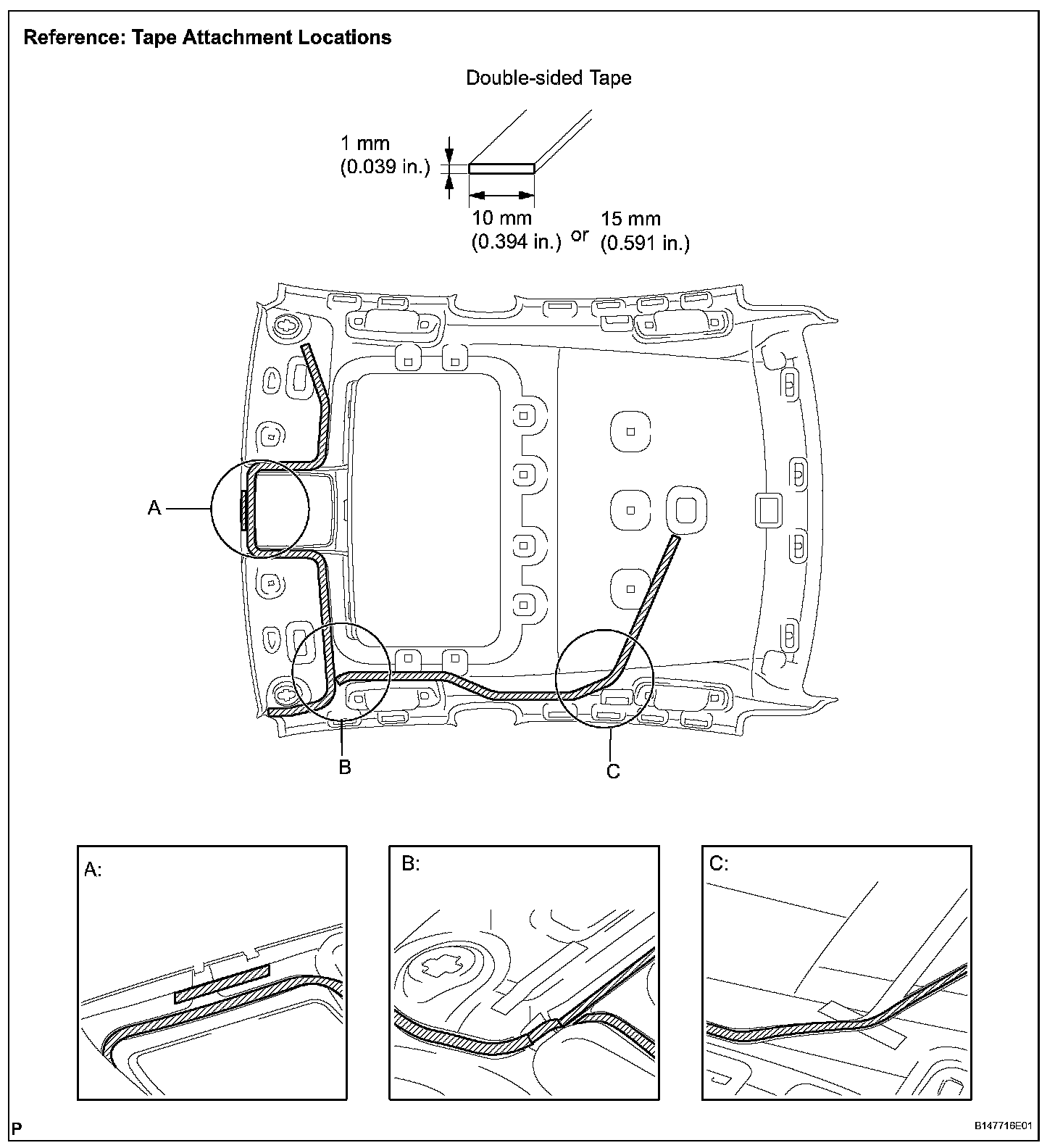

a. Apply new double-sided tape to the locations shown in the illustration while aligning the tape with the markings on the roof headlining.
NOTICE: Securely apply the double-sided tape to prevent the tape from being out of alignment and peeling off.
b. Peel off the release paper from the double-sided tape.
c. Attach the No. 1 roof wire along the double-sided tape so that the marking surface of the wire harness faces downward.
NOTICE:
- Securely attach the No. 1 roof wire.
- Failure to do so may cause abnormal noise.

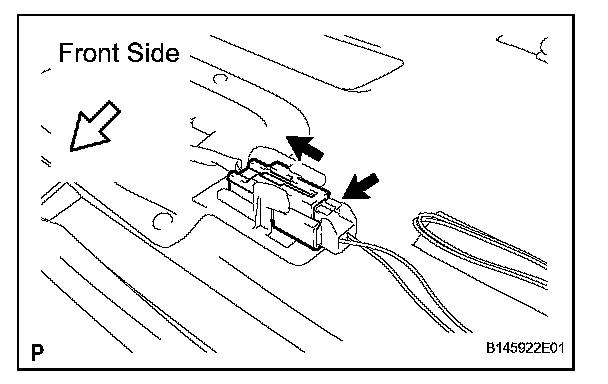

d. Turn the visor connectors clockwise approximately 90° to the connectors of the roof headlining.

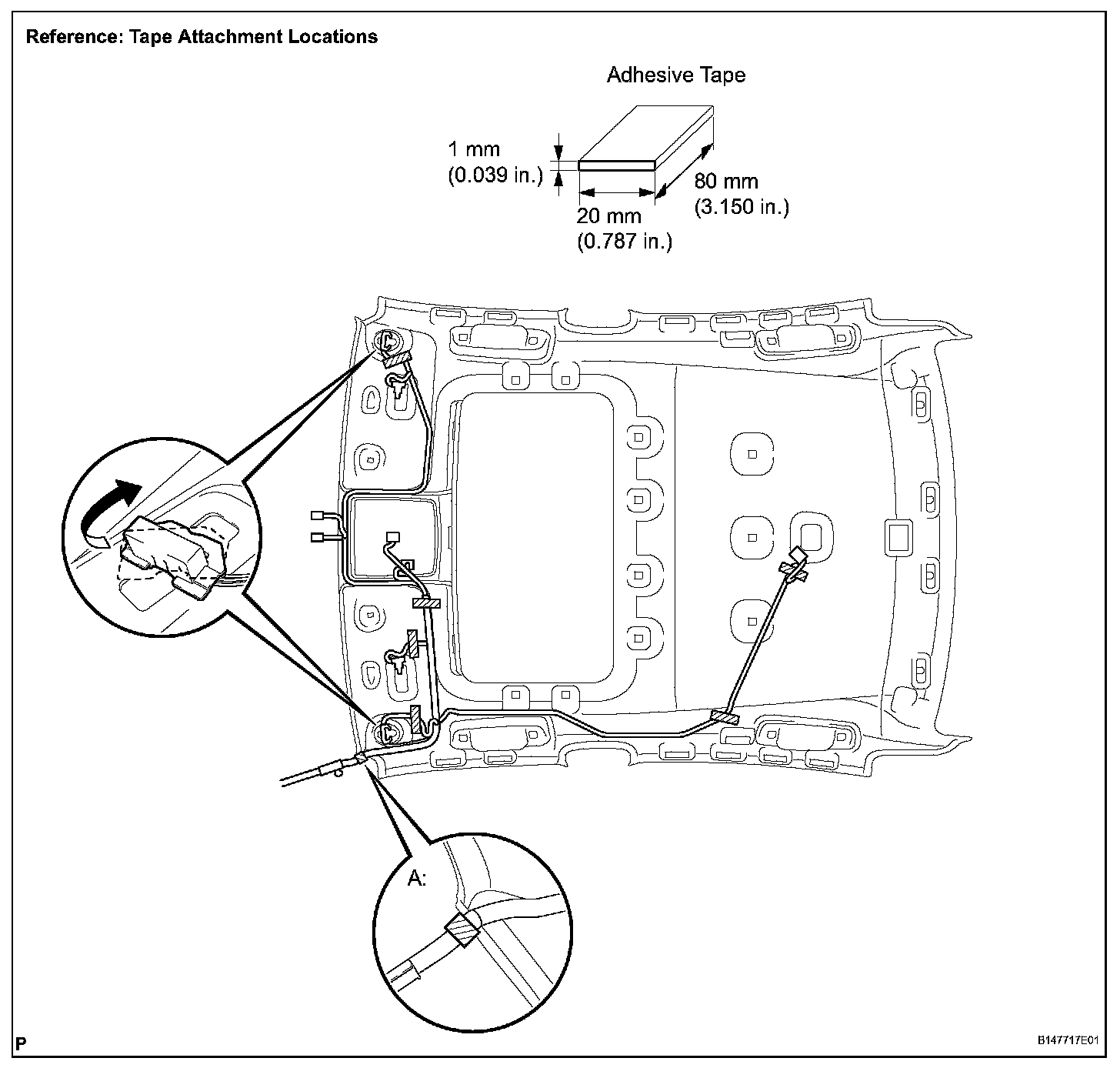

e. Apply adhesive tape to the locations shown in the illustration.
HINT: As shown at point A in the illustration, line up and secure the reference tape of the wire harness to the tip of the roof headlining assembly.

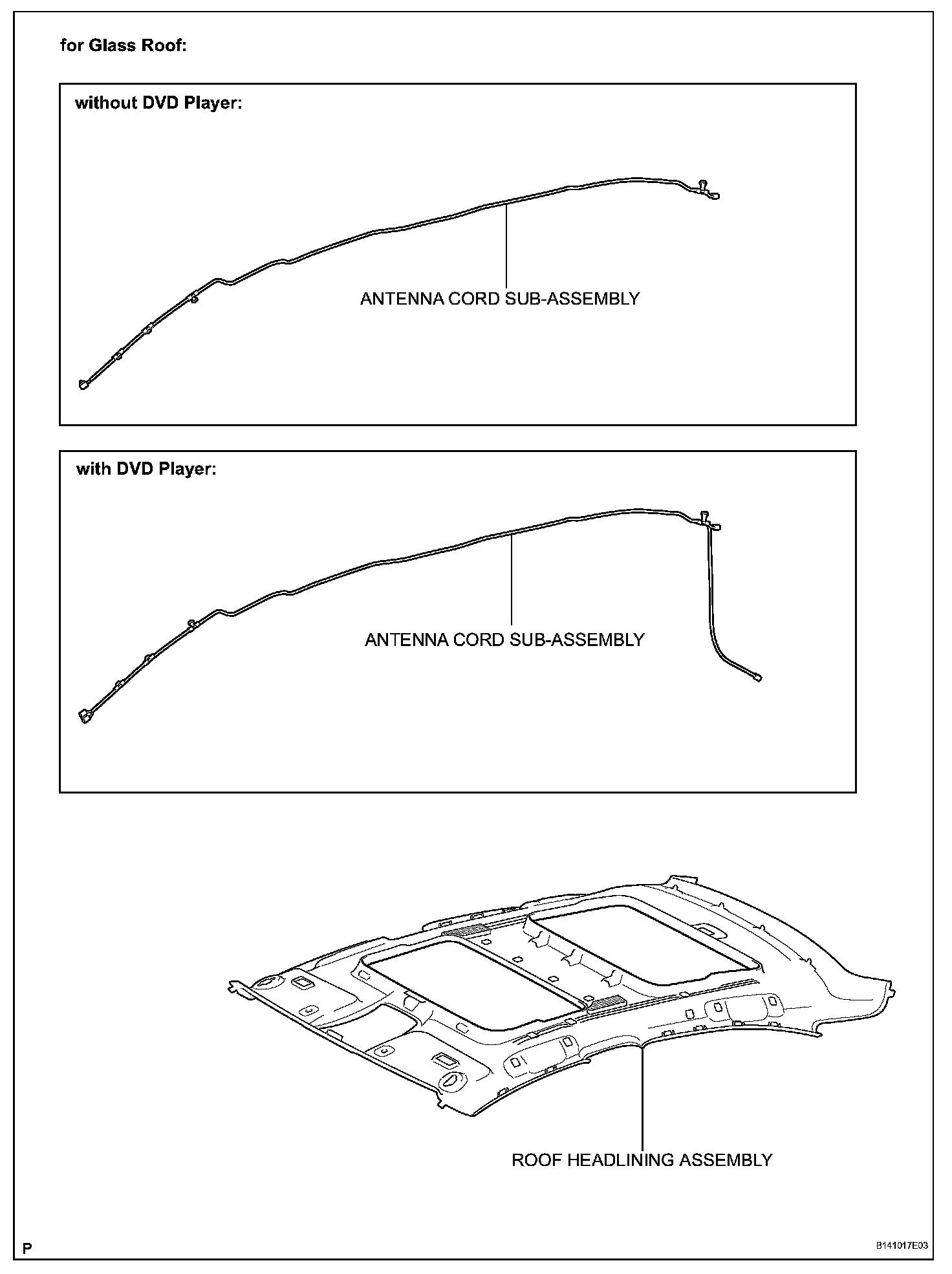

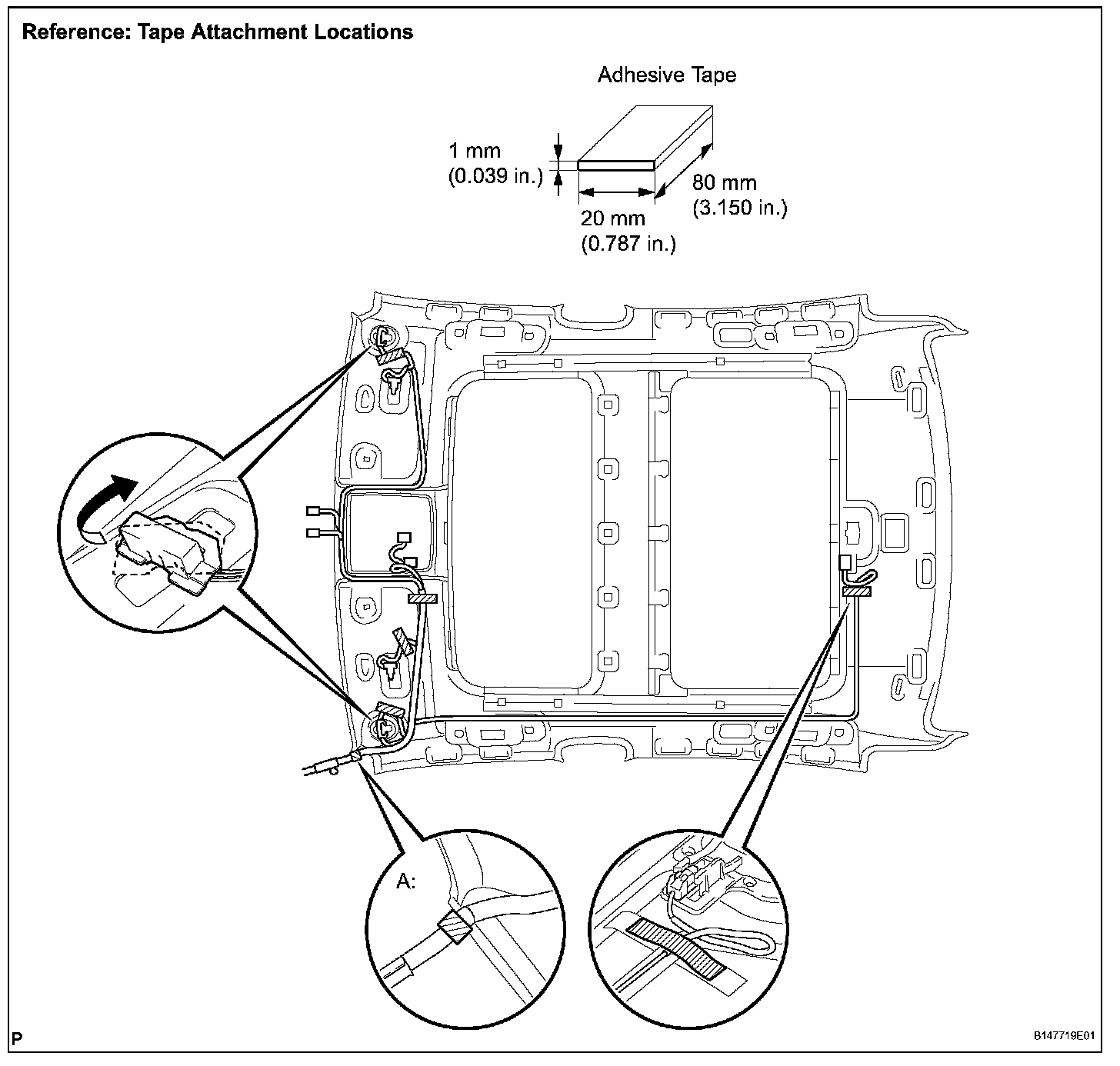

2. INSTALL NO. 1 ROOF WIRE (for Glass Roof)

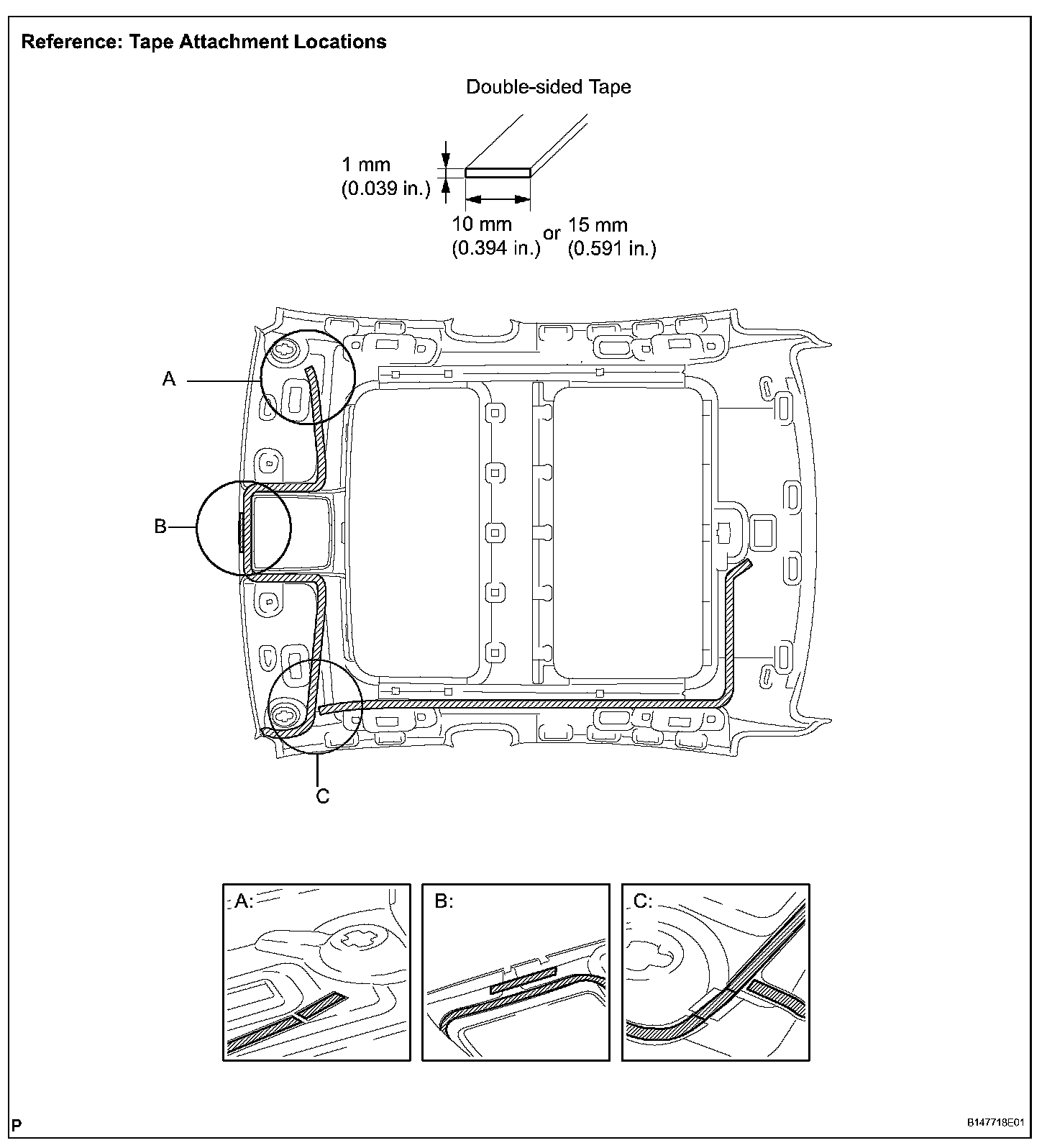

a. Apply new double-sided tape to the locations shown in the illustration while aligning the tape with the markings on the roof headlining.
NOTICE: Securely apply the double-sided tape to prevent the tape from being out of alignment and peeling off.
b. Peel off the release paper from the double-sided tape.
c. Attach the No. 1 roof wire along the double-sided tape so that the marking surface of the wire harness faces downward.
NOTICE:
- Securely attach the No. 1 roof wire.
- Failure to do so may cause abnormal noise.
d. Turn the visor connectors clockwise approximately 90° to the connectors of the roof headlining.
e. Apply adhesive tape to the locations shown in the illustration.
HINT: As shown at point A in the illustration, line up and secure the reference tape of the wire harness to the tip of the roof headlining assembly.

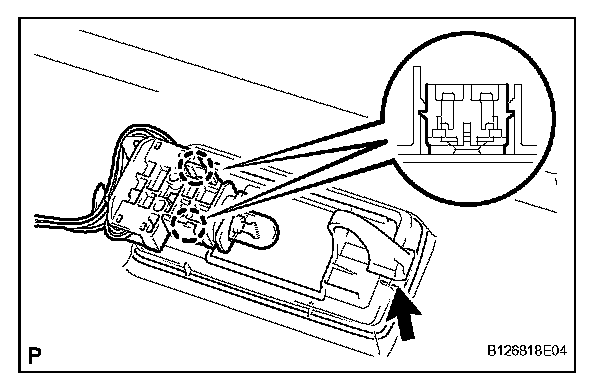

3. INSTALL VANITY LIGHT ASSEMBLY
a. Install the vanity light to the roof headlining.
b. Connect the 2 claws to install the bulb holder.
HINT: Use the same procedure to install the light on the other side.

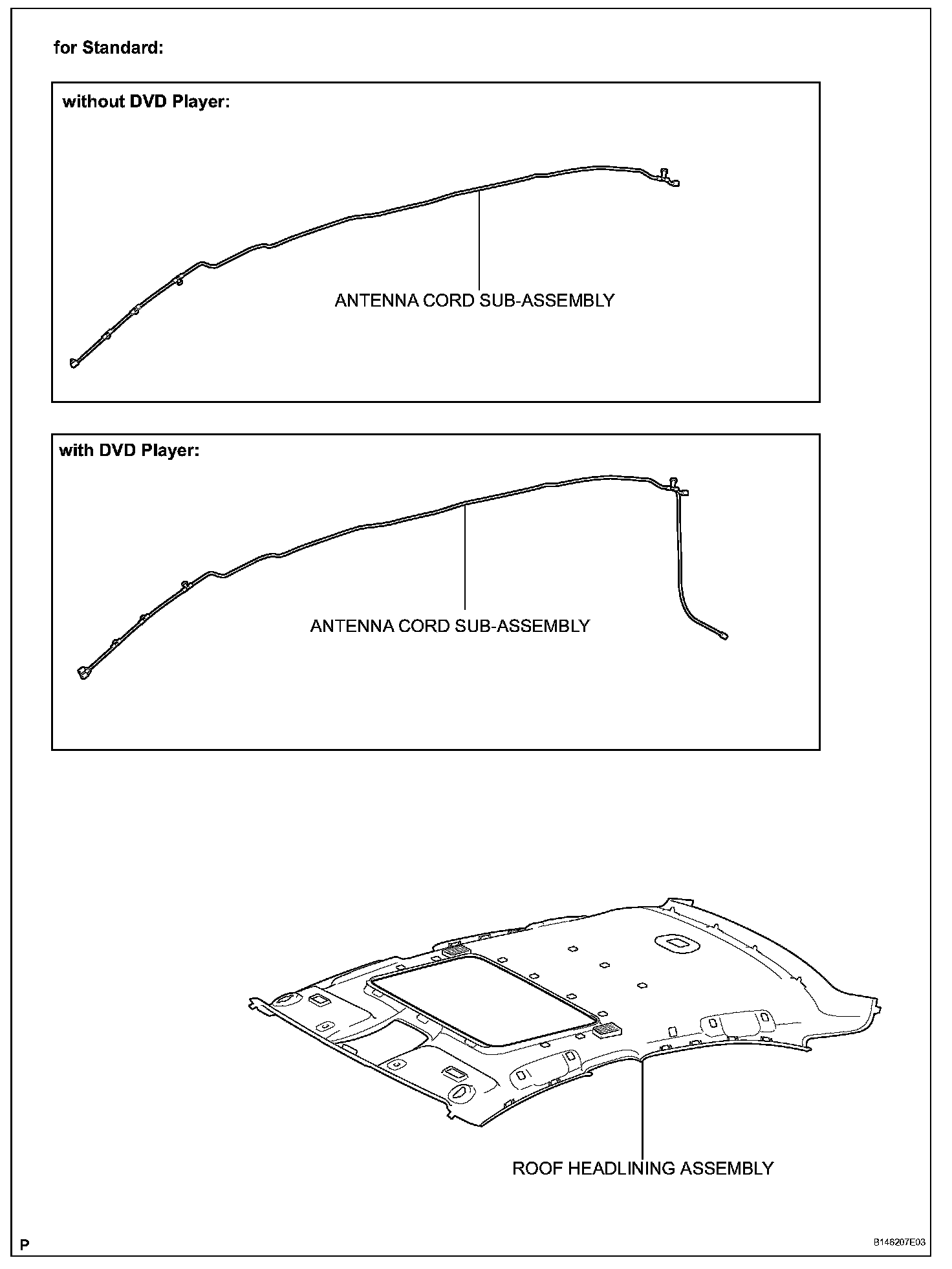

4. INSTALL ANTENNA CORD SUB-ASSEMBLY

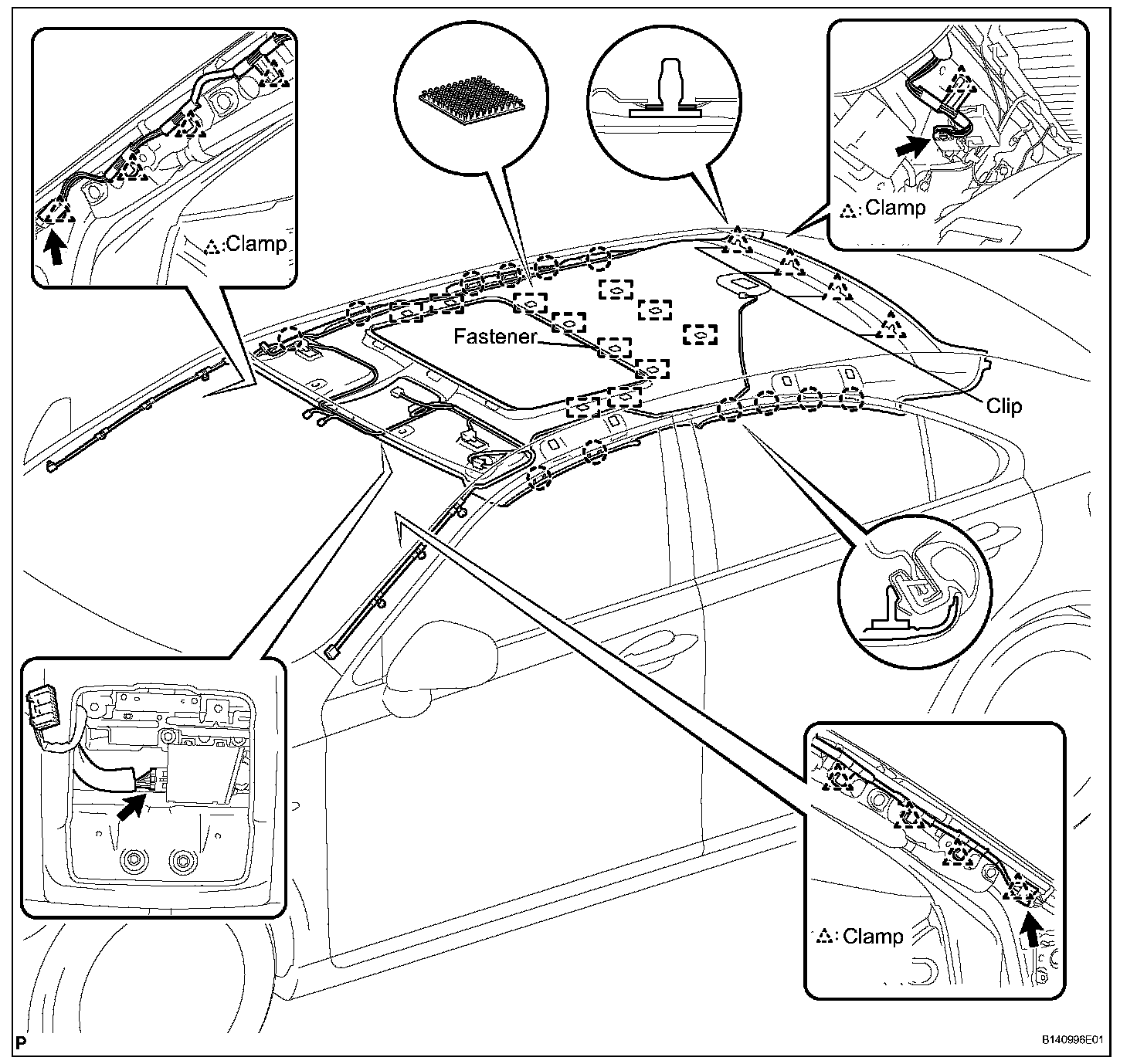

5. INSTALL ROOF HEADLINING ASSEMBLY (for Standard)

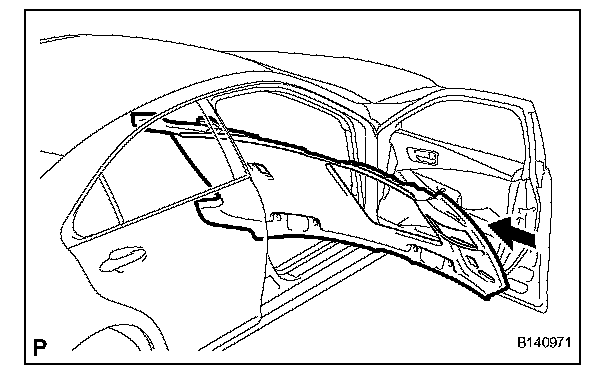

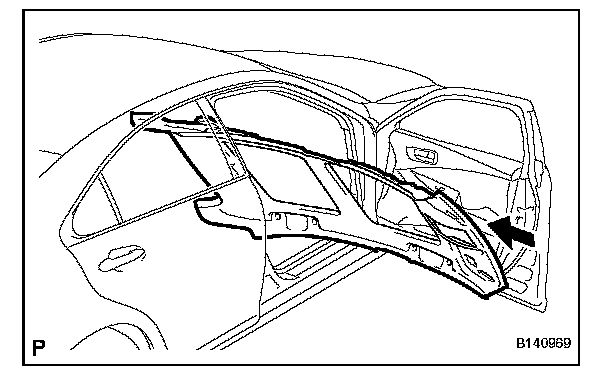

a. Pull the roof headlining assembly into the vehicle through the front right door.
b. Engage the 12 claws, 4 clips, and 11 fasteners.

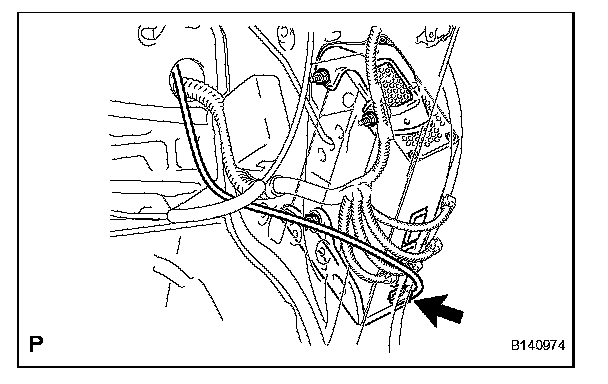

c. Connect the antenna cord sub-assembly connector and engage the clamp to the rear pillar RH.
d. Connect the antenna cord sub-assembly connector and engage each clamp to the front pillar RH.
e. Connect the No. 1 wire connector and engage each clamp to the front pillar LH.

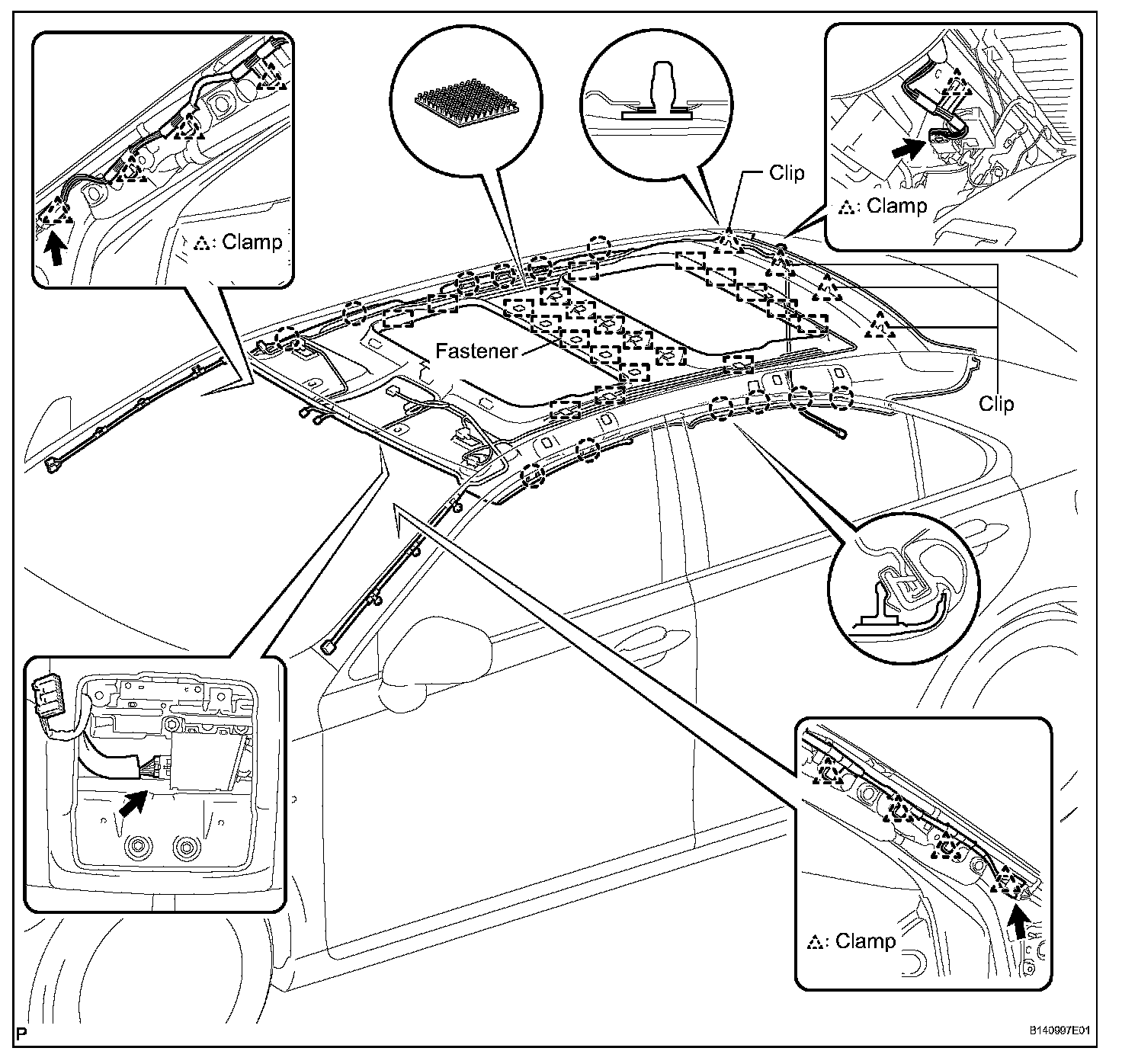

6. INSTALL ROOF HEADLINING ASSEMBLY (for Glass Roof)
a. Pull the roof headlining assembly into the vehicle through the front right door.
b. Engage the 12 claws, 4 clips, and 21 fasteners.
c. Connect the antenna cord sub-assembly connector and engage the clamp to the rear pillar RH.
d. Connect the antenna cord sub-assembly connector and engage each clamp to the front pillar RH.
e. Connect the No. 1 wire connector and engage each clamp to the front pillar LH.

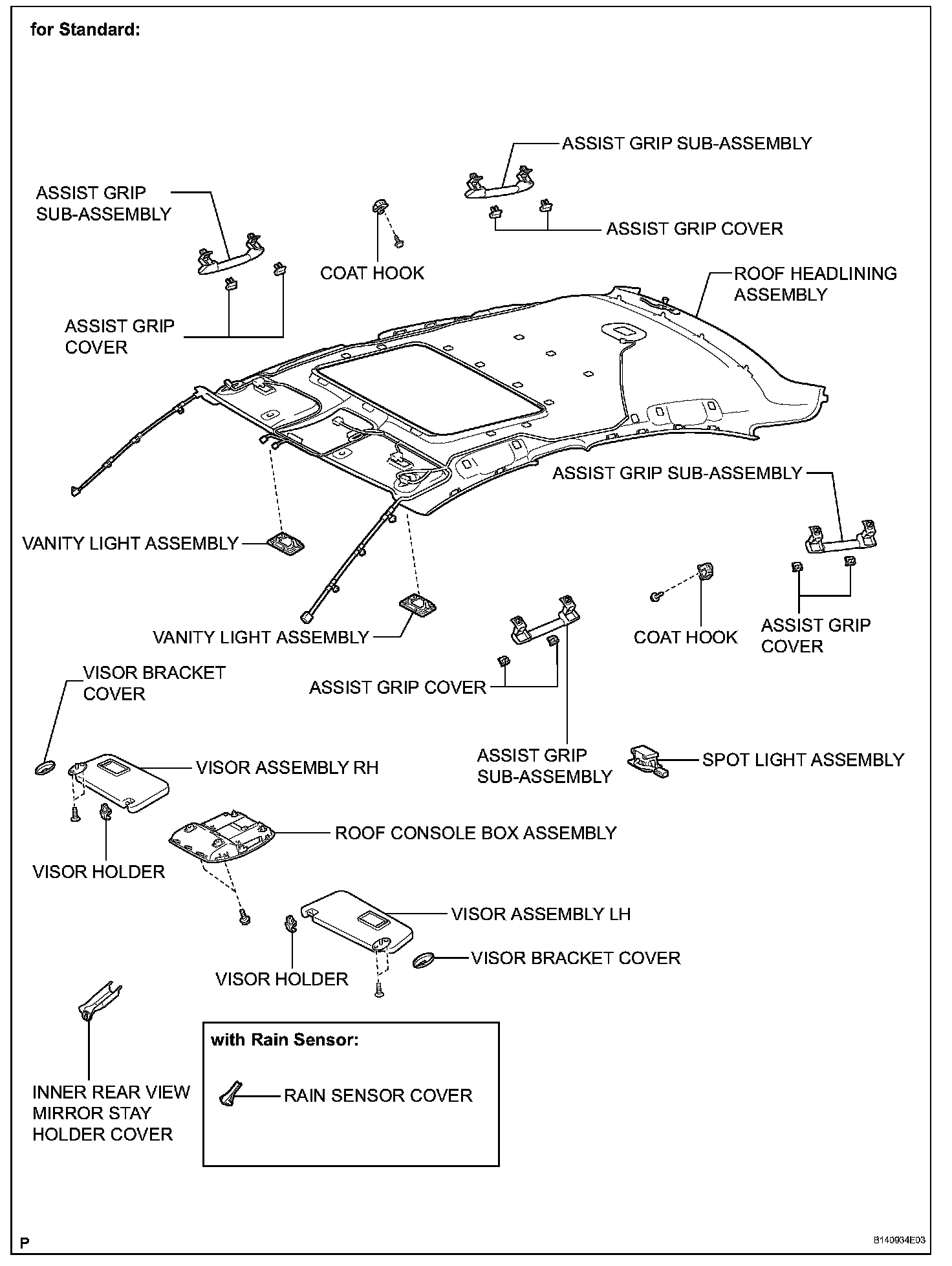

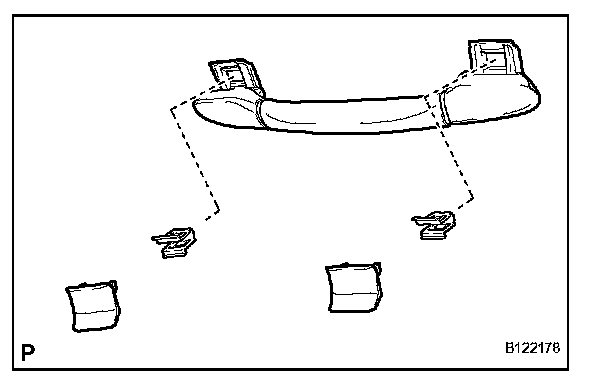

7. INSTALL ASSIST GRIP SUB-ASSEMBLY
a. Engage the 2 clips to an assist grip sub-assembly as shown in the illustration.
b. Install the assist grip sub-assembly.
c. Install the 2 assist grip covers to the assist grip sub-assembly.
HINT: Use the same procedure for the other 3 assist grips.

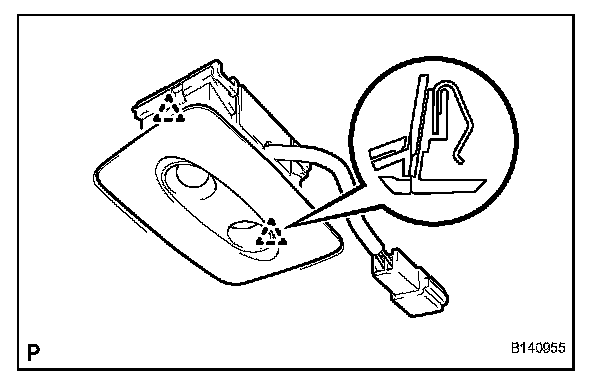

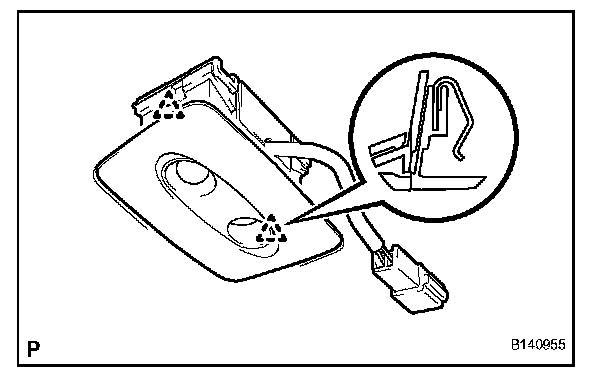

8. INSTALL SPOT LIGHT ASSEMBLY (for Standard)
a. Connect the connector.
b. Engage the 2 clips and install the spot light assembly.
9. INSTALL SPOT LIGHT ASSEMBLY (for Glass Roof)
a. Connect the connector.
b. Engage the 2 clips and install the spot light assembly.

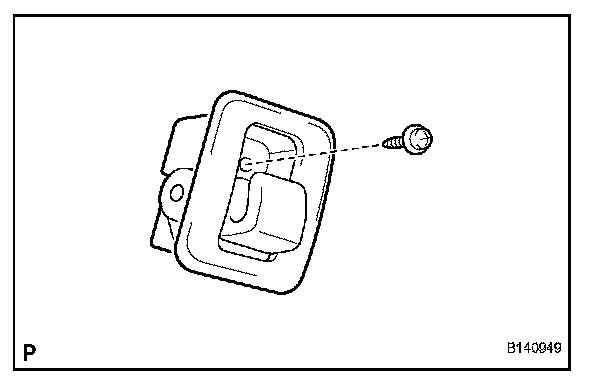

10. INSTALL COAT HOOK
a. Install the coat hook with the screw.
HINT: Use the same procedure to install the hook on the other side.

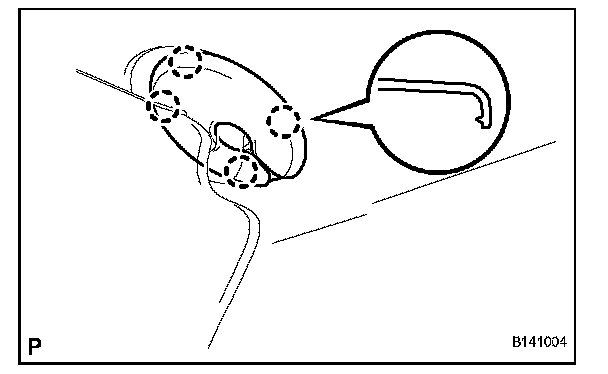

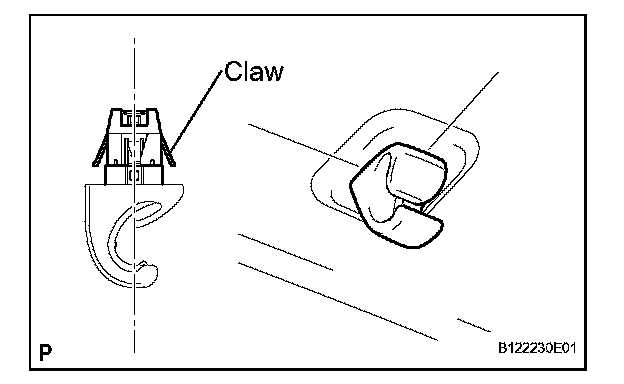

11. INSTALL VISOR HOLDER
a. Set the claws of the visor holder as shown in the illustration.
b. Engage the claws and install the visor holder.
HINT: Use the same procedure to install the holder on the other side.

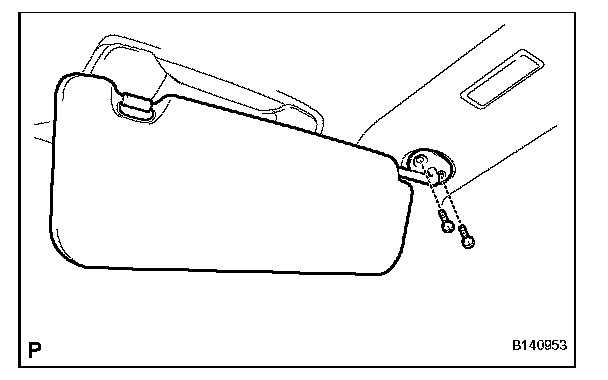

12. INSTALL VISOR ASSEMBLY LH
a. Install the visor assembly LH with the 2 screws.
13. INSTALL VISOR ASSEMBLY RH
HINT: Use the same procedure for the RH side and the LH side.
14. INSTALL VISOR BRACKET COVER
a. Engage the 4 claws and install the visor bracket cover.
HINT: Use the same procedure to install the cover on the other side.

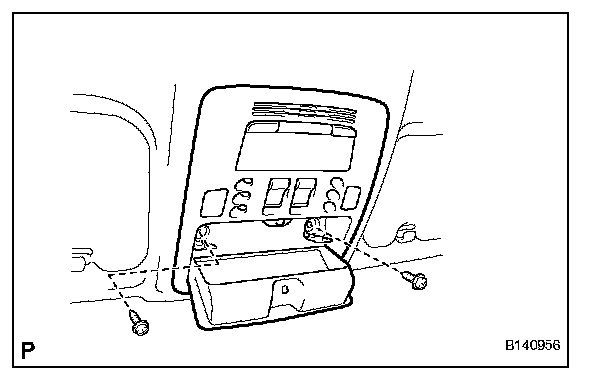

15. INSTALL ROOF CONSOLE BOX ASSEMBLY
a. Connect the connector.
b. Engage the 2 clips.
c. Install the roof console box assembly with the 2 screws.
16. INSTALL RAIN SENSOR COVER (w/ Rain Sensor)
17. INSTALL INNER REAR VIEW MIRROR STAY HOLDER COVER
18. CONNECT STEREO COMPONENT AMPLIFIER ASSEMBLY CONNECTOR (w/ DVD Player)
a. Connect the stereo component amplifier assembly connector.

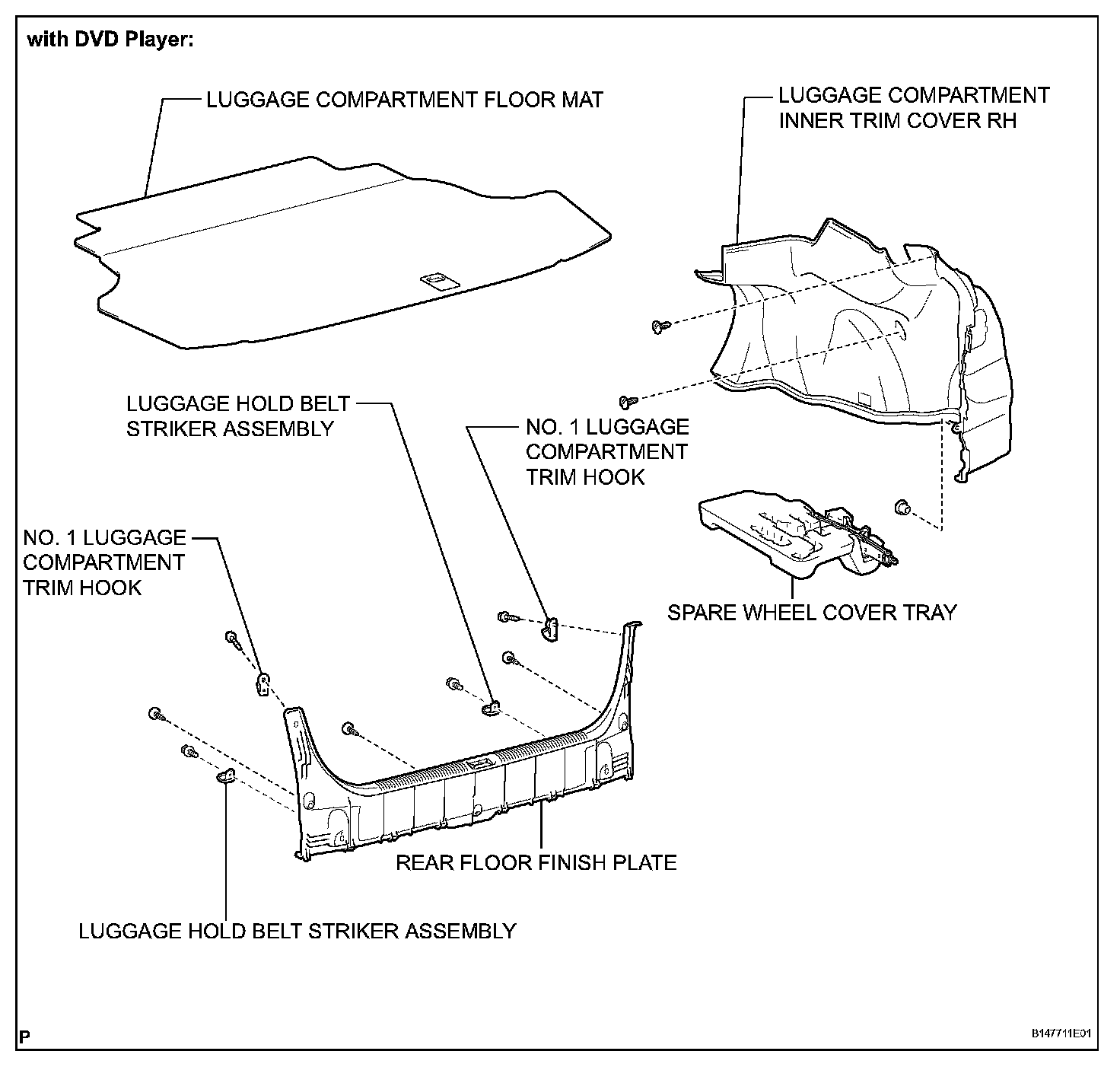

19. INSTALL LUGGAGE COMPARTMENT INNER TRIM COVER RH (w/ DVD Player)
20. INSTALL REAR FLOOR FINISH PLATE (w/ DVD Player)
21. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (w/ DVD Player)
22. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY (w/ DVD Player)
23. INSTALL SPARE WHEEL COVER TRAY (w/ DVD Player)
24. INSTALL LUGGAGE COMPARTMENT FLOOR MAT (w/ DVD Player)

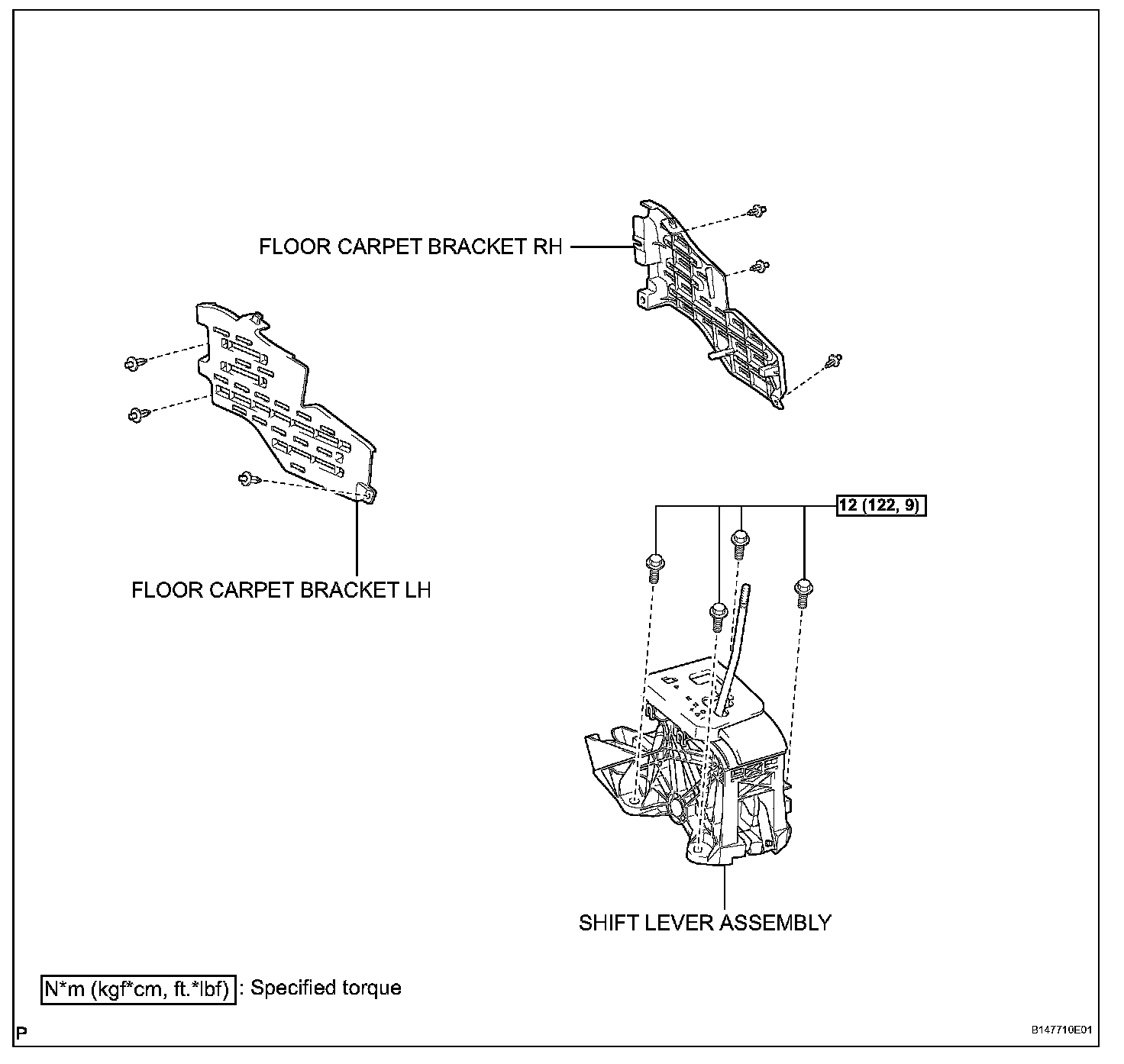

25. INSTALL FLOOR CARPET BRACKET LH
26. INSTALL FLOOR CARPET BRACKET RH

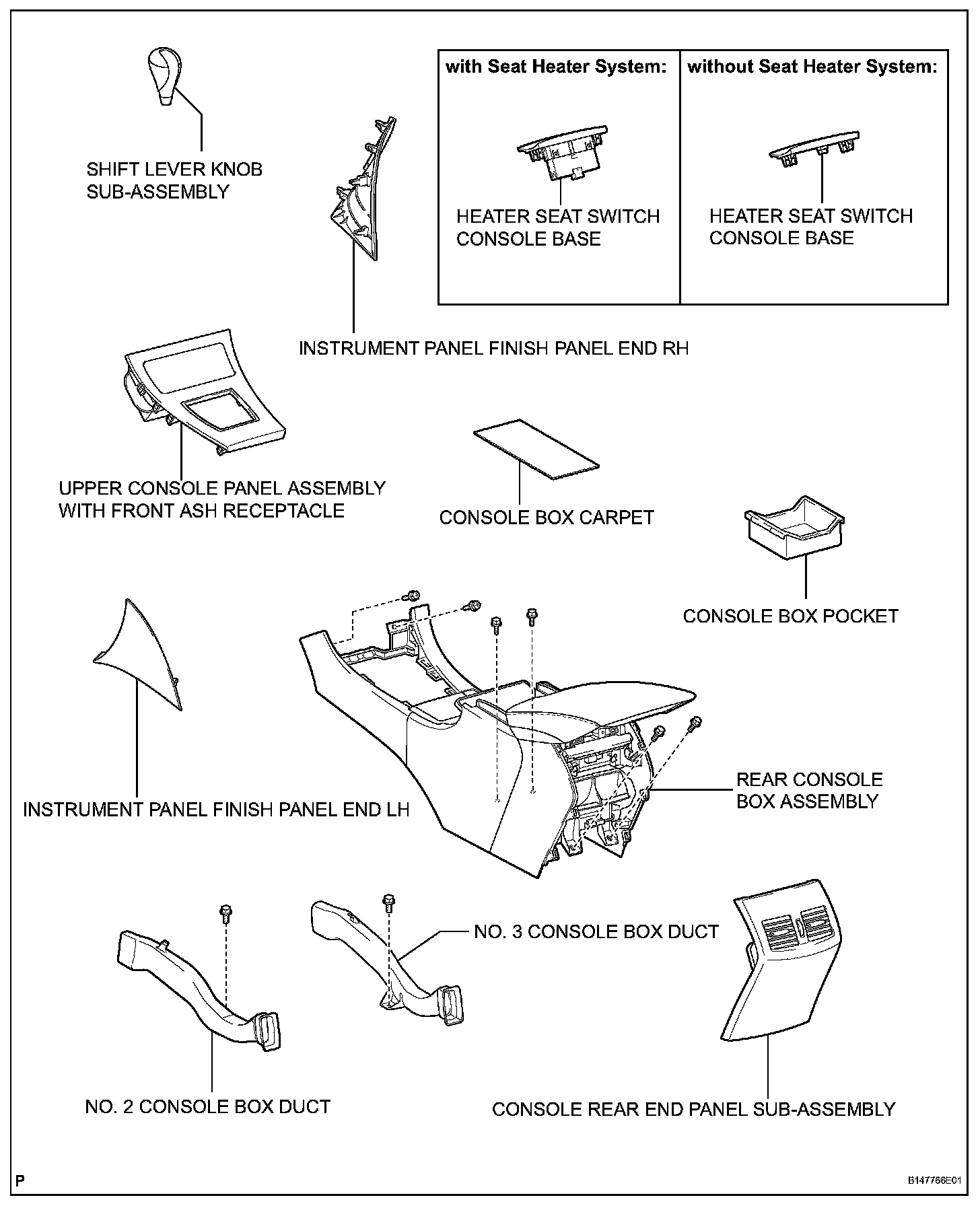

27. INSTALL SHIFT LEVER ASSEMBLY
28. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
29. INSTALL NO. 2 CONSOLE BOX DUCT
30. INSTALL NO. 3 CONSOLE BOX DUCT
31. INSTALL REAR CONSOLE BOX ASSEMBLY
32. INSTALL CONSOLE REAR END PANEL SUB-ASSEMBLY
33. INSTALL CONSOLE BOX CARPET
34. INSTALL CONSOLE BOX POCKET
35. INSTALL HEATER SEAT SWITCH CONSOLE BASE (w/o Seat Heater System)
36. INSTALL HEATER SEAT SWITCH CONSOLE BASE (w/ Seat Heater System)

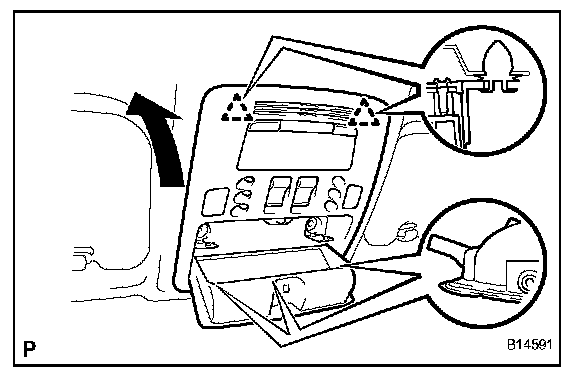

37. INSTALL UPPER CONSOLE PANEL ASSEMBLY WITH FRONT ASH RECEPTACLE
38. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
39. INSTALL INSTRUMENT PANEL FINISH PANEL END LH
40. INSTALL INSTRUMENT PANEL FINISH PANEL END RH

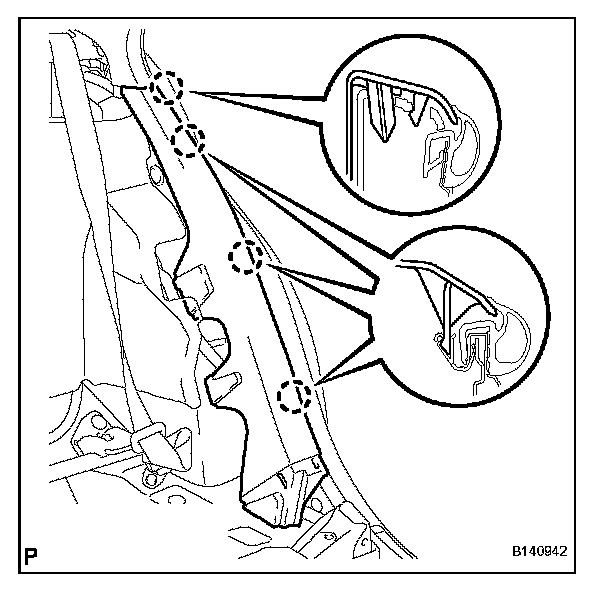

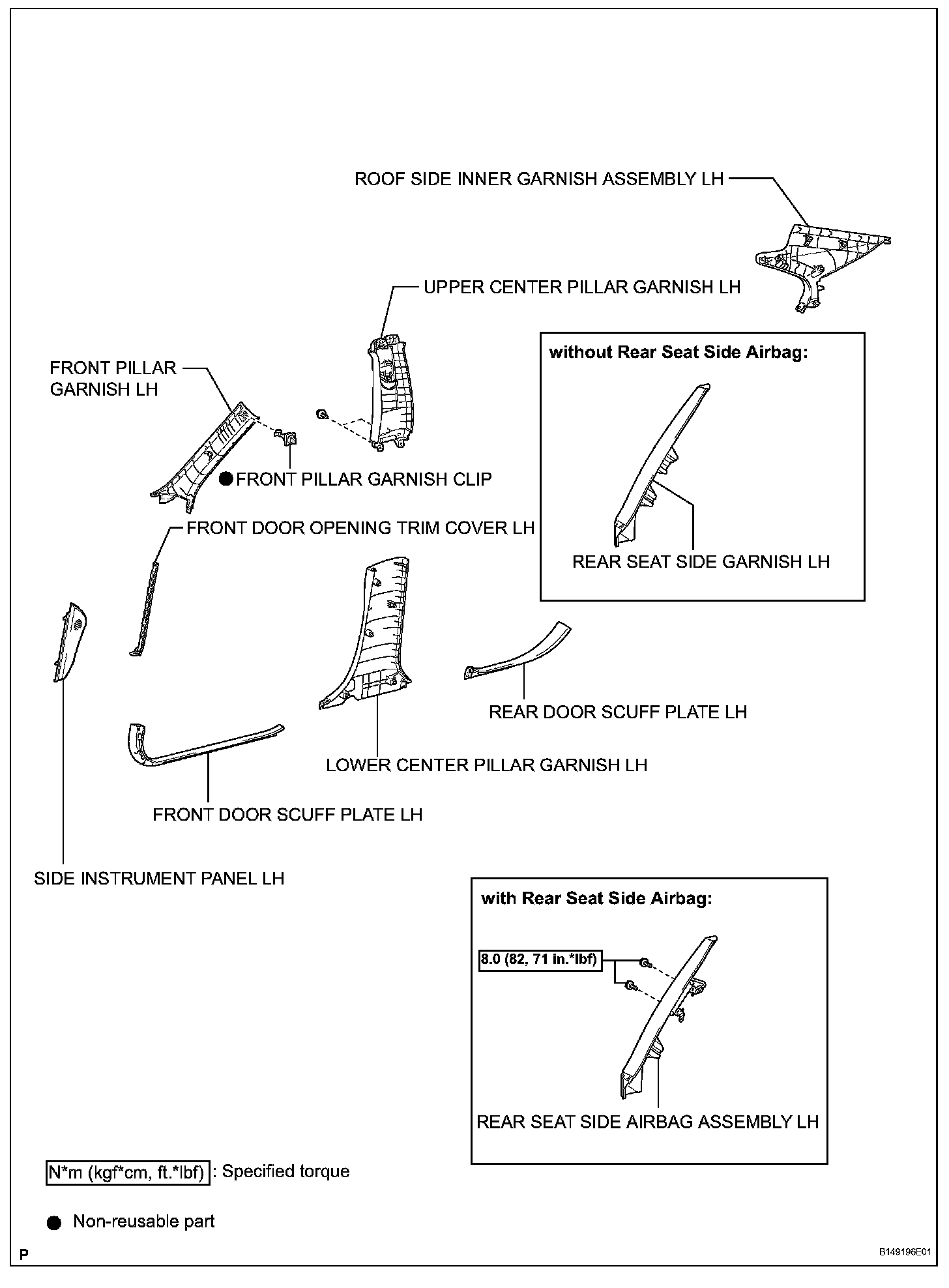

41. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY LH

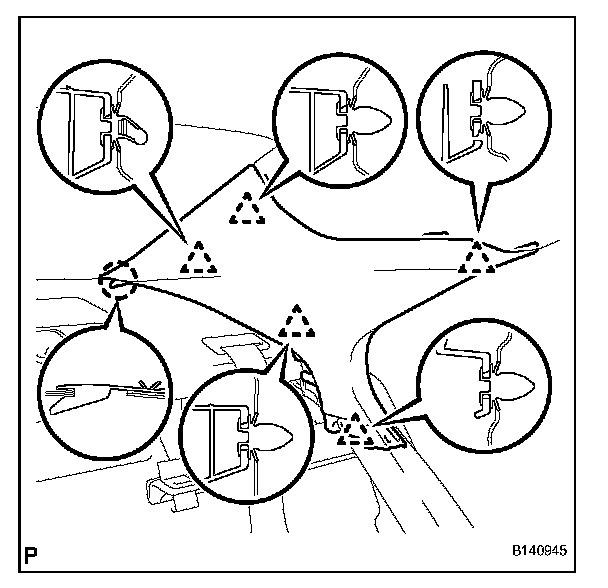

a. Engage the claw and 5 clips, and install the roof side inner garnish assembly LH.
42. INSTALL REAR SEAT SIDE GARNISH LH (w/o Rear Seat Side Airbag)
a. Install the 4 claws and install the rear seat side garnish LH.
43. INSTALL REAR SEAT SIDE AIRBAG ASSEMBLY LH (w/ Rear Seat Side Airbag)

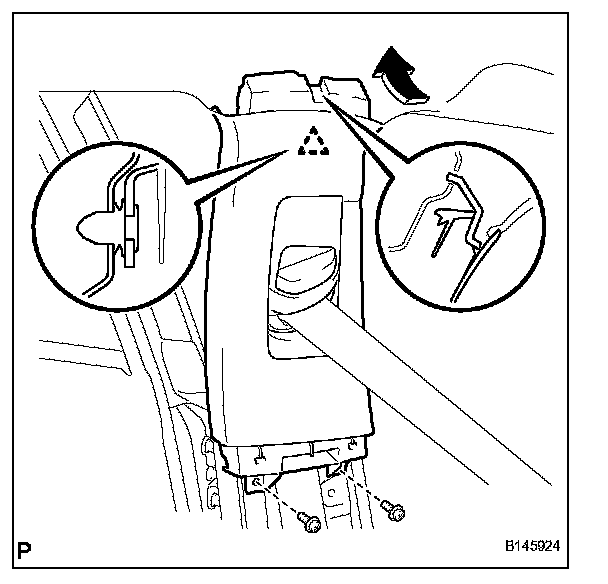

44. INSTALL UPPER CENTER PILLAR GARNISH LH
a. Engage the clip.
b. Install the upper center pillar garnish LH with the 2 screws.
45. INSTALL LOWER CENTER PILLAR GARNISH LH

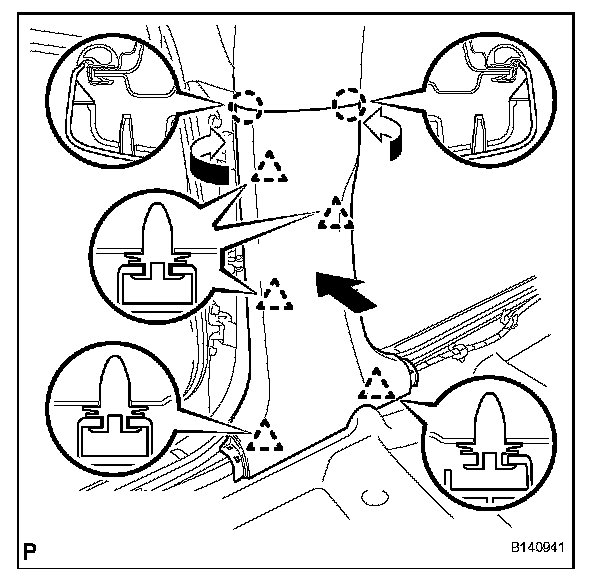

a. Engage the 5 clips and 2 claws, and install the lower center pillar garnish LH.
46. INSTALL REAR DOOR SCUFF PLATE LH
a. Engage the 8 claws, then install the rear door scuff plate LH.

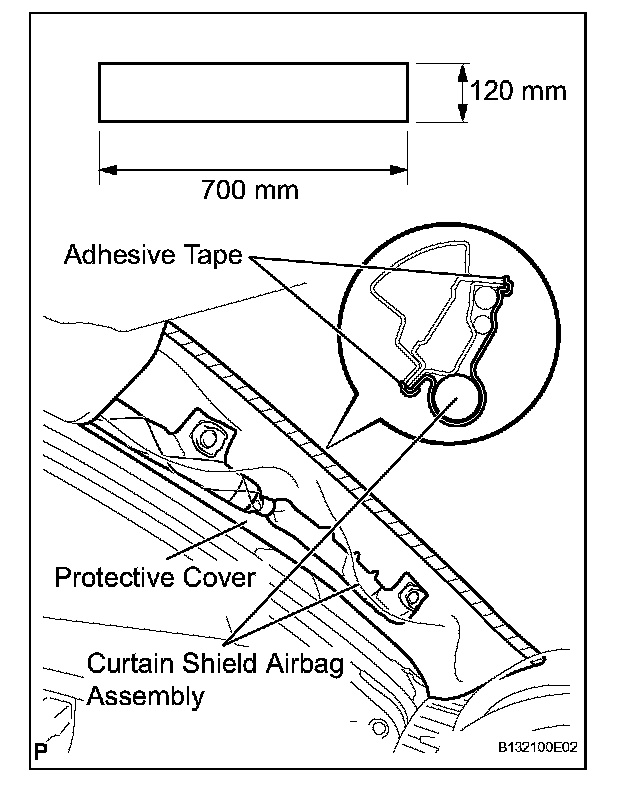

47. INSTALL FRONT PILLAR GARNISH LH
a. Remove the protective cover.
b. Install a new clip [A] on the front pillar garnish LH.
c. Engage the claw and 2 clips, then install the front pillar garnish LH.
48. INSTALL SIDE INSTRUMENT PANEL LH

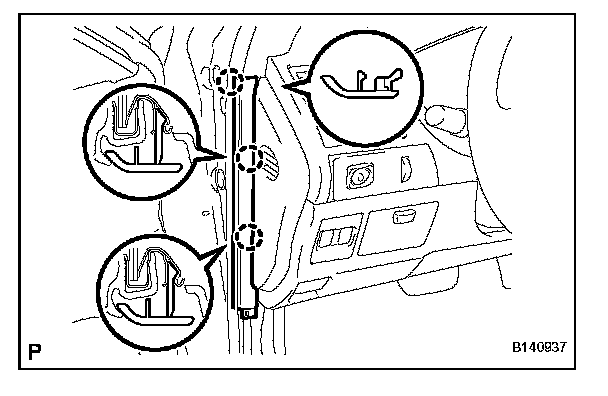

49. INSTALL FRONT DOOR OPENING TRIM COVER LH
a. Engage the 3 claws and install the front door opening trim cover LH.

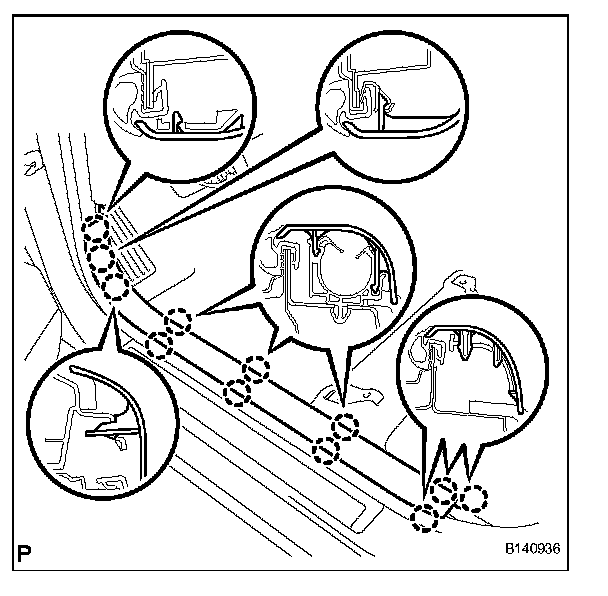

50. INSTALL FRONT DOOR SCUFF PLATE LH
a. Engage the 12 claws, and install the front door scuff plate LH.

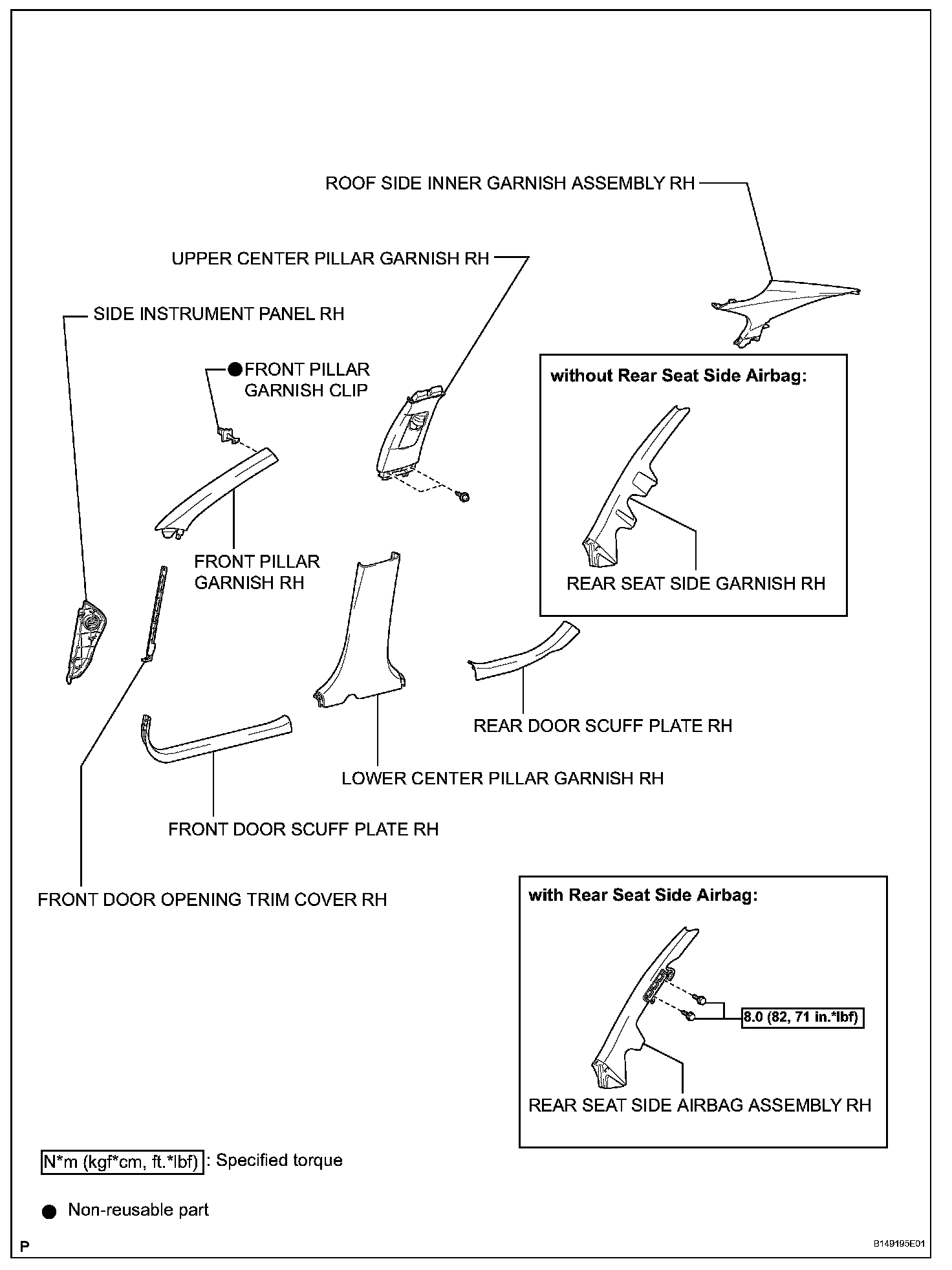

51. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY RH
HINT: Use the same procedure for the RH side and the LH side.
52. INSTALL REAR SEAT SIDE GARNISH RH (w/o Rear Seat Side Airbag)
HINT: Use the same procedure for the RH side and the LH side.
53. INSTALL REAR SEAT SIDE AIRBAG ASSEMBLY RH (w/ Rear Seat Side Airbag)
HINT: Use the same procedure for the RH side and the LH side.
54. INSTALL UPPER CENTER PILLAR GARNISH RH
HINT: Use the same procedure for the RH side and the LH side.
55. INSTALL LOWER CENTER PILLAR GARNISH RH
HINT: Use the same procedure for the RH side and the LH side.
56. INSTALL REAR DOOR SCUFF PLATE RH
HINT: Use the same procedure for the RH side and the LH side.
57. INSTALL FRONT PILLAR GARNISH RH
HINT: Use the same procedure for the RH side and the LH side.
58. INSTALL SIDE INSTRUMENT PANEL RH
59. INSTALL FRONT DOOR OPENING TRIM COVER RH
HINT: Use the same procedure for the RH side and the LH side.
60. INSTALL FRONT DOOR SCUFF PLATE RH
HINT: Use the same procedure for the RH side and the LH side.

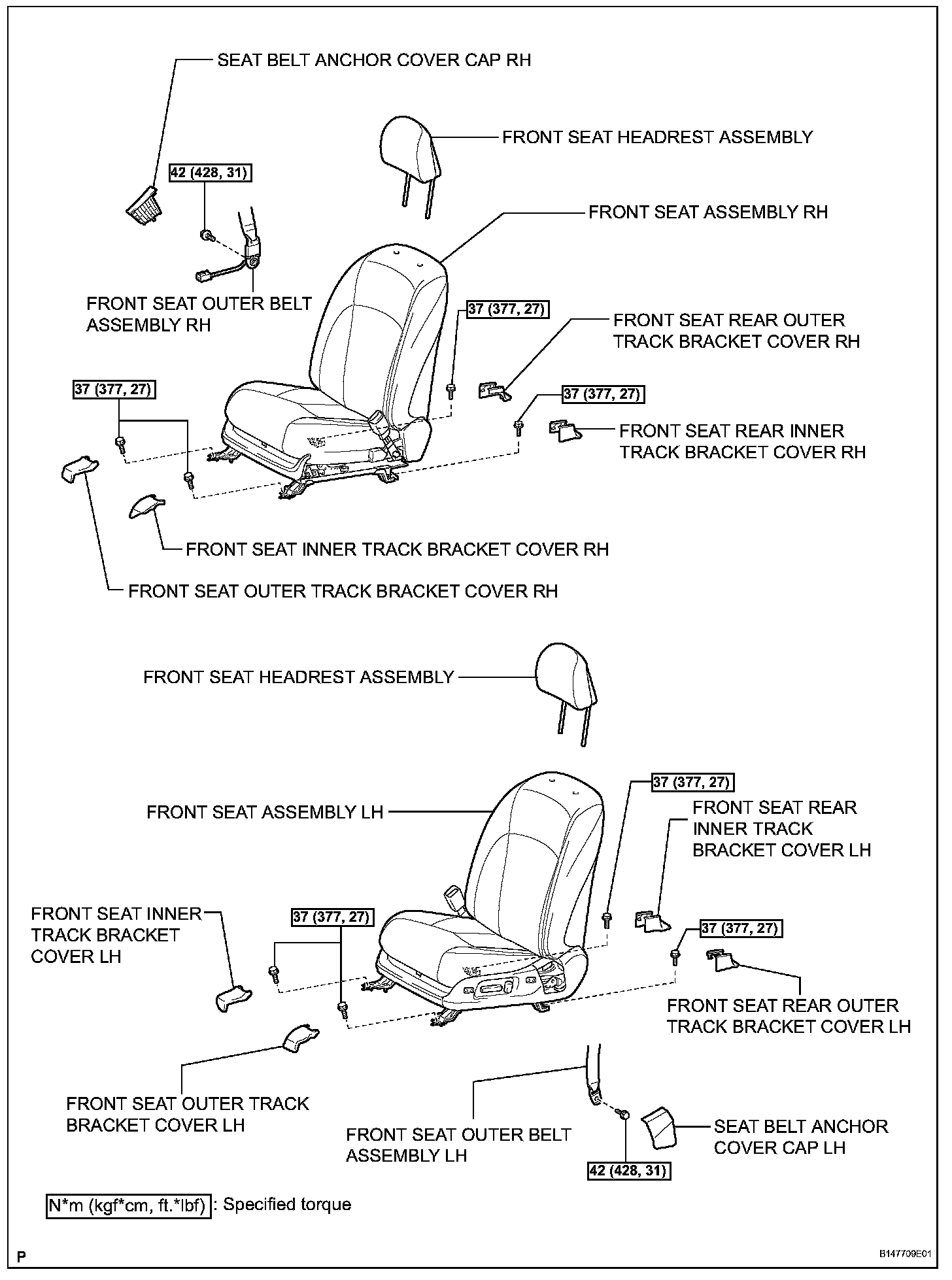

61. INSTALL FRONT SEAT ASSEMBLY LH
62. INSTALL FRONT SEAT REAR OUTER TRACK BRACKET COVER LH
63. INSTALL FRONT SEAT REAR INNER TRACK BRACKET COVER LH
64. INSTALL FRONT SEAT OUTER TRACK BRACKET COVER LH
65. INSTALL FRONT SEAT INNER TRACK BRACKET COVER LH
66. CONNECT FRONT SEAT OUTER BELT ASSEMBLY LH
67. INSTALL SEAT BELT ANCHOR COVER CAP LH
68. INSTALL FRONT SEAT HEADREST ASSEMBLY
69. INSTALL FRONT SEAT ASSEMBLY RH
70. INSTALL FRONT SEAT REAR OUTER TRACK BRACKET COVER RH
71. INSTALL FRONT SEAT REAR INNER TRACK BRACKET COVER RH
72. INSTALL FRONT SEAT OUTER TRACK BRACKET COVER RH
73. INSTALL FRONT SEAT INNER TRACK BRACKET COVER RH
74. CONNECT FRONT SEAT OUTER BELT ASSEMBLY RH
75. INSTALL SEAT BELT ANCHOR COVER CAP RH
76. INSTALL FRONT SEAT HEADREST ASSEMBLY

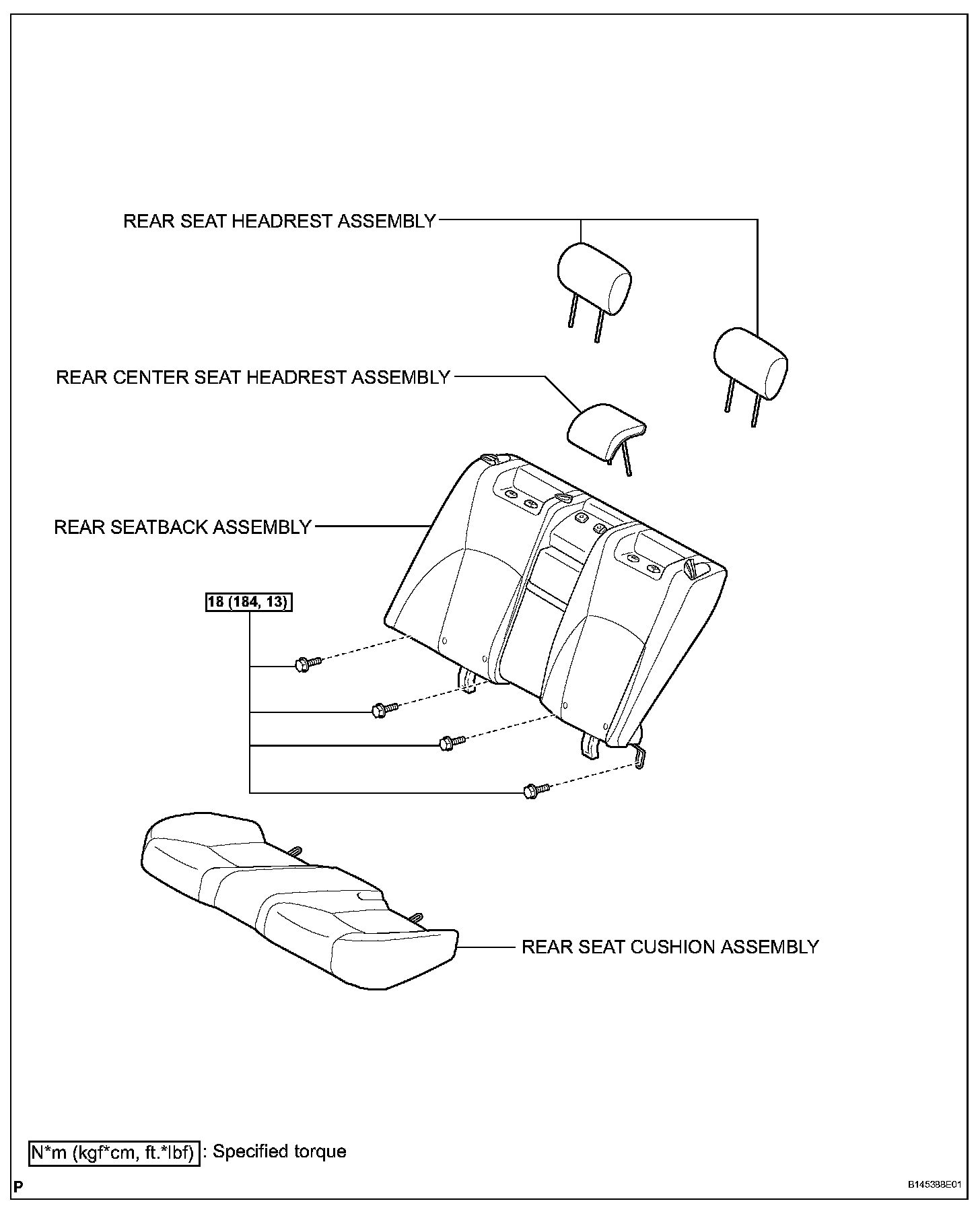

77. INSTALL REAR SEATBACK ASSEMBLY
78. INSTALL REAR CENTER SEAT HEADREST ASSEMBLY
79. INSTALL REAR SEAT HEADREST ASSEMBLY
80. INSTALL REAR SEAT CUSHION ASSEMBLY
81. PERFORM INITIALIZATION
NOTICE: Some systems need initialization after reconnecting the cable to the negative battery terminal.
82. INSPECT SHIFT LEVER POSITION
83. ADJUST SHIFT LEVER POSITION
84. INSPECT FRONT SEAT ASSEMBLY
85. INSPECT SRS WARNING LIGHT
