Overhaul

LUGGAGE COMPARTMENT DOOR

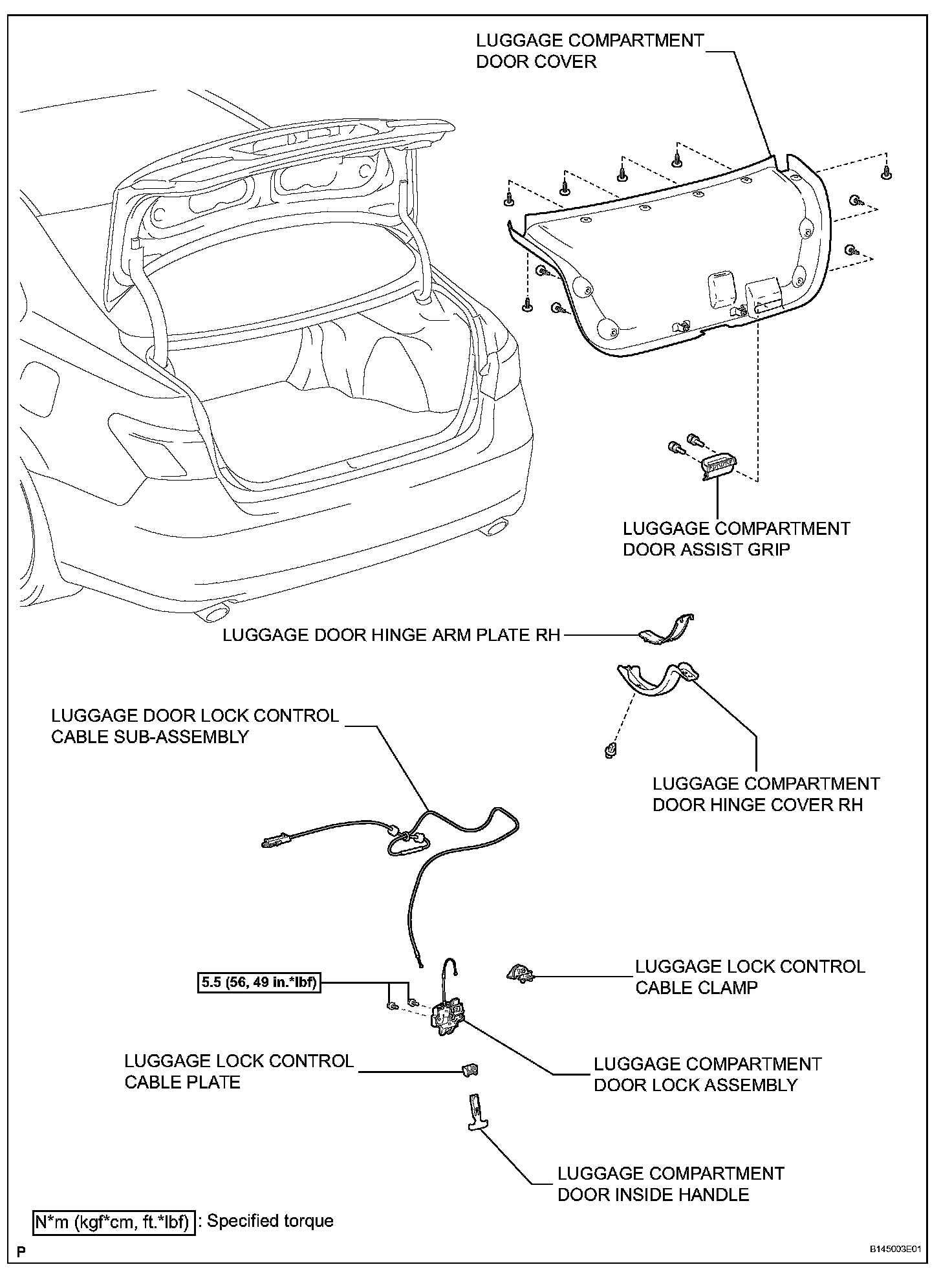

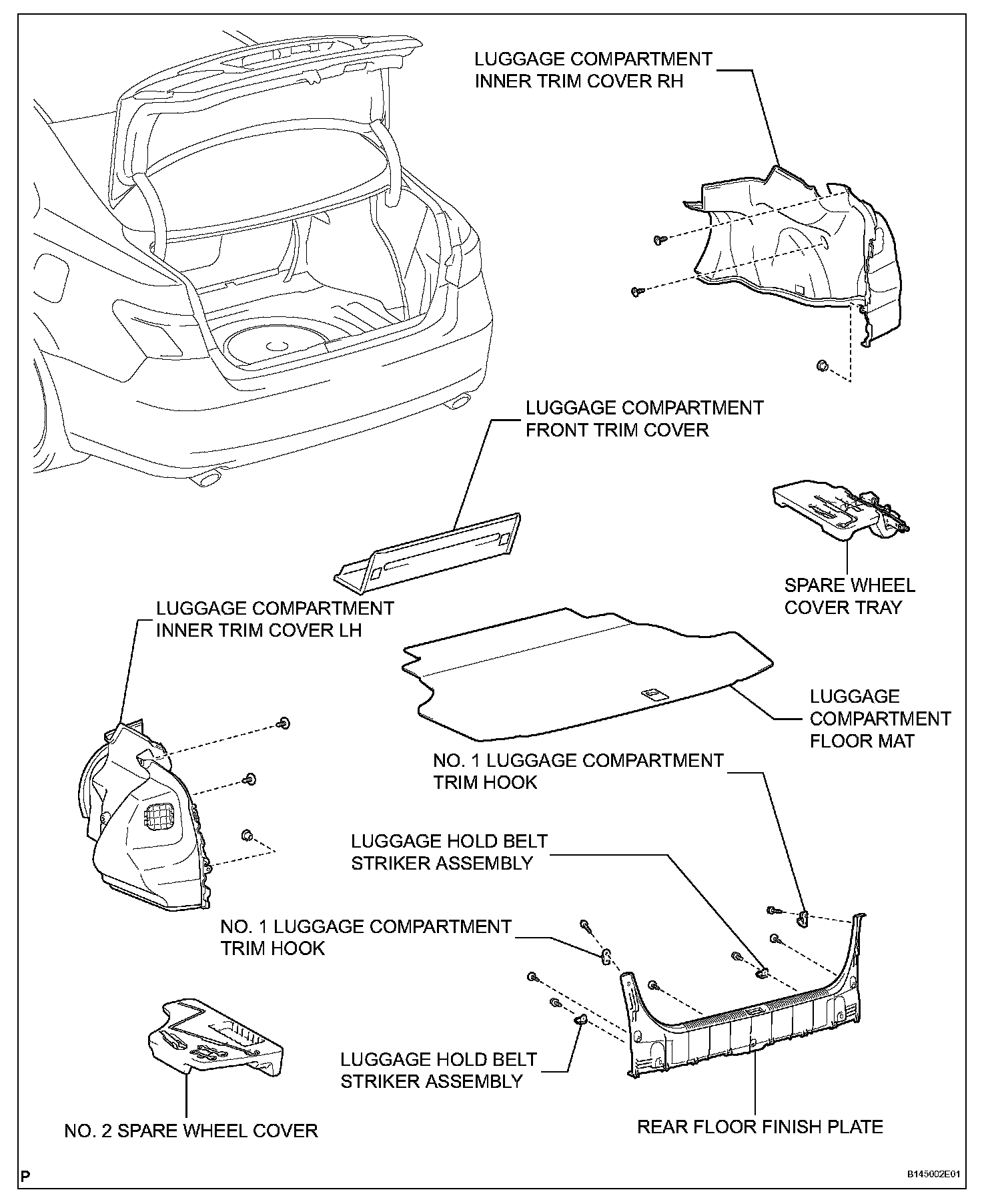

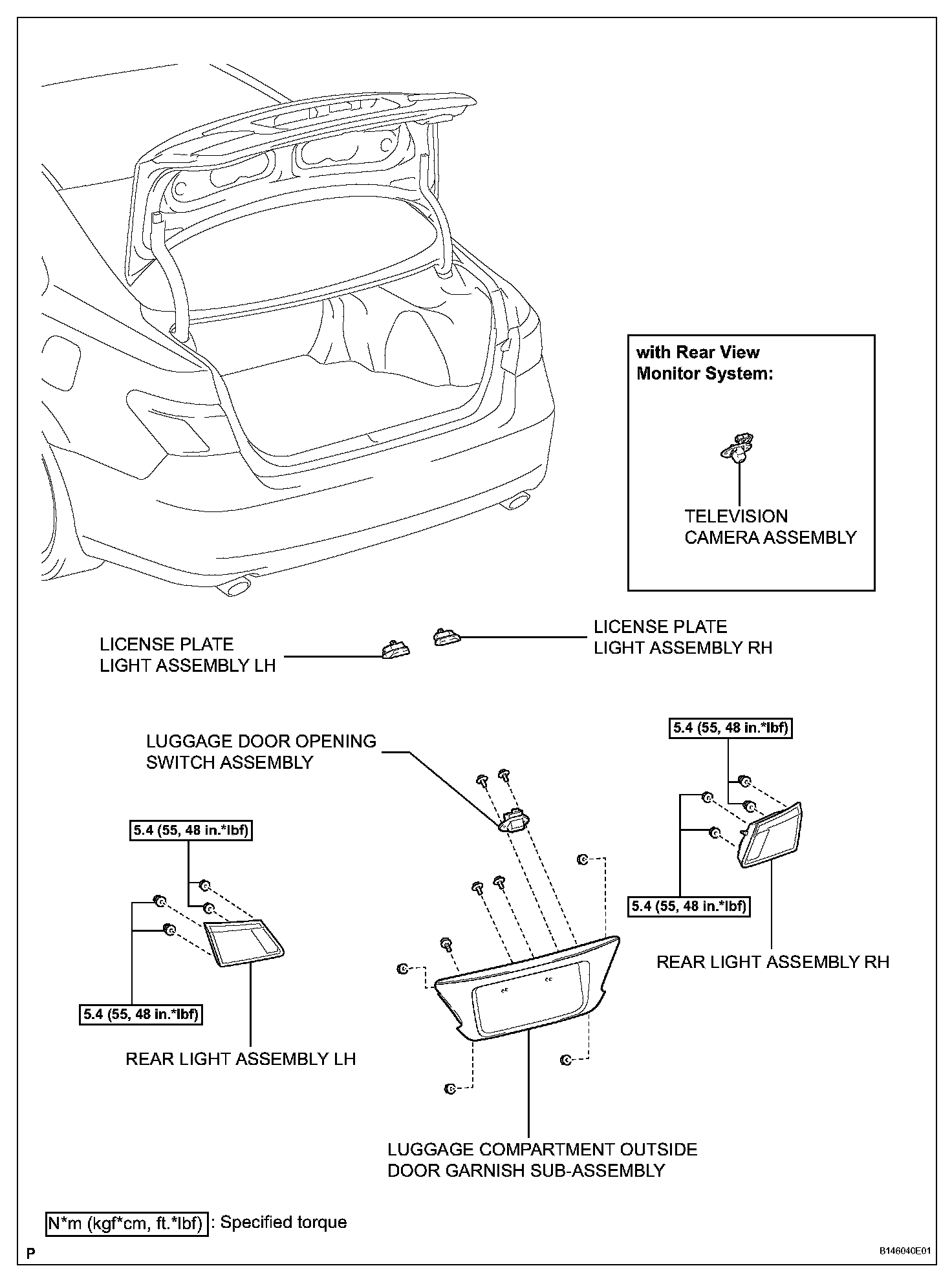

Luggage Compartment Door:

Luggage Compartment Door:

Luggage Compartment Door:

DISASSEMBLY

1. REMOVE LUGGAGE COMPARTMENT FLOOR MAT
2. REMOVE NO. 2 SPARE WHEEL COVER
3. REMOVE SPARE WHEEL COVER TRAY

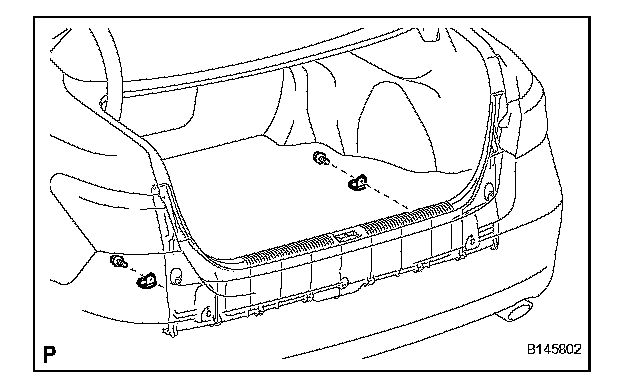

4. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY





a. Remove the 2 bolts and the 2 luggage hold belt striker assemblies.

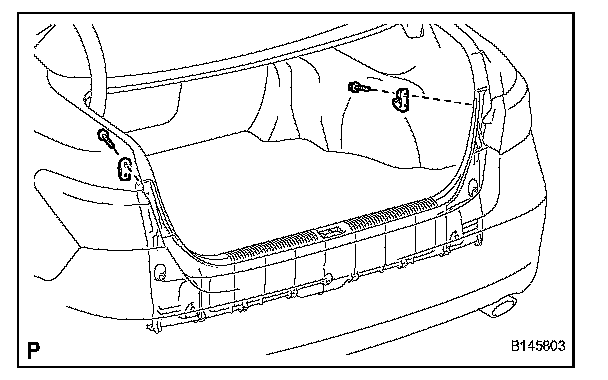

5. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK





a. Remove the 2 screws and the 2 No. 1 luggage compartment trim hooks.

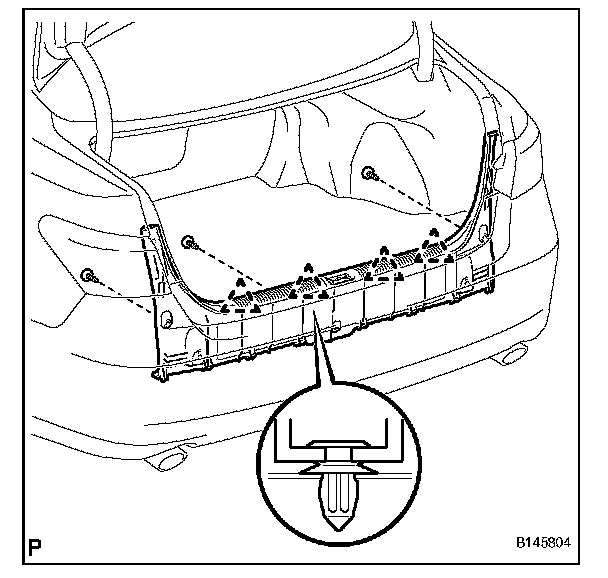

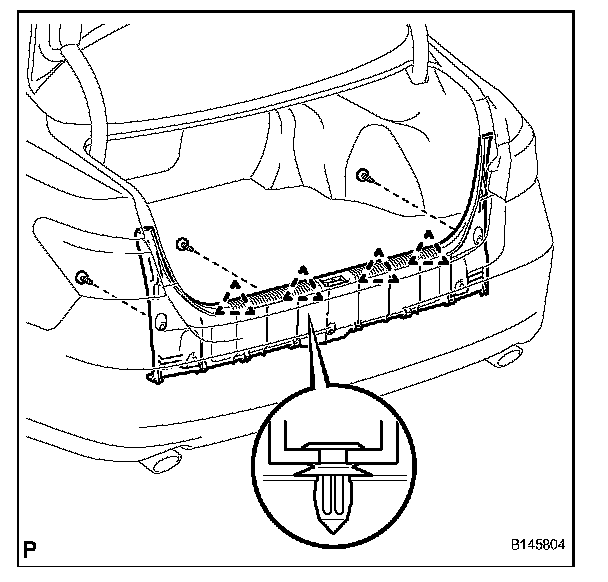

6. REMOVE REAR FLOOR FINISH PLATE





a. Remove the 3 clips.
b. Disengage the 4 clips and remove the rear floor finish plate.

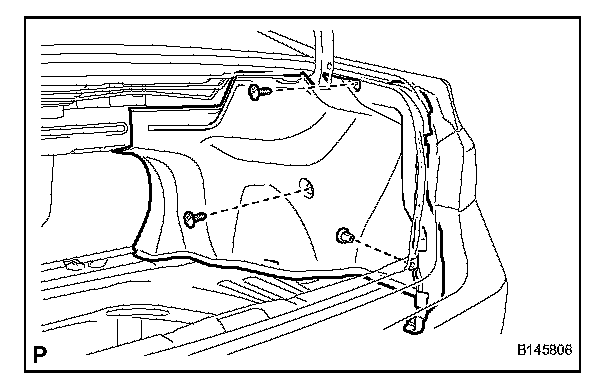

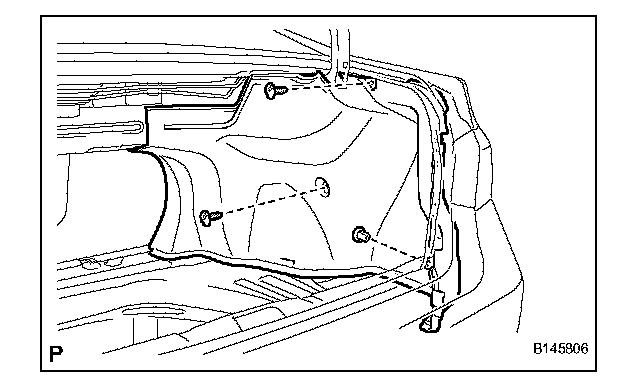

7. REMOVE LUGGAGE COMPARTMENT INNER TRIM COVER LH





a. Remove the 3 clips and the luggage compartment inner trim cover LH.

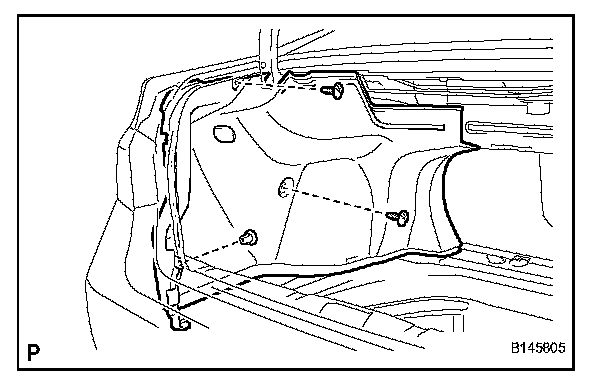

8. REMOVE LUGGAGE COMPARTMENT INNER TRIM COVER RH





a. Remove the 3 clips and the luggage compartment inner trim cover RH.

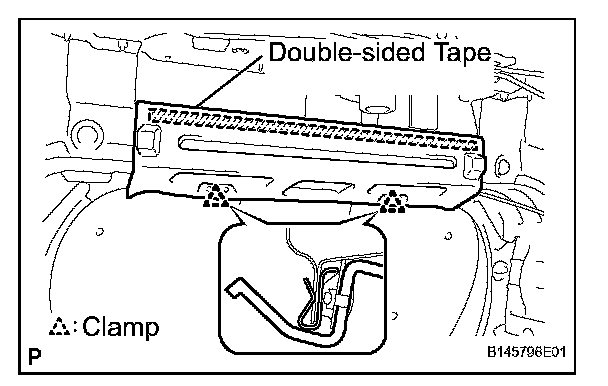

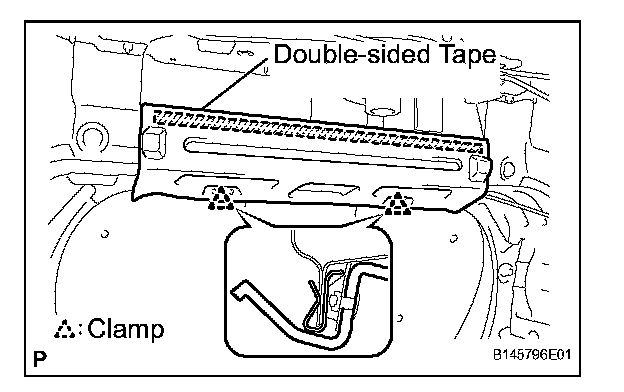

9. REMOVE LUGGAGE COMPARTMENT FRONT TRIM COVER





a. Disengage the 2 clamps.
b. Remove the double-sided tape and the luggage compartment front trim cover.

10. REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP
11. REMOVE LUGGAGE LOCK CONTROL CABLE PLATE
12. REMOVE LUGGAGE COMPARTMENT DOOR INSIDE HANDLE
13. REMOVE LUGGAGE COMPARTMENT DOOR COVER
14. REMOVE LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY

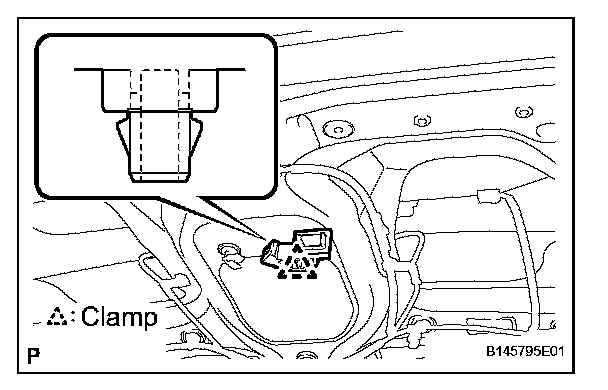

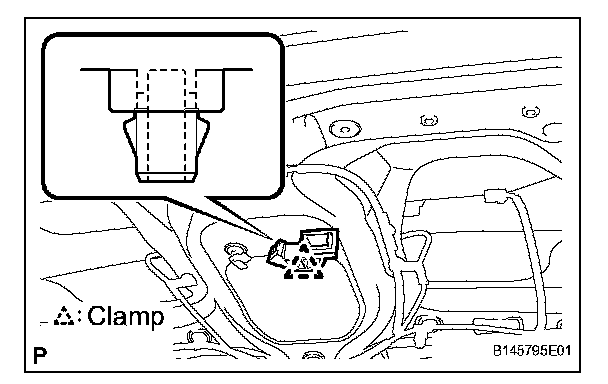

15. REMOVE LUGGAGE LOCK CONTROL CABLE CLAMP





a. Disengage the clamp and remove the luggage lock control cable clamp.

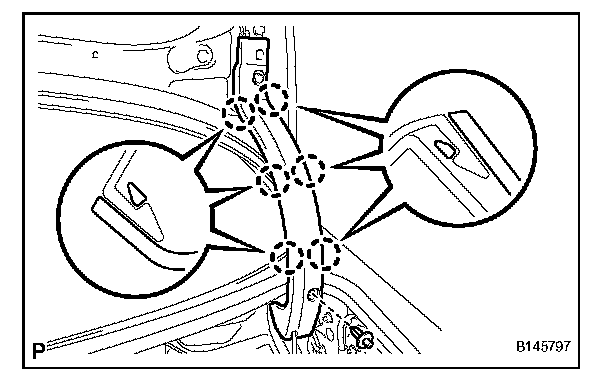

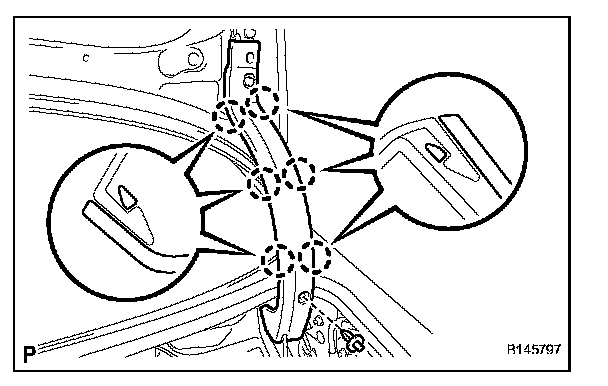

16. REMOVE LUGGAGE COMPARTMENT DOOR HINGE COVER RH





a. Remove the clip.
b. Disengage the 6 claws and remove the luggage compartment door hinge cover RH.

17. REMOVE LUGGAGE DOOR HINGE ARM PLATE RH

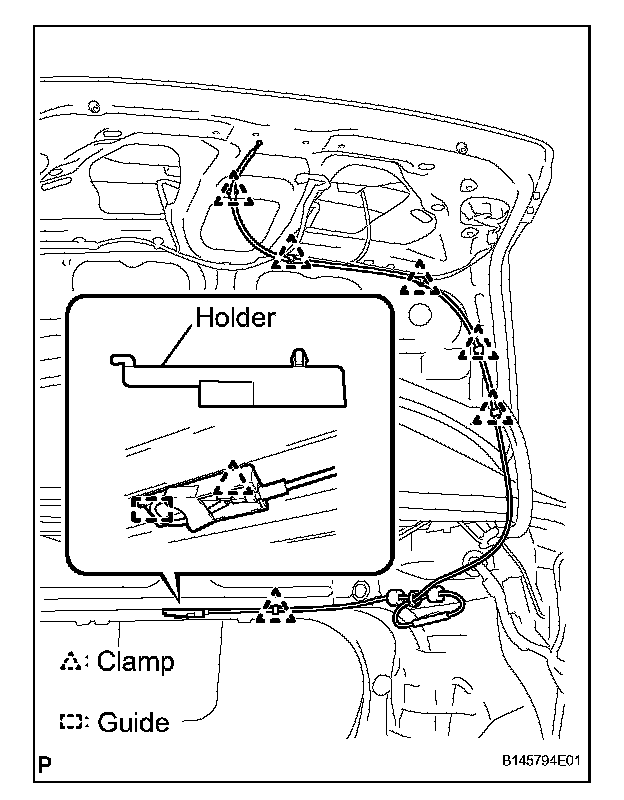

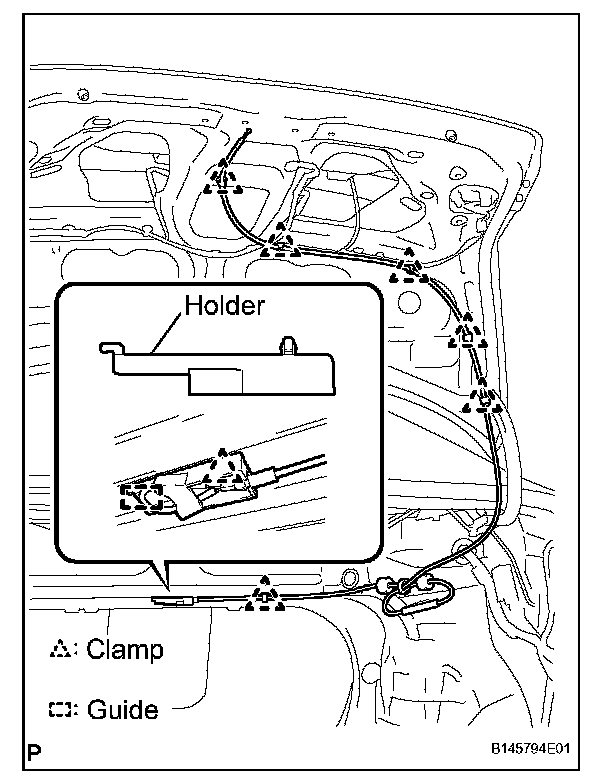

18. REMOVE LUGGAGE DOOR LOCK CONTROL CABLE SUB-ASSEMBLY





a. Disengage the clamp and guide, and separate the holder.
b. Disengage the 6 clamps and remove the luggage door lock control cable sub-assembly.

19. REMOVE REAR LIGHT ASSEMBLY LH
20. REMOVE REAR LIGHT ASSEMBLY RH
21. REMOVE LUGGAGE DOOR OPENING SWITCH ASSEMBLY
22. REMOVE LUGGAGE COMPARTMENT OUTSIDE DOOR GARNISH SUB-ASSEMBLY (w/o Rear View Monitor System)
23. REMOVE TELEVISION CAMERA ASSEMBLY (w/Rear View Monitor System)
24. REMOVE LUGGAGE COMPARTMENT OUTSIDE DOOR GARNISH SUB-ASSEMBLY (w/ Rear View Monitor System)
25. REMOVE LICENSE PLATE LIGHT ASSEMBLY LH
26. REMOVE LICENSE PLATE LIGHT ASSEMBLY RH

REASSEMBLY

1. INSTALL LICENSE PLATE LIGHT ASSEMBLY LH
2. INSTALL LICENSE PLATE LIGHT ASSEMBLY RH
3. INSTALL LUGGAGE COMPARTMENT OUTSIDE DOOR GARNISH SUB-ASSEMBLY (w/o Rear View Monitor System)
4. INSTALL LUGGAGE COMPARTMENT OUTSIDE DOOR GARNISH SUB-ASSEMBLY (w/ Rear View Monitor System)
5. INSTALL TELEVISION CAMERA ASSEMBLY (w/ Rear View Monitor System)
6. INSTALL LUGGAGE DOOR OPENING SWITCH ASSEMBLY
7. INSTALL REAR LIGHT ASSEMBLY LH
8. INSTALL REAR LIGHT ASSEMBLY RH
9. INSTALL LUGGAGE DOOR LOCK CONTROL CABLE SUB-ASSEMBLY





a. Engage the clamp and guide, and connect the holder.
b. Engage the 6 clamps and install the luggage door lock control cable sub-assembly.

10. INSTALL LUGGAGE DOOR HINGE ARM PLATE RH
11. INSTALL LUGGAGE COMPARTMENT DOOR HINGE COVER RH





a. Engage the 6 claws and install the luggage compartment door hinge cover RH.
b. Install the clip.

12. INSTALL LUGGAGE LOCK CONTROL CABLE CLAMP





a. Engage the clamp and install the luggage lock control cable clamp.

13. INSTALL LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY
14. INSTALL LUGGAGE COMPARTMENT DOOR COVER
15. INSTALL LUGGAGE COMPARTMENT DOOR INSIDE HANDLE
16. INSTALL LUGGAGE LOCK CONTROL CABLE PLATE
17. INSTALL LUGGAGE COMPARTMENT DOOR ASSIST GRIP
18. INSTALL LUGGAGE COMPARTMENT FRONT TRIM COVER





a. Engage the 2 clamps.
b. Install the luggage compartment front trim cover with double-sided tape.

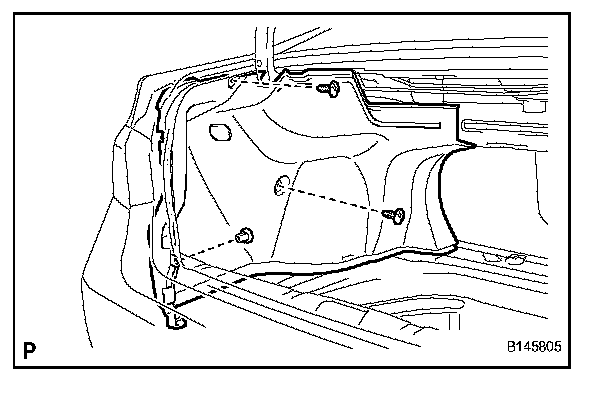

19. INSTALL LUGGAGE COMPARTMENT INNER TRIM COVER RH





a. Install the luggage compartment inner trim cover RH with the 3 clips.

20. INSTALL LUGGAGE COMPARTMENT INNER TRIM COVER LH





a. Install the luggage compartment inner trim cover LH with the 3 clips.

21. INSTALL REAR FLOOR FINISH PLATE





a. Engage the 4 clips and install the rear floor finish plate.
b. Install the 3 clips.

22. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK





a. Install the 2 No. 1 luggage compartment trim hooks with the 2 screws.

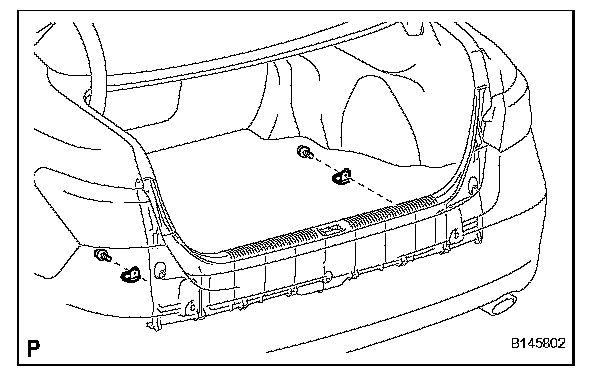

23. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY





a. Install the 2 luggage hold belt striker assemblies with the 2 bolts.

24. INSTALL SPARE WHEEL COVER TRAY
25. INSTALL NO. 2 SPARE WHEEL COVER
26. INSTALL LUGGAGE COMPARTMENT FLOOR MAT
