Removal and Replacement

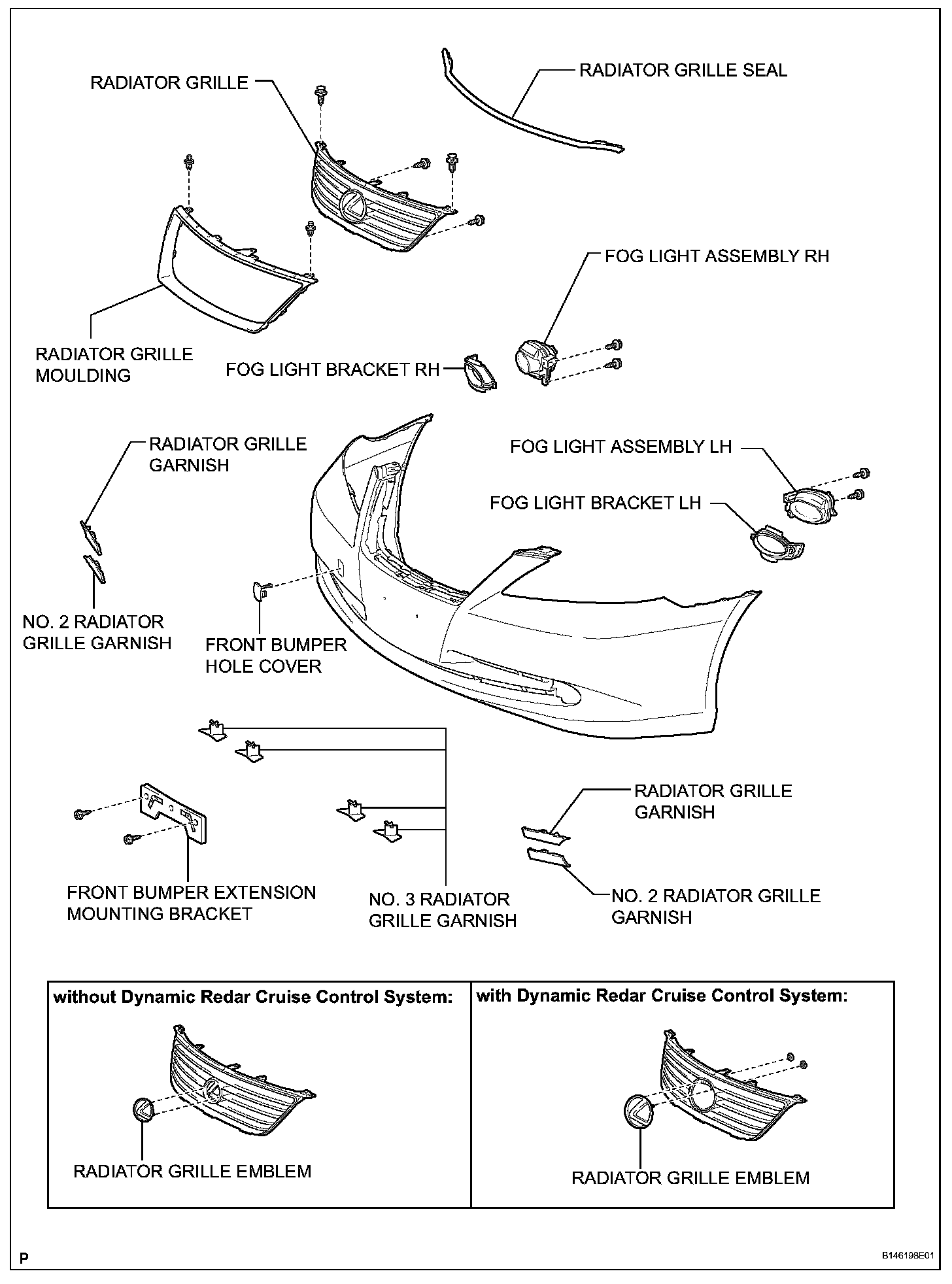

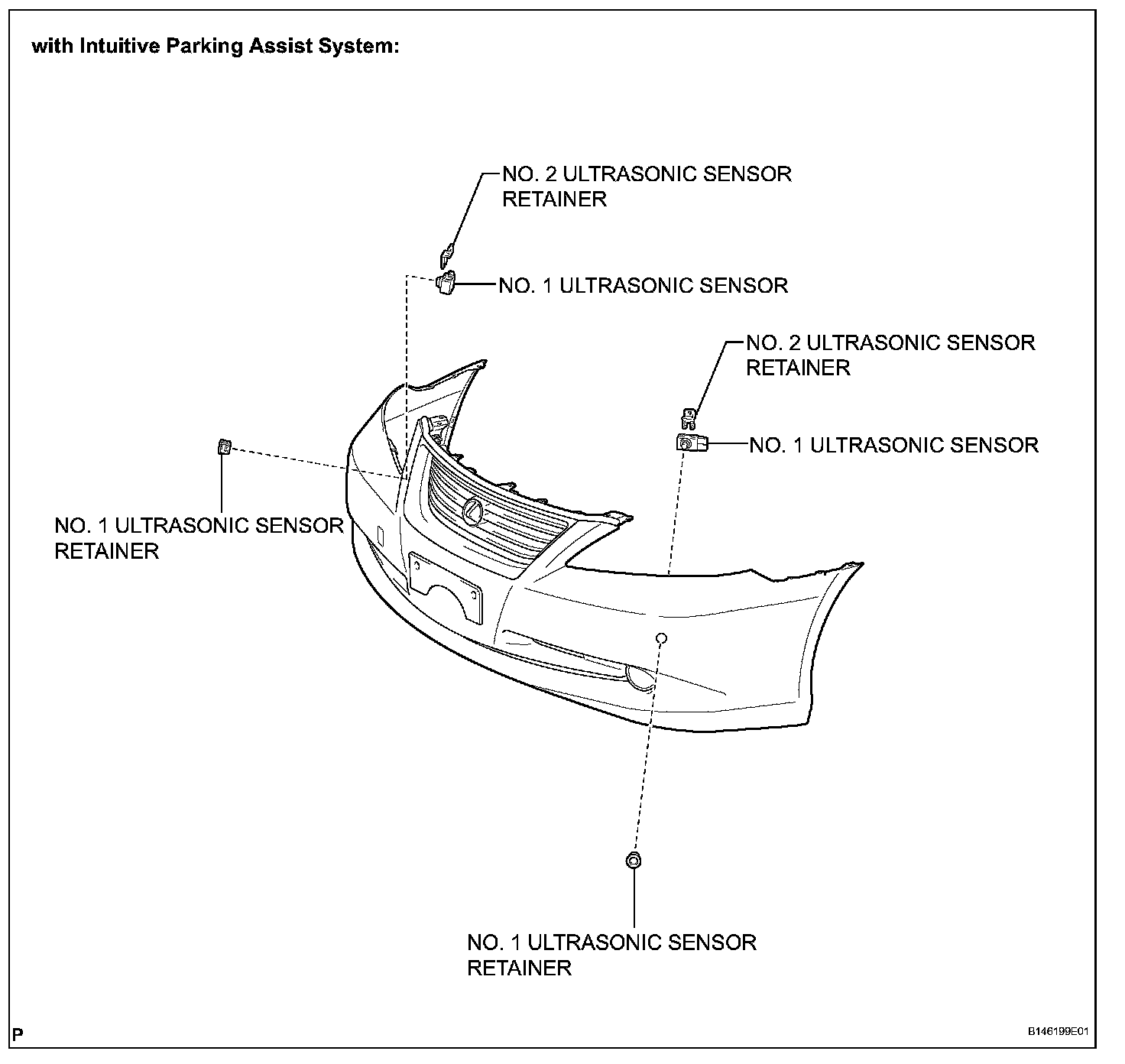

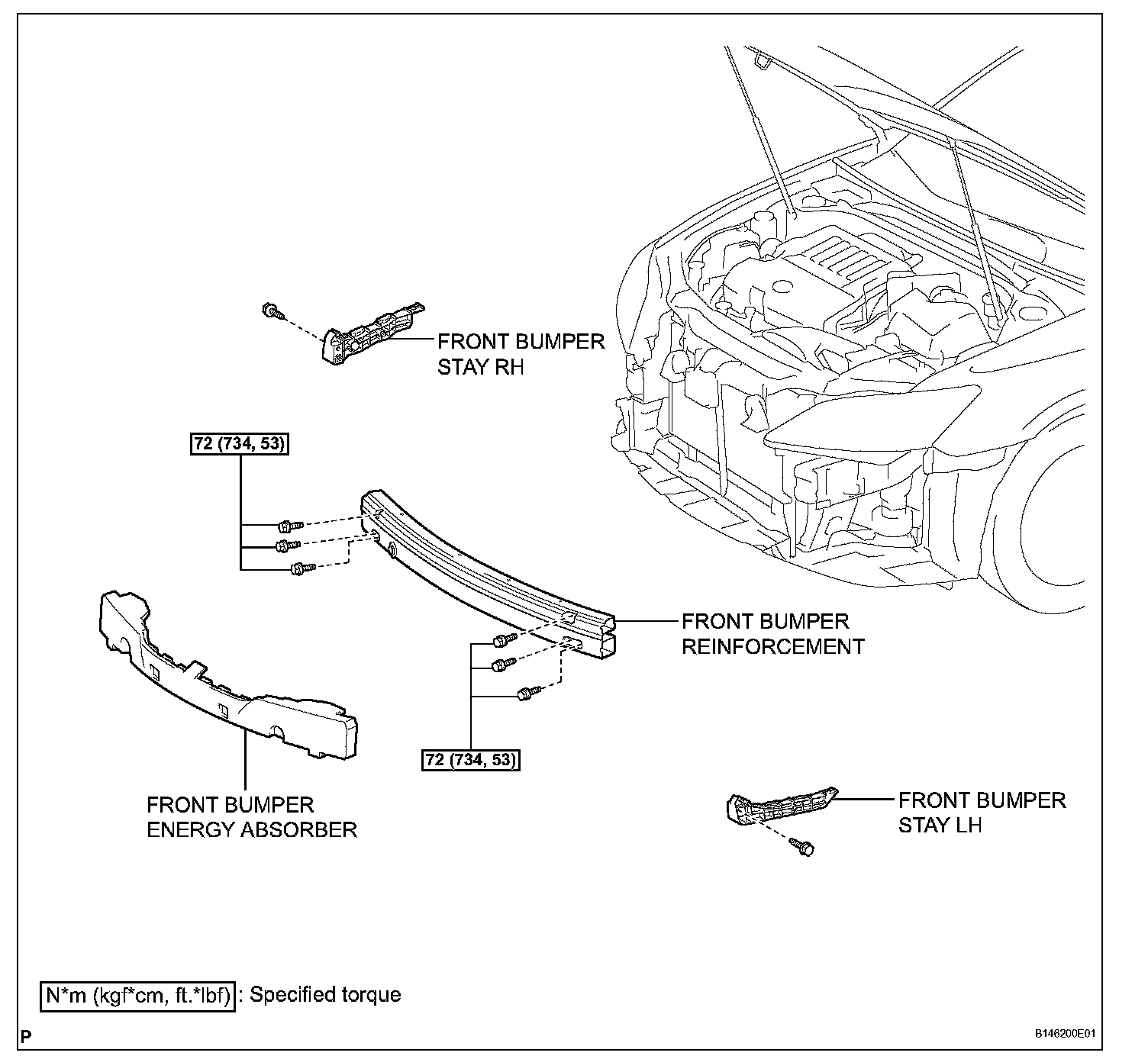

FRONT BUMPERFront Bumper:
Front Bumper:
Front Bumper:
Front Bumper:
REMOVAL

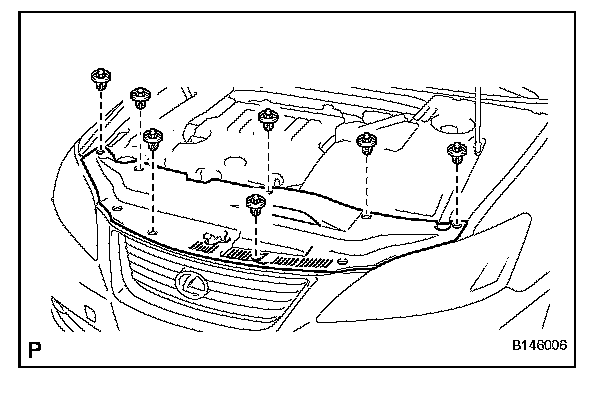

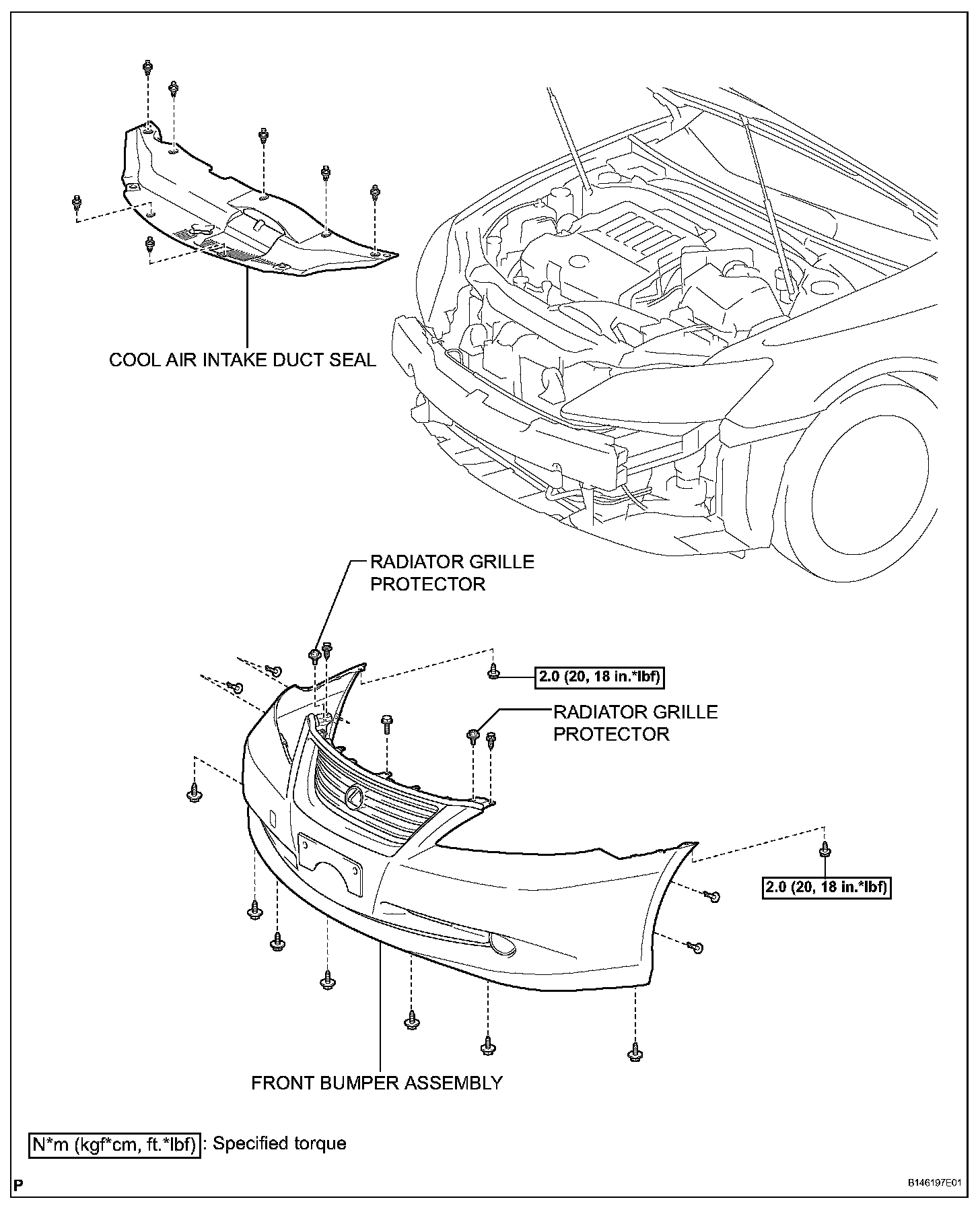

1. REMOVE COOL AIR INTAKE DUCT SEAL
a. Remove the 7 clips and cool air intake duct seal.
2. REMOVE FRONT BUMPER ASSEMBLY

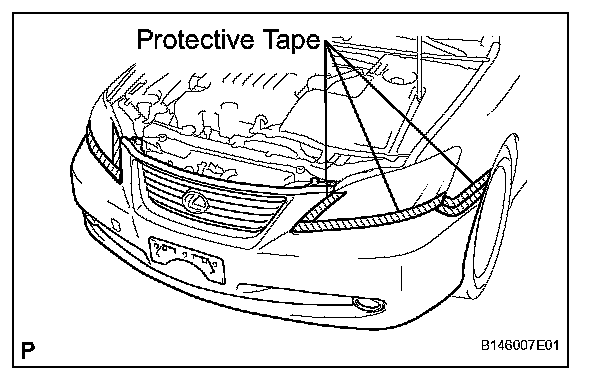

a. Put protective tape around the front bumper assembly.

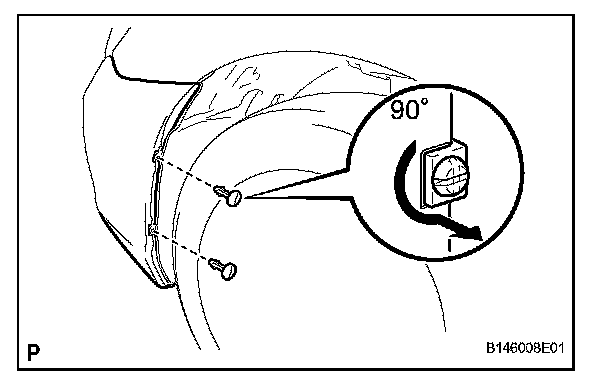

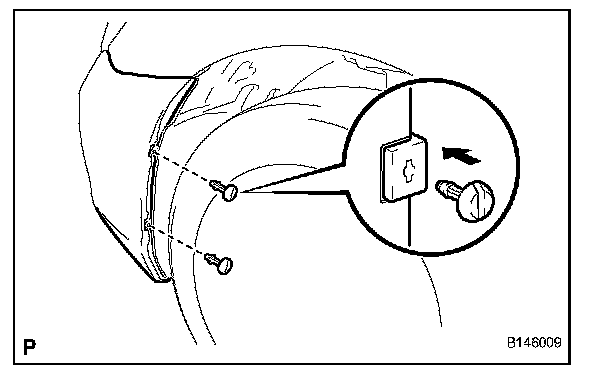

b. Using a screwdriver, turn the pin 90 degrees and remove the 2 pin hold clips.
HINT: Use the same procedures for the RH side and LH side.

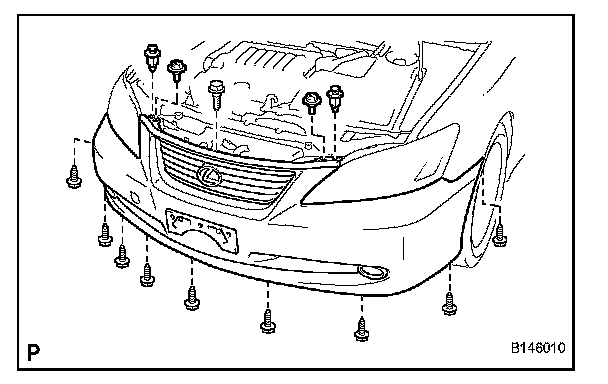

c. Remove the 9 screws, 2 clips, 2 radiator grille protectors and bolt.

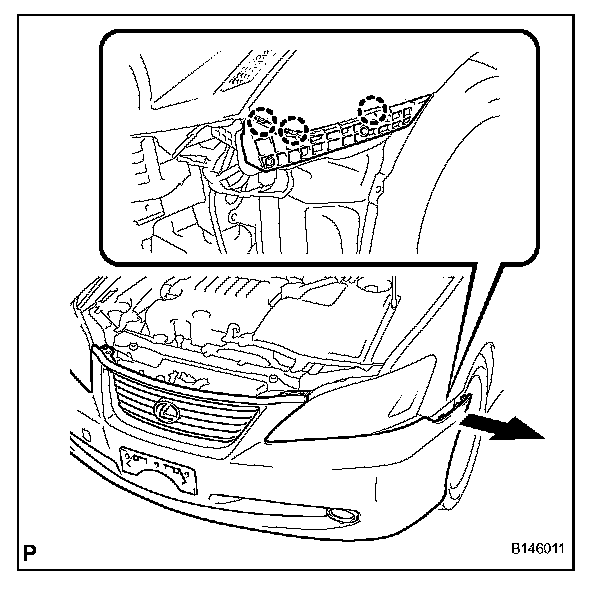

d. Disengage the 3 claws and disconnect the front bumper assembly as shown in the illustration.
HINT: Use the same procedures for the RH side and LH side.
e. Disconnect each connector, and then remove the front bumper assembly.
INSTALLATION
1. INSTALL FRONT BUMPER ASSEMBLY
a. Connect each connector.
b. Engage each claw.

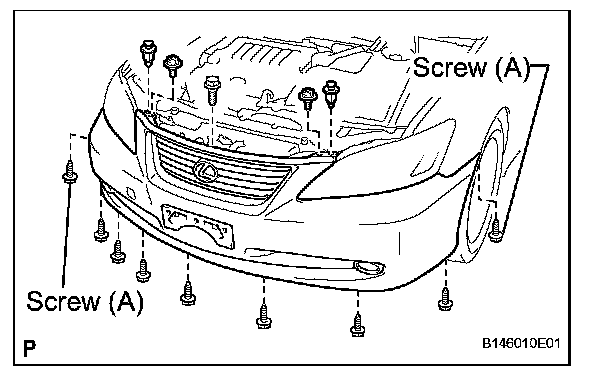

c. Install the front bumper assembly with the 9 screws 2 clips, 2 radiator grille protectors and bolt.
Torque: Screw (A)
2.0 N.m (20 kgf.cm, 18 in.lbf)
d. Install the 2 pin hold clips.
HINT: Use the same procedures for the RH side and LH side.

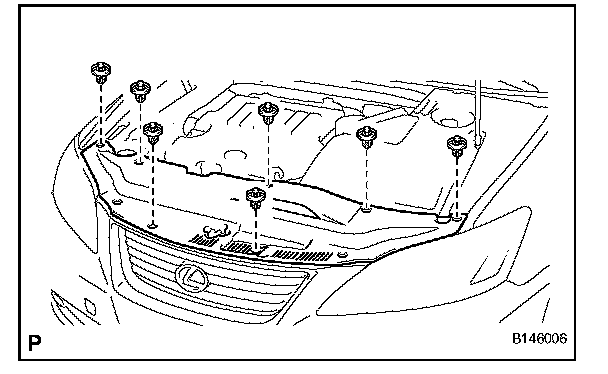

2. INSTALL COOL AIR INTAKE DUCT SEAL
a. Install the cool air intake duct seal with the 7 clips.
