Cellular Phone Voice Circuit Between Radio Receiver and Stereo Component Amplifier

Cellular Phone Voice Circuit between Radio Receiver and Stereo Component Amplifier

SYSTEM DESCRIPTION

This circuit is used when the cellular phone voice in the "Bluetooth" handsfree system is on.

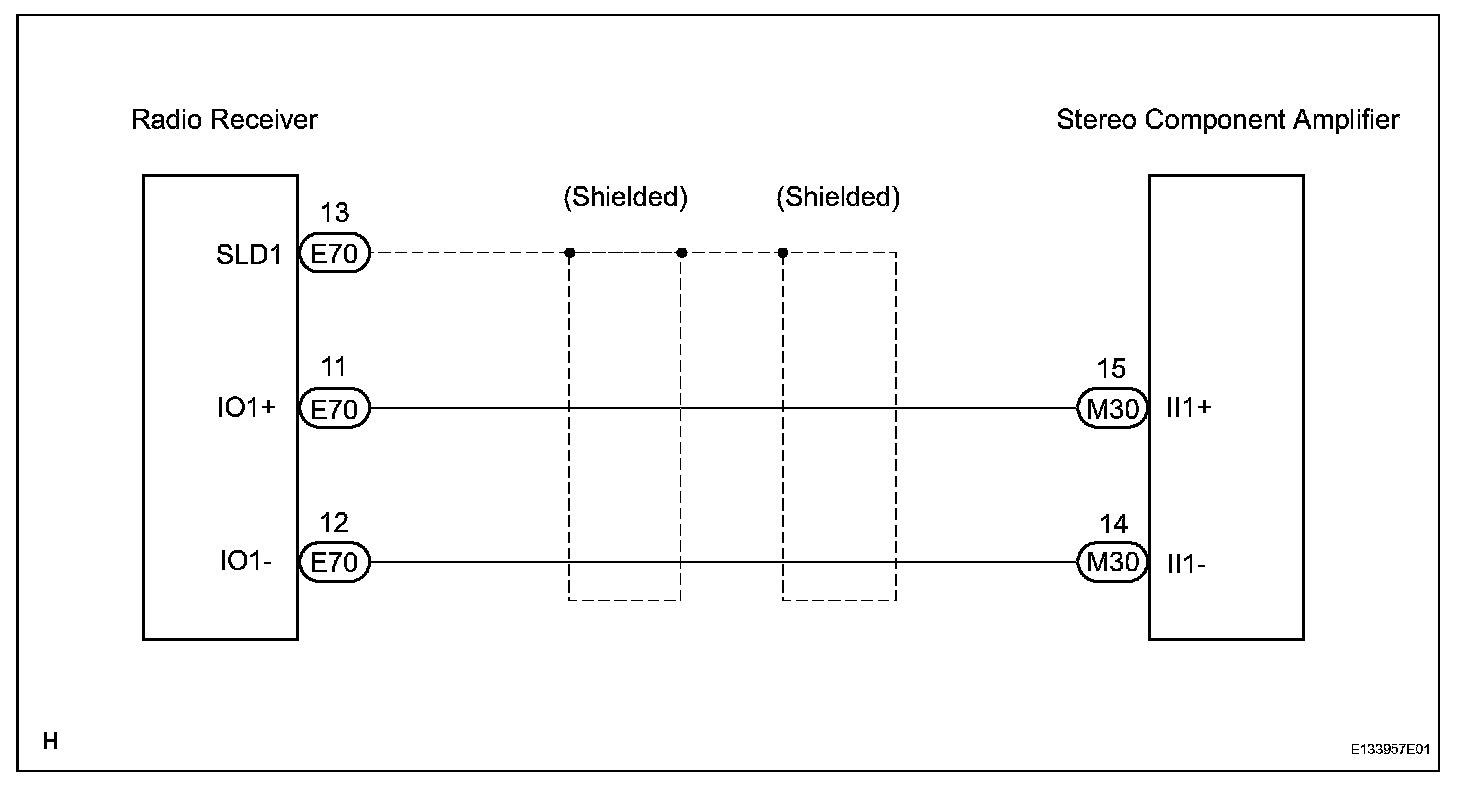

Wiring Diagram:

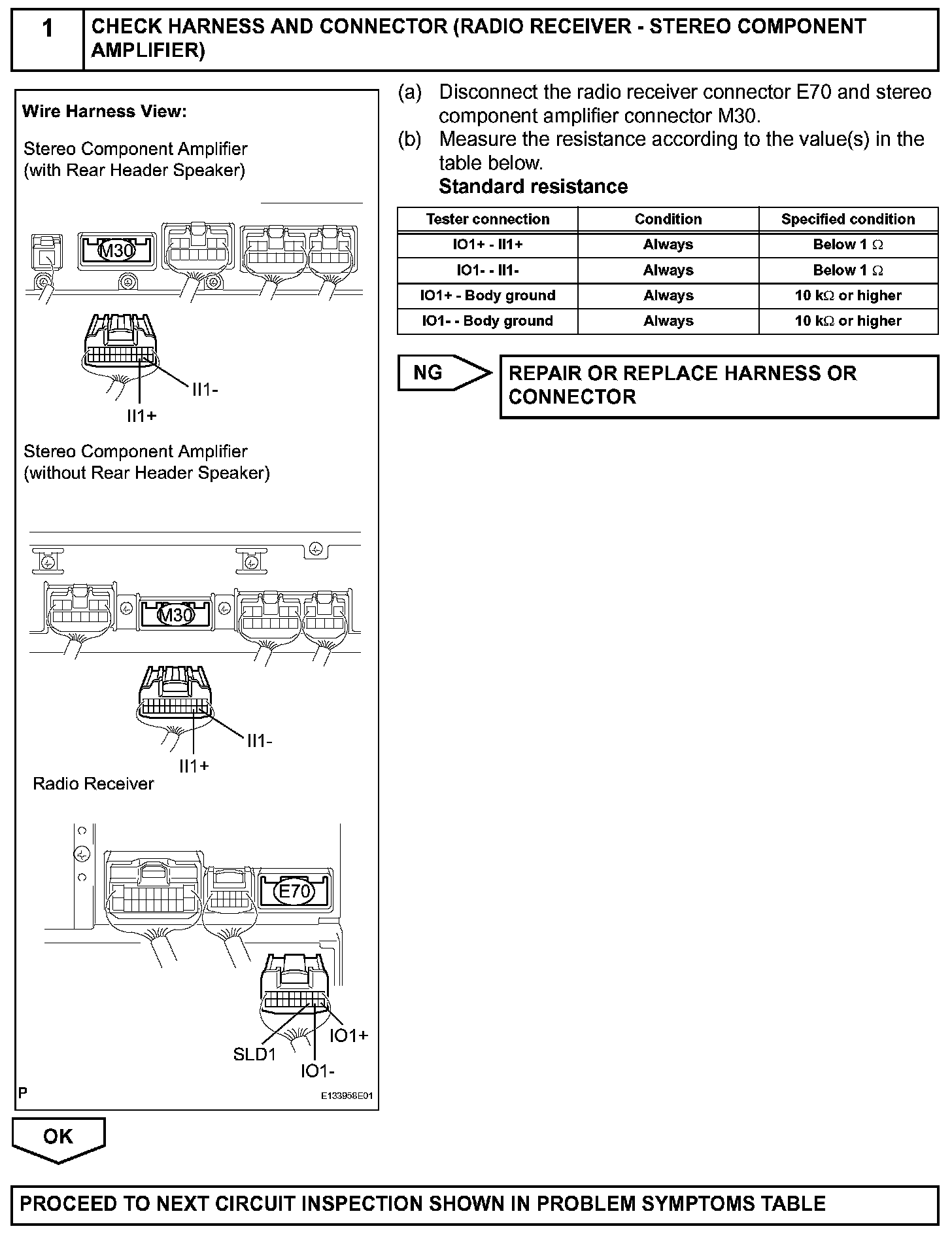

Step 1:




INSPECTION PROCEDURE
