Microphone Circuit Between Microphone and Radio Receiver
Microphone Circuit between Microphone and Radio ReceiverDESCRIPTION
This circuit sends a microphone signal from the microphone to the radio receiver.
It also supplies power from the radio receiver to the microphone.

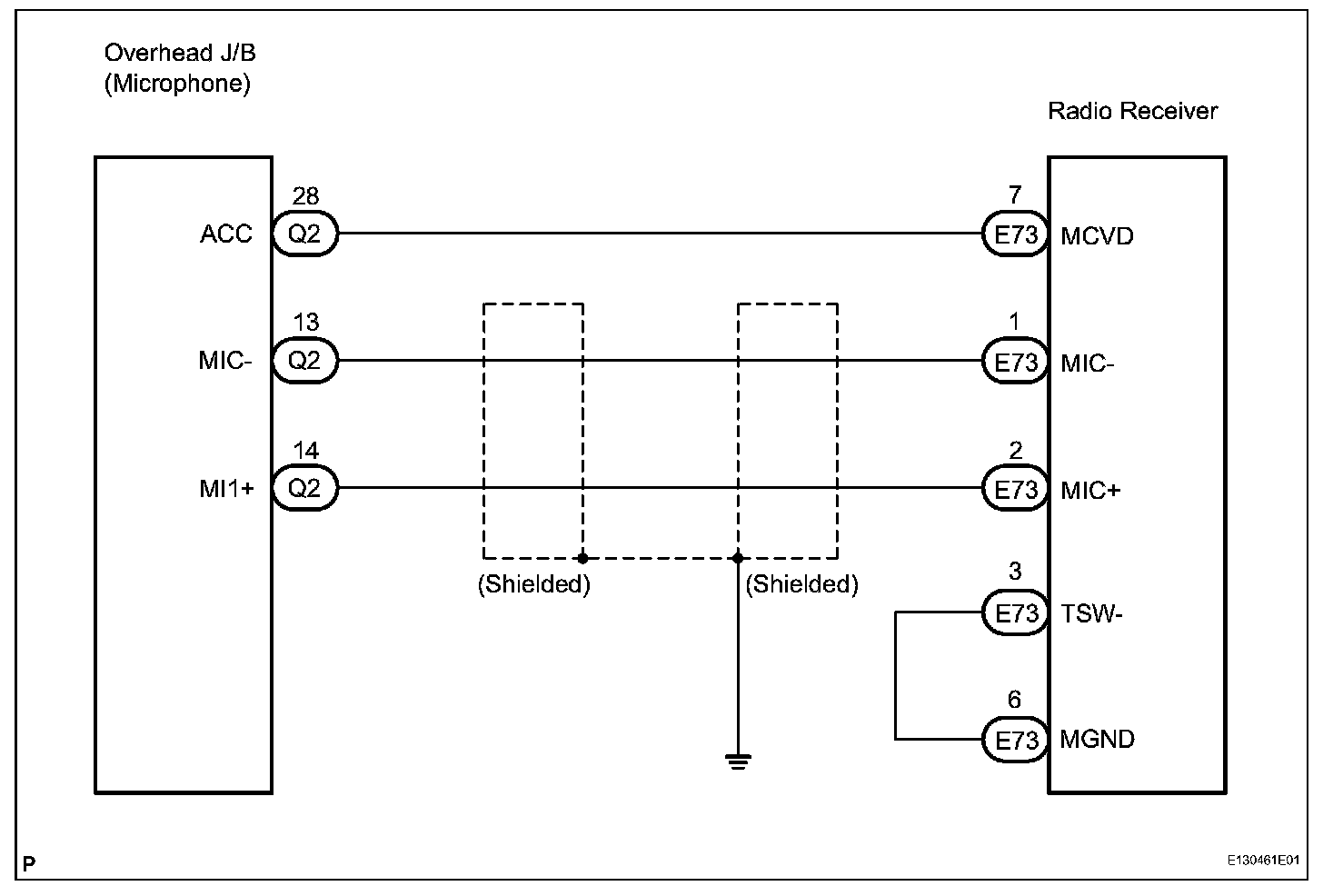

Wiring Diagram:

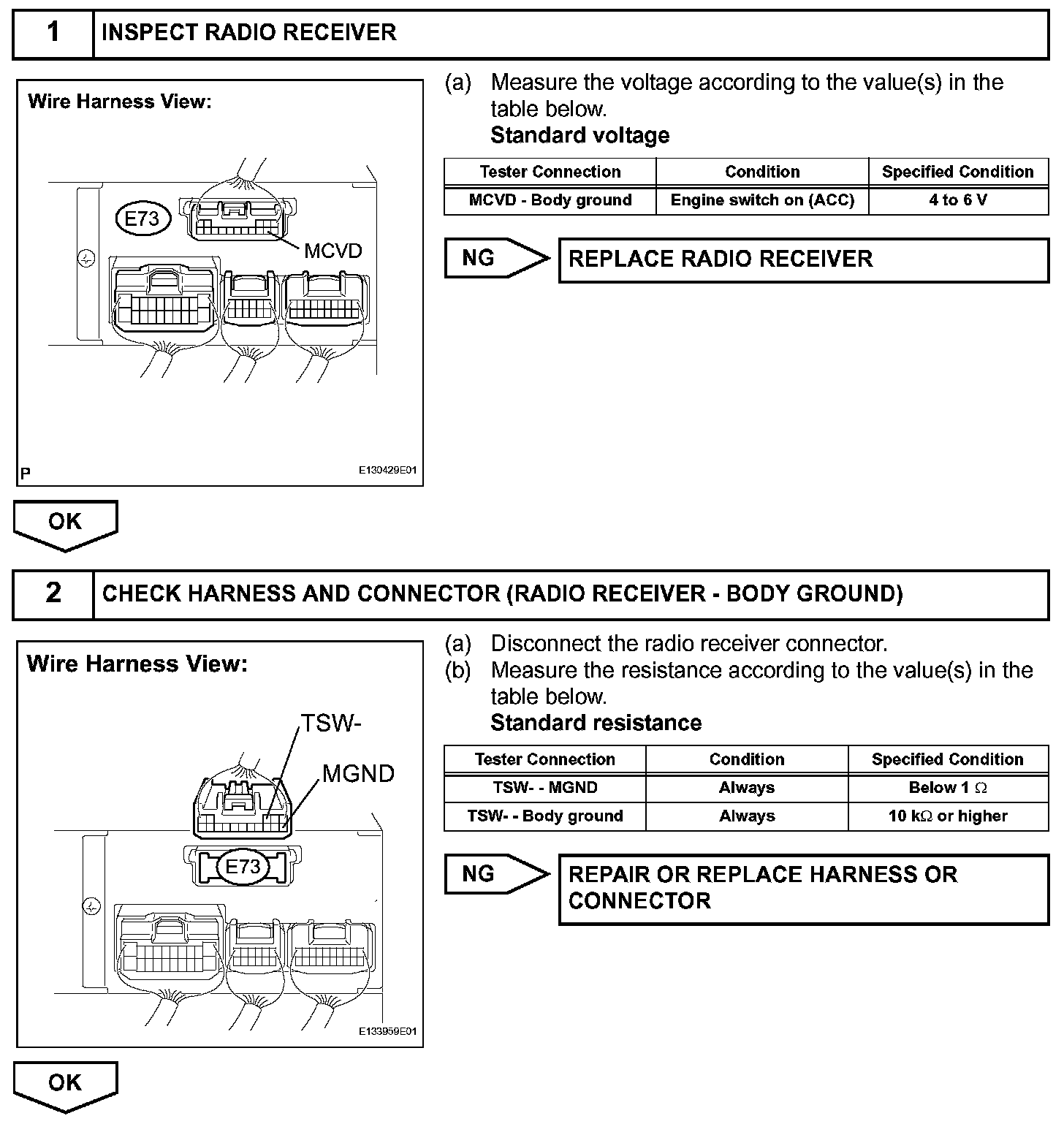

Step 1-2:

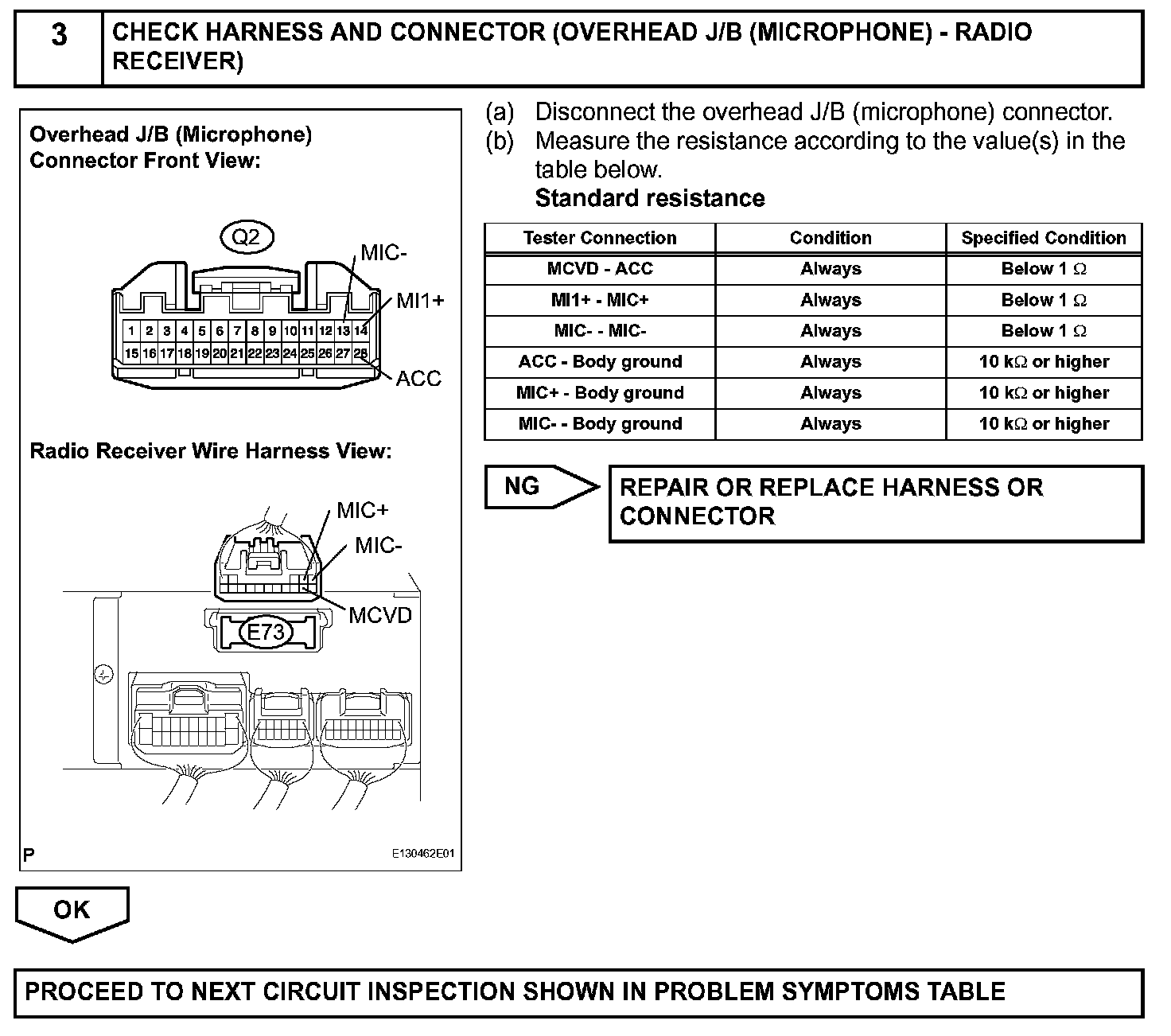

Step 3:
INSPECTION PROCEDURE
