REAR SIDE SPEAKER

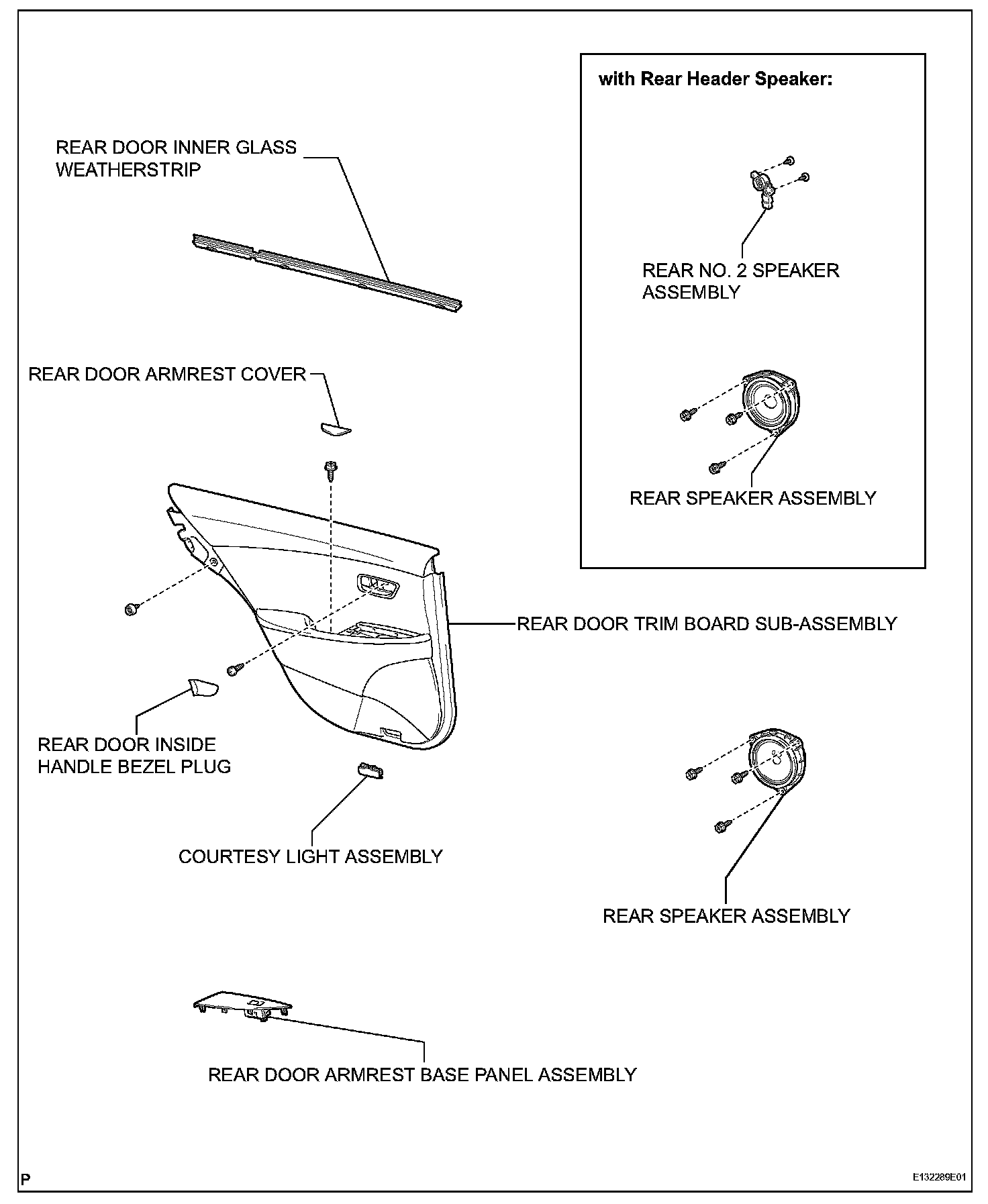

REMOVAL

1. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG
2. REMOVE REAR DOOR ARMREST BASE PANEL ASSEMBLY
3. REMOVE REAR DOOR ARMREST COVER
4. REMOVE COURTESY LIGHT ASSEMBLY
5. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY
6. REMOVE REAR DOOR INNER GLASS WEATHERSTRIP

7. REMOVE REAR SPEAKER ASSEMBLY




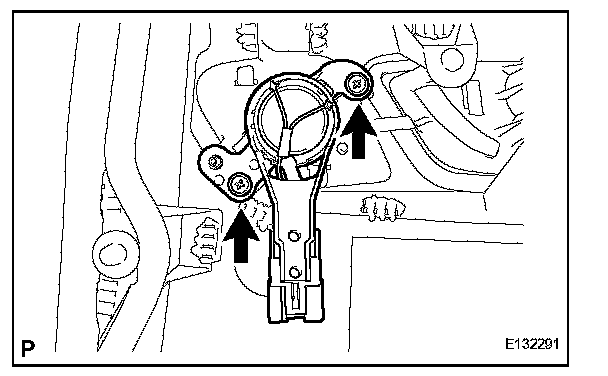

a. Disconnect the connector.
b. Remove the 3 screws and the rear speaker assembly.

NOTE: Do not touch the cone part of the speaker.

8. REMOVE REAR NO. 2 SPEAKER ASSEMBLY (w/ Rear Header Speaker)




a. Remove the 2 screws and the rear No. 2 speaker assembly.

NOTE: Do not touch the cone part of the speaker.

INSTALLATION

1. INSTALL REAR SPEAKER ASSEMBLY




a. Install the rear speaker assembly with the 3 screws.
b. Connect the connector.

2. INSTALL REAR NO. 2 SPEAKER ASSEMBLY (w/ Rear Header Speaker)




a. Install the rear No. 2 speaker assembly with the 2 screws.

3. INSTALL REAR DOOR INNER GLASS WEATHERSTRIP
4. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY
5. INSTALL COURTESY LIGHT ASSEMBLY
6. INSTALL REAR DOOR ARMREST COVER
7. INSTALL REAR DOOR ARMREST BASE PANEL ASSEMBLY
8. INSTALL REAR DOOR INSIDE HANDLE BEZEL PLUG
