Rear Center Speaker

Rear Center Speaker:

REAR CENTER SPEAKER

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (w/ Rear Seat Side Airbag)

CAUTION: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment.

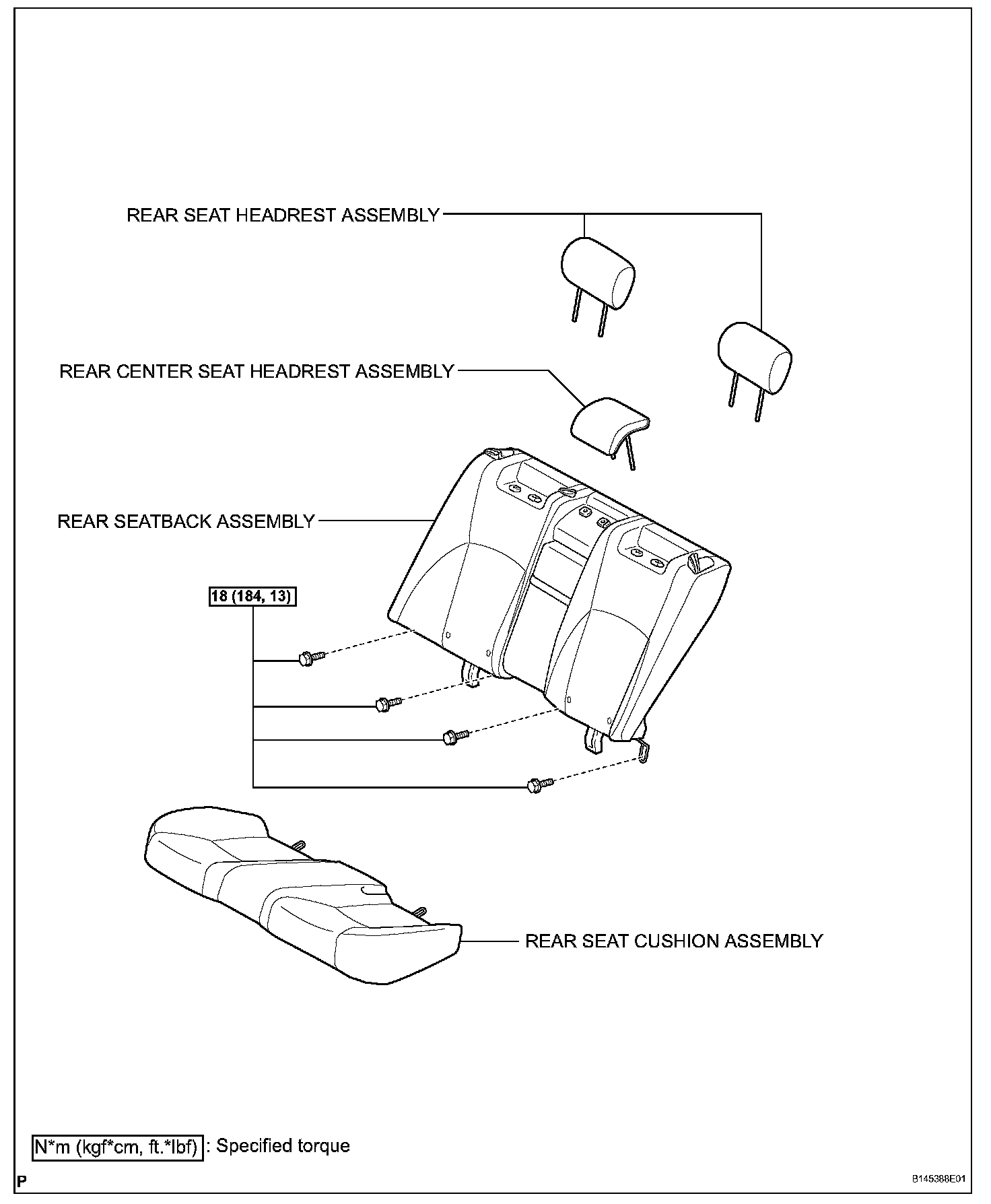

2. REMOVE REAR SEAT CUSHION ASSEMBLY
3. REMOVE REAR SEAT HEADREST ASSEMBLY
4. REMOVE REAR CENTER SEAT HEADREST ASSEMBLY
5. REMOVE REAR SEATBACK ASSEMBLY
6. REMOVE REAR DOOR SCUFF PLATE LH
7. REMOVE REAR DOOR SCUFF PLATE RH
8. REMOVE REAR SEAT SIDE GARNISH LH (w/o Rear Seat Side Airbag)
9. REMOVE REAR SEAT SIDE AIRBAG ASSEMBLY LH (w/ Rear Seat Side Airbag)
10. REMOVE REAR SEAT SIDE GARNISH RH (w/o Rear Seat Side Airbag)
11. REMOVE REAR SEAT SIDE AIRBAG ASSEMBLY RH (w/ Rear Seat Side Airbag)

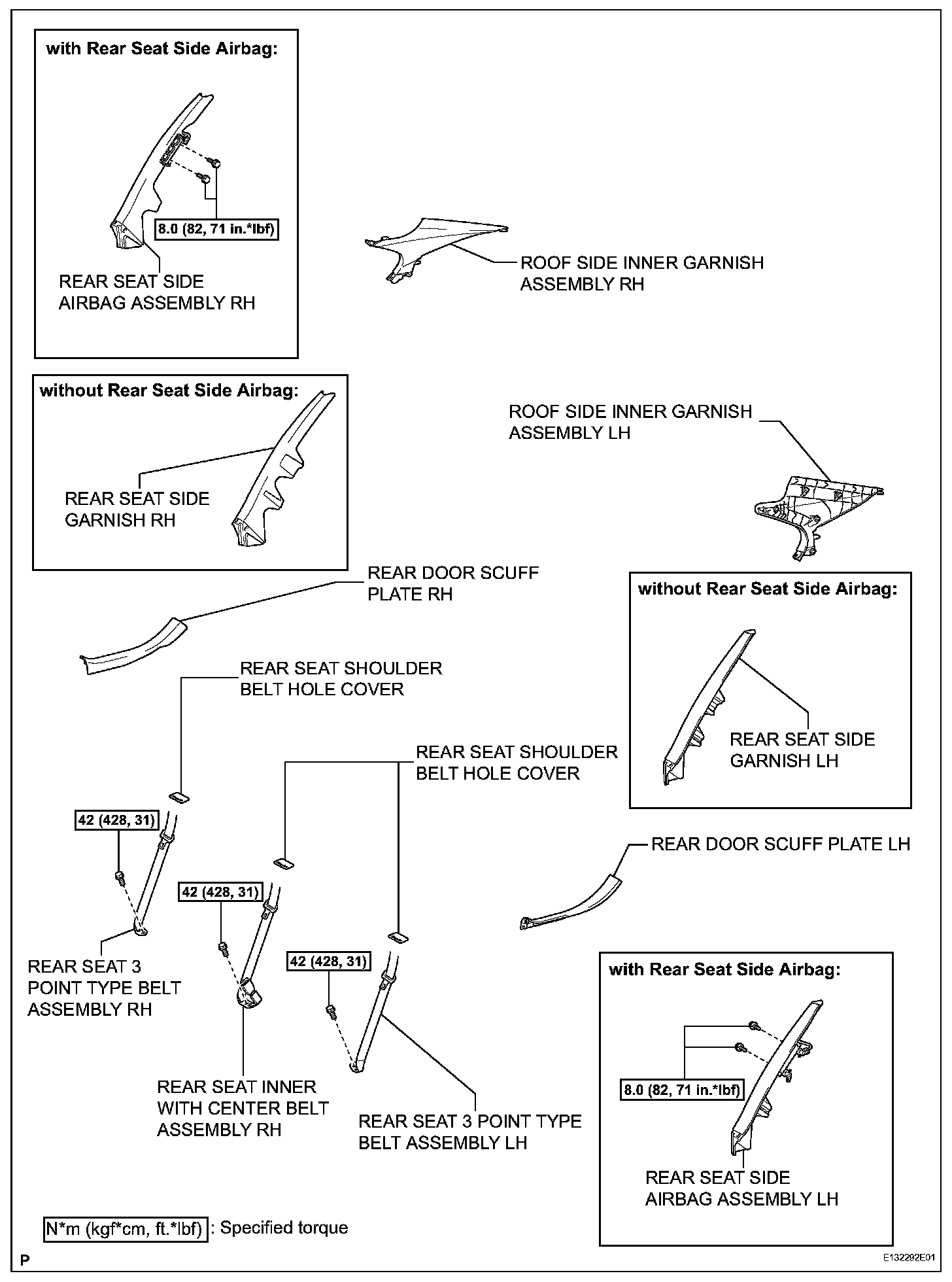

12. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH
13. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH
14. REMOVE REAR SEAT SHOULDER BELT HOLE COVER
15. DISCONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH
16. DISCONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH
17. DISCONNECT REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH
18. REMOVE CENTER STOP LIGHT SET
19. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/o Rear Sunshade)
20. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Rear Sunshade)
21. REMOVE NO. 2 PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Rear Sunshade)

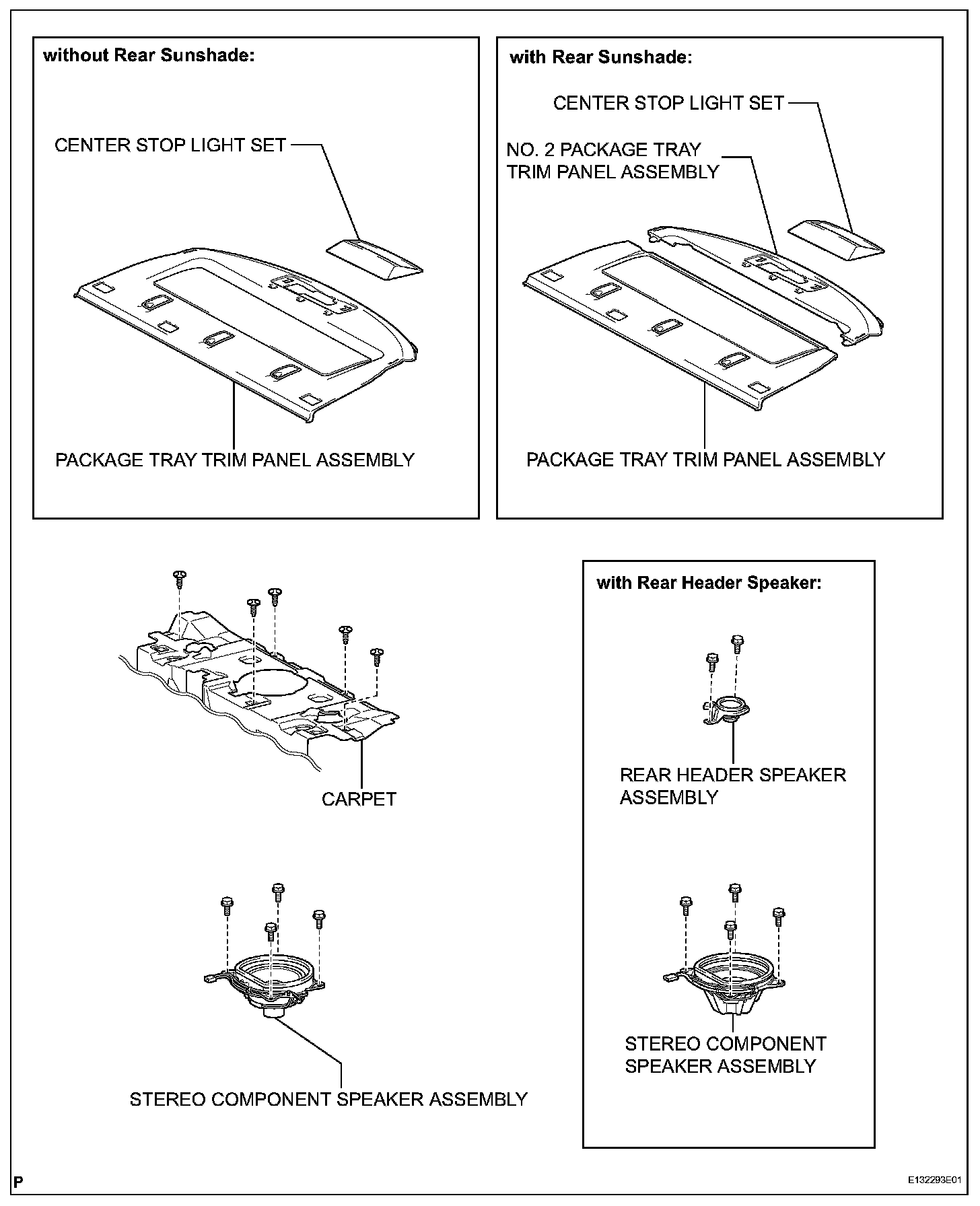

22. REMOVE STEREO COMPONENT SPEAKER ASSEMBLY

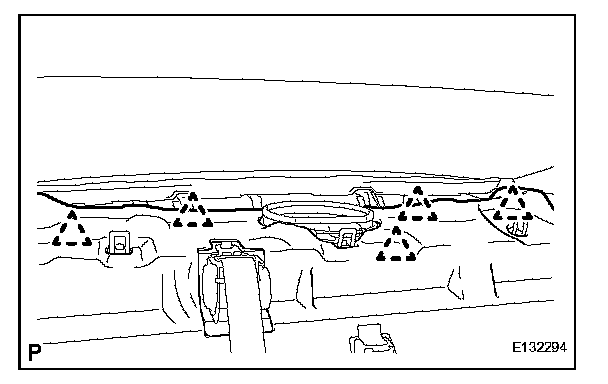

a. Remove the 5 clips and turn back the carpet toward the front of the vehicle.

b. Disconnect the connector.
c. Remove the 4 bolts and stereo component speaker assembly.

NOTE: Do not touch the cone part of the speaker.

23. REMOVE REAR HEADER SPEAKER ASSEMBLY (w/ Rear Header Speaker)

a. Disconnect the connector.
b. Remove the 2 bolts and the rear header speaker assembly.

NOTE: Do not touch the cone part of the speaker.

INSTALLATION

1. INSTALL REAR HEADER SPEAKER ASSEMBLY (w/ Rear Header Speaker)

a. Install the rear header speaker assembly with the 2 bolts.
b. Connect the connector.

2. INSTALL STEREO COMPONENT SPEAKER ASSEMBLY

a. Install the stereo component speaker assembly with the 4 bolts.
b. Connect the connector.

c. Install the carpet with the 5 clips.

3. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (w/o Rear Sunshade)
4. INSTALL NO. 2 PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Rear Sunshade)
5. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Rear Sunshade)
6. INSTALL CENTER STOP LIGHT SET
7. INSTALL REAR SEAT SHOULDER BELT HOLE COVER
8. CONNECT REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH
9. CONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH
10. CONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH
11. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY LH
12. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY RH
13. INSTALL REAR SEAT SIDE GARNISH LH (w/o Rear Seat Side Airbag)
14. INSTALL REAR SEAT SIDE AIRBAG ASSEMBLY LH (w/ Rear Seat Side Airbag)
15. INSTALL REAR SEAT SIDE GARNISH RH (w/o Rear Seat Side Airbag)
16. INSTALL REAR SEAT SIDE AIRBAG ASSEMBLY RH (w/ Rear Seat Side Airbag)
17. INSTALL REAR DOOR SCUFF PLATE LH
18. INSTALL REAR DOOR SCUFF PLATE RH
19. INSTALL REAR SEATBACK ASSEMBLY
20. INSTALL REAR CENTER SEAT HEADREST ASSEMBLY
21. INSTALL REAR SEAT HEADREST ASSEMBLY
22. INSTALL REAR SEAT CUSHION ASSEMBLY
23. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (w/ Rear Seat Side Airbag)
23. PERFORM INITIALIZATION (w/ Rear Seat Side Airbag)

NOTE: Some systems need initialization after reconnecting the cable to the negative battery terminal.

25. INSPECT SRS WARNING LIGHT (w/ Rear Seat Side Airbag)
