Front Side Speaker

Front Side Speaker:

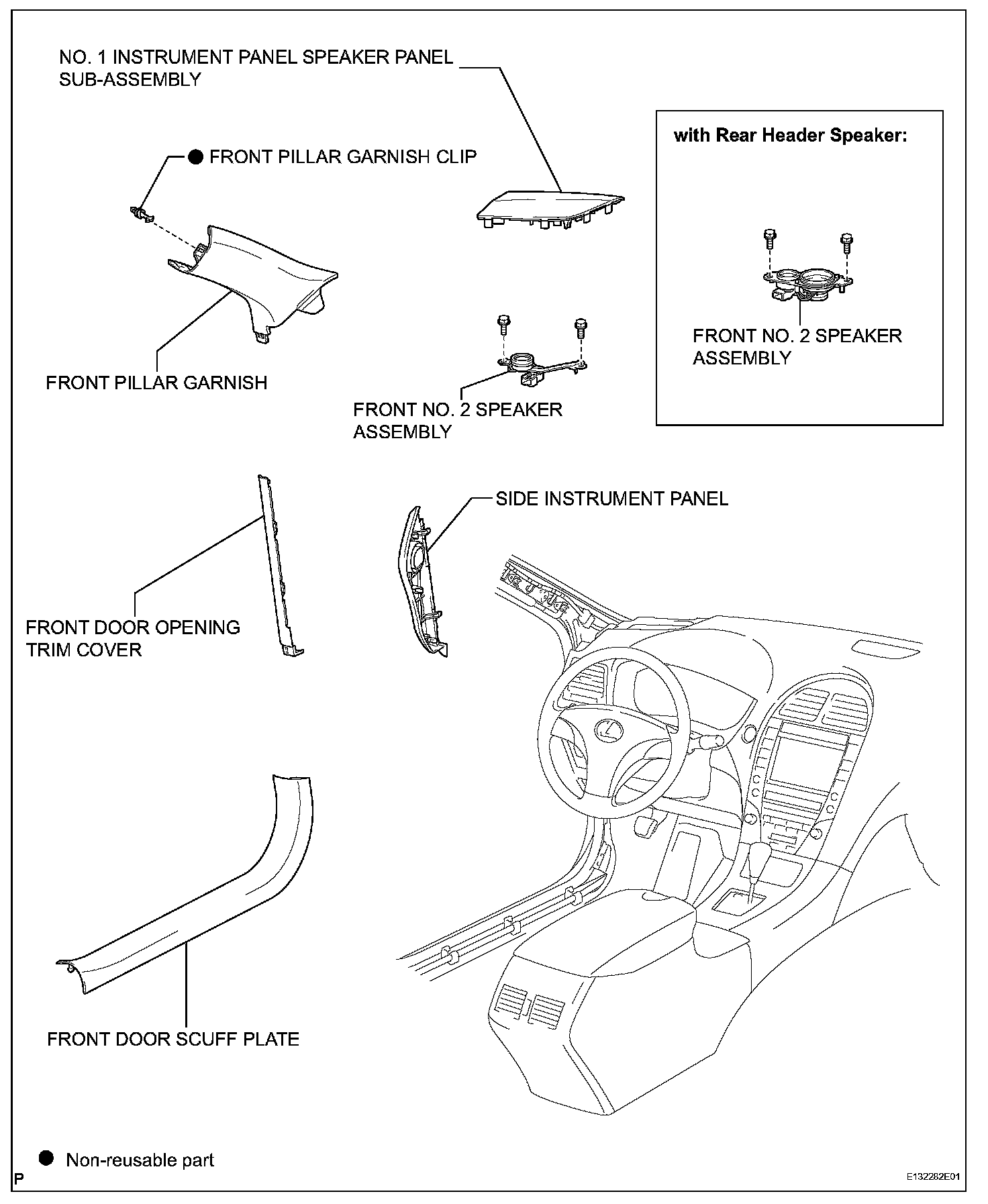

FRONT SIDE SPEAKER

REMOVAL

1. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG
2. REMOVE FRONT DOOR ARMREST BASE PANEL ASSEMBLY
3. REMOVE COURTESY LIGHT ASSEMBLY
4. REMOVE DOOR ARMREST COVER
5. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY
6. REMOVE FRONT DOOR INNER GLASS WEATHERSTRIP

7. REMOVE FRONT NO. 1 SPEAKER ASSEMBLY

a. Disconnect the connector.

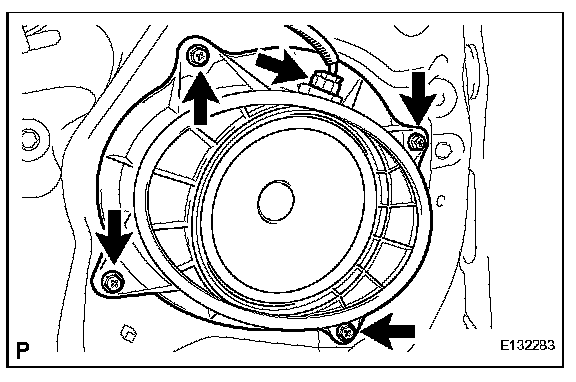

b. Remove the 4 screws and front No. 1 speaker assembly.

NOTE: Do not touch the cone part of the speaker.

8. REMOVE FRONT DOOR SCUFF PLATE
9. REMOVE FRONT DOOR OPENING TRIM COVER
10. REMOVE SIDE INSTRUMENT PANEL
11. REMOVE FRONT PILLAR GARNISH

12. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY

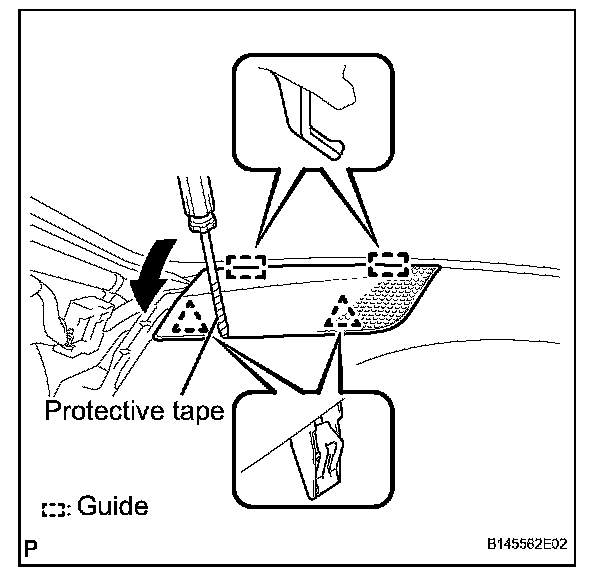

a. Using a screwdriver, disengage the 2 clips.

HINT: Tape the screwdriver tip before use.

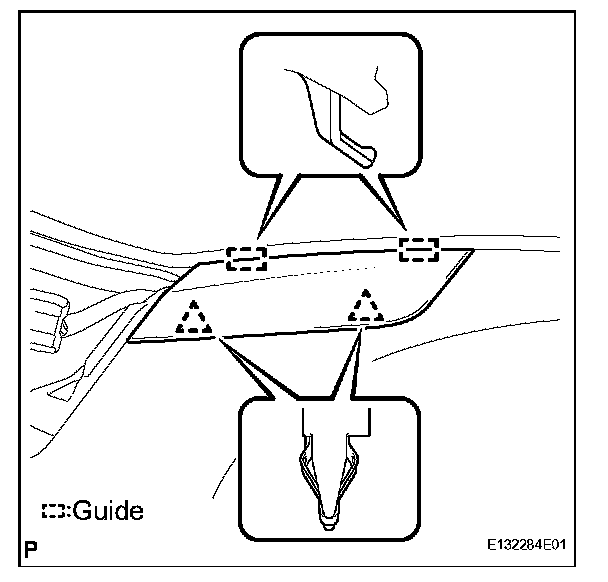

b. Disengage the 2 guides and remove the No. 1 instrument panel speaker panel sub-assembly.

13. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY

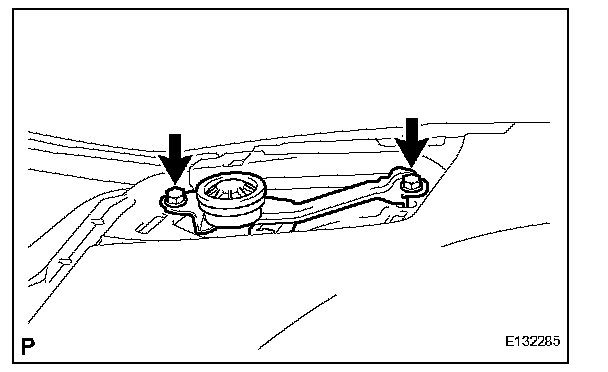

a. Remove the 2 bolts and front No. 2 speaker assembly.
b. Lift the front No. 2 speaker assembly and disconnect the connector to remove the front No. 2 speaker assembly.

NOTE: Do not touch the cone part of the speaker.

INSTALLATION

1. INSTALL FRONT NO. 1 SPEAKER ASSEMBLY

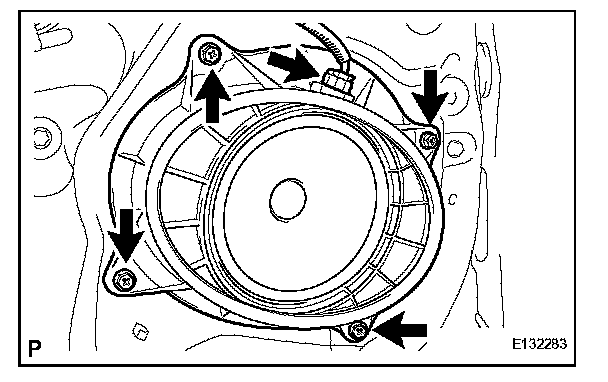

a. Install the front No. 1 speaker assembly with the 4 screws.
b. Connect the connector.

2. INSTALL FRONT DOOR INNER GLASS WEATHERSTRIP
3. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY
4. INSTALL COURTESY LIGHT ASSEMBLY
5. INSTALL DOOR ARMREST COVER
6. INSTALL FRONT DOOR ARMREST BASE PANEL ASSEMBLY
7. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG

8. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY

a. Connect the connector.

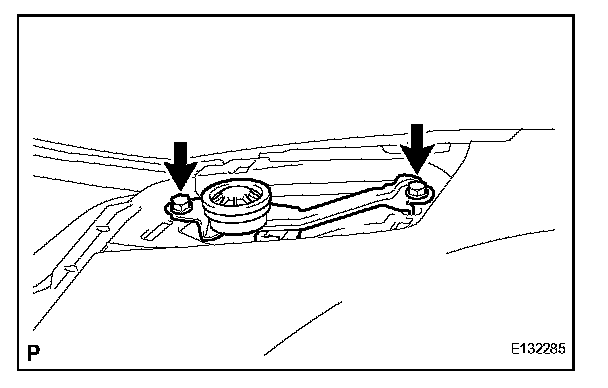

b. Install the front No. 2 speaker assembly with the 2 bolts.

9. INSTALL NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY

a. Engage the 2 guides.
b. Engage the 2 clips and install the No. 1 instrument panel speaker panel sub-assembly.

10. INSTALL FRONT PILLAR GARNISH
11. INSTALL SIDE INSTRUMENT PANEL
12. INSTALL FRONT DOOR OPENING TRIM COVER
13. INSTALL FRONT DOOR SCUFF PLATE
