Front Center Speaker

Front Center Speaker:

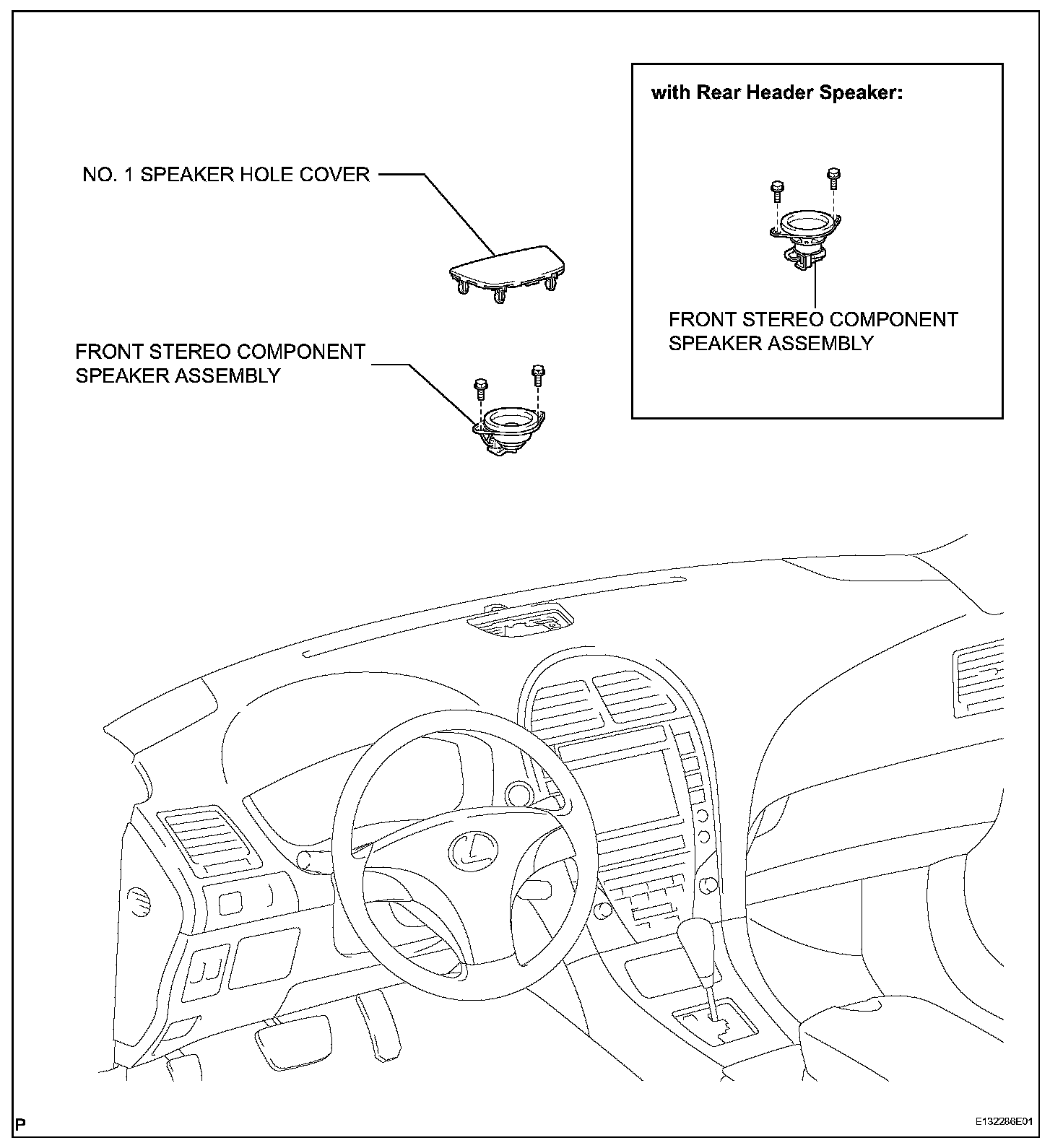

FRONT CENTER SPEAKER

REMOVAL

1. REMOVE NO. 1 SPEAKER HOLE COVER

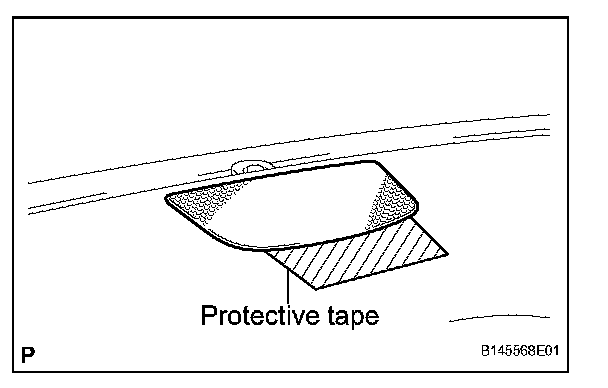

a. Apply protective tape to the area given in the illustration.

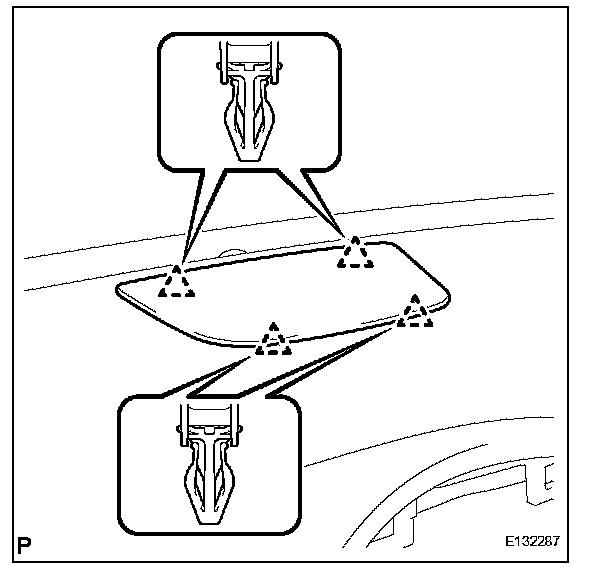

b. Using a molding remover, disengage the 4 clips and remove the No. 1 speaker hole cover.

2. REMOVE FRONT STEREO COMPONENT SPEAKER ASSEMBLY

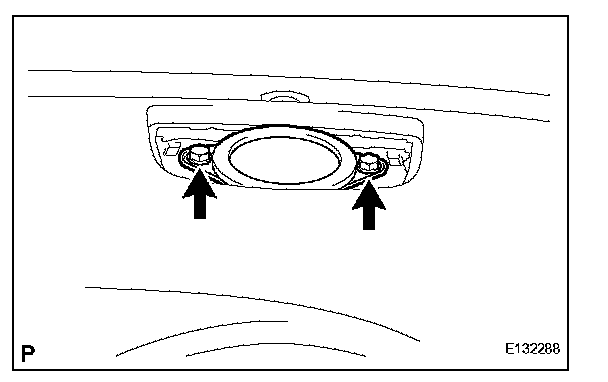

a. Remove the 2 bolts.
b. Lift the front stereo component speaker assembly and disconnect the connector to remove the stereo component speaker assembly.

NOTE: Do not touch the cone part of the speaker.

INSTALLATION

1. INSTALL FRONT STEREO COMPONENT SPEAKER ASSEMBLY




a. Connect the connector.

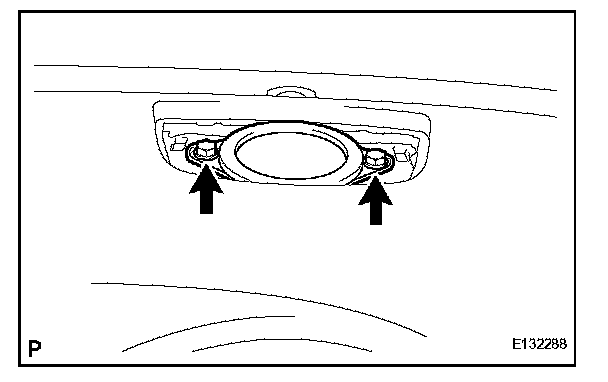

b. Install the front stereo component speaker assembly with the 2 bolts.

2. INSTALL NO. 1 SPEAKER HOLE COVER




a. Engage the 4 clips and install the No. 1 speaker hole cover.
