Garage Door Opener Transmitter: Service and Repair

Garage Door Opener Switch:

GARAGE DOOR OPENER SWITCH

REMOVAL

1. REMOVE ROOF CONSOLE BOX ASSEMBLY

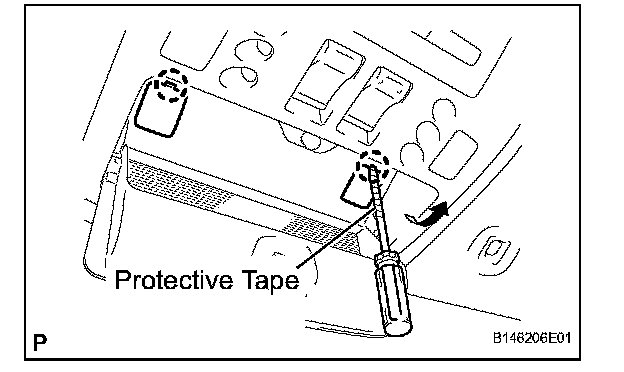

a. Using a screwdriver, disengage the 2 claws and open the 2 covers.

HINT: Tape the screwdriver tip before use.

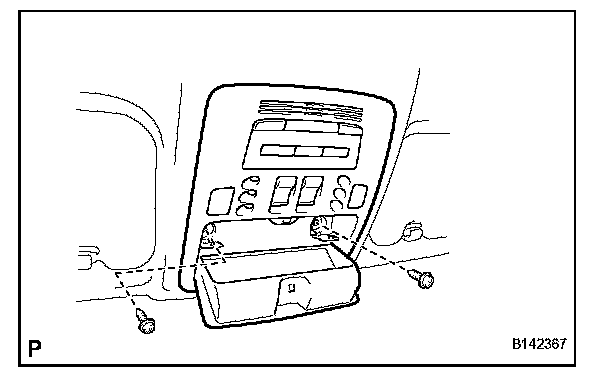

b. Remove the 2 screws.

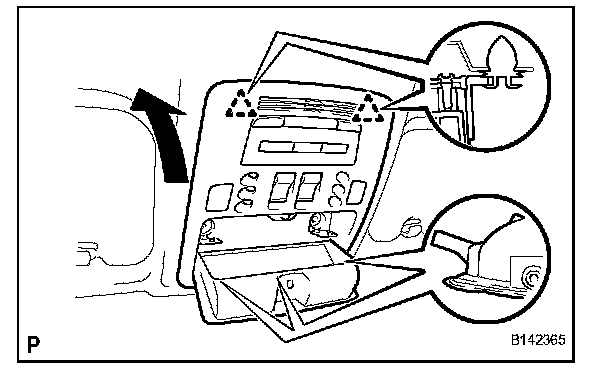

c. Using a moulding remover, disengage the 2 clips.

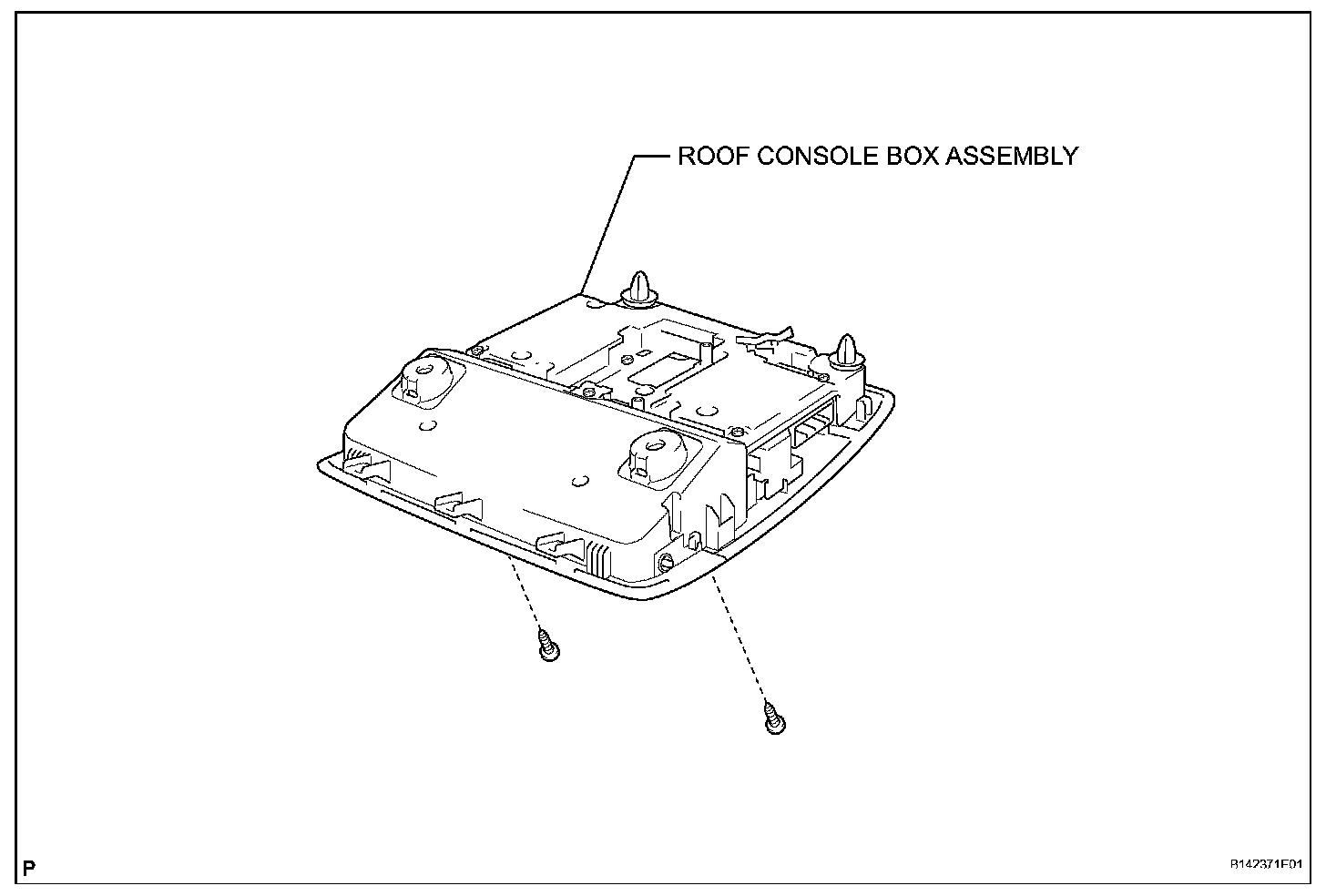

d. Disconnect the connectors and remove the roof console box assembly.

INSTALLATION

1. INSTALL ROOF CONSOLE BOX ASSEMBLY




a. Connect the connectors.

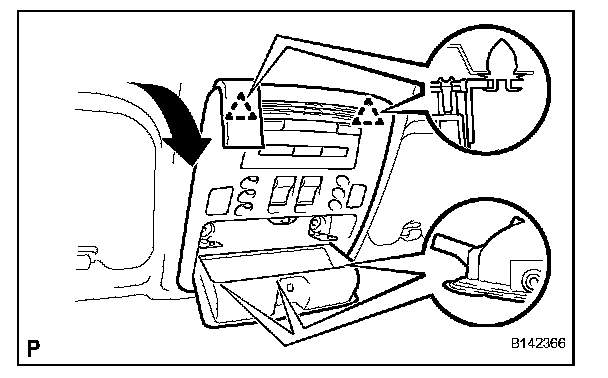

b. Engage the 2 clips and install the console box assembly.

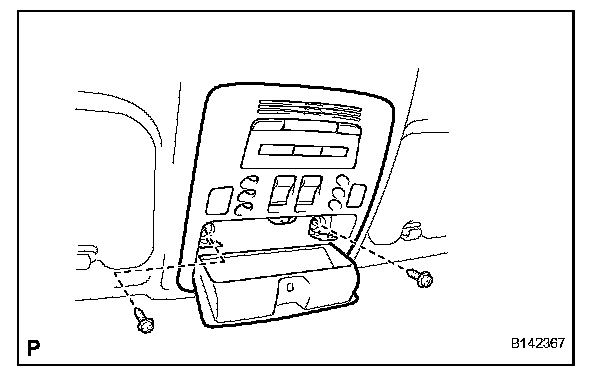

c. Install the 2 screws.




d. Engage the 2 claws and close the 2 covers.
