Rear View Monitor System

Terminals Of Control Module/Pinouts - Television Camera Assembly:

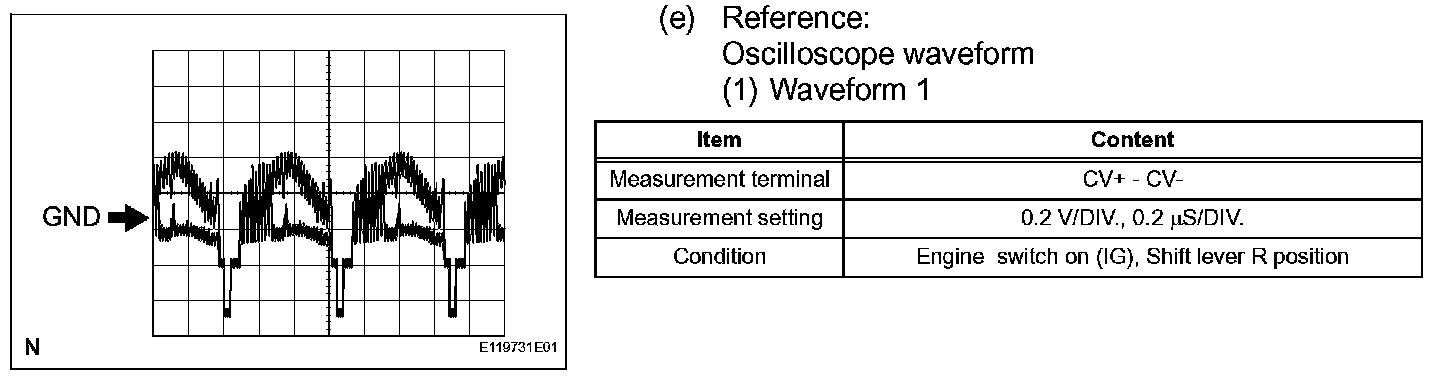

Television Camera Assembly - Oscilloscope Waveform:

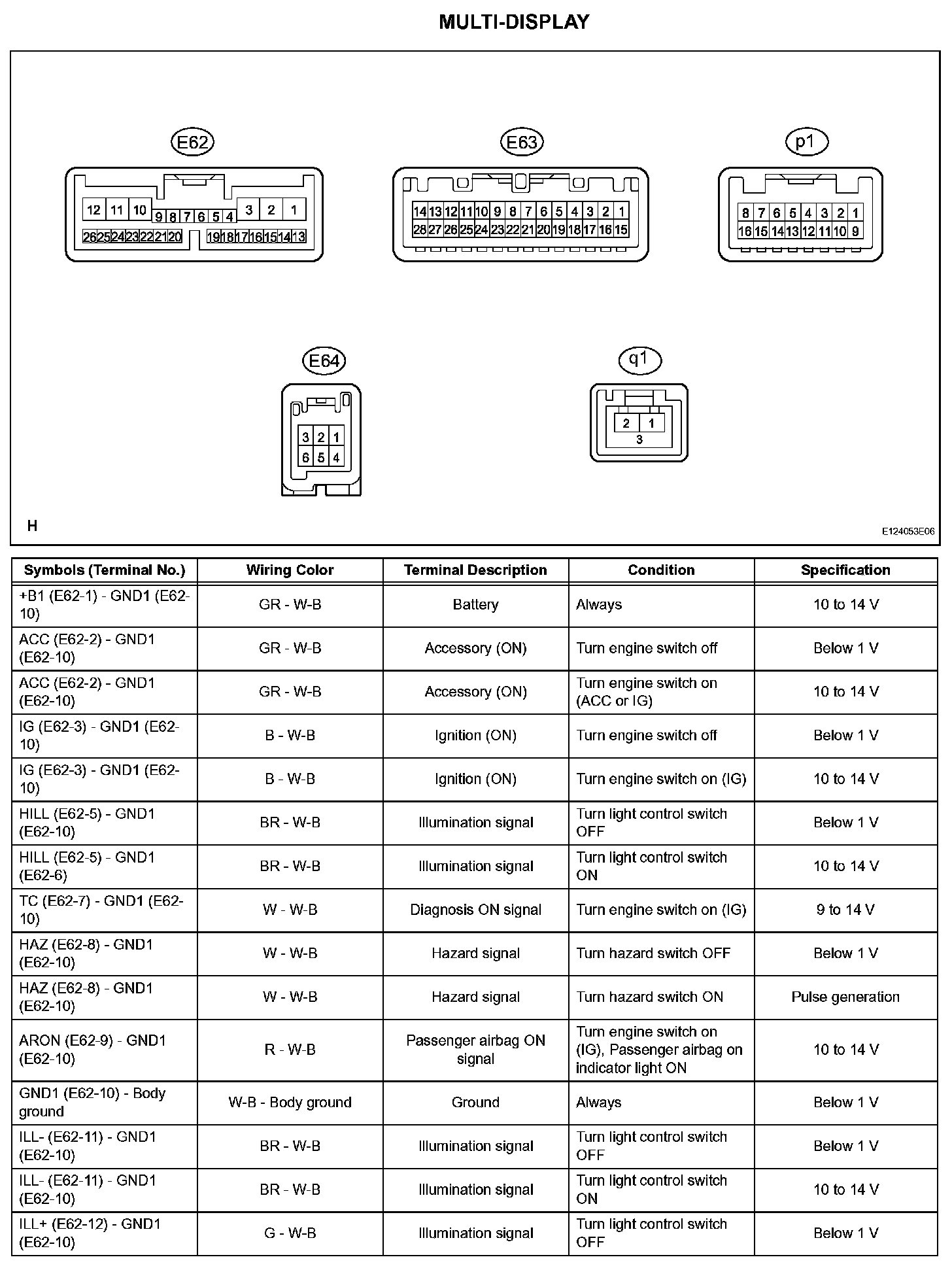

Terminals Of Control Module/Pinouts - Multi-Display (Part 1):

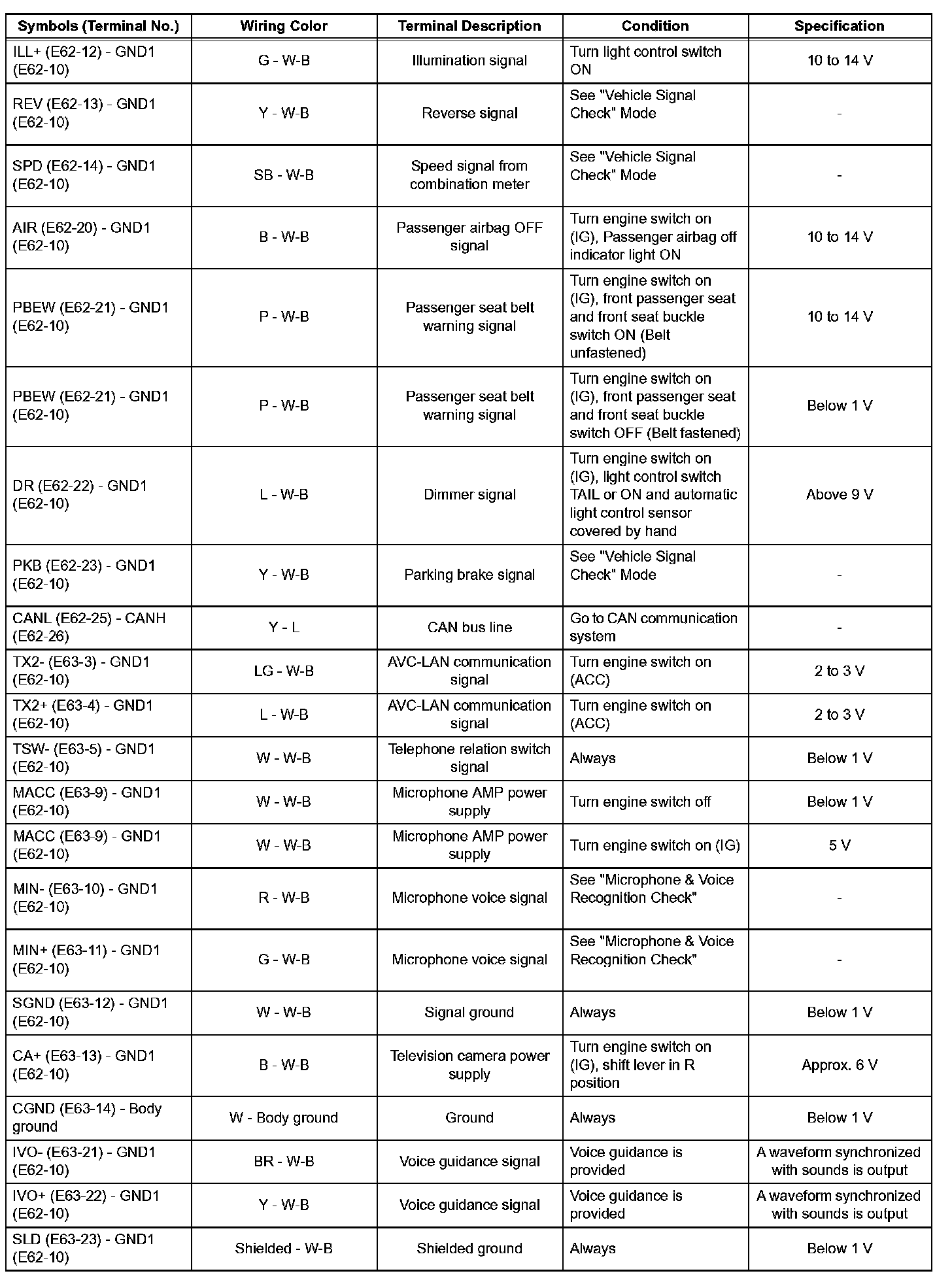

Terminals Of Control Module/Pinouts - Multi-Display (Part 2):

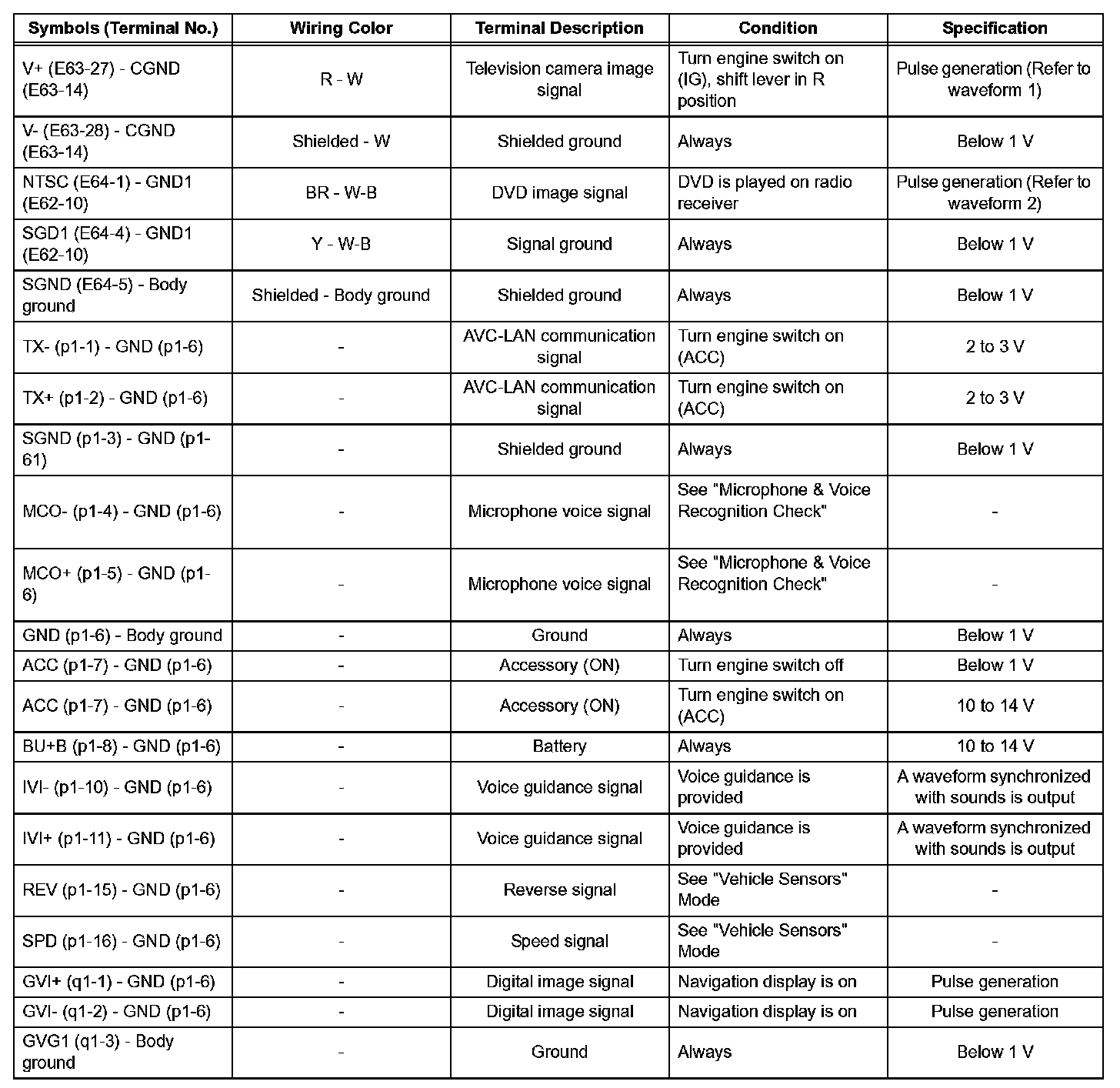

Terminals Of Control Module/Pinouts - Multi-Display (Part 3):
