Intuitive Parking Assist System

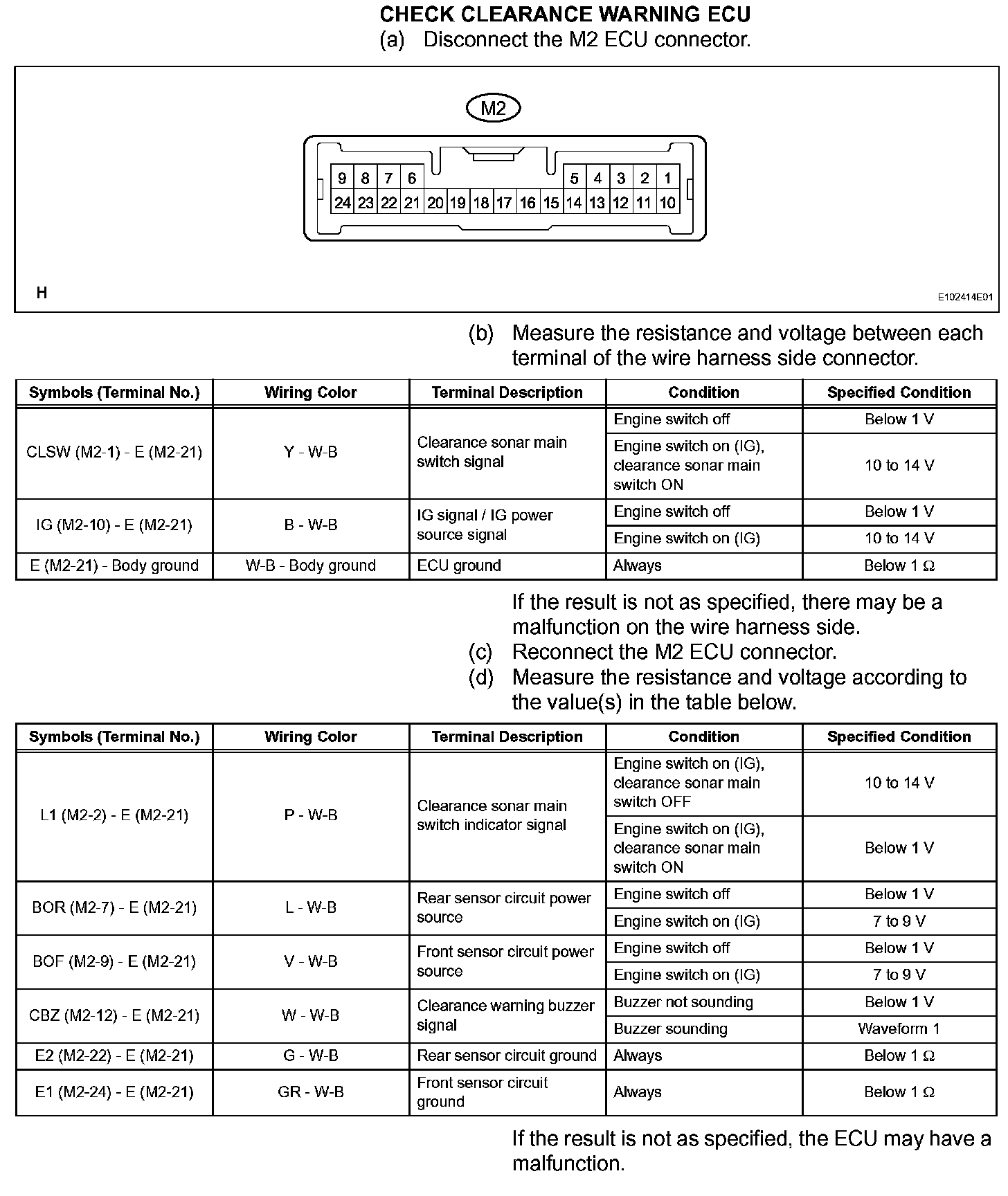

Terminals Of Control Module/Pinouts - Check Clearance Warning ECU:

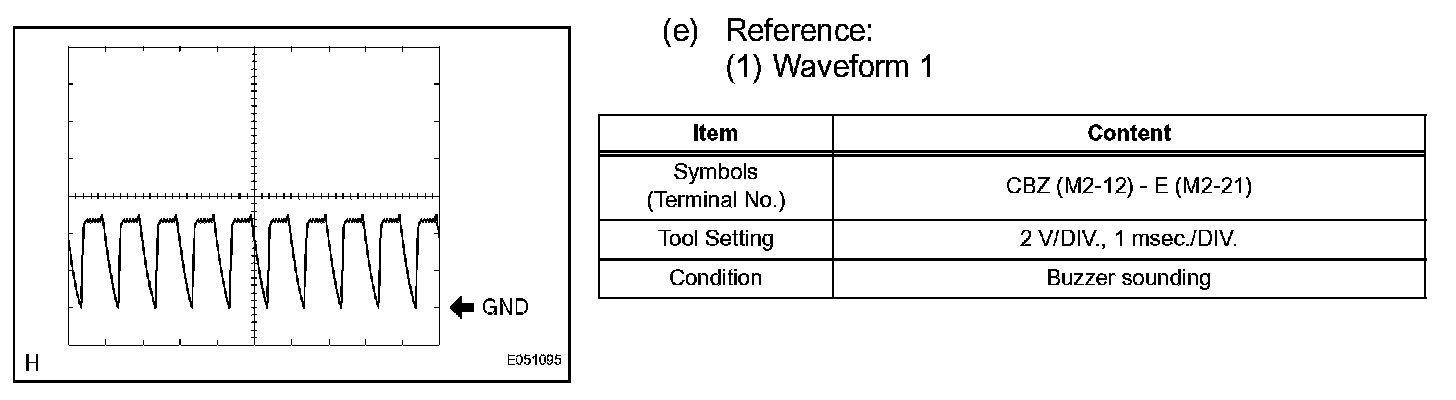

Check Clearance Warning ECU - Oscilloscope Waveform:
