Clearance Warning ECU Power Source Circuit

Clearance Warning ECU Power Source Circuit

DESCRIPTION

This circuit provides power to operate the clearance warning ECU.

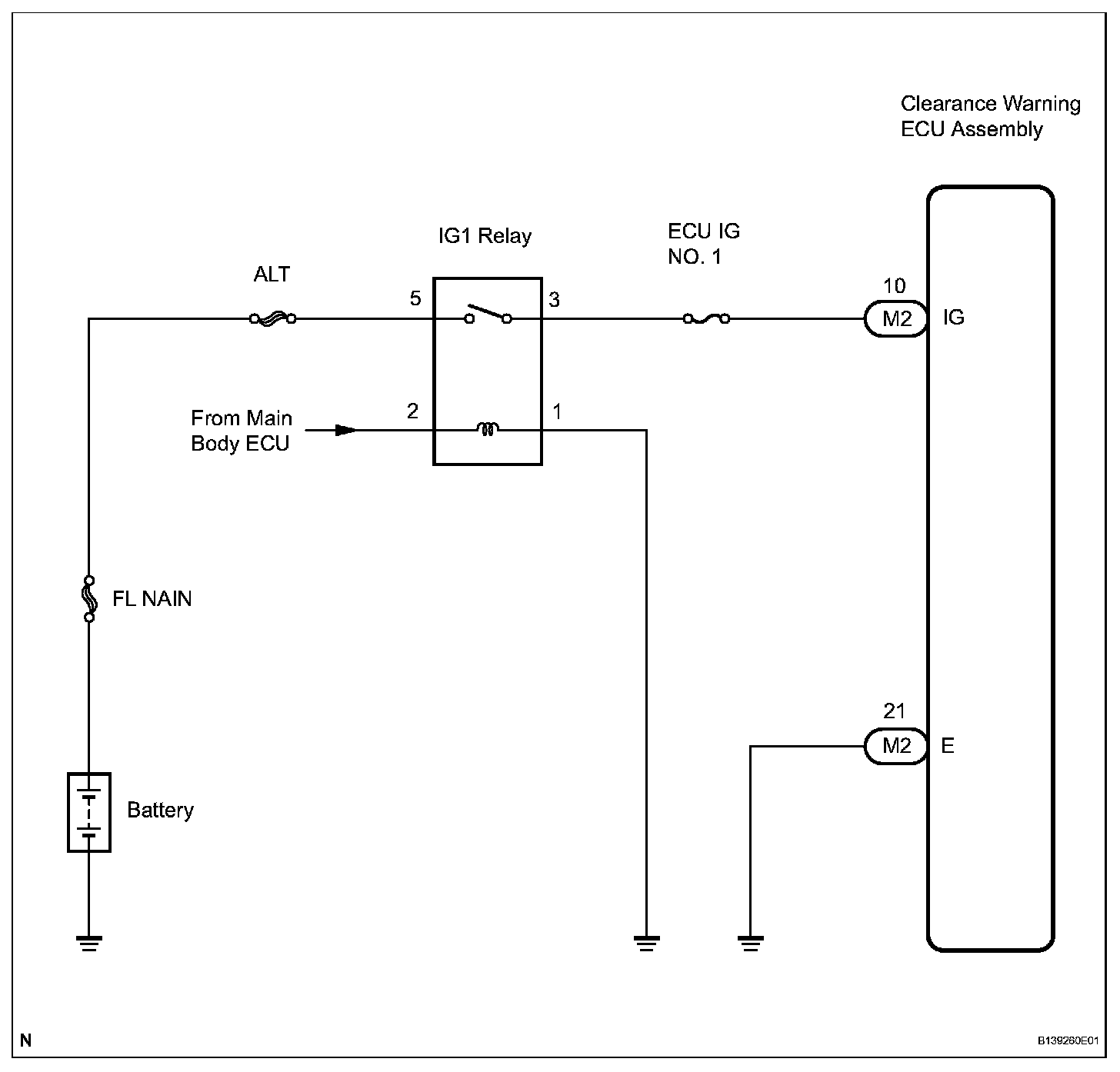

Wiring Diagram:

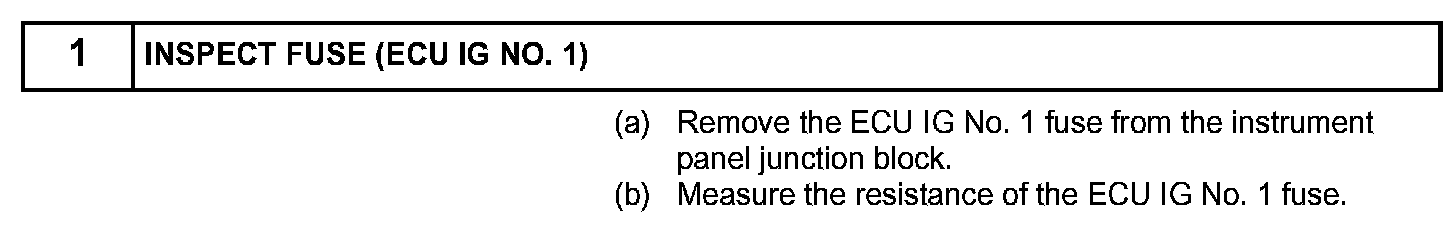

Step 1:

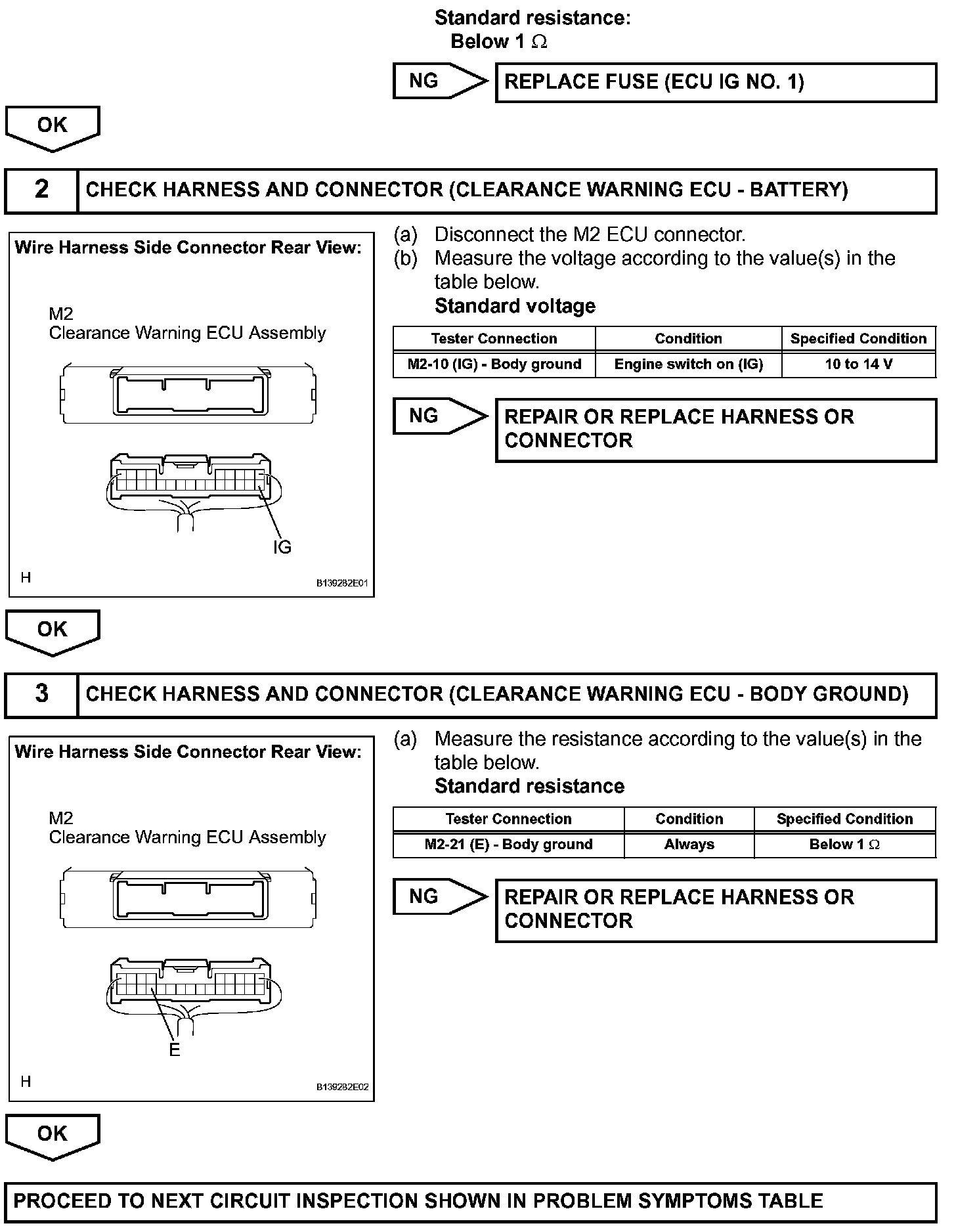

Step 1 (Continued)-3:




INSPECTION PROCEDURE
