Clearance Warning Buzzer Circuit

Clearance Warning Buzzer Circuit

DESCRIPTION

The clearance warning buzzer sounds using by pulse signals sent from the clearance warning ECU assembly. The buzzer sounds to alert the driver and the buzzer frequency changes depending on the distance to an obstacle.

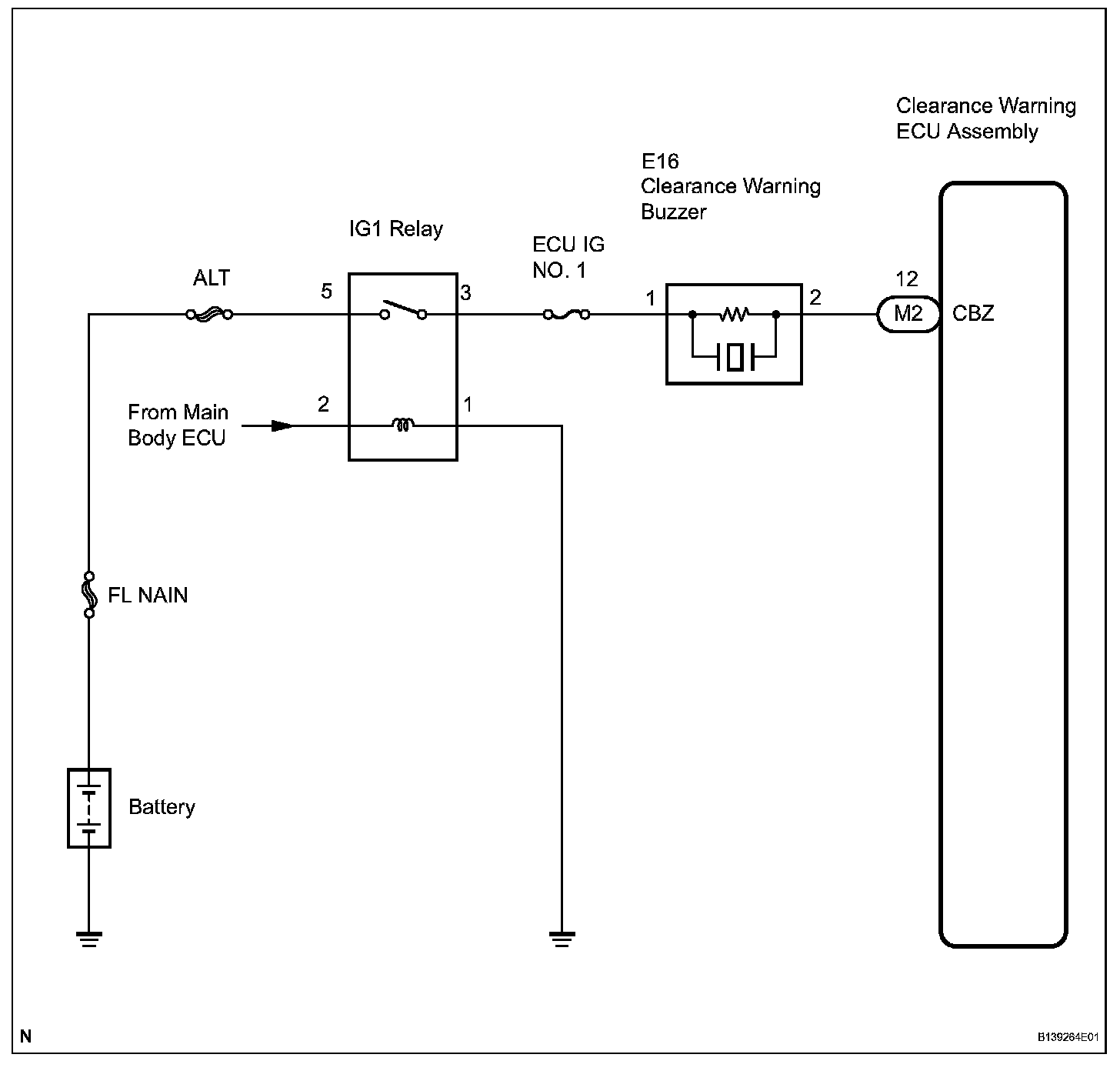

Wiring Diagram:

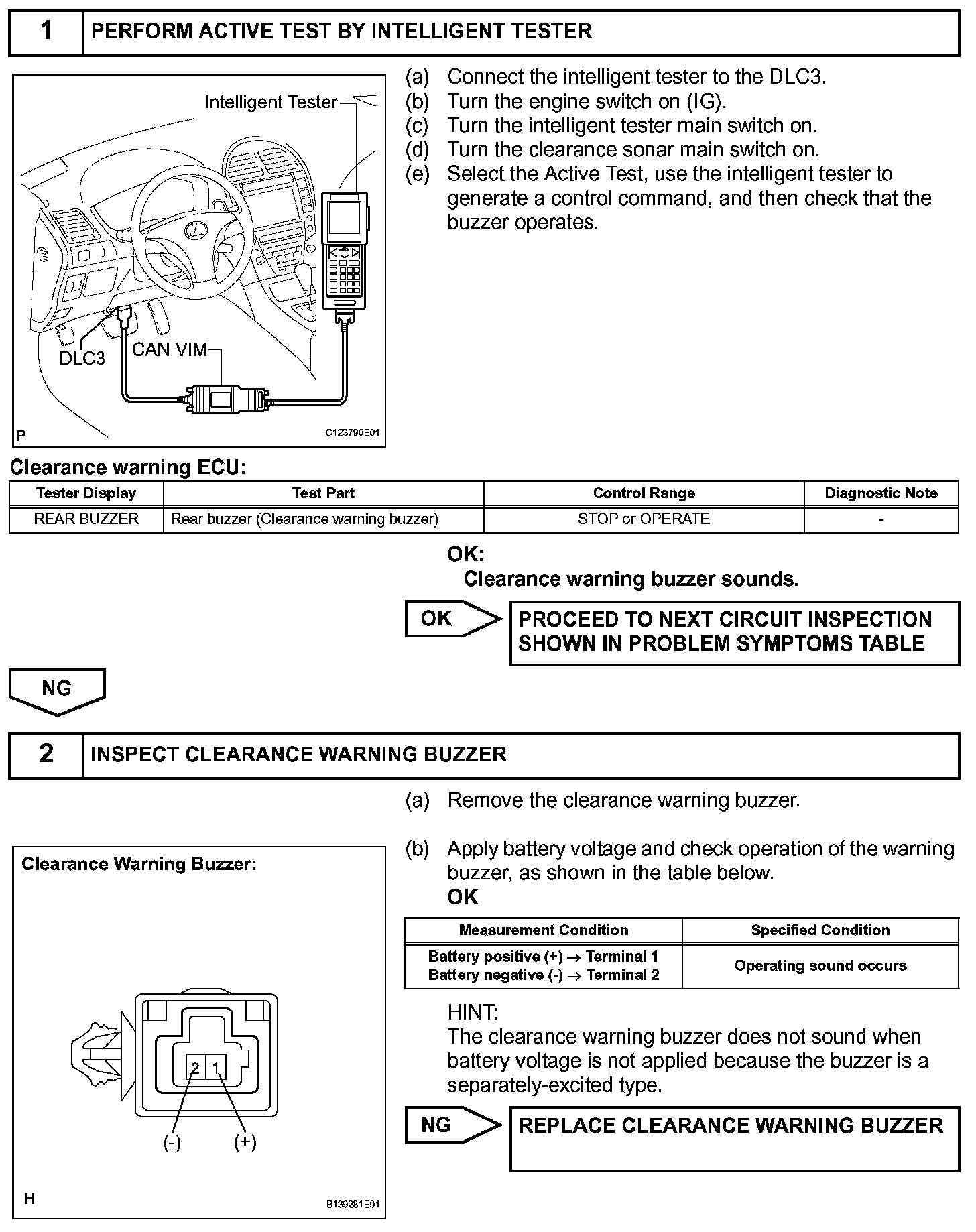

Step 1-2:

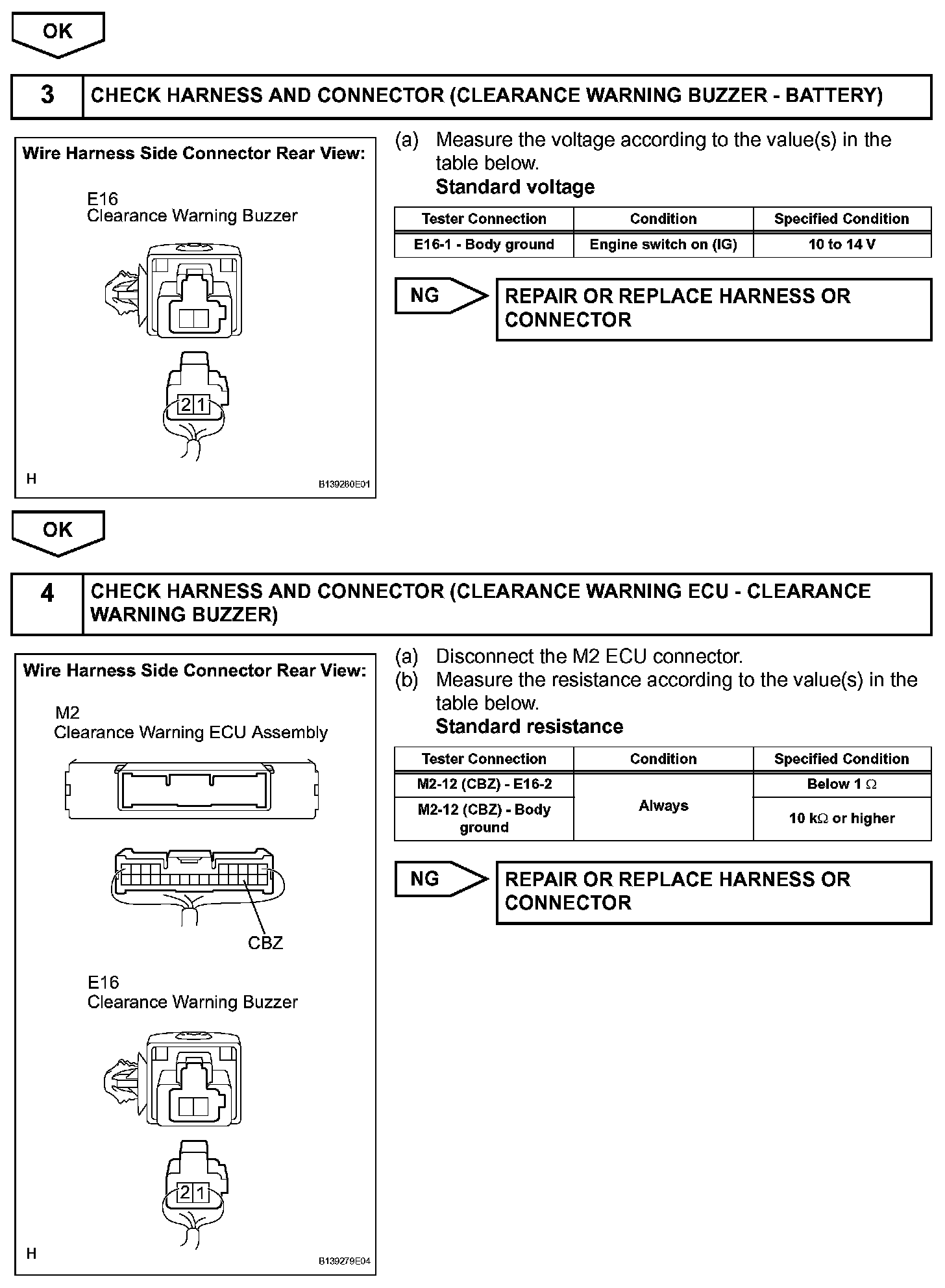

Step 2 (Continued)-4:

Step 4 (Continued):

INSPECTION PROCEDURE
