Wireless Door Lock Control System

CUSTOMIZE PARAMETERS

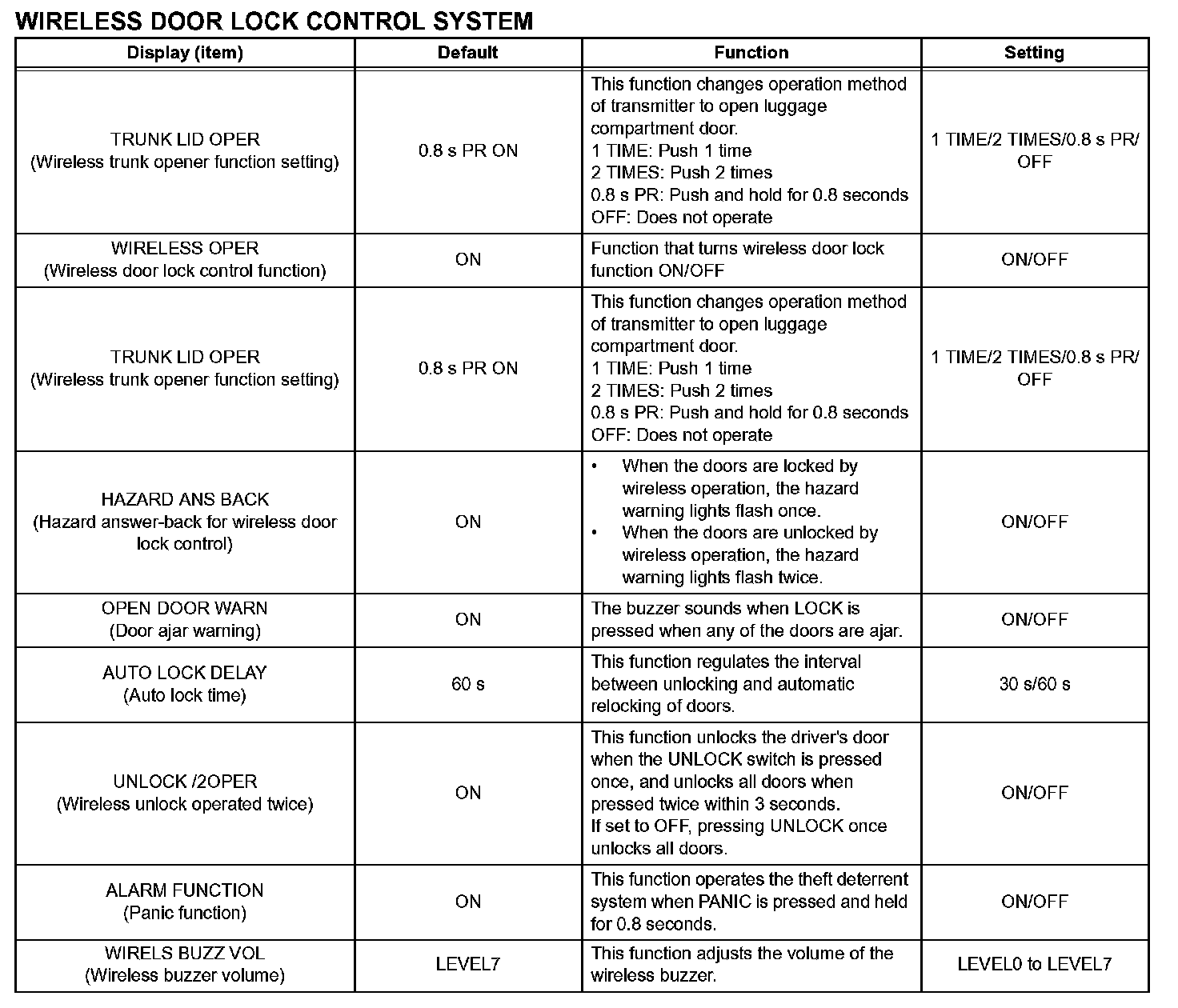

HINT: The following items can be customized.

NOTE:
- After confirming whether the items requested by the customer are applicable or not for customization, perform customizing operations.
- Be sure to record the current settings before customization.
- When troubleshooting, make sure that the item in question is not set to "OFF" as a result of customization (Example: For the symptom, "the wireless function does not operate", first check that the wireless function is not set to "OFF", then perform troubleshooting).

1. CUSTOMIZE




a. Connect the intelligent tester (with CAN VIM) to the DLC3.
b. Turn the engine switch on (IG).
c. Enter the following menus: CUSTOMIZE / INDIVIDUAL CHANGE / WIRELESS D LOCK.
